隐像感知 复星微型建筑博物馆

「在未来，我们是否仍居住于城市却向往著自然生活；抑或我们将离开城市，选择自然环境并建构乌托邦生活？城市与自然之间的平衡关系在过去二十年中发生极大的变化，随著交通方式的提升、城乡网络的串联、数位产品的改变，不管是居住品味或视觉喜好皆发生扁平化的现象，在今日，我们是否仍有必要讨论著差异性的存在？此次展览藉由人文景观与自然环境下的“隐像感知”作为观察点，尝试在扁平化的社会中重新提出一种面对未来的生活方式。」 ─ 洪人杰

"In the future, we will still live in the city but yearn for natural life; or we will leave the city to choose the natural environment and construct an utopian life? The balance between city and nature has changed greatly in the past two decades. With the improvement of transportation, the connection of urban and rural, and the change of digital products, both residential tastes and visual preferences have become flattened. Today, it is still necessary for us to discuss the existence of differences or not? By discussing the ‘Invisible Sensibility’ in our society and natural environment, this exhibition content tries to give another view of living to face the future in this flattened society." ─ Jenchieh Hung

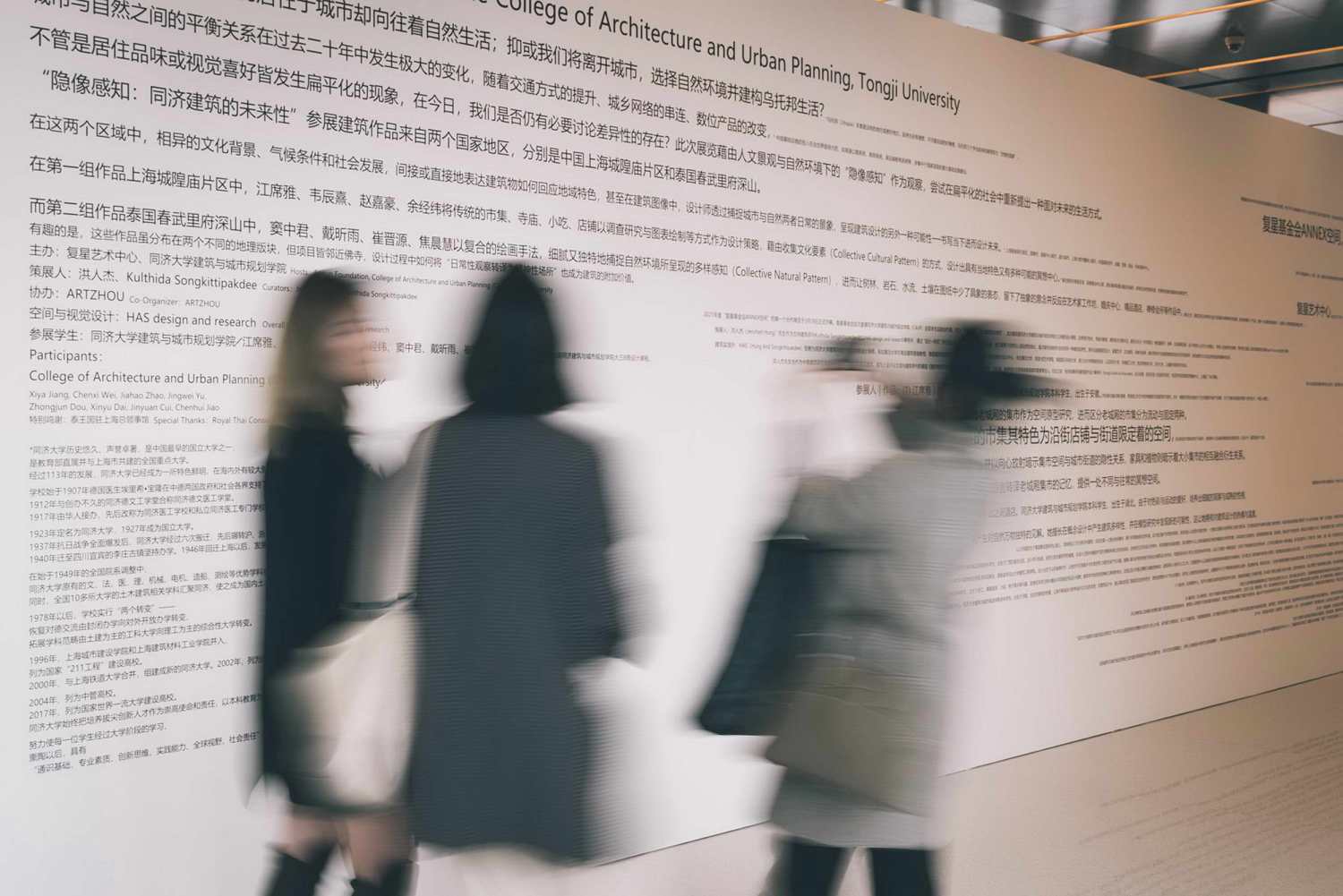

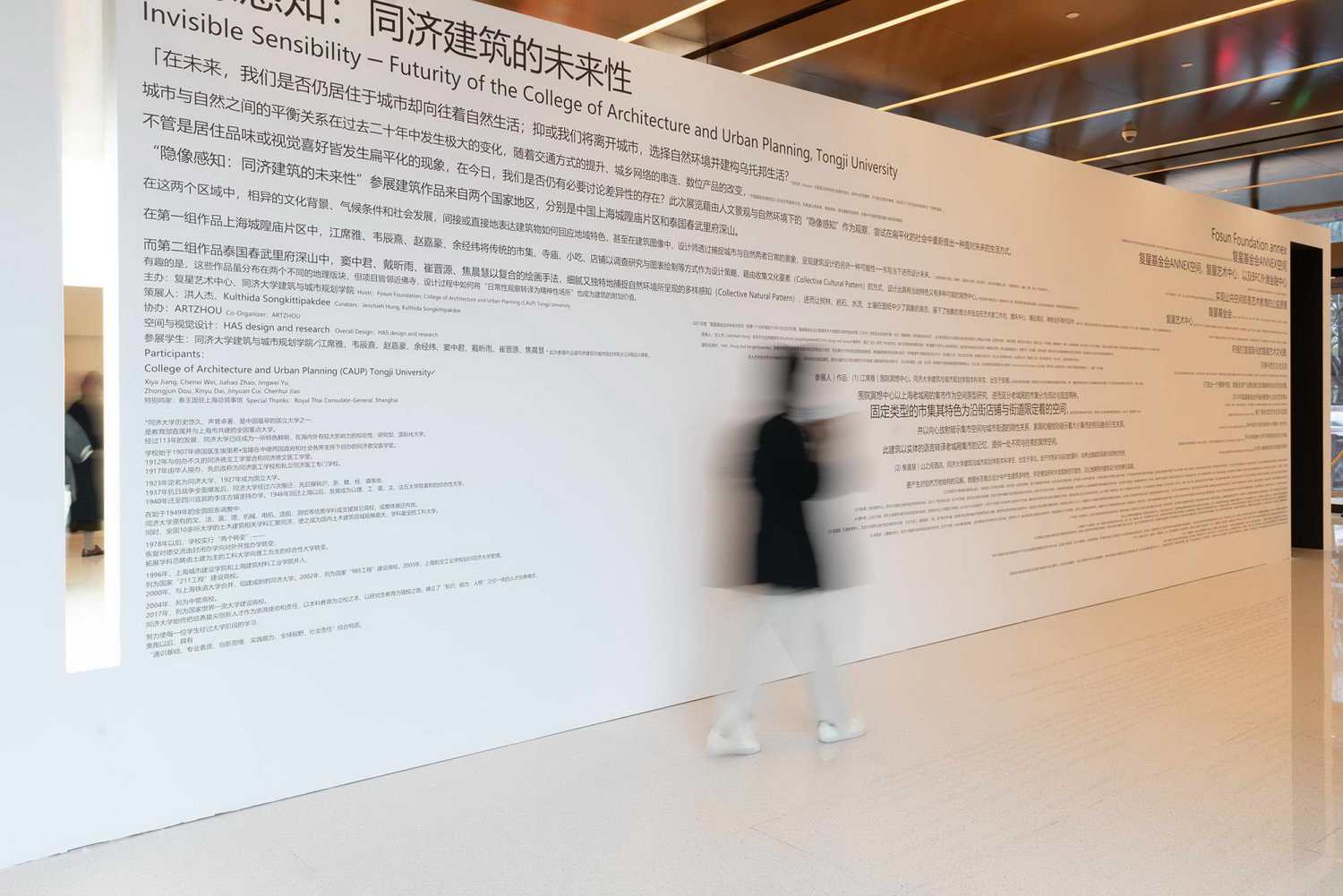

▼隐像感知─复星微型建筑博物馆展现出独特的视觉体验 Texts on the façade show impressive experience

Invisible Sensibility ─ Futurity of the College of Architecture and Urban Planning (CAUP) Tongji University and Fosun Architecture Micromuseum is located in the Bund Finance Center, designed by British architects Foster + Partners and Heatherwick Studio. With stone and brass presenting the opulence and grandeur of Shanghai, these buildings continue the typical façade style of the Bund.

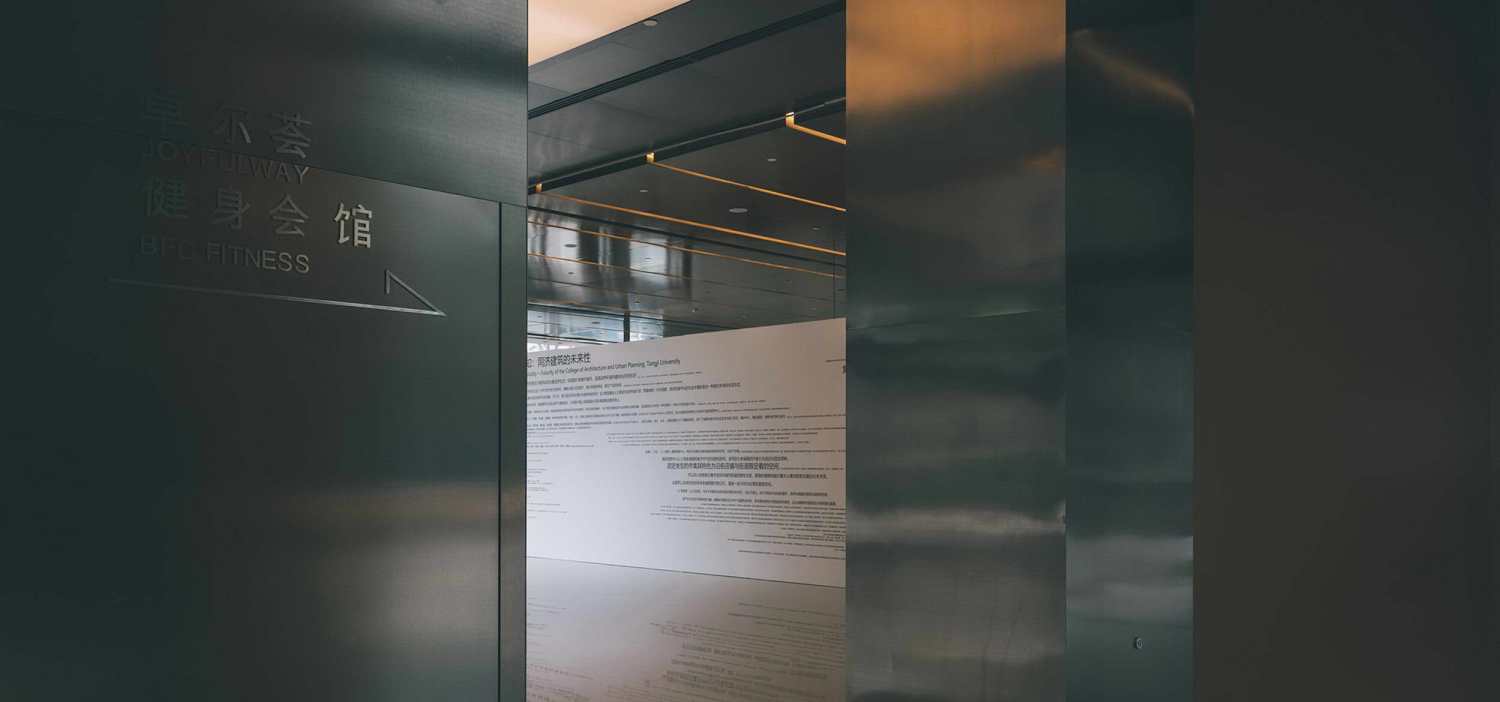

▼“隐像感知：同济建筑的未来性”展览位于上海外滩金融中心S1 Invisible Sensibility ─ Futurity of the CAUP Tongji University located in Bund Finance Center

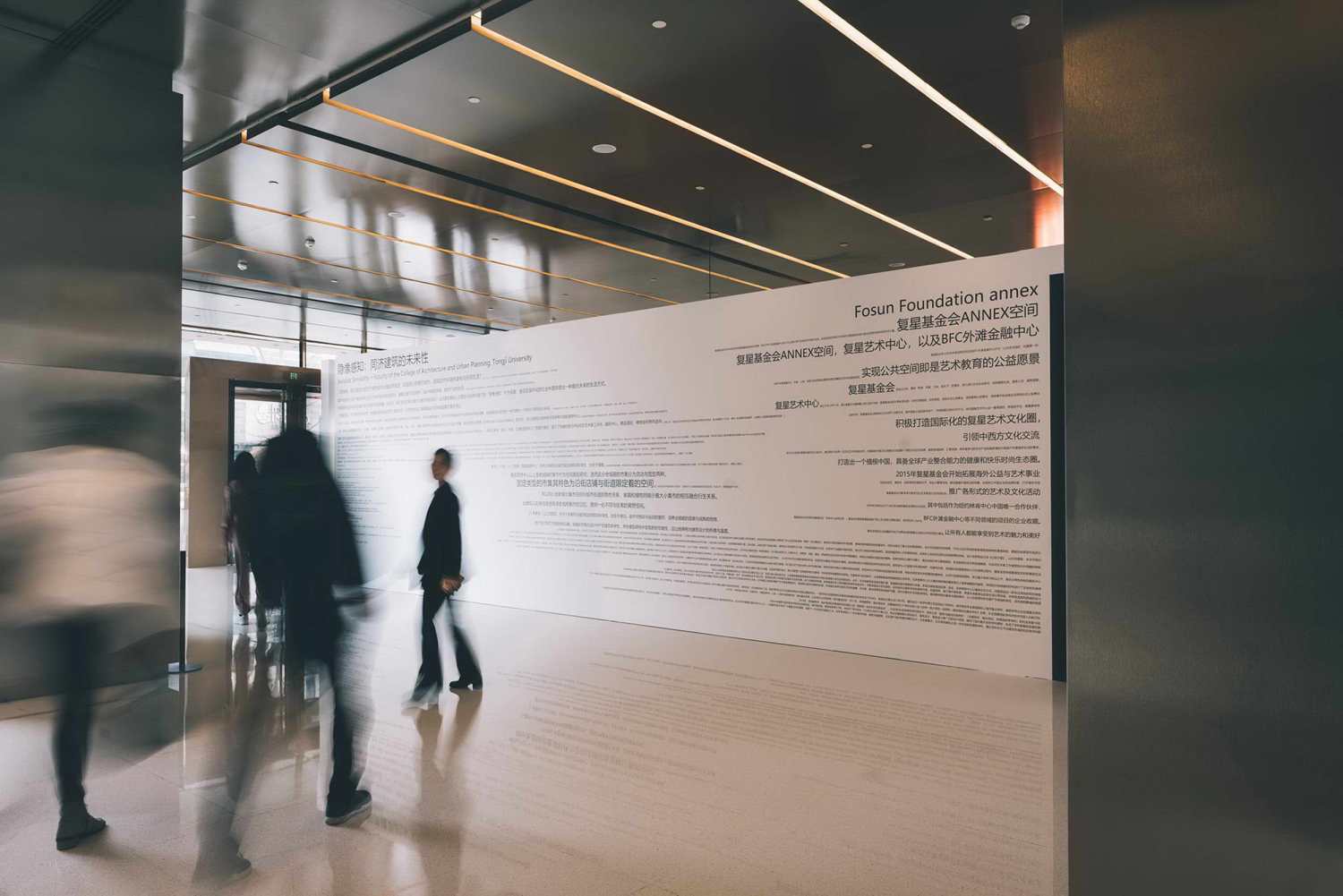

▼方盒子体块替办公大堂提供非日常的到达体验 Box in the office lobby offers non-daily arrival experience

隐像感知─复星微型建筑博物馆由两个L型体块相嵌而成，正面为白色方盒带着两个细长比例的开口，而两个洞口暗示相异方向的轴线，一个提供幽静并带有虫鸣鸟叫声的“暗空间”，另个洞口则隐约看到展览模型的“明空间”。暗明两个空间不约而同在立面上涌现许多文字，以渐变漂浮的形式隐约透露两空间在内外之间的联系，同时将传统展览空间的介绍牌转化成具有标识性的设计。

Invisible Sensibility ─ Fosun Architecture Micromuseum consists of two integrated L-shaped blocks. On the front of the white box, there are two elongated rectangular openings, while the openings suggest two axes in different directions, with one providing a quiet 'dark space' with music of insects and birds, and the other a 'light space' where the models of the exhibition are discernible. The dark and light spaces coincide with a number of texts springing up on the façade, in the form of a gradual floating pattern that implicitly reveals the connection between the two spaces, both inside and outside, as well as transforming the traditional display boards of the exhibition into an iconic design.

▼细长开口并带著虫鸣鸟叫声的“暗空间” ‘Dark Space’ with narrow opening and sounds of insects and birds｜Photo: Chenxi Wei

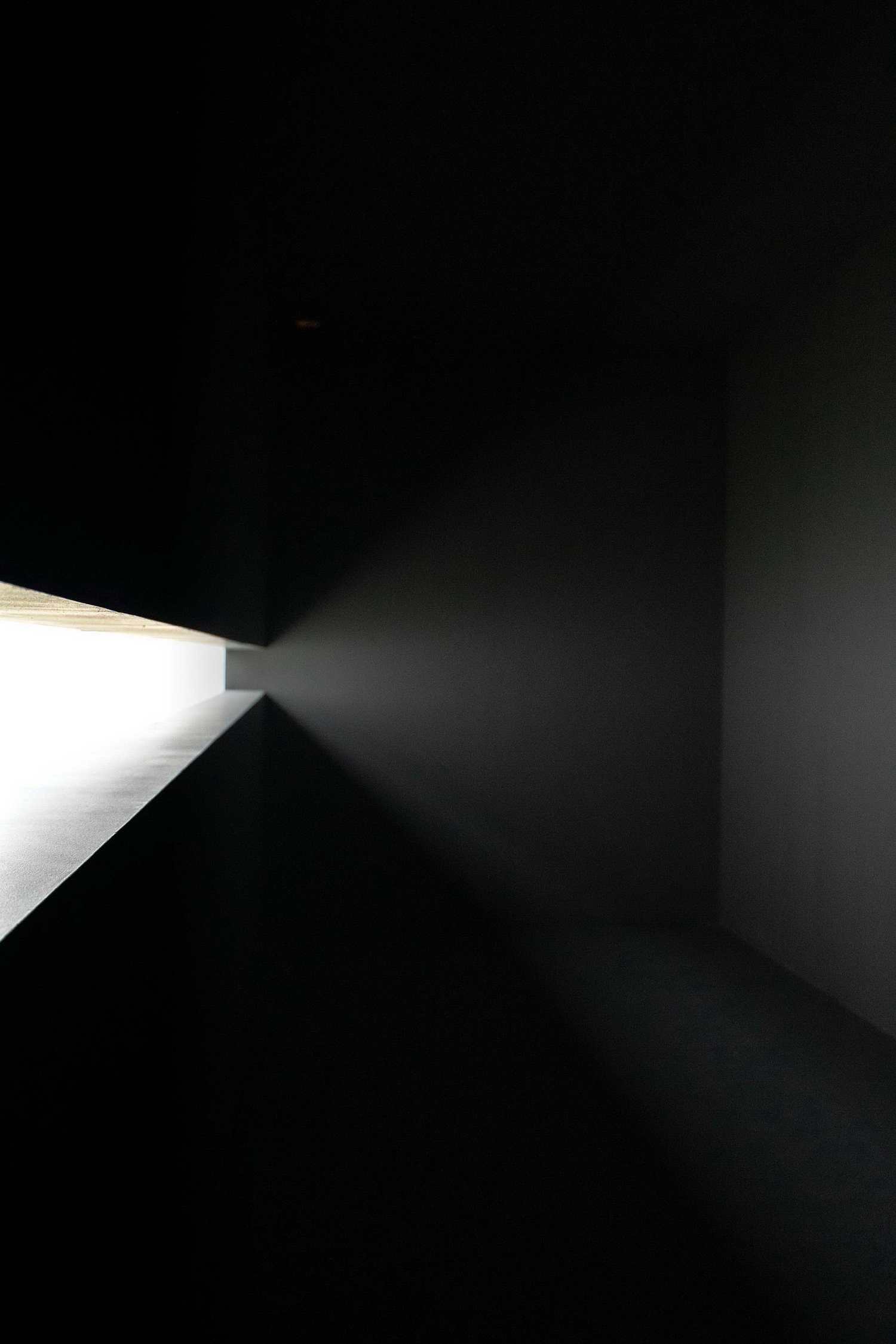

▼细长开口提供独特光影效果 Narrow opening with unique light and shadow

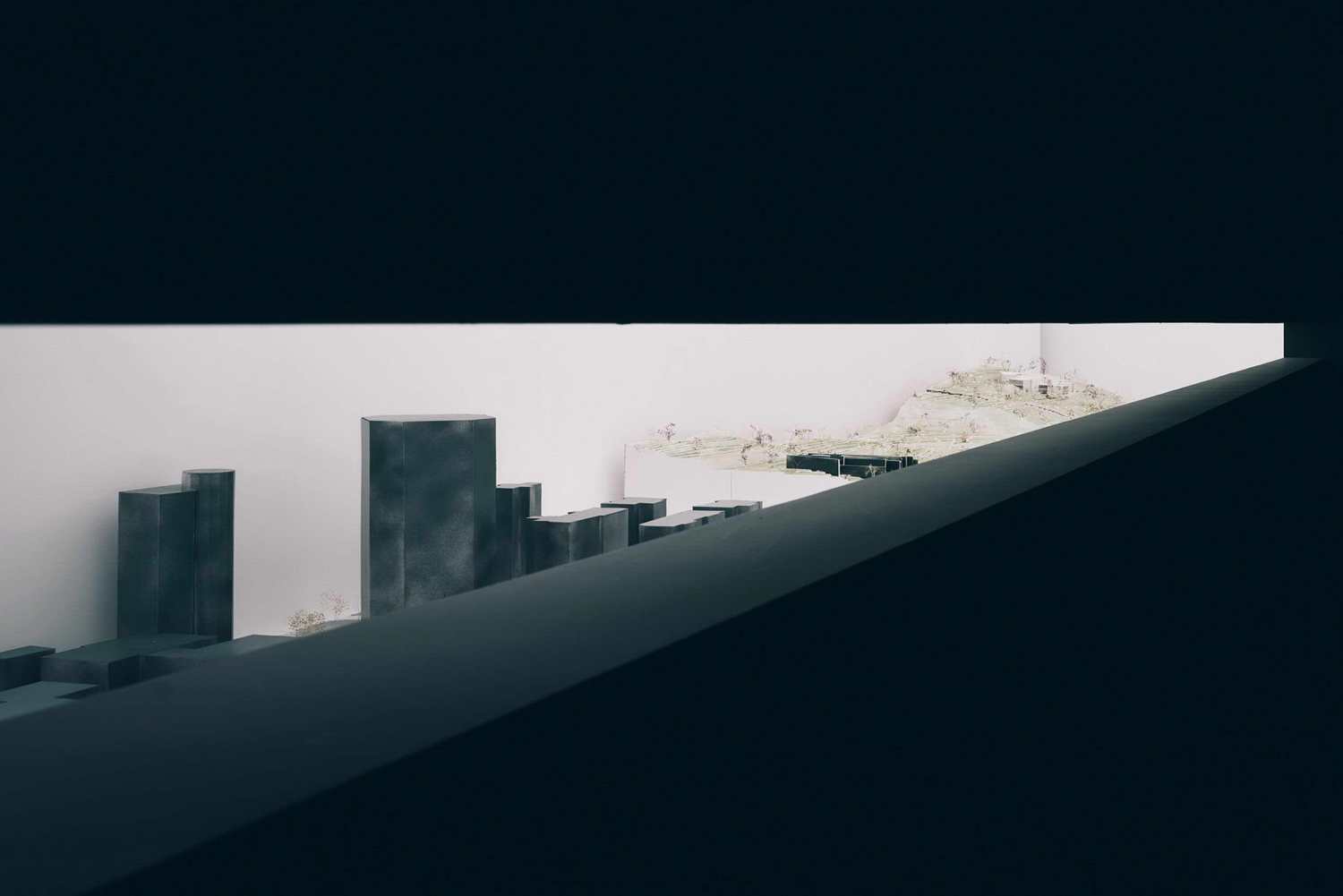

▼“暗空间”连接著建筑展示模型 ‘Dark Space’ to link architecture models

在进入“暗空间”时，两边墙体使内部变得狭窄，塑造出空间的紧张感；进到内部暗黑如夜，可聆听到虫鸣鸟叫声。此时，听觉取代视觉，给予非日常的现场体验。到达空间深处，细长开口提供一线白光，取代黑墙之后的景象，并在腰部高度可透过窄长的洞口观赏到大量建筑模型。

On entering the 'dark space', the walls on either side narrow the interior, creating a sense of tension; walking inside, it is dark as night and the sound of insects and birds can be heard. At this point, the sense of hearing replaces the sense of sight, offering an experience of the site that is different from daily life. Deeper into the space, a long and thin opening provides a ray of white light to replace something behind the black walls, and then at the height of waist, a large number of architectural models can be viewed through the narrow and long opening.

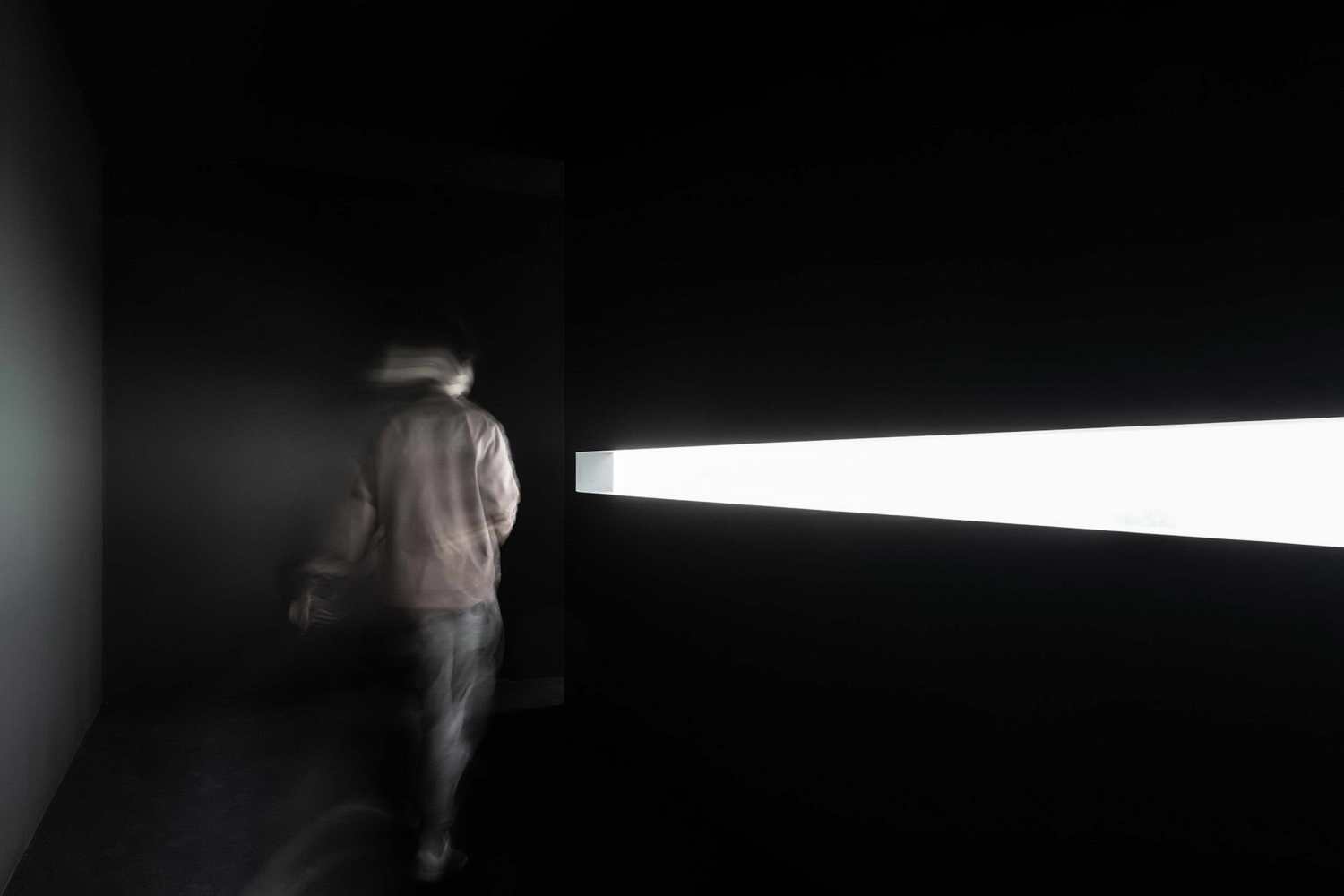

▼光线引导参访者在“暗空间”行走 The light guides visitors walking in the ‘Dark Space’

绕行至方盒另一侧“明空间”，门洞透出洁净的白光。白墙上细长的洞口隐隐绰绰看到对面的人影和望向内侧的视线。其展台上放置着数个高低起伏的建筑模型，与“暗空间”的细长开口相互连接，方才知道暗明两个空间提供了视觉与听觉的穿透性。

Walking to the other side of the box, which is the 'bright space', the opening is lit by clean white light. Through the narrow and long opening in the white wall figures on the opposite side of the wall can be spot and the sight of them can be caught. On its stand are several models of undulating buildings, interconnected with the opening in the 'dark space', so that it becomes clear that the dark and light spaces provide visual and auditory penetration.

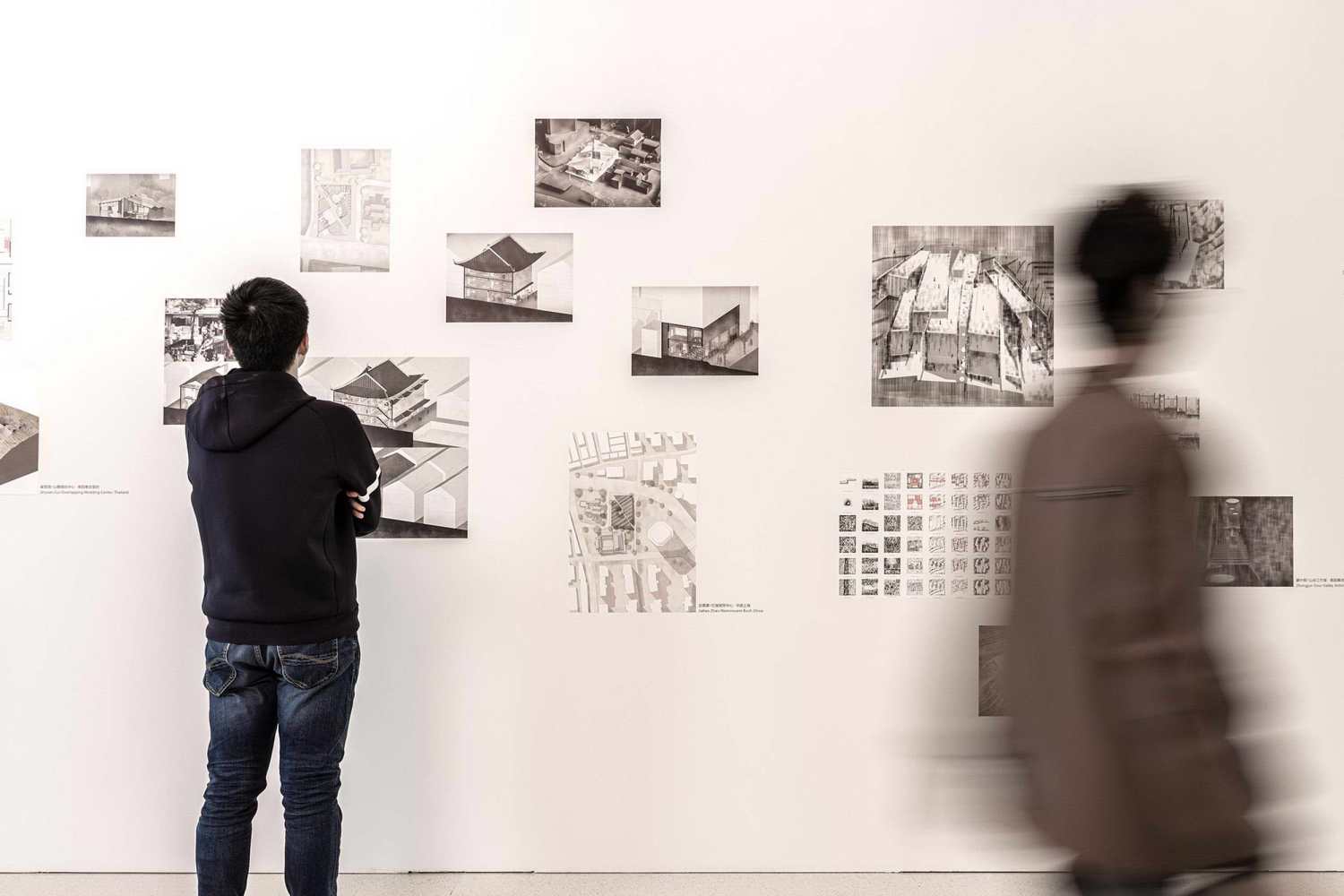

▼具有不同尺寸感的建筑研究图纸 Architecture research drawings with various dimensions

▼复星微型建筑博物馆本身也是展示空间的一部分 The Fosun Architecture Micromuseum as a part of the exhibition

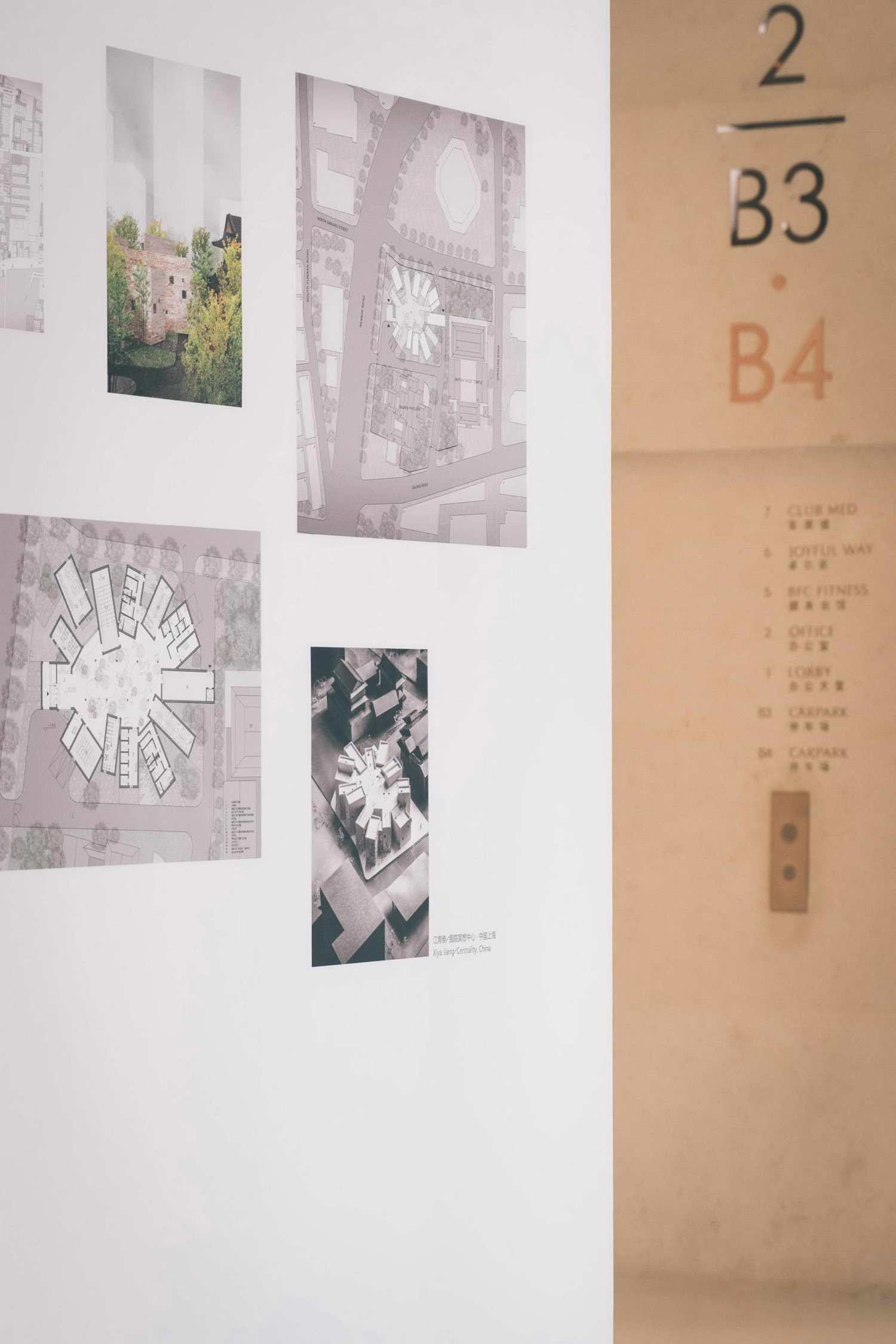

▼相异的图纸尺寸有如一个个展示“孔洞” Different drawing size looks like holes

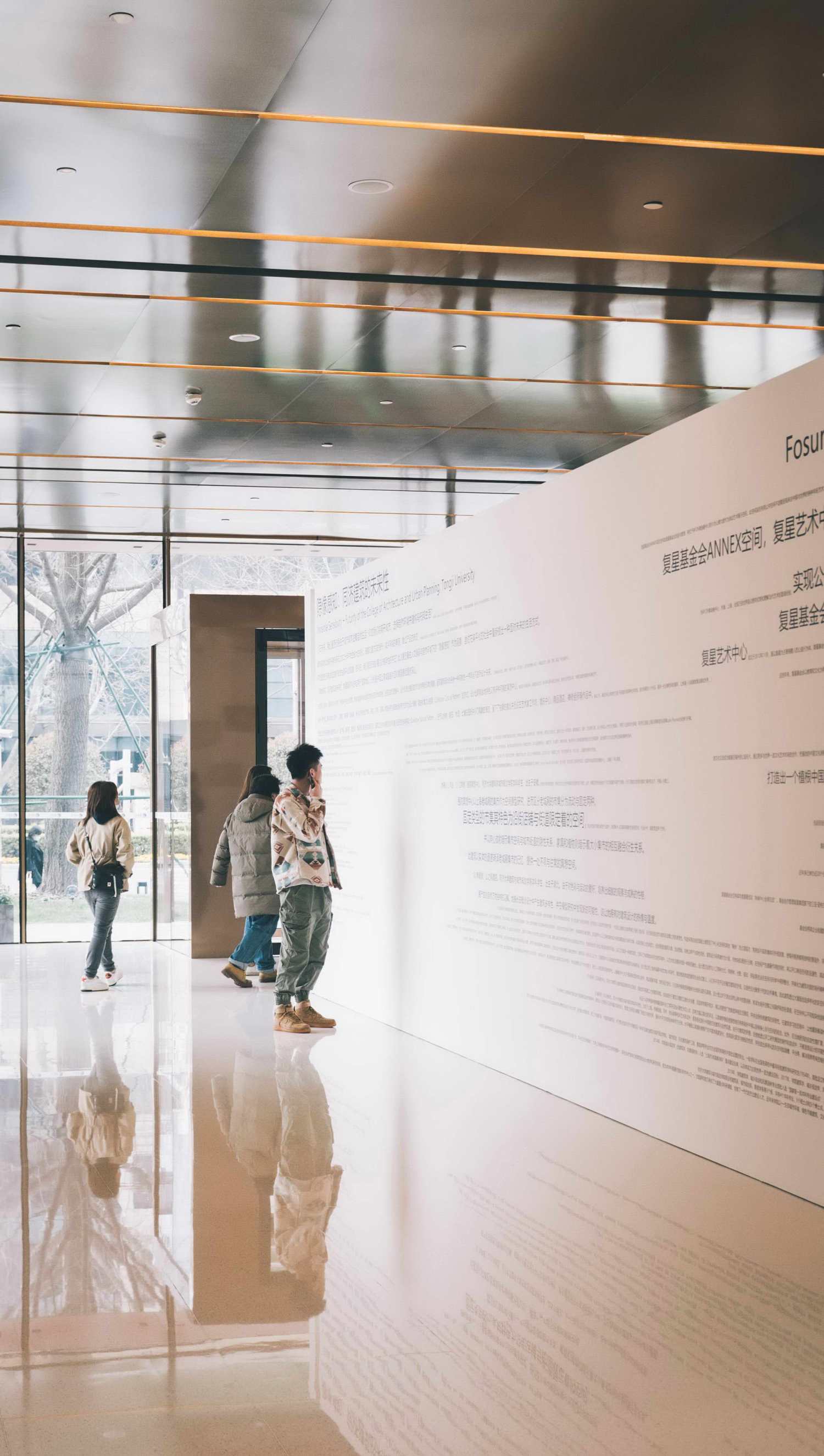

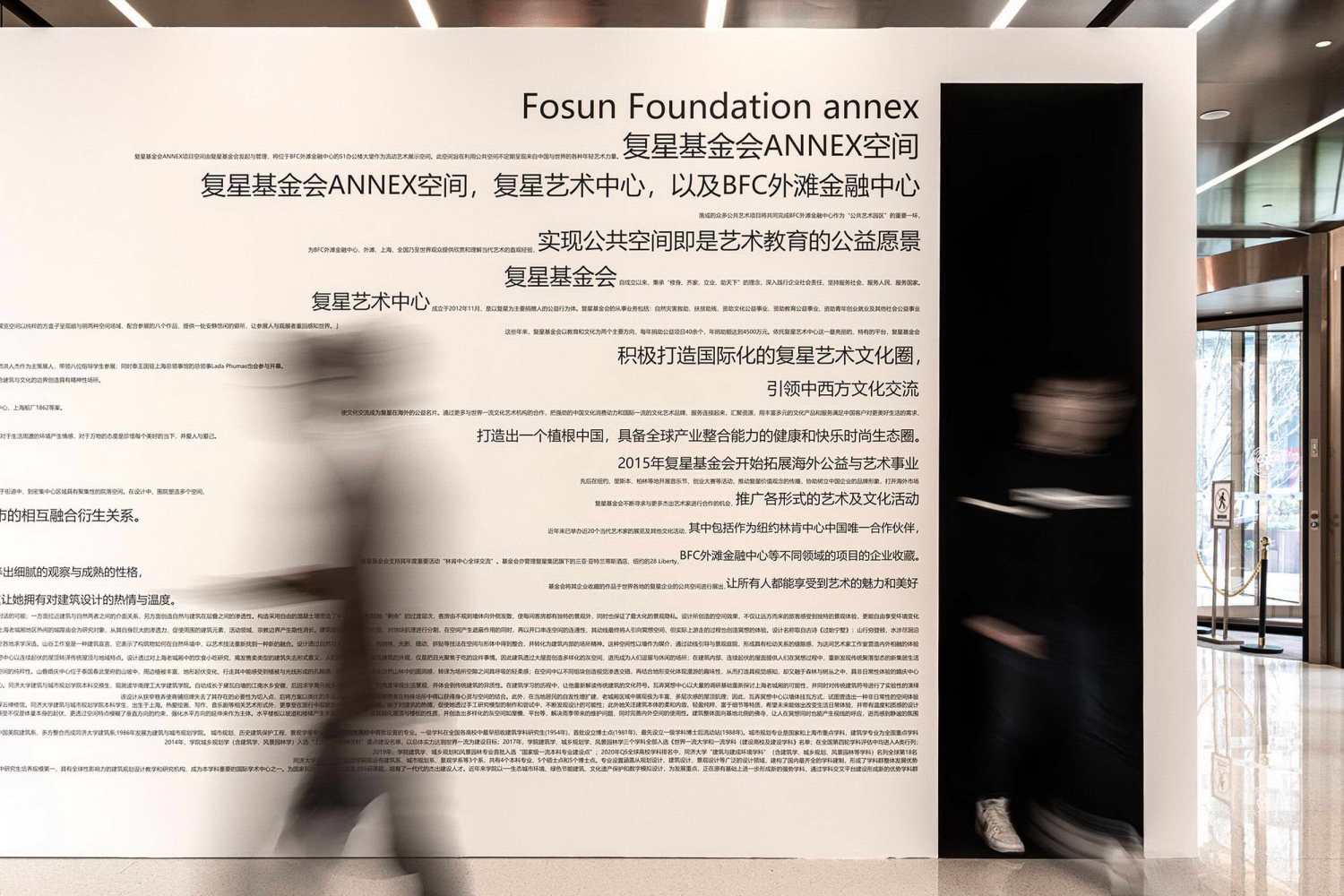

▼文字墙连接著两个暗明空间 The text wall connects the ‘Dark Space’ and the ‘Light Space’

纯粹的暗明方盒子比喻自然与城市的关系：一体两面，彼此互藏，相感替换。当在自然中建造第一座构筑物，就如同黑夜中点亮了第一盏灯；而当身处城市回望自然，又是充满著向往与期待。该展览为参访者提供一处僻静的感知空间，暗示其如何在城市和自然之间穿梭，藉由捕捉场所的差异性，隐喻自然与城市边界的消长。

This pure box with darkness and light is a metaphor for the relationship between nature and the city: they are two sides of the same coin, hiding each other and replacing each other. When the first structure is built in nature, it is like the first light in the darkness of the night; when one looks back at nature from the city, one is filled with longing and anticipation. The exhibition provides a secluded space for visitors to perceive, suggesting how they can move between the city and nature, capturing the differences in place as a metaphor for the waxing and waning of the boundary between nature and the city.

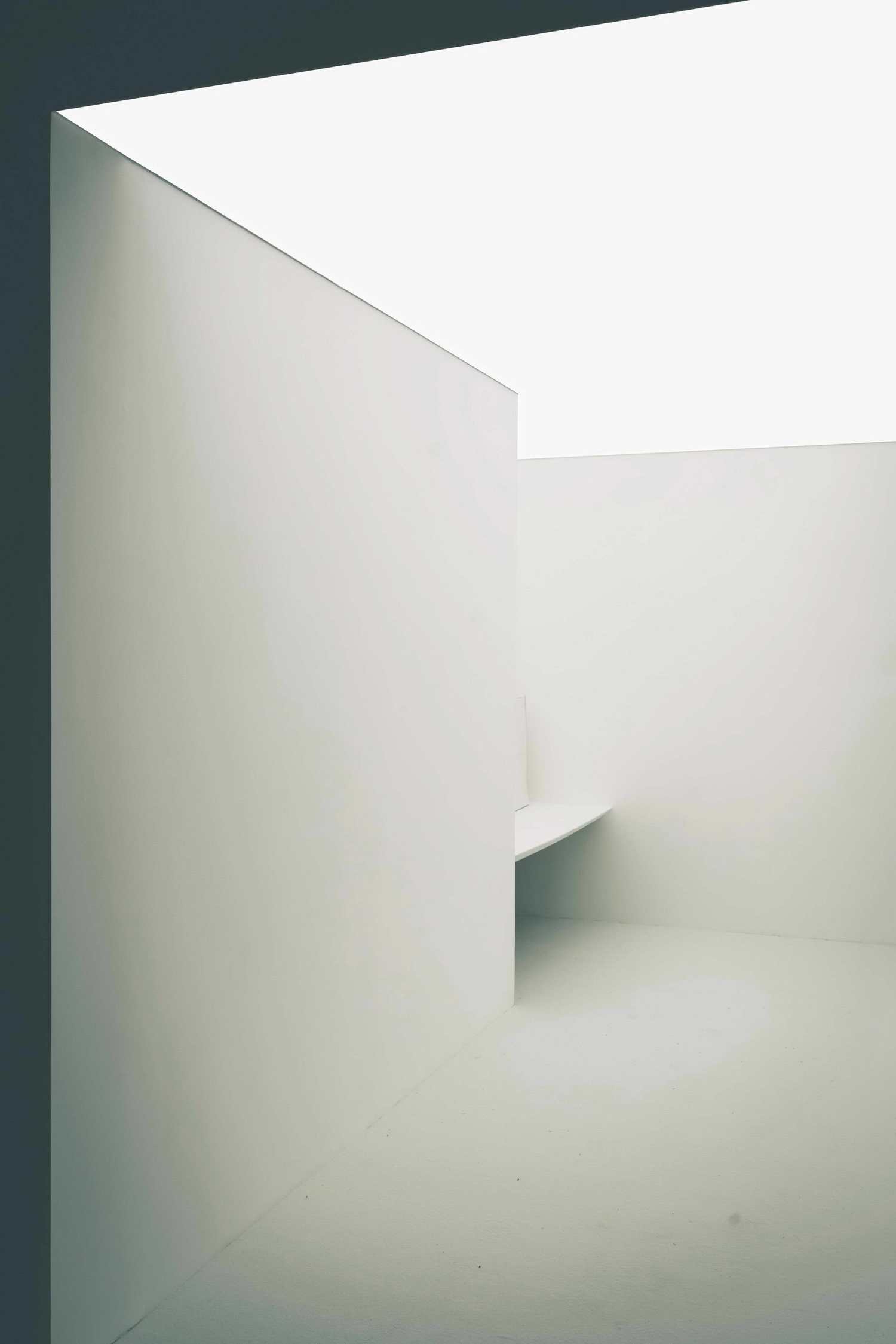

▼“明空间”入口 Entrance of the ‘Light Space’

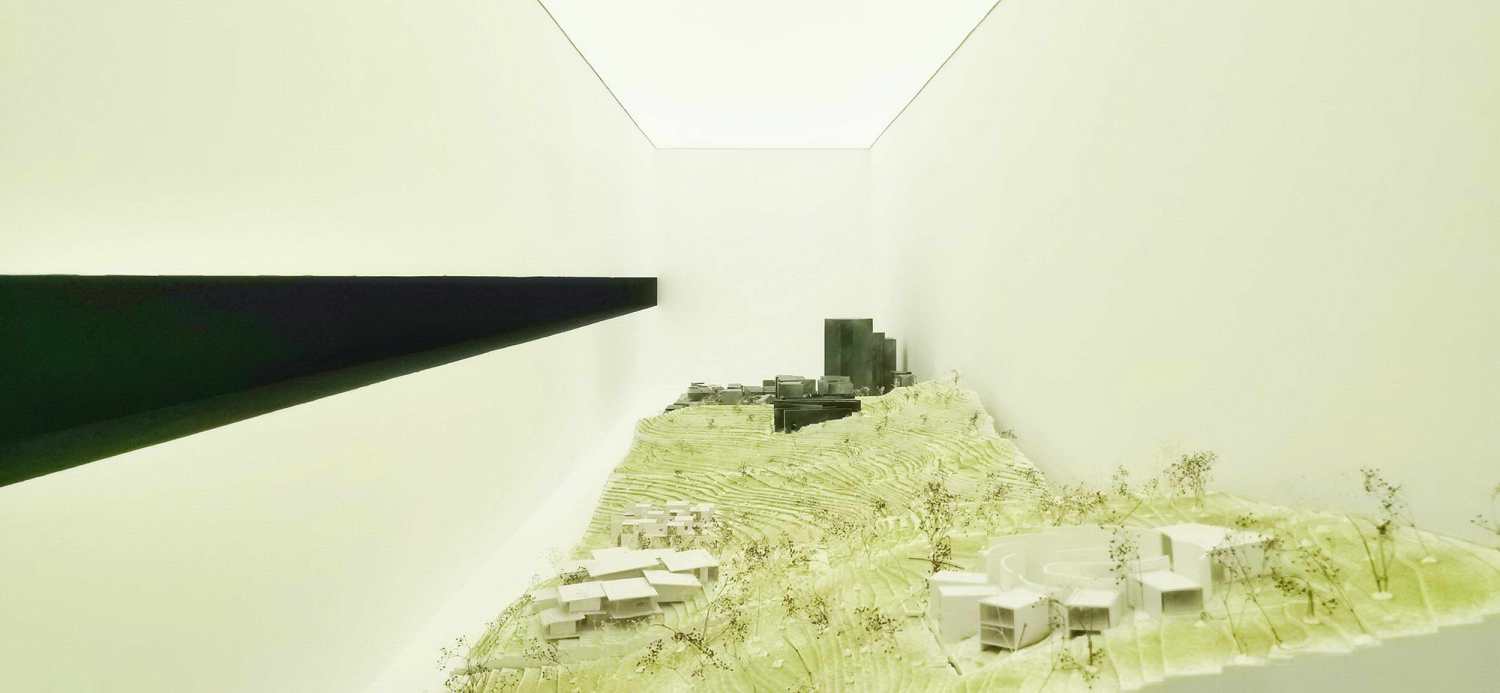

▼“明空间”包含著高低起伏的建筑模型与细长洞口 The ‘Light Space’ contains undulating architecture models and a narrow opening

▼洞口连接暗明两个空间与不同视角的建筑模型 The opening connects two opposite space and architecture models

▼隐像感知─复星微型建筑博物馆位于上海外滩金融中心 Site plan

▼屋顶平面图 Roof plan

▼一层平面图 Ground floor plan

项目名称：隐像感知─复星微型建筑博物馆

设计公司：HAS design and research

参与者：洪人杰（Jenchieh Hung）、Kulthida Songkittipakdee、窦中君

公司网站：https://hasdesignandresearch.com

联系邮箱：hascontact@yahoo.com

照明顾问：刘采菱（Jenna Tsailin Liu）

业主：复星艺术中心

主办：复星艺术中心、同济大学建筑与城市规划学院

策展人：洪人杰、Kulthida Songkittipakdee

施工：ARTZHOU

项目位置： 外滩金融中心S1；上海市黄浦区中山东二路600号

基地面积：700平方米

建筑面积：50平方米

设计年份：2019

完成年份：2021

文字：蒋之卉

摄影：杨滚、韦辰熹

展览细节：https://mp.weixin.qq.com/s/3a0ICRvUM1O0YPhDOA931g

Project name: Invisible Sensibility ─ Fosun Architecture Micromuseum

Design company: HAS design and research

Team: Jenchieh Hung, Kulthida Songkittipakdee, Zhongjun Dou

Website: https://hasdesignandresearch.com

E-mail: hascontact@yahoo.com

Lighting consultant: Jenna Tsailin Liu

Client: Fosun Foundation

Host: Fosun Foundation, Tongji University College of Architecture and Urban Planning

Curator: Jenchieh Hung, Kulthida Songkittipakdee

Constructor: ARTZHOU

Project location: Bund Finance Center S1; 600 Zhongshan East 2nd Rd, Huangpu District, Shanghai

Site area: 700 sq.m.

Gross built area: 50 sq.m.

Design year: 2019

Completion year: 2021

Text: Zhihui Jiang

Photo credits: Gun Yang, Chenxi Wei

Exhibition: https://mp.weixin.qq.com/s/3a0ICRvUM1O0YPhDOA931g
