| 公司： | Silvia Acar Arquitetura | Type： | 建筑 |
|---|---|---|---|
| Area： | 巴西 | Label： | 休闲度假 |

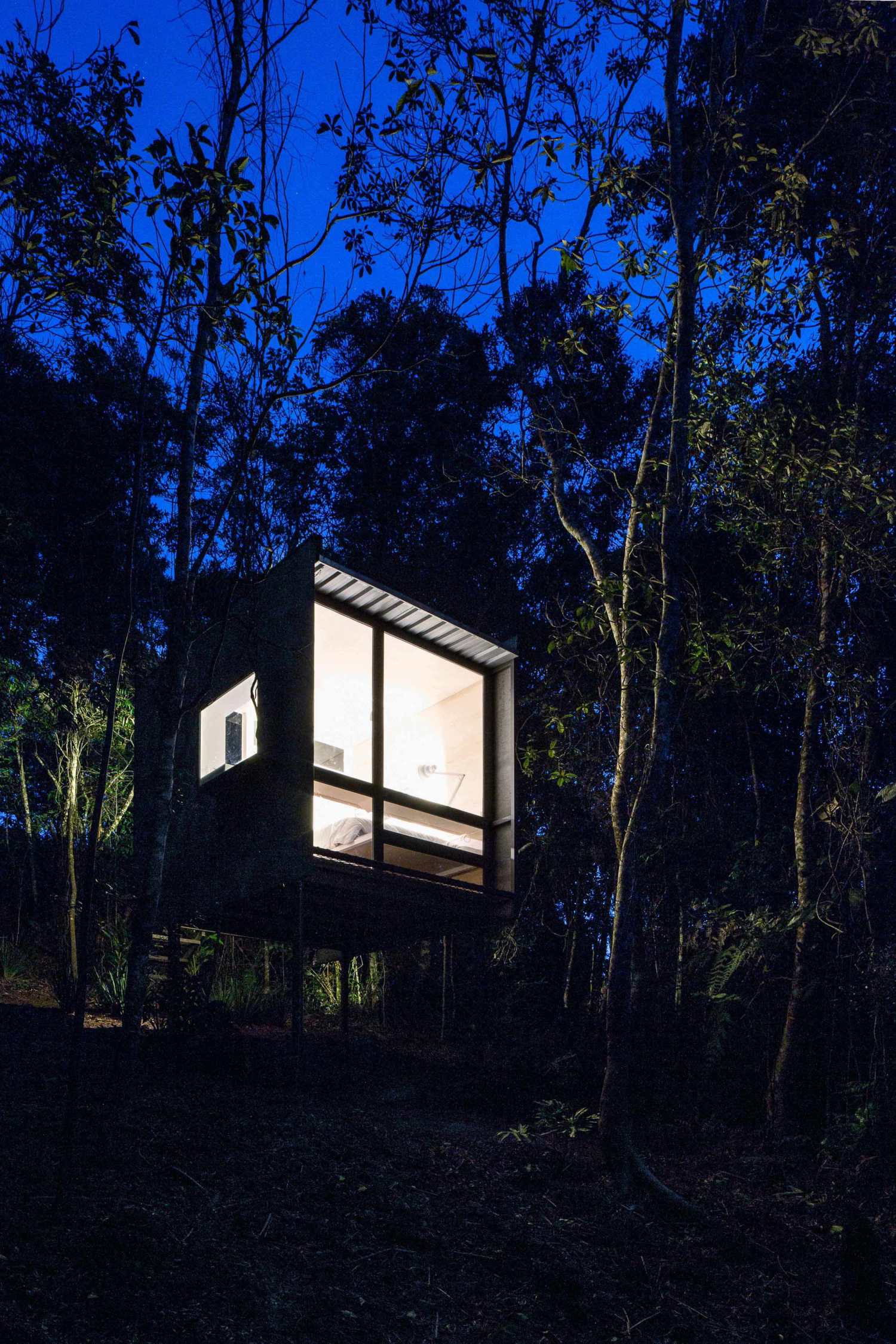

项目小木屋L的设计只是一个房间，是森林中的一个透明的避难所。为了营造出被树梢包围的感觉，建筑从地面升起，在它下面创造了一个空间，在这里可以进行户外活动。抵达时还有放置靴子和外套的空间。里面内置书桌、水槽和床头柜，形成一个小型的屋子。木屋面积l为6.25 m²。

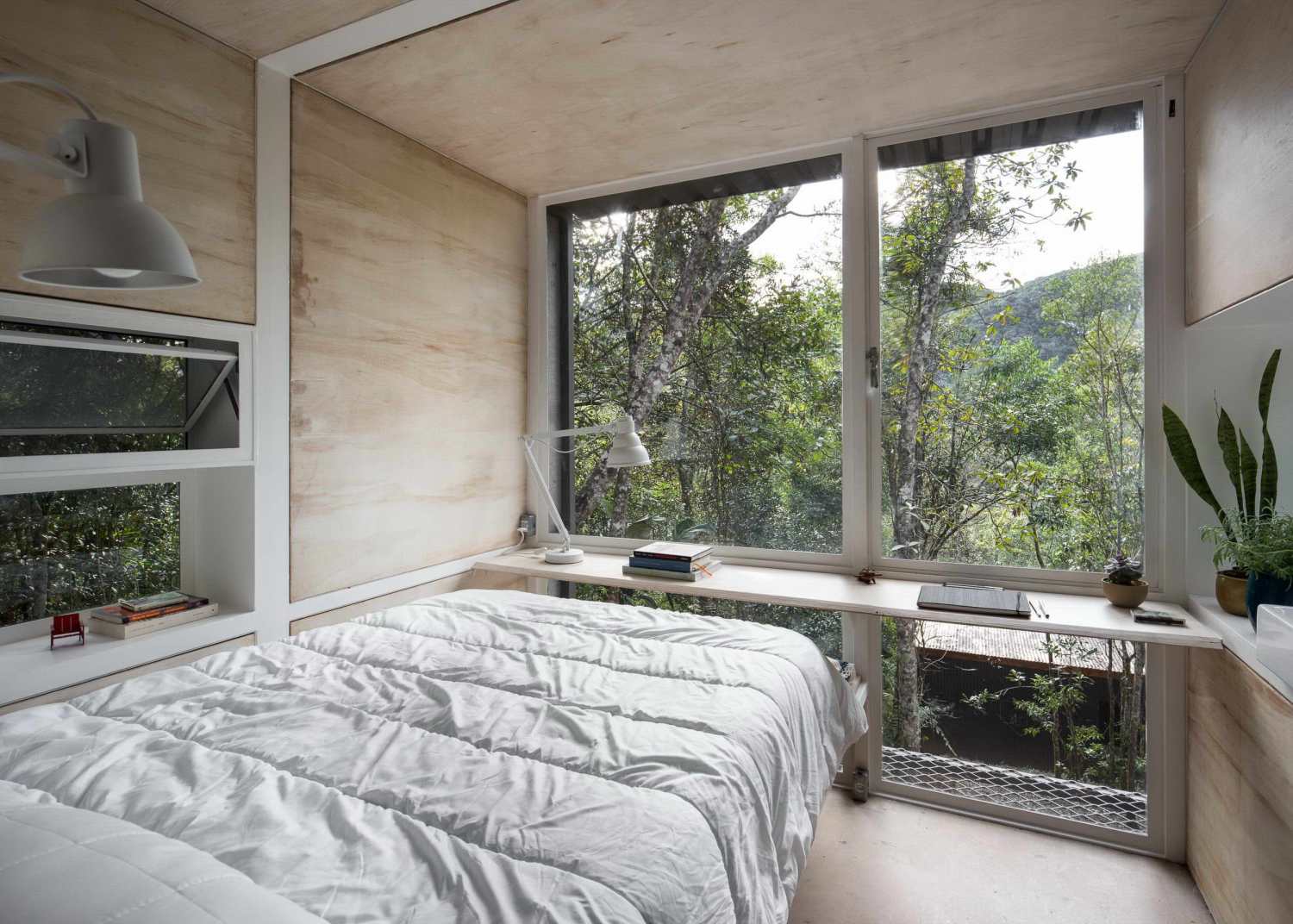

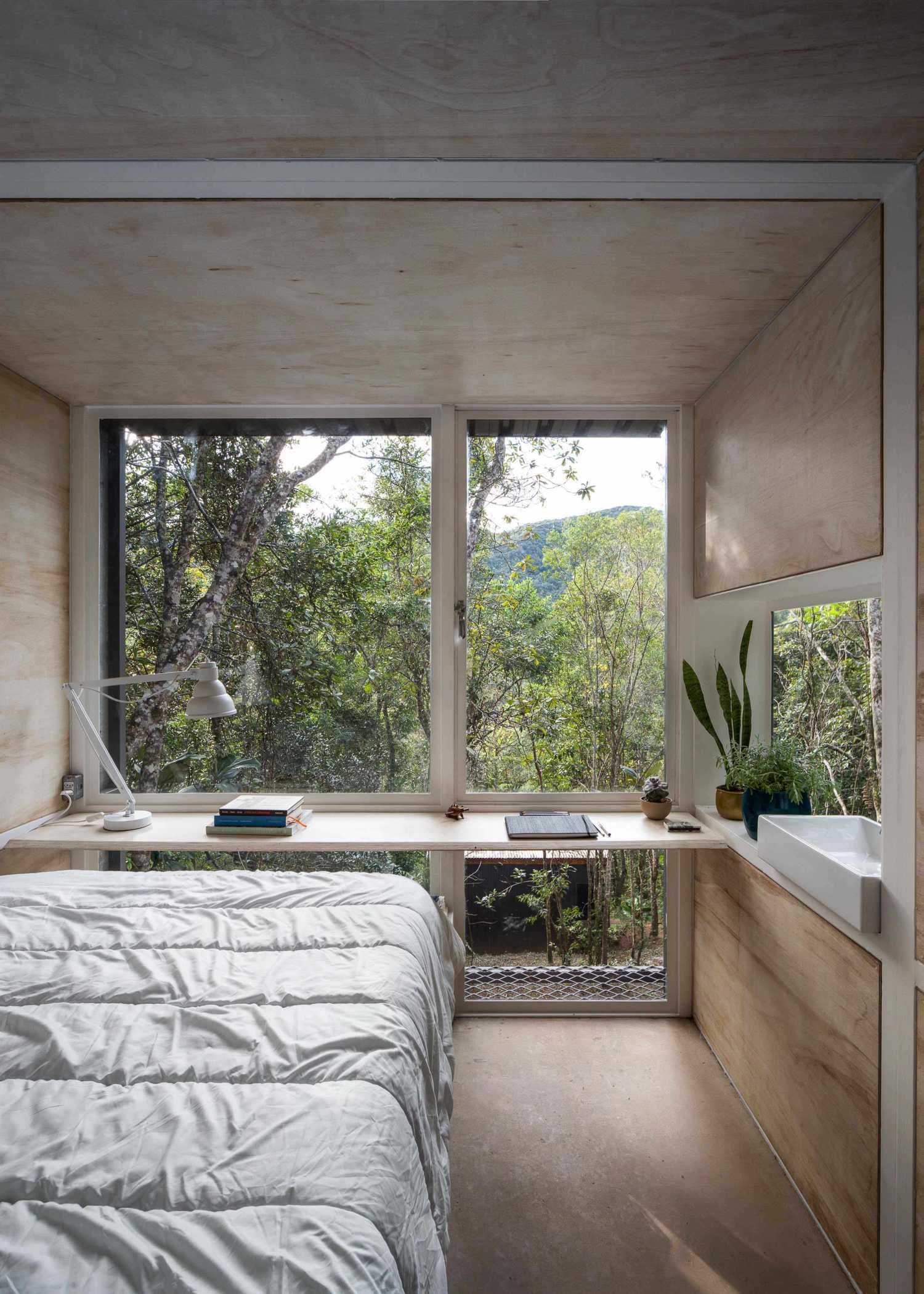

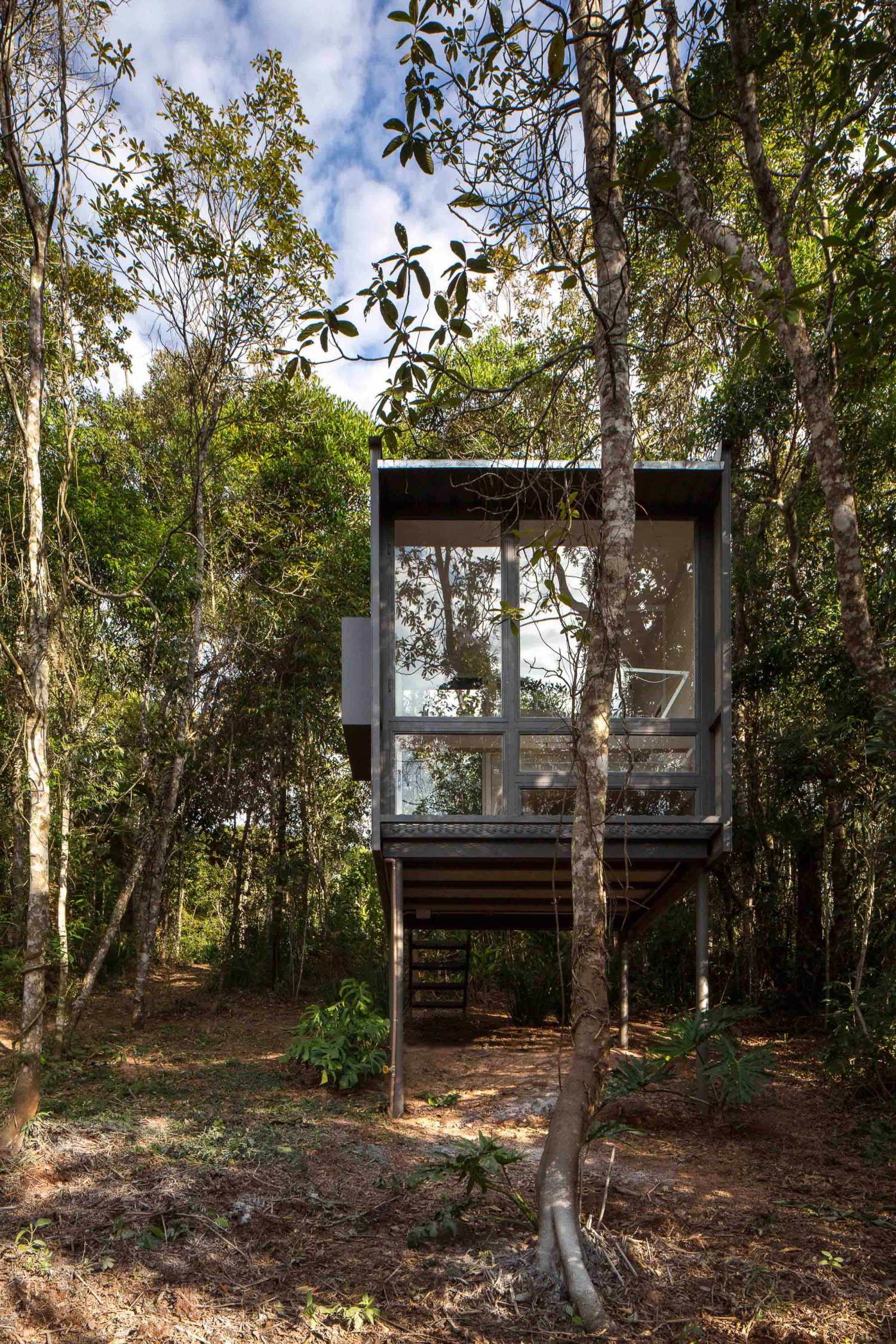

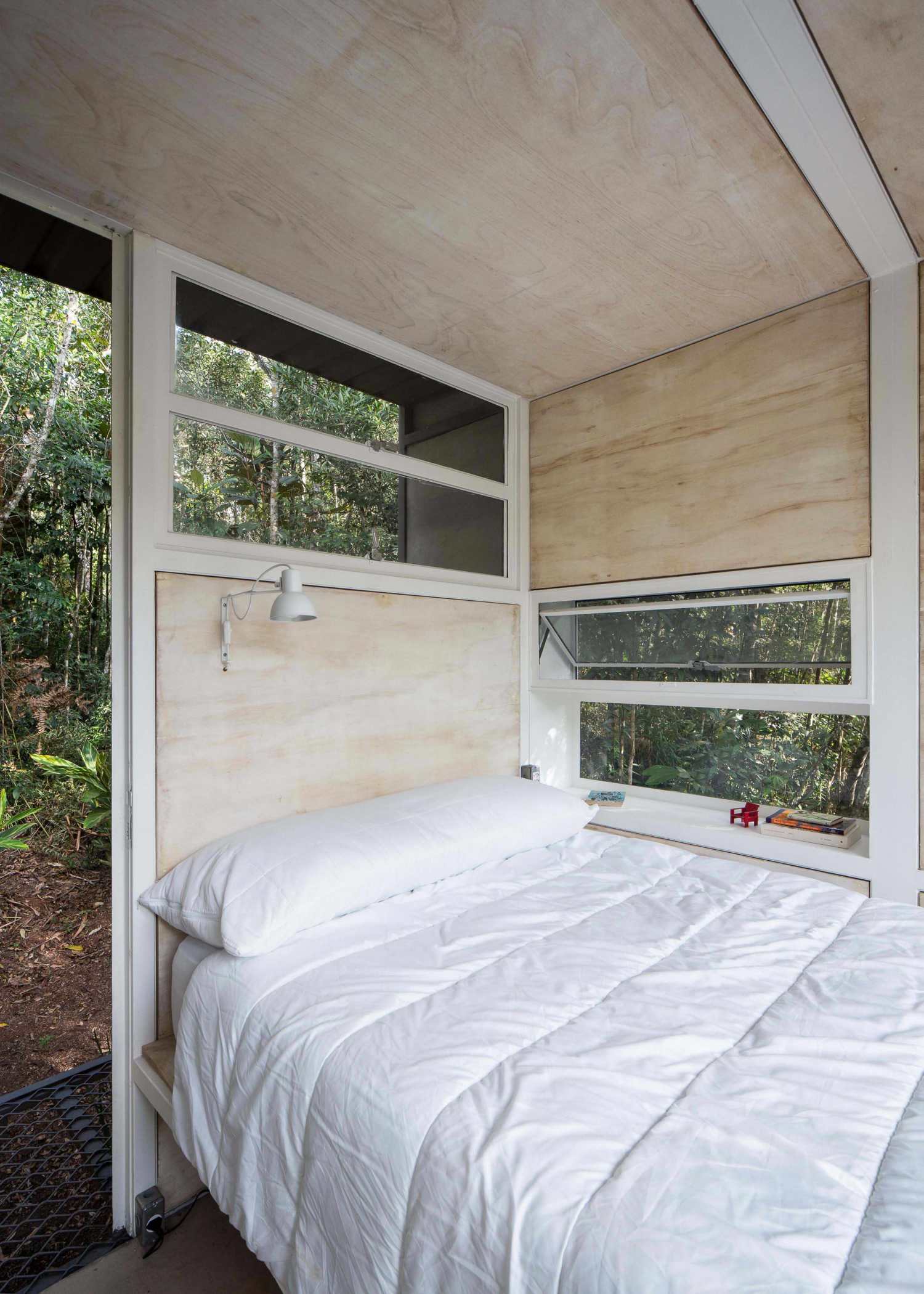

The chalet l was designed to be just a room, a transparent refuge in the forest. For creating the feeling of being surrounded the treetops, the refuge was raised from the ground, creating a space under it, where it is possible to do outside activities. There is also space on arrival to put boots and coats. Inside, a desk, sink and nightstand built in, creating a small refuge. The chalet area l is 6.25 m²
结构设计为由金属管状钢型材制成的面板，以前是建在框架上，只在原地焊接。外侧用水泥板衬托，以阻止一些午后的阳光。内部，有热声绝缘层，涂有浅染成白色的胶合板。屋顶采用金属分层瓦，内部的装饰衬板使室内舒适均匀。外面的地板和楼梯是由膨胀金属屏风制成的。

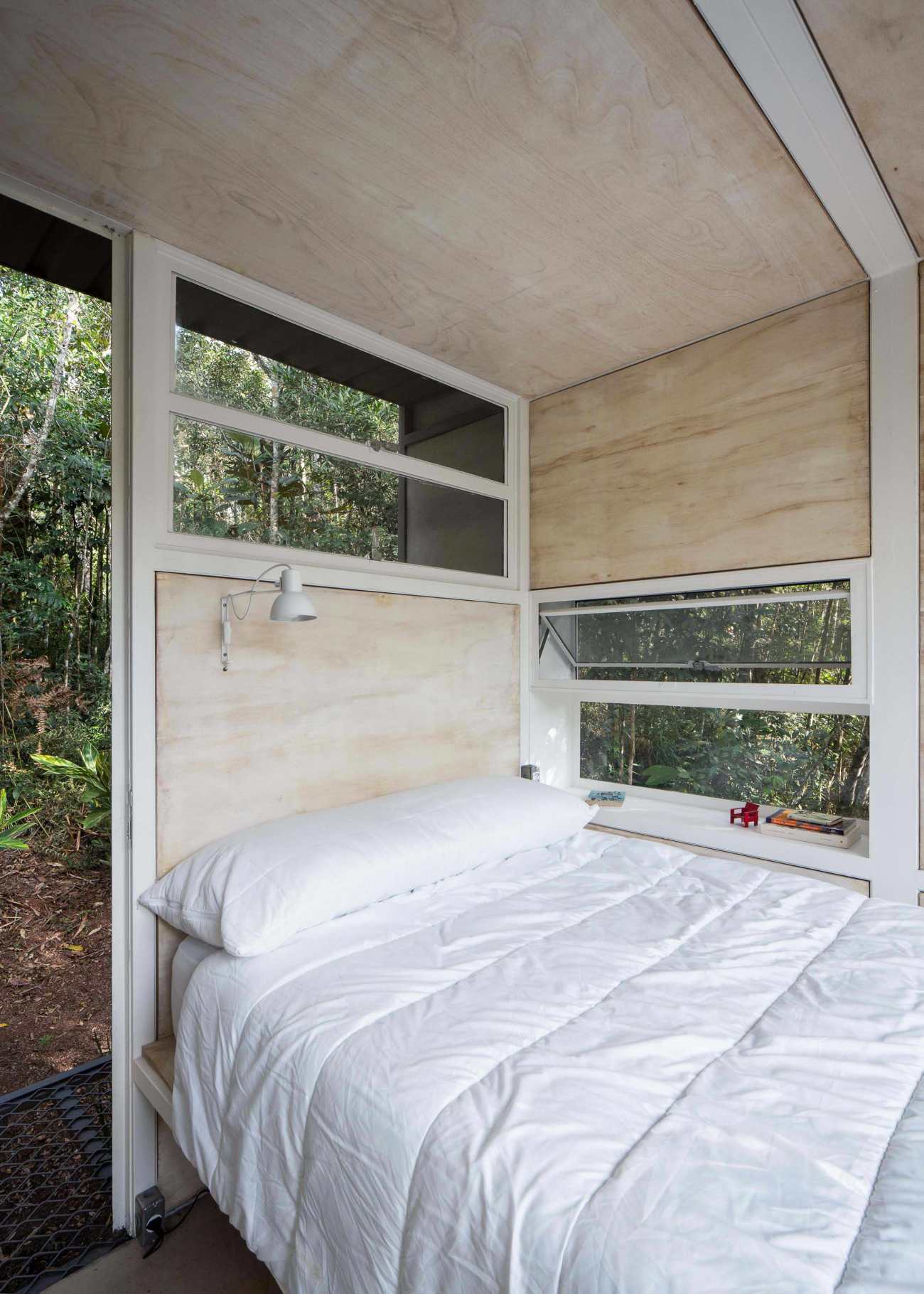

The structure was designed as panels made of metalon tubular steel profiles, previously built on frames, and only welded in place. The exterior is lined with cementitious slab on the sides to stop some of the late afternoon sun. The interior, has thermoacoustic insulation coated with plywood lightly dyed in white. The roof is made with metallic layered tiles and the interior trimming liner keeps the interior cozy and even. The outside floor and staircase are made of expanded metal screen.
 |  |
植入遵循的标准是森林中现有的空地，结合寻找山谷对面山的最佳景观。最小化干扰的想法延伸到极限，所以没有停车场和通道的建设，这些都是由地面上的小径。

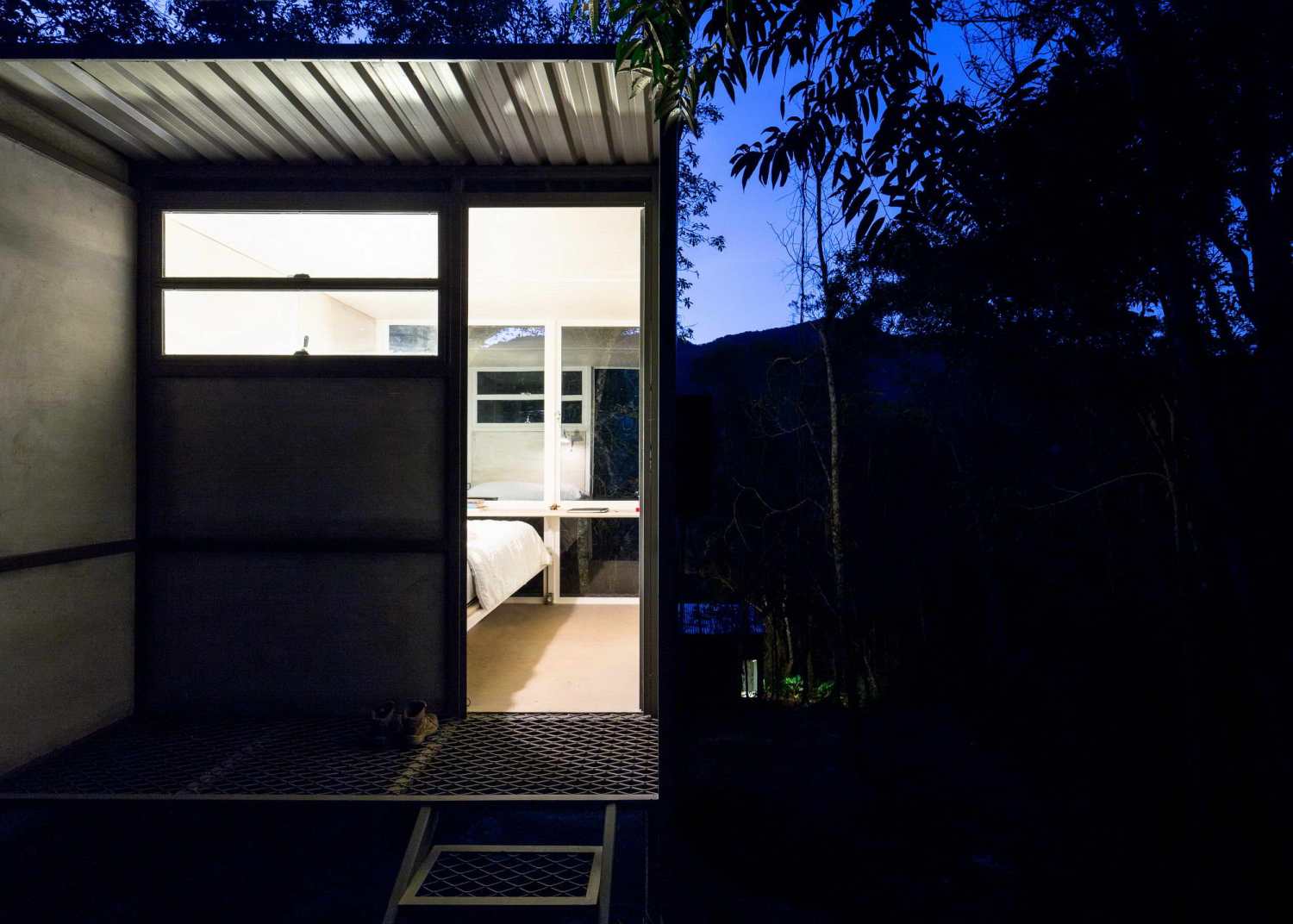

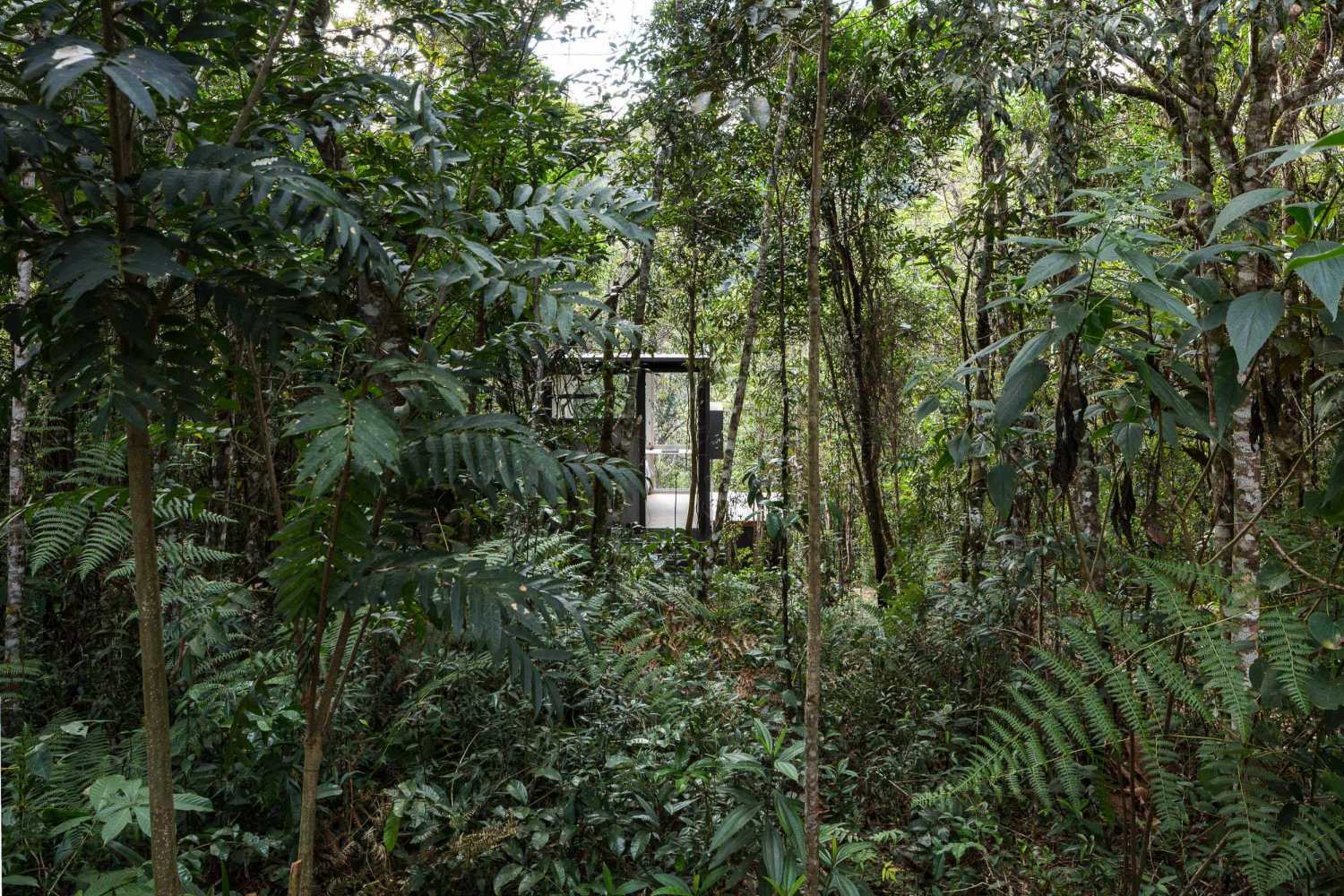

The implantation followed the criterion of existing glades in the forest, in combination of the search for the best views to the mountain across of the valley. The idea of minimal interference extends to the limit, so there is no construction for the parking area and accesses, these are made by trails on the ground.

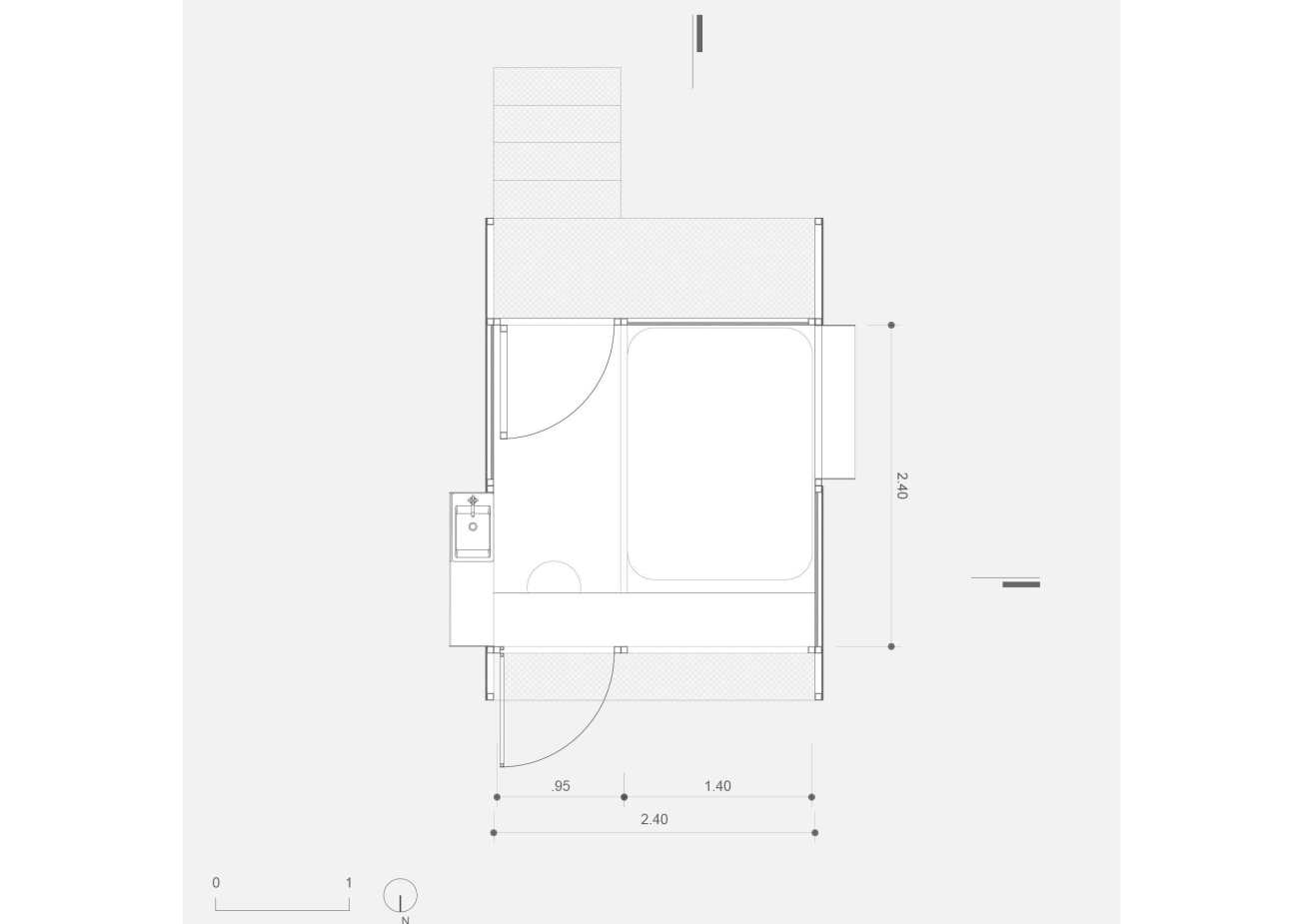

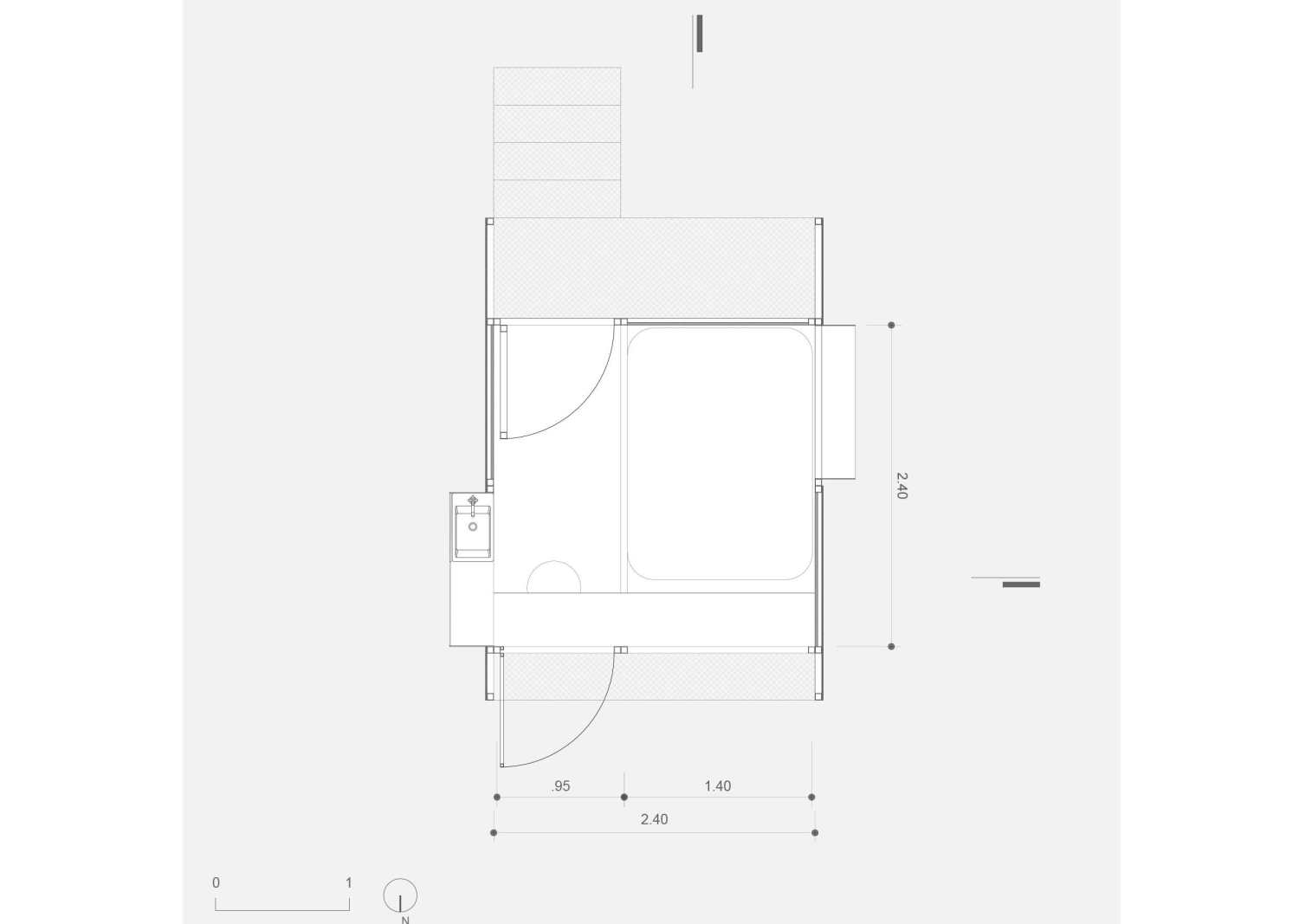

▽平面图 Plan

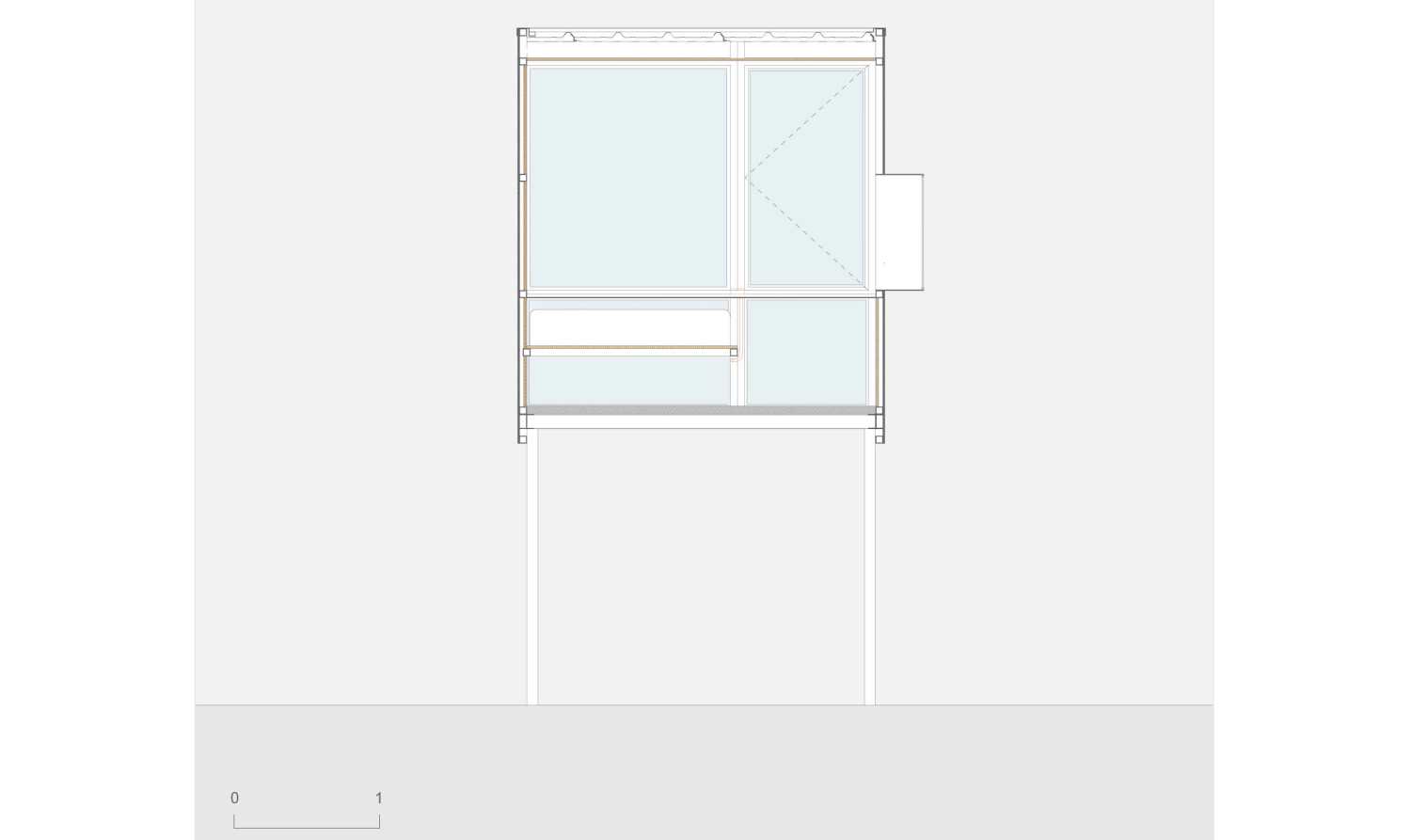

▽剖面图 Section

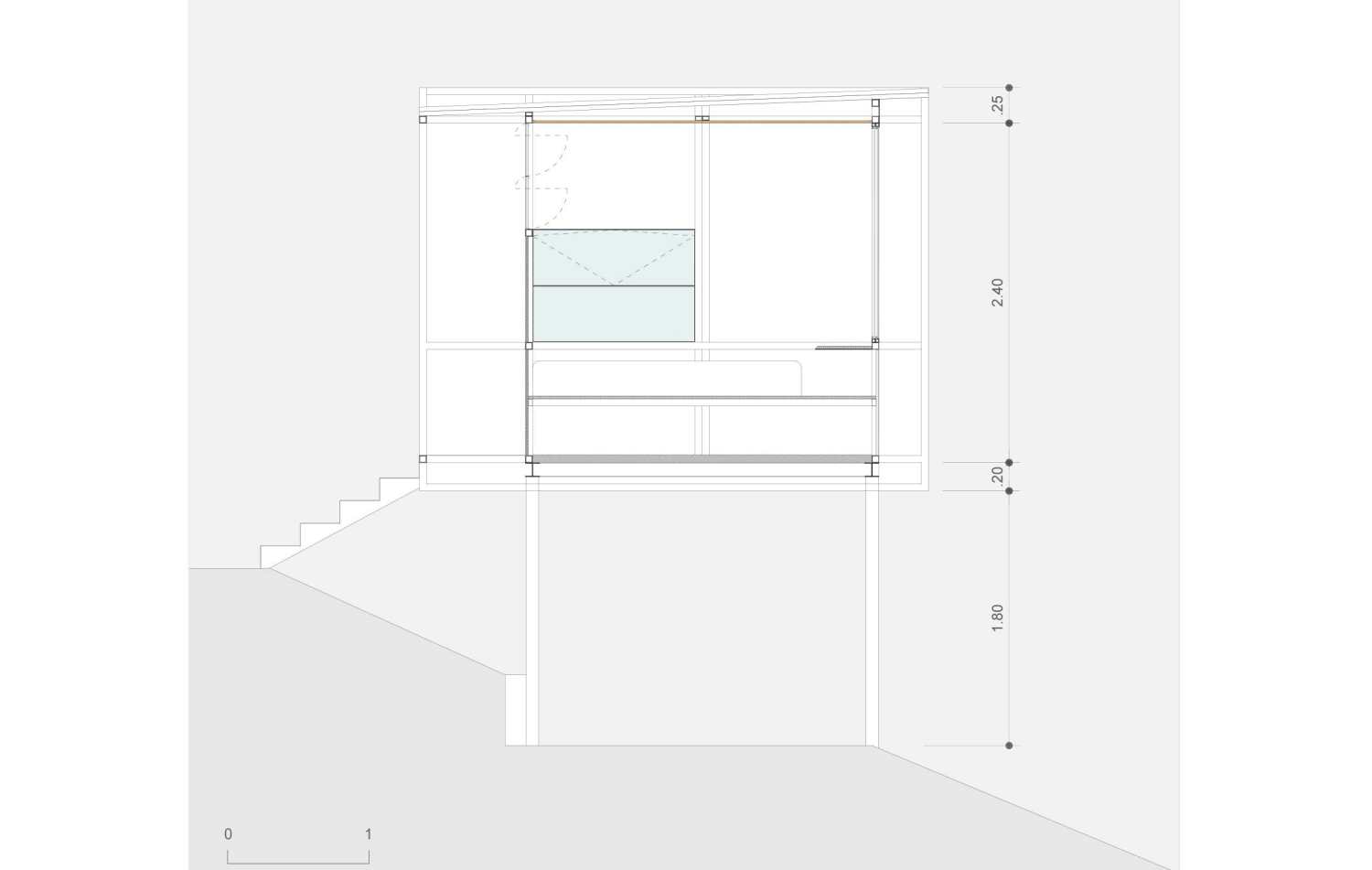

▽剖面图 Section
Project name: Chalé L
Company name: Silvia Acar Arquitetura
Website: https://www.silviaacar.com/
Contact e-mail: silvia.acar@gmail.com
Project location: São Lourenço da Serra, SP, Brazil
Completion Year: 2018
Building area (m²): 25m2
Other participants: Contractor : Engeark Construtora - www.engeark.com
Photo credits: André Scarpa
Website: https://www.andrescarpa.com/
