东京 灯塔酒店住宅

建筑物用途

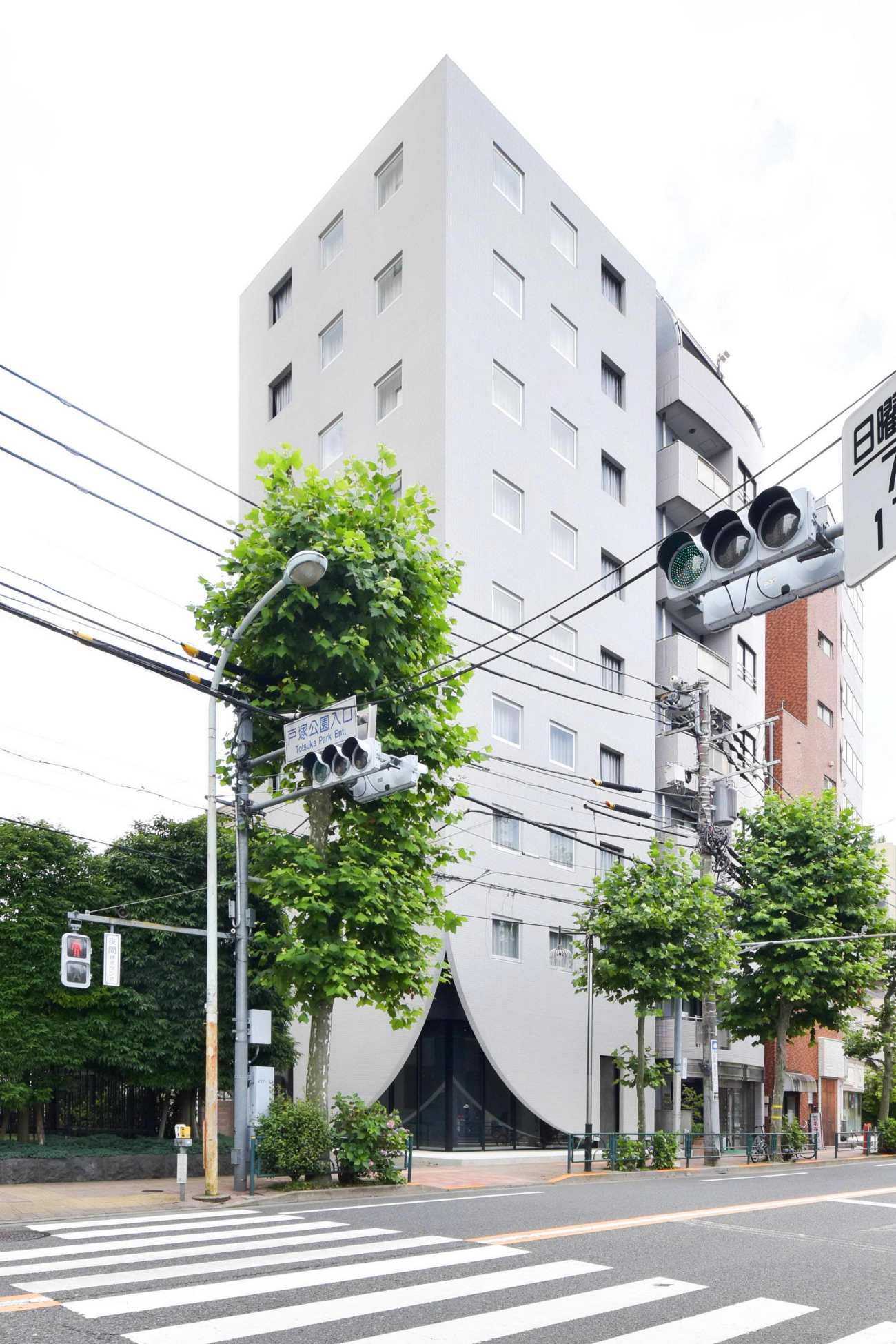

Lighthouse 是位于东京的一座9层的建筑，原本是作为酒店设计的，位于东京新宿附近，由于COVID-19对东京旅游事业的影响，作为住宅建筑交付使用。

Building use

Lighthouse Tokyo is a nine story building who was designed as a hotel in the neighborhood of Shinjuku, Tokyo,  and has been delivered as a residence building due to the impact of the COVID-19 in the Tokyo tourism business.

底层和悬浮式立面

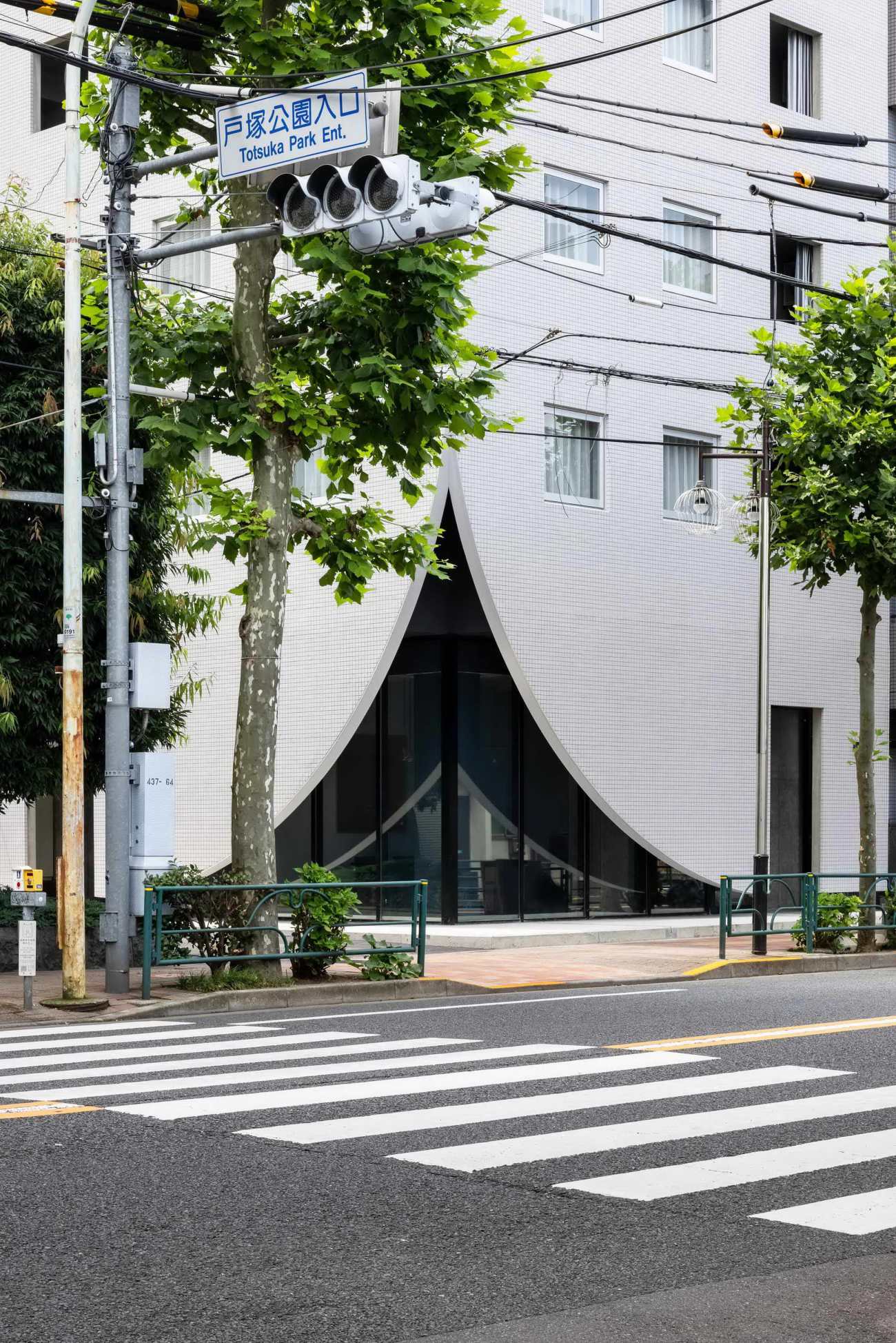

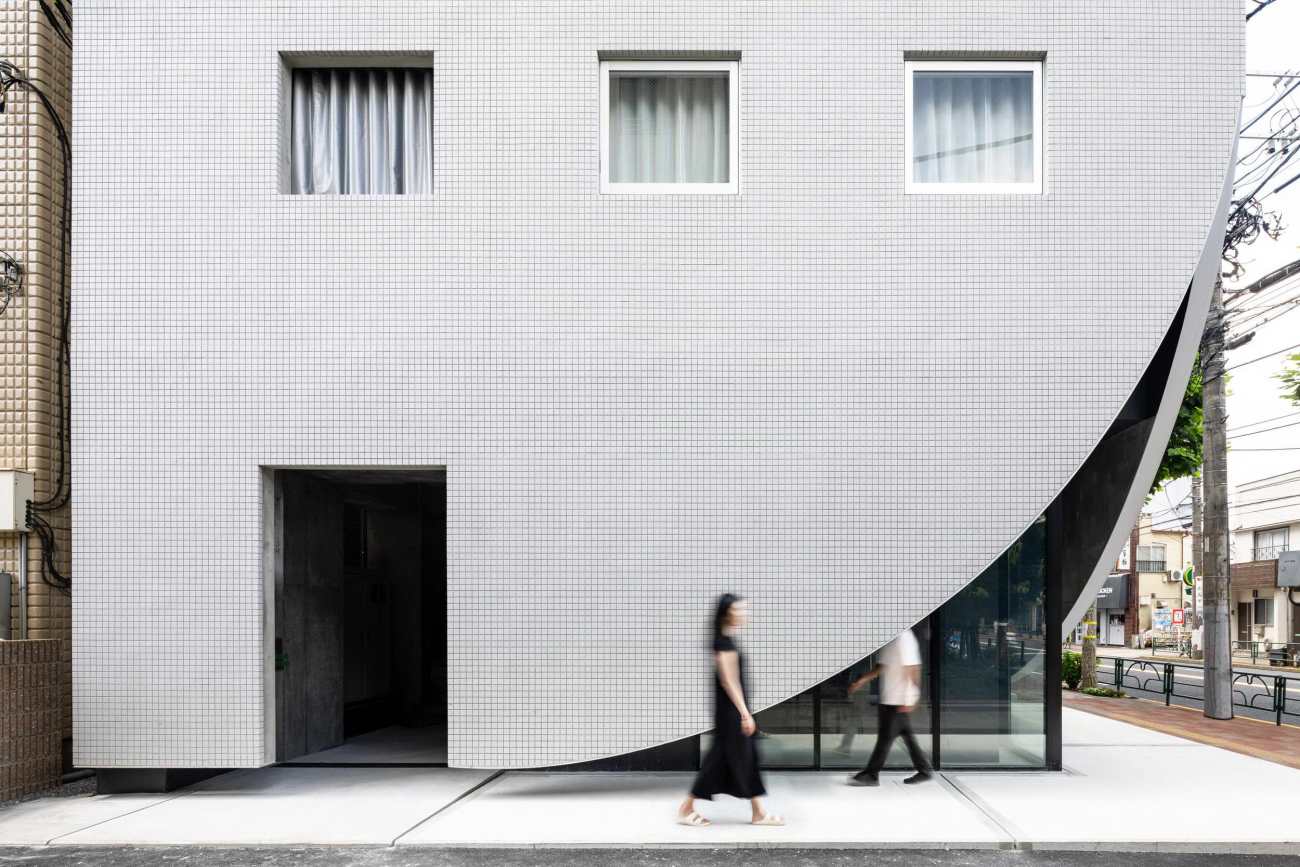

该建筑位于早稻田街道的十字路口。外立面设计为混凝土悬浮板，抹去了室内与室外、公共与私人的界限，通过两个圆形的切口向街道交叉口开放，吸引着来自四面八方的人们。该建筑被认为是旅行者的灯塔。底层被改造成居民的联合办公空间，是新常态的体现。

Ground floor and levitating facade

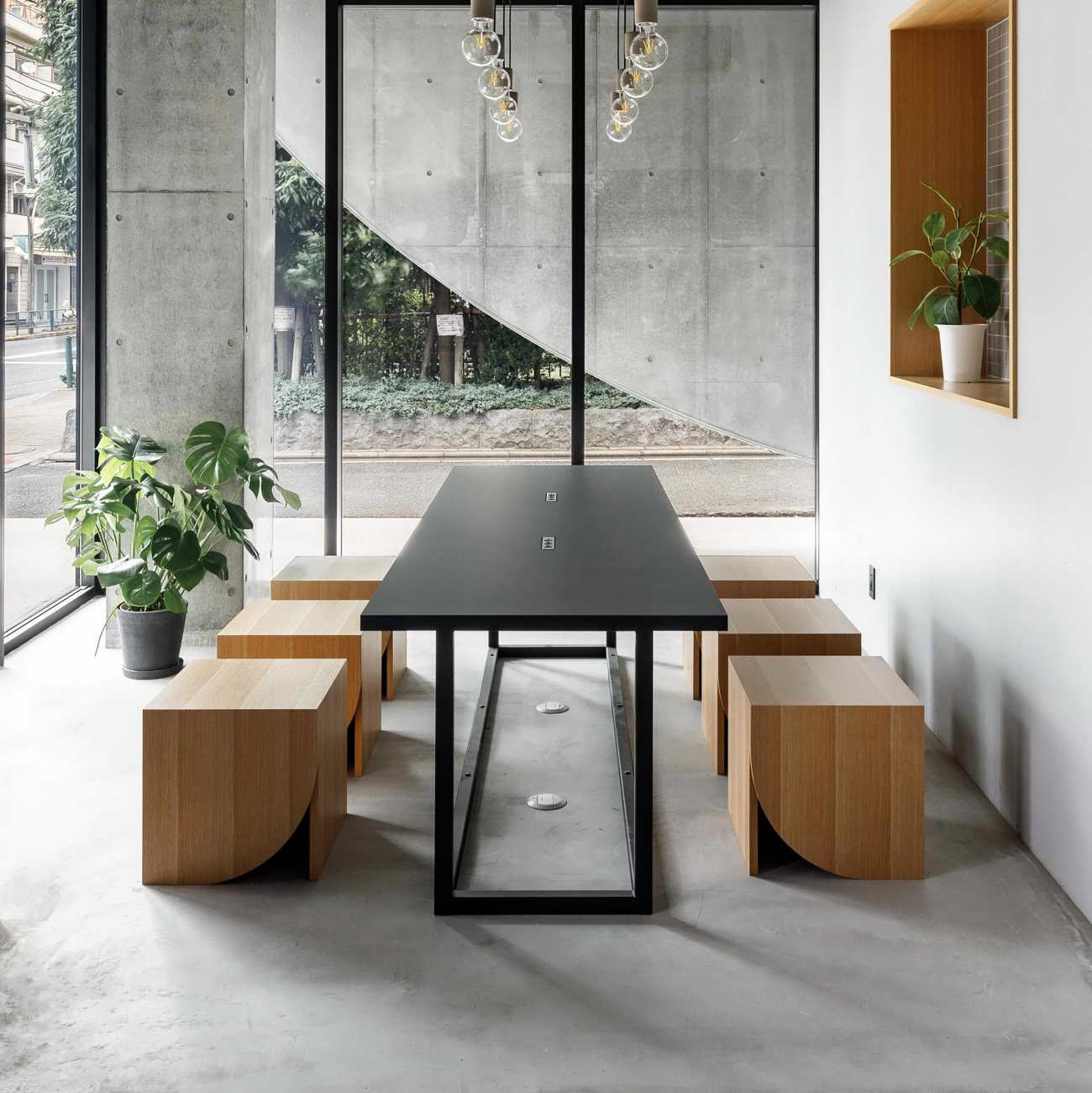

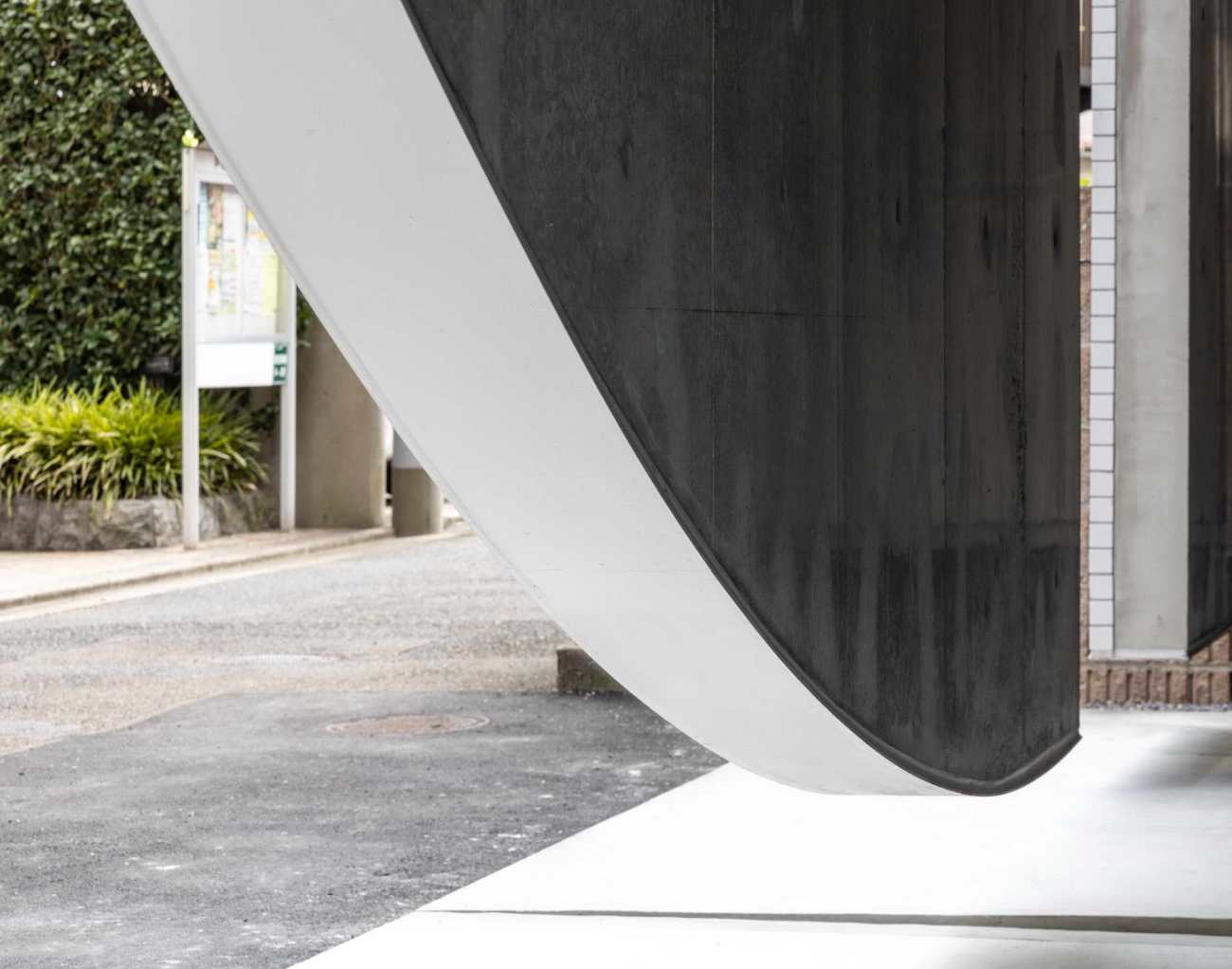

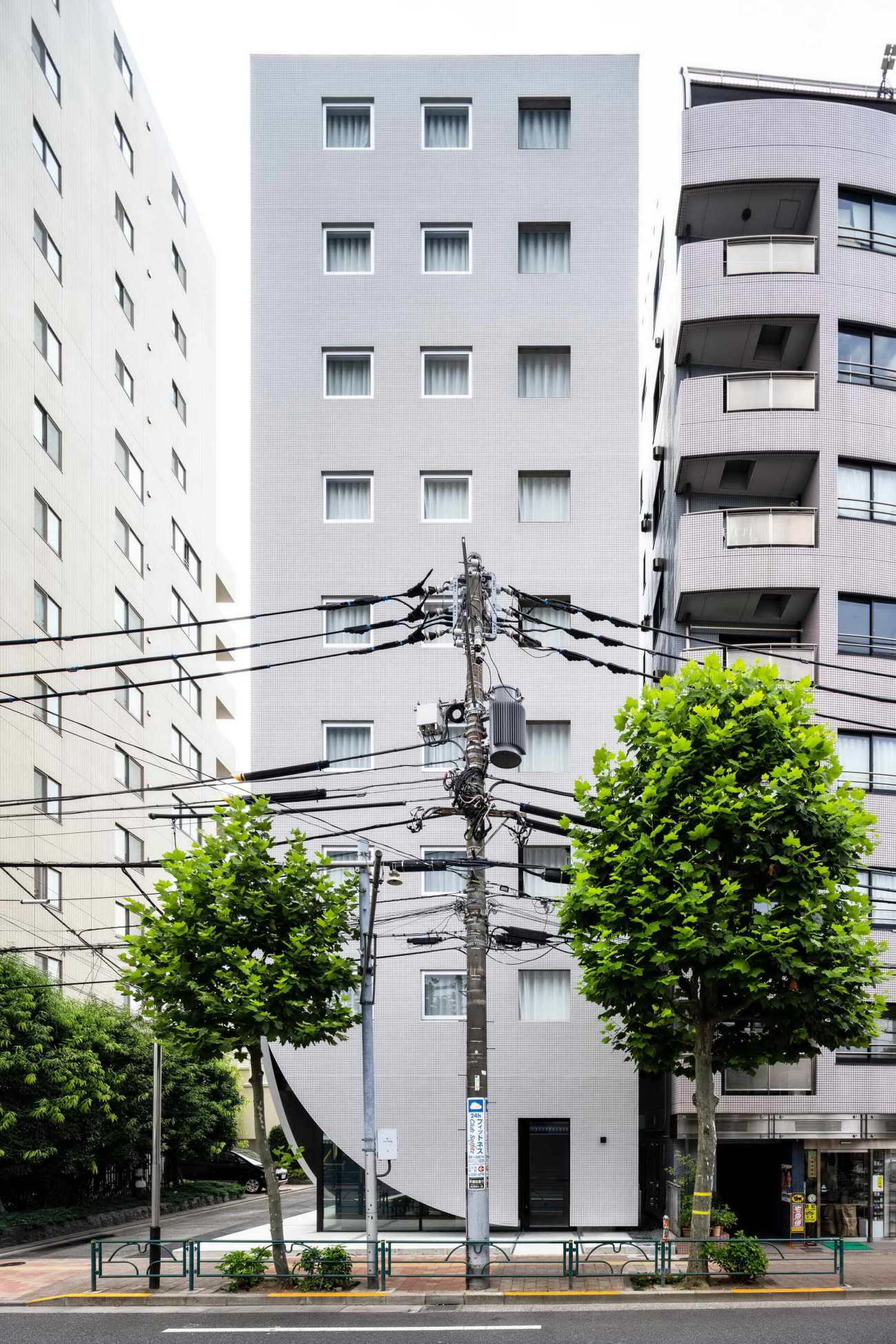

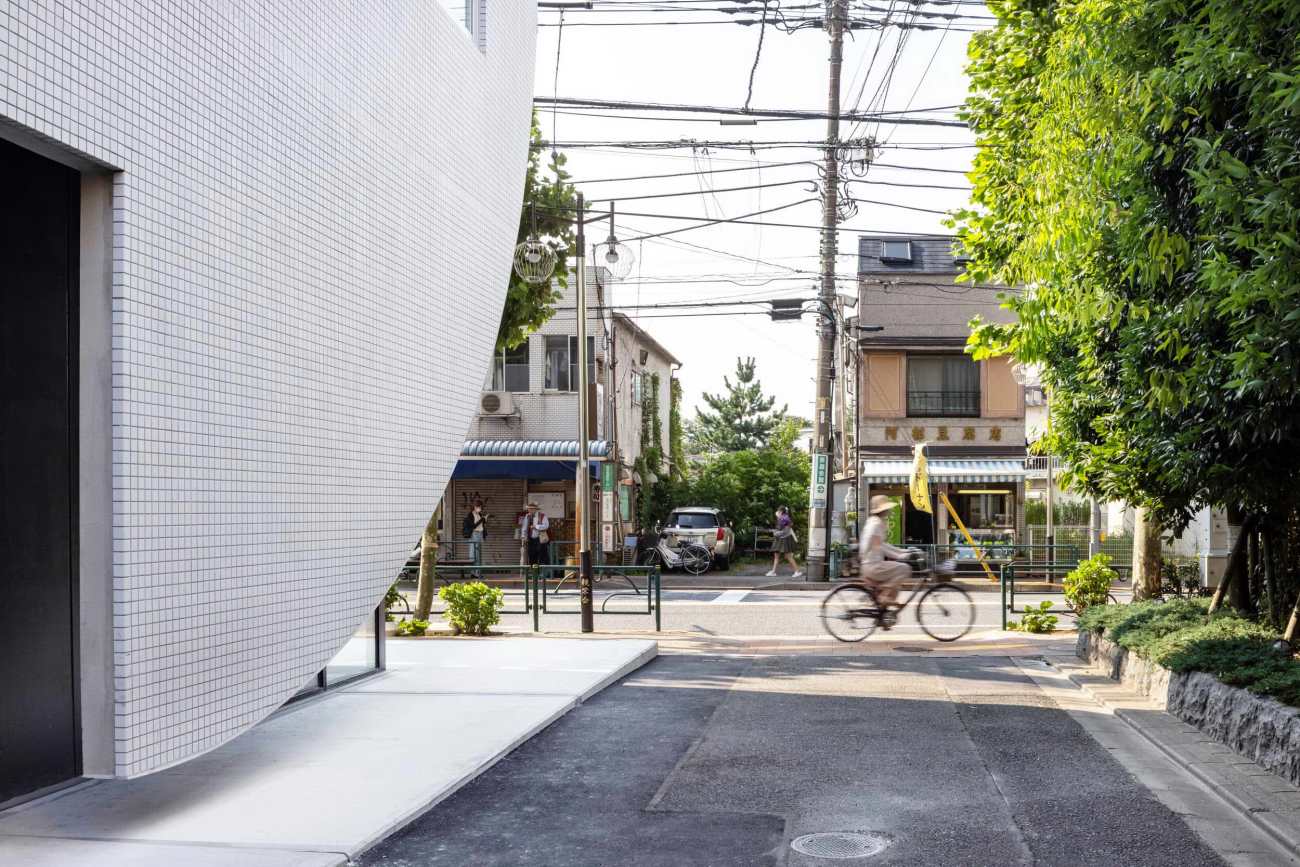

The building is in a crossing along Waseda street. The facade was conceived as concrete levitating sheet, who erase the boundaries between interior and exterior, public and private and opens to the street intersection trough two round cuts inviting people from every direction. The building was thought as a lighthouse for the travelers. The ground floor,reconverted into a co-working space for the residents is the expression of the new normality.

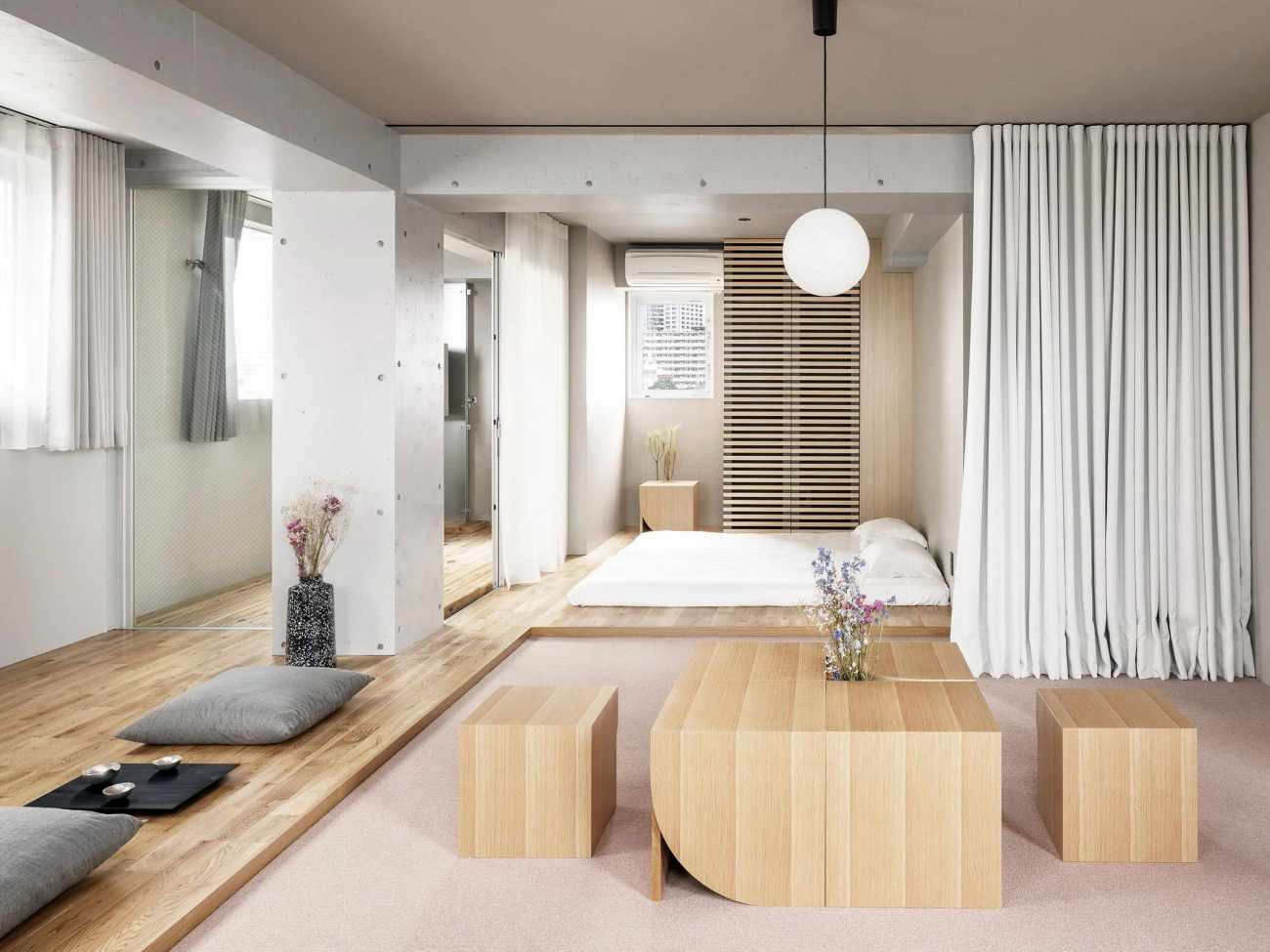

该建筑被规划为一系列的开放楼层，并围绕着土间的空间进行规划。土间是日本传统建筑中与日常使用和入口相关的区域，是社交的中心。在这个空间里，客人可以穿鞋进入，是聚集的地方。宅邸被一个高架的地面区域所包围，成为一个灵活的平台，用于安静的活动和夜间使用。在这个无鞋空间里，晚上根据客人的数量放置被褥。穹顶和高架地板之间的边界可以用灯光隔断、木质百叶窗或窗帘来封闭。

Rooms and Doma space

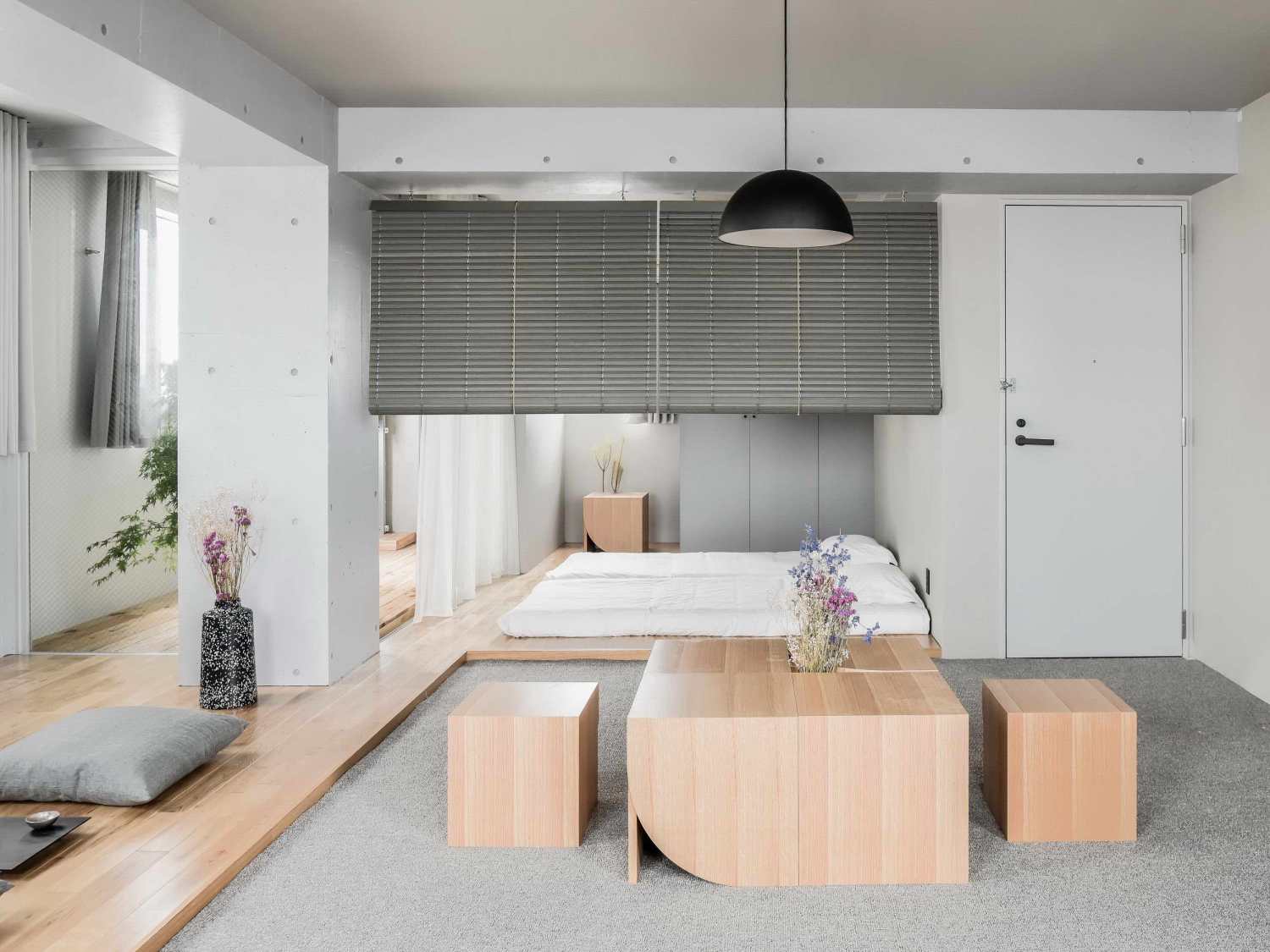

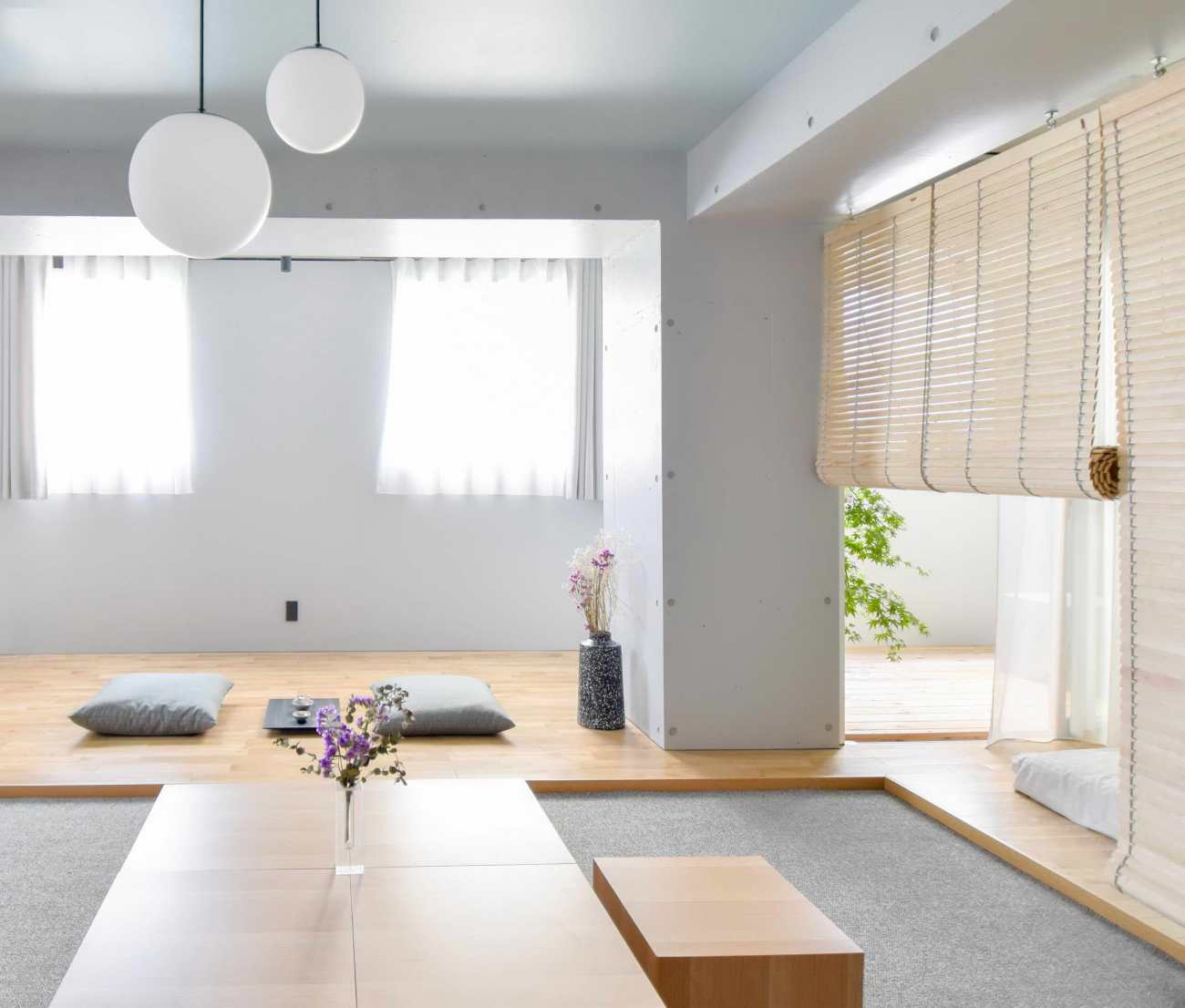

The building was planned as a series of open floors with a plan developed around the doma space 土間. The doma is in traditional Japanese buildings an area associated with the daily use and the entrance points, and it was the center of the socialization. In this space the guests are allowed to enter with shoes and is the place to gather. The doma is surrounded by a raised floor area that becomes a flexible platform for quiet activities and night use. In this shoeless space the futons are placed at night depending on the number of guests. The boundary between the doma and the raised floor can be close using light partitions, wooden blinds, or curtains.

改变用途

空间的灵活性以及加强Covid-19通风指导性的规划，使得成功转型为公寓成为可能。虽然该建筑被规划为酒店，但我们考虑到室内外空间的重要性，我们设计了每层/房间有两个阳台的方案。在新的公寓布局中，一个阳台用于休闲，另一个用于通风用途，这些空间在Covid大流行期间变得更加有价值。

Change of use

The flexibility of the space together with a plan which enhances the Covid-19 guideliness for ventilation, made possible a successful transformation into apartments. Although the building was plan as a hotel we envisioned the importance of the interior exterior spaces and we design the plan with two balconies per floor/room. In the new apartment layout one balcony is used for leisure and the other for BOH purposes.   These spaces become even more valuable in the middle of the Covid pandemia.

家具

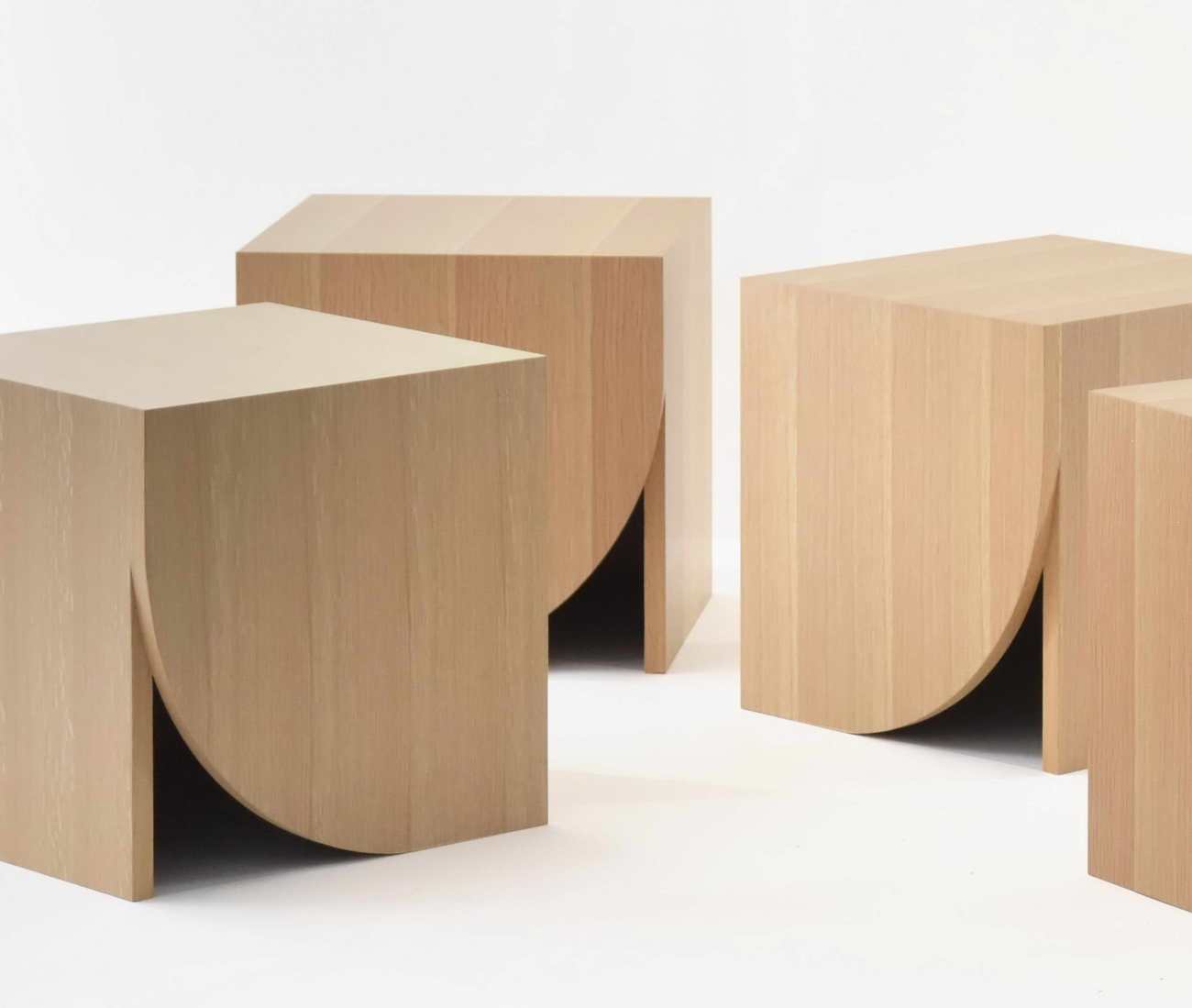

YSLA将Miwaみわ设计成一个模块化的灵活家具，可以以不同的方式组装和使用，并在形状上呼应了Lighthouse。

Furniture

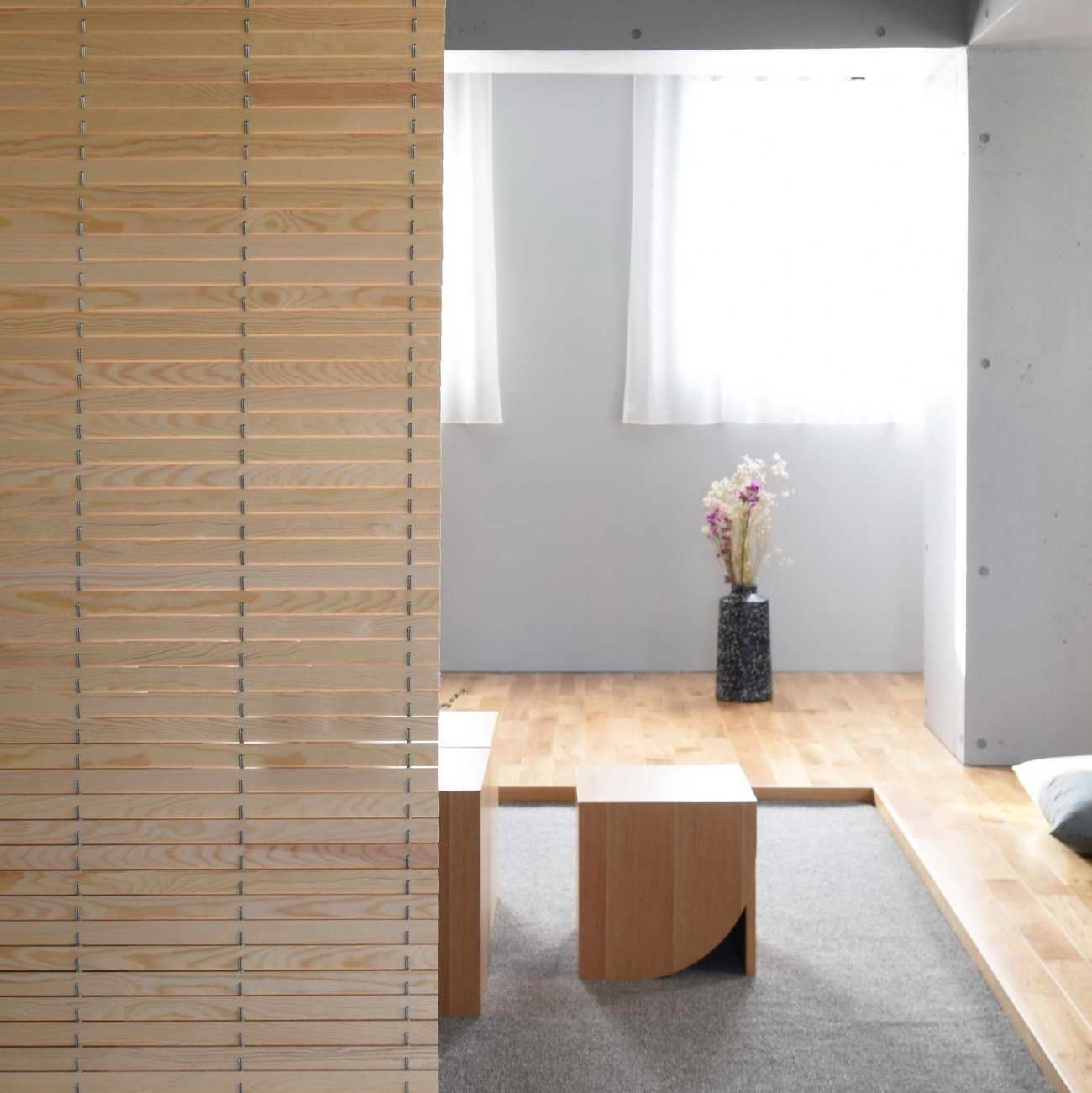

YSLA designed Miwa みわ as a modular and flexible furniture that can be assembled and use in different waysand remembers the spirit of the lighthouse in its shape.

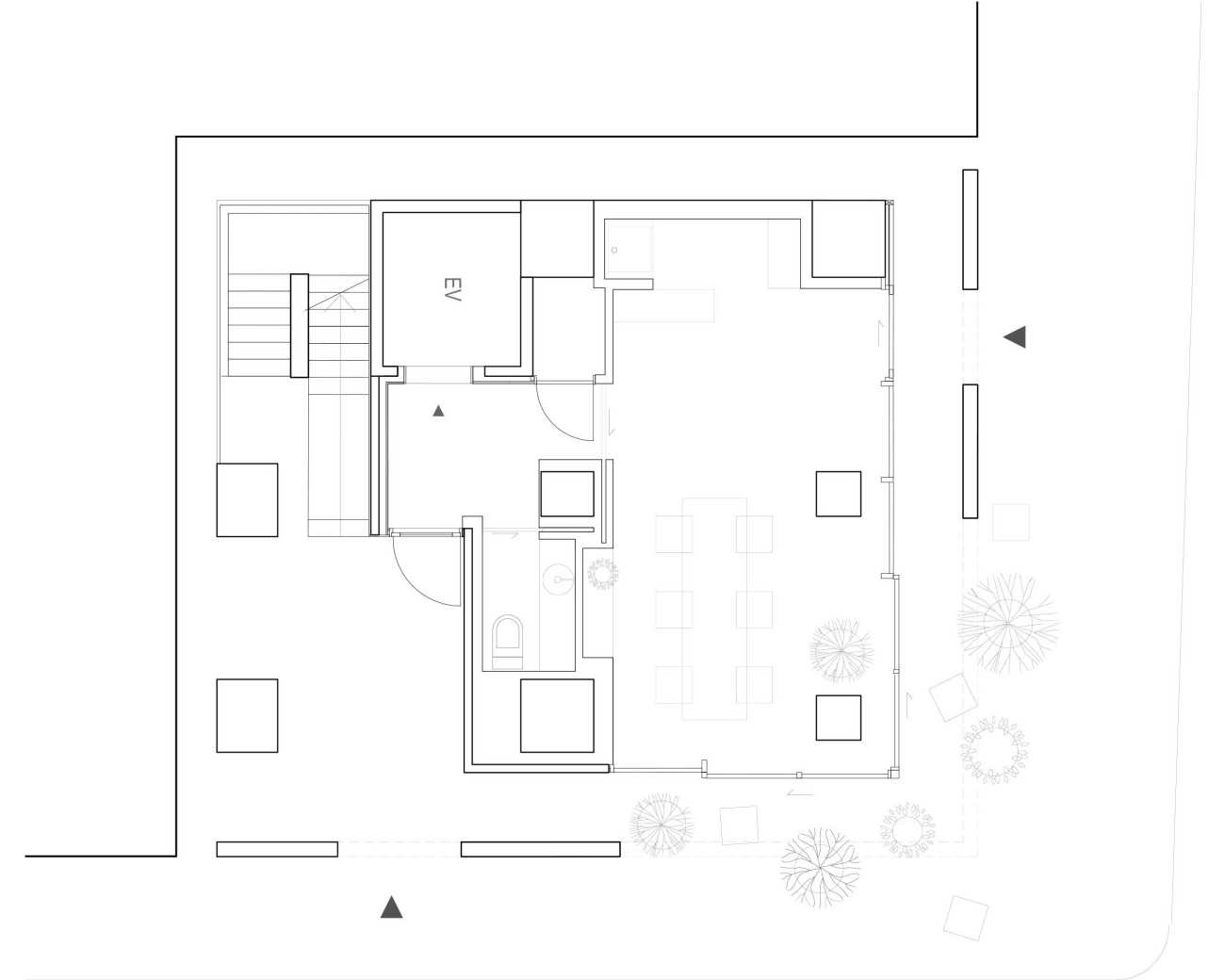

▽入口层平面图 Ground floor plan

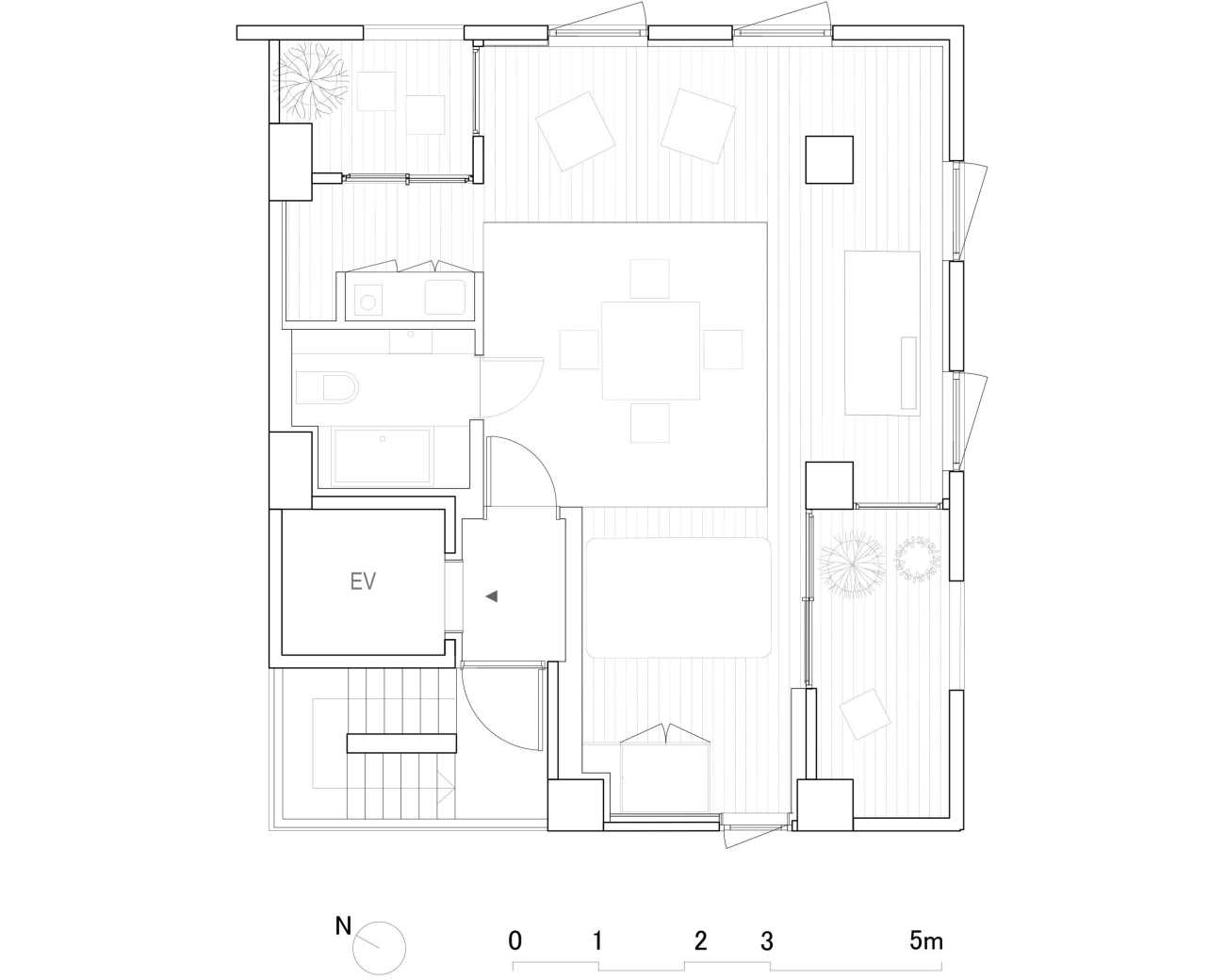

▽九层平面图 Nineth floor plan

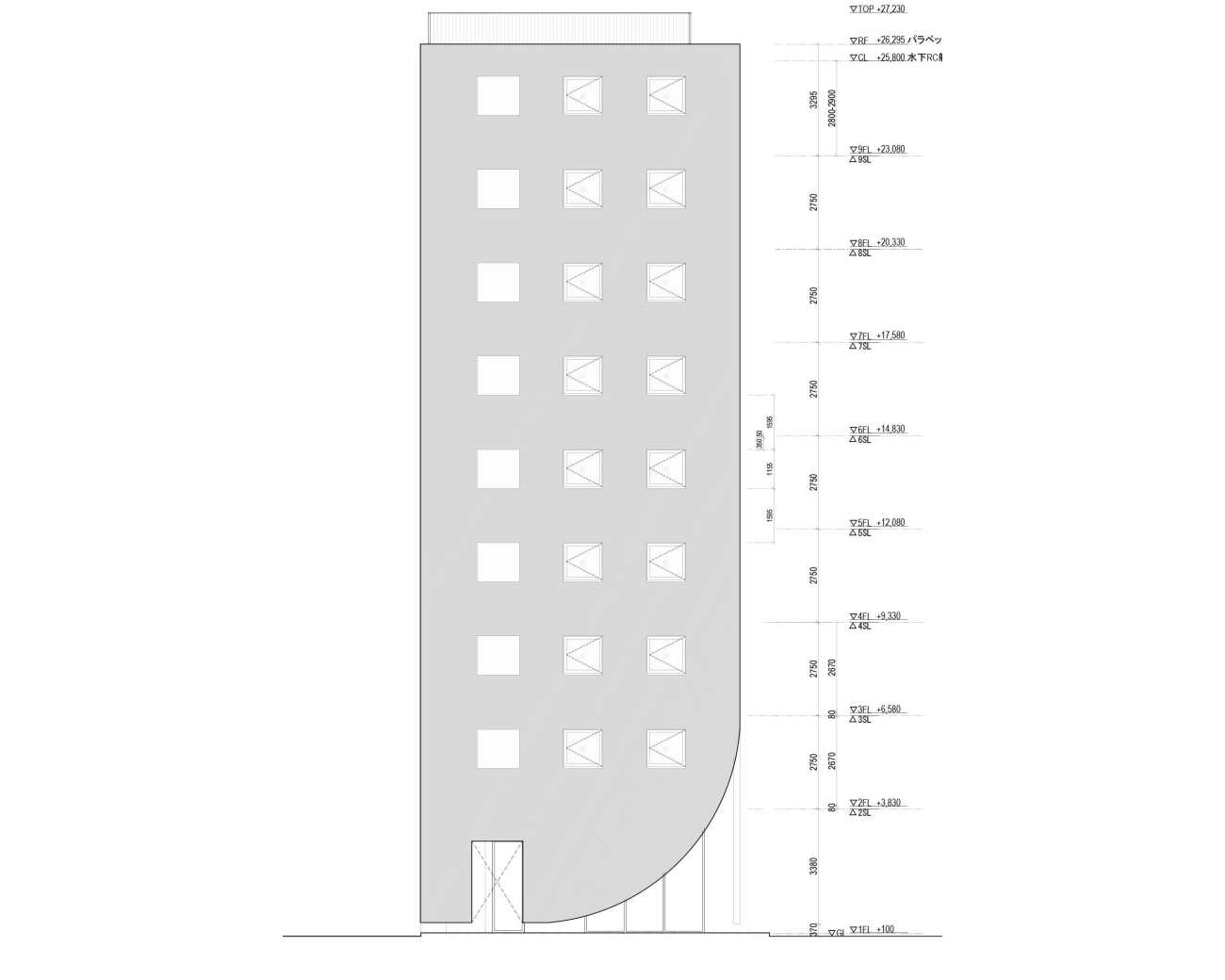

▽立面图 Elevation

▽立面图 Elevation

Project name: Lighthouse

Company name: YSLA Yamamura Sanz Lavina Architects

Website:www.yamamurasanzlavina.com

Contact e-mail:info@y-sl.com

Project location:Shinjuku, Tokyo, Japan

Completion Year:July 2020

Plot area: 108m2

Building footprint: 70m2

Building area: 554m2

Curtains: Studio Onder de Linde

Structure: yAt Structure Design Office

Contractor: FUJIKEN

Photo credits: Munetaka Onodera
