美国·纳帕谷Quintessa亭子

这一组亭子都是250平方英尺的独立结构，设计这组凉亭是为了在景观中提供沉浸式的私人葡萄酒品尝体验。这些亭子是280英亩纳帕谷酒庄的补充建筑，每一个亭子都反映了创始人对建筑自然环境相协调的期望。因此，设计师对每个亭子都进行了精心选址，以保护游客免受自然因素的影响体验感，同时也保护了场地中现有的橡树。这一座凉亭是创造了一种独特的品酒体验，可以在全年任何极端的天气下使用。

The pavilions are a series of independent 250-square-foot structures, each of the three pavilions is designed to provide an immersive, privately hosted wine-tasting experience in the landscape. As modest additions to an established 280-acre winery estate in Napa Valley, each pavilion reflects the founder’s desire for architecture that will harmonize with the natural surroundings of the property. Accordingly, each pavilion is carefully sited to protect visitors from the elements while also preserving the existing mature oak trees. The result is a unique wine-tasting experience that can be utilized year-round during weather extremes.

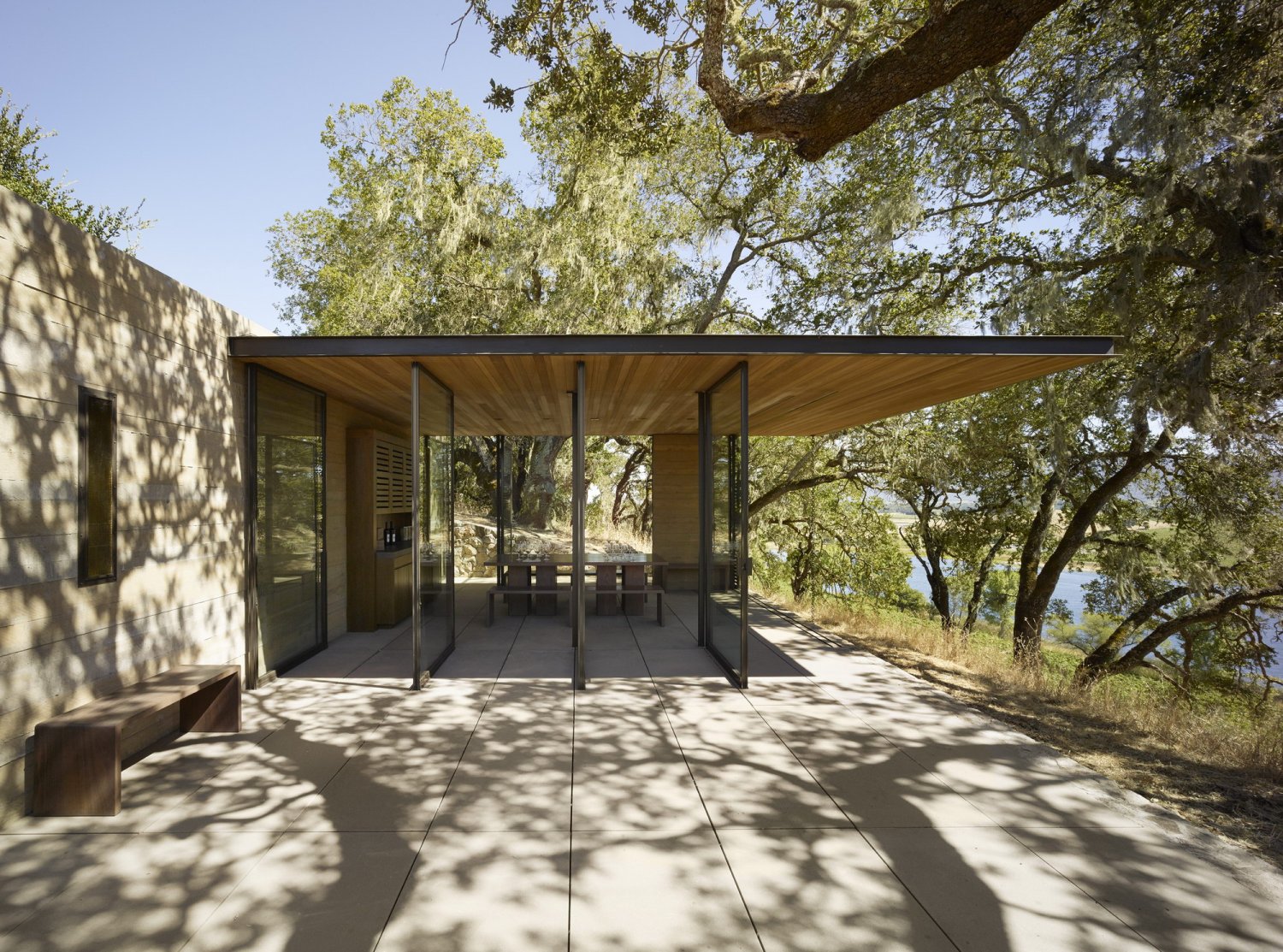

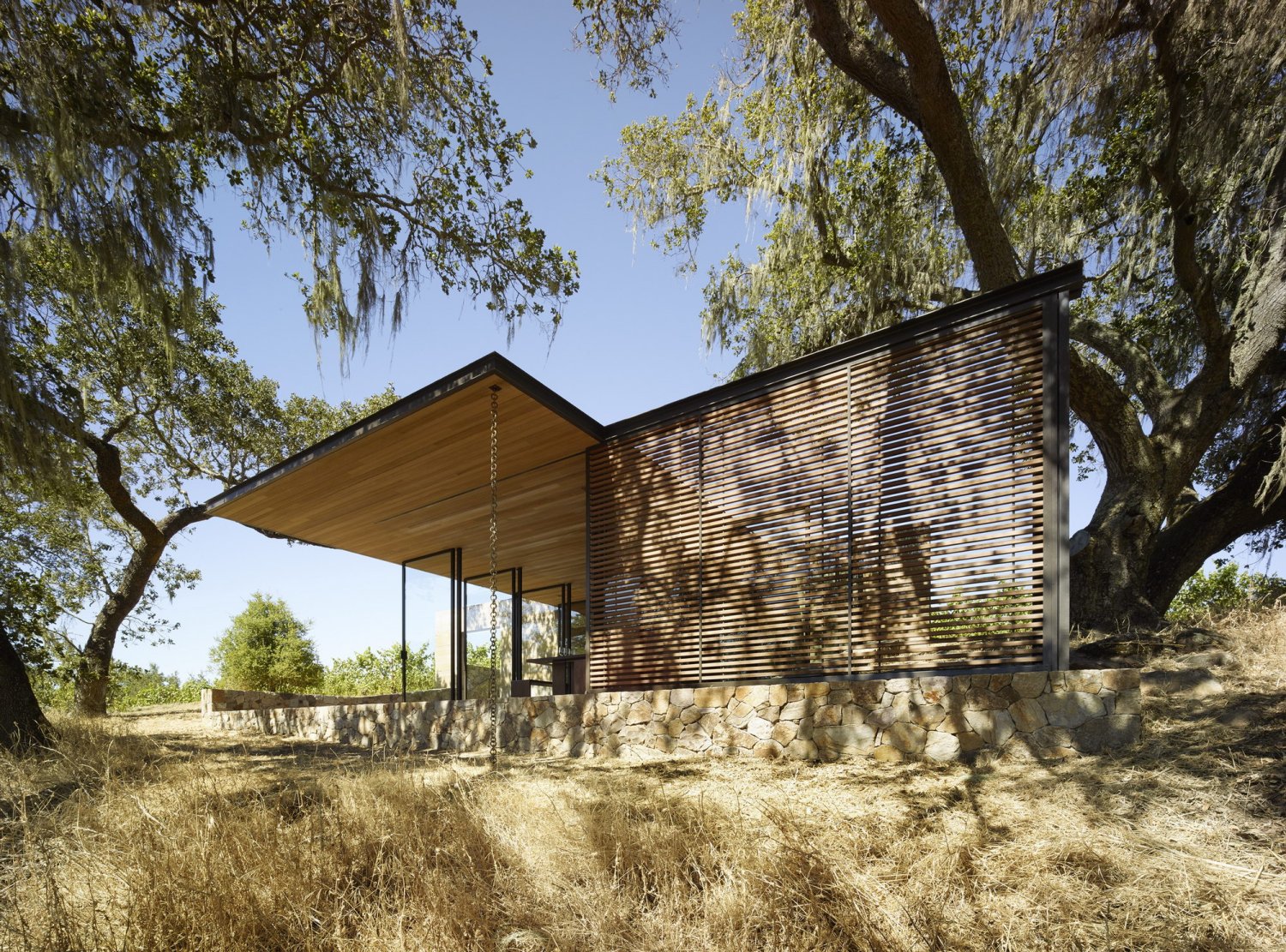

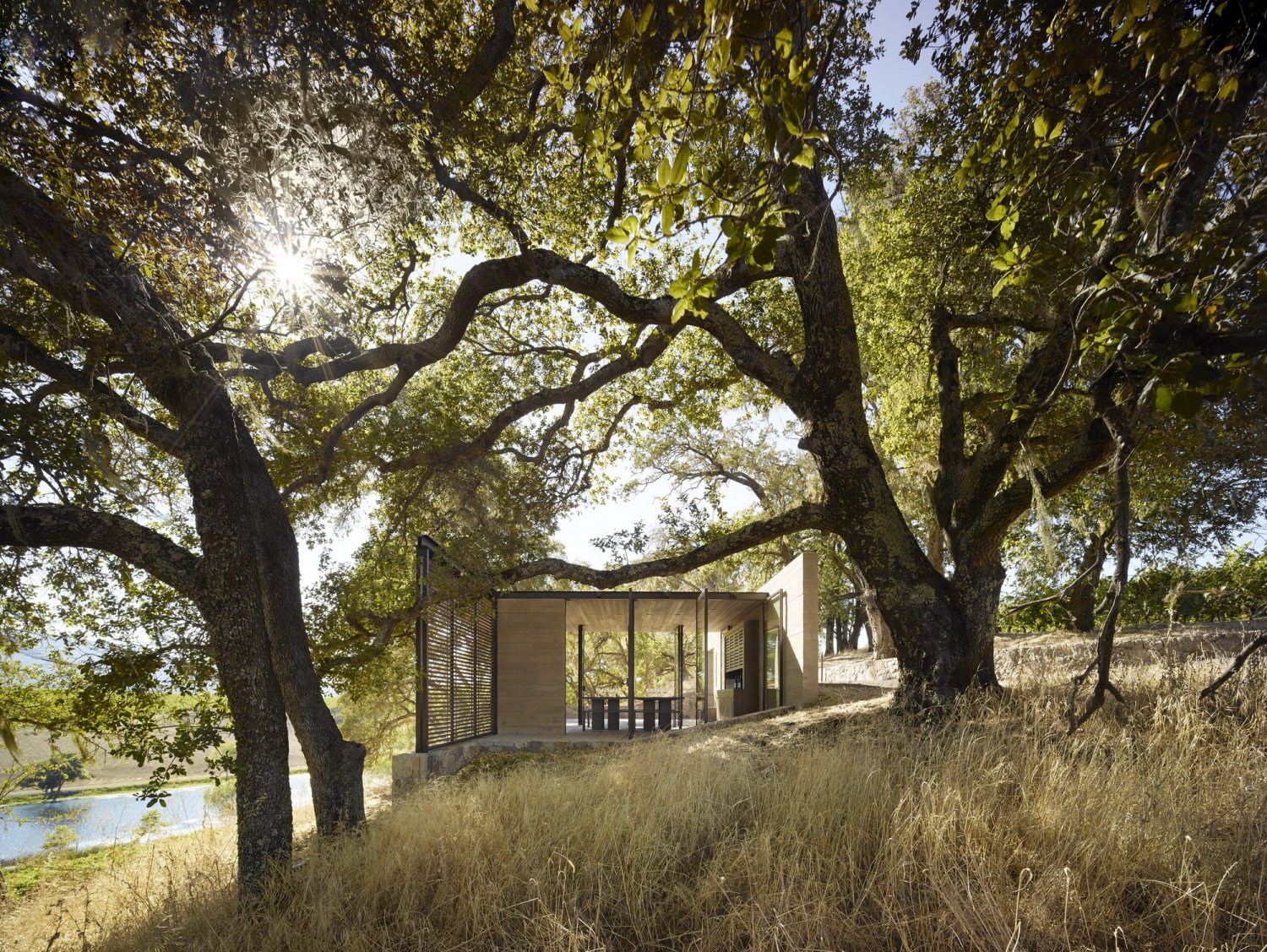

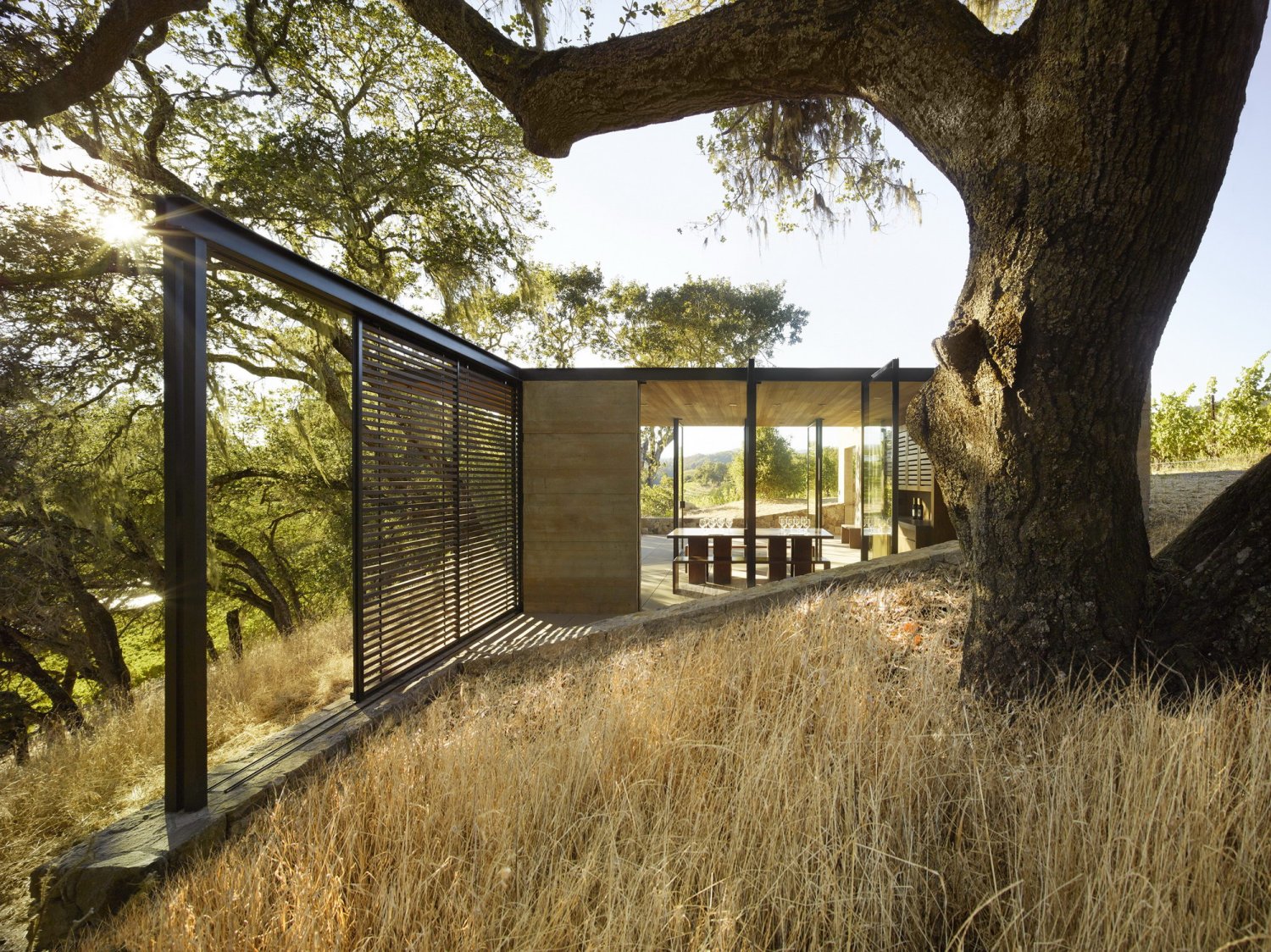

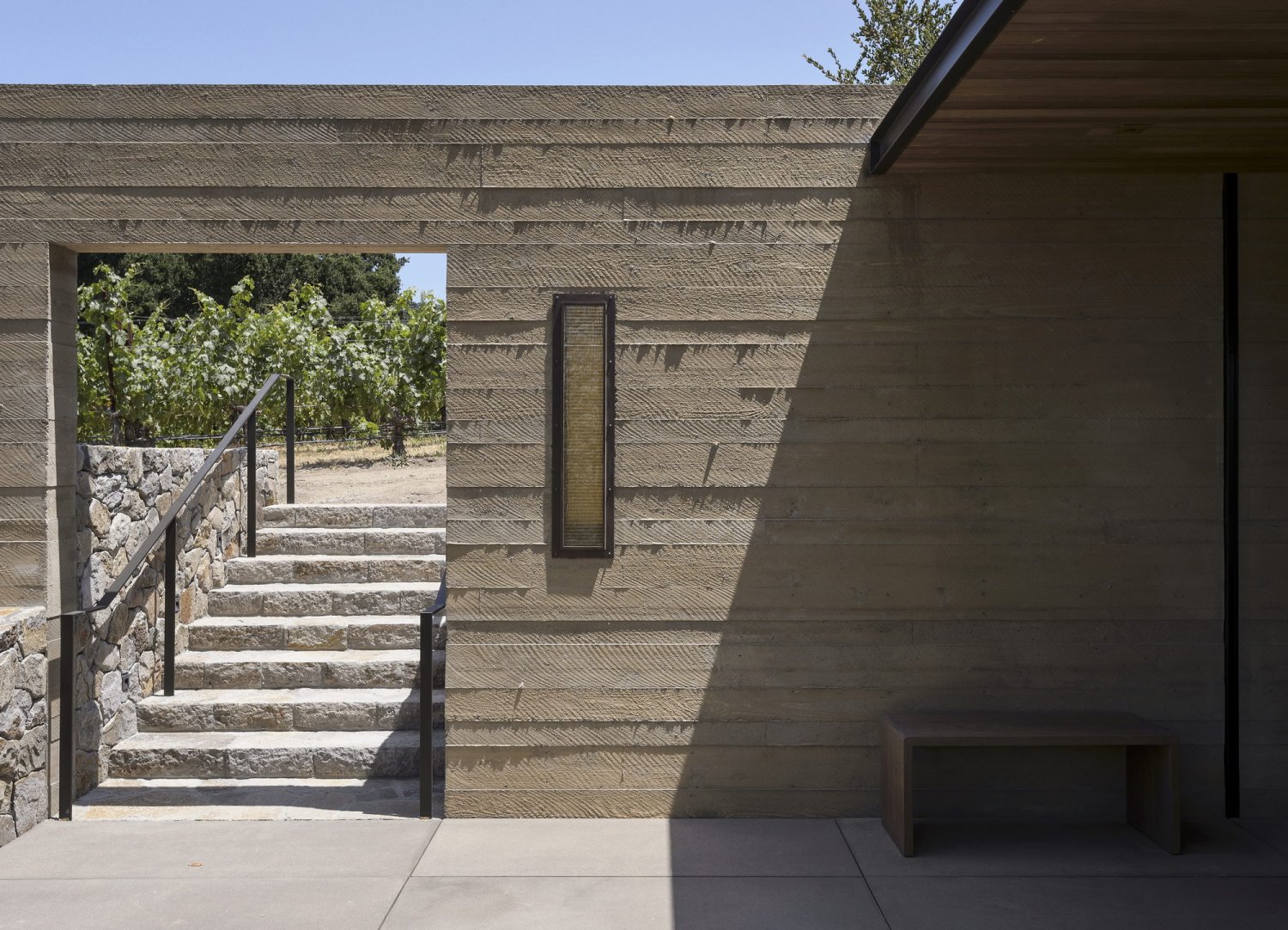

▽亭子侧面，Side of pavilion.

在到达这片区域时，客人被引导通过森林步道，步行至一个私人品酒亭，在那里他们可以享受宁静的环境，欣赏亭子下方的葡萄园和湖泊的广阔景色。每个凉亭都优雅而不引人注目，并提供沉浸式的品酒体验，庆祝在这片土地上感受到的欢愉。

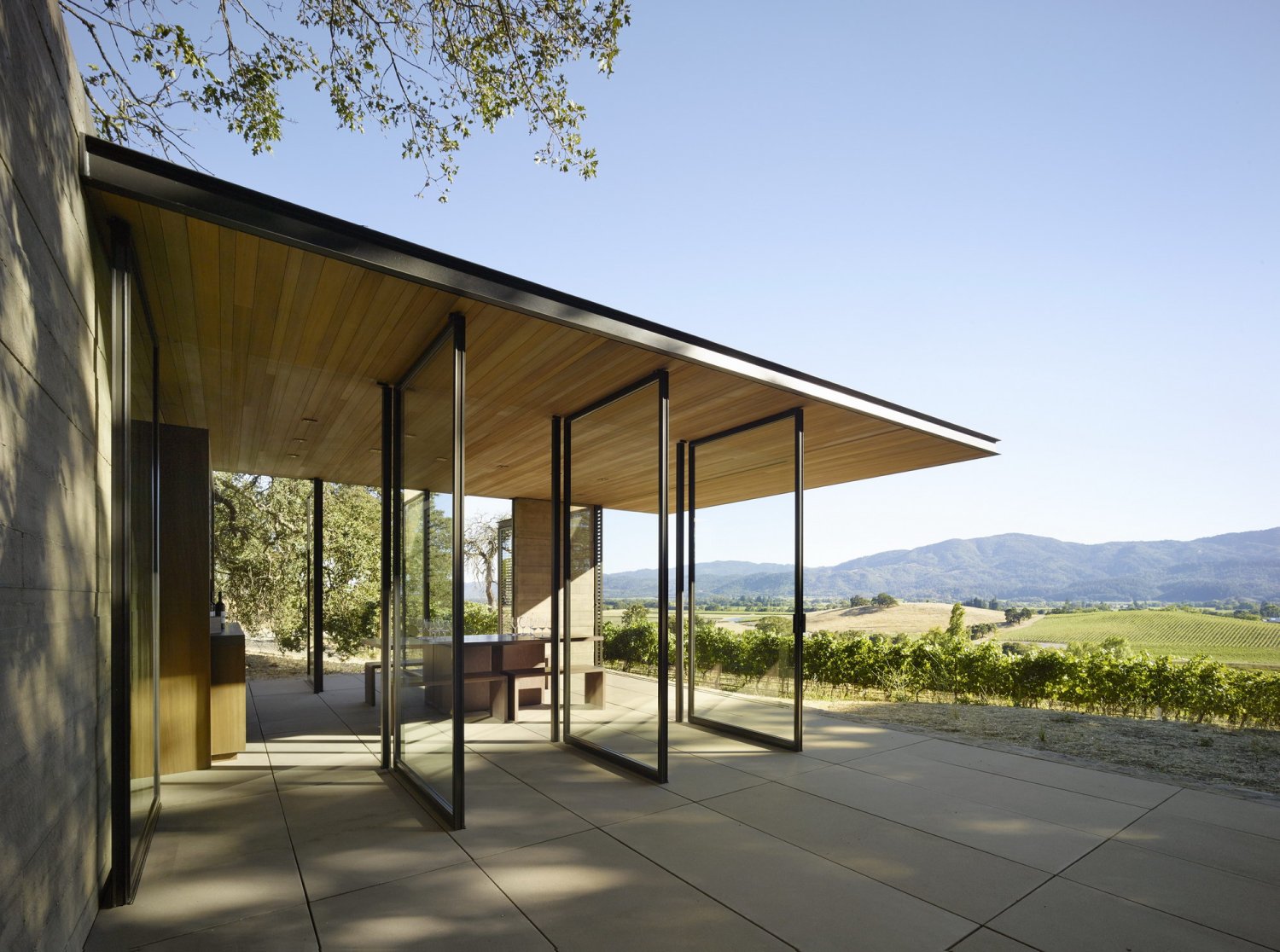

Upon arrival, guests are guided via a forested pedestrian pathway, to a private tasting pavilion nestled into the land, where they can enjoy the serene setting and expansive views of the vineyards and lake below. Each pavilion is elegantly unobtrusive and offers an immersive wine tasting experience that celebrates the land.

凉亭的设计呼应了现有酒庄对环境的敏感度，并采用了耐用、可持续的材料，这些材料具有良好的抗氧化性和耐候性。凉亭的位置与山脊线平行，一面由梣木建成的像混凝土材质的墙开了一个入口，可以看到观看到到远处葡萄园的全景。

The design of the pavilions echoes the existing winery in its environmental sensitivity and material palette of durable, sustainable materials that age and weather well. Running parallel to the ridgeline, a bold blade-like concrete wall made with fly ash forms the pavilion entry where a doorway is carved out to reveal the panoramic view from the terrace to the vineyards beyond.

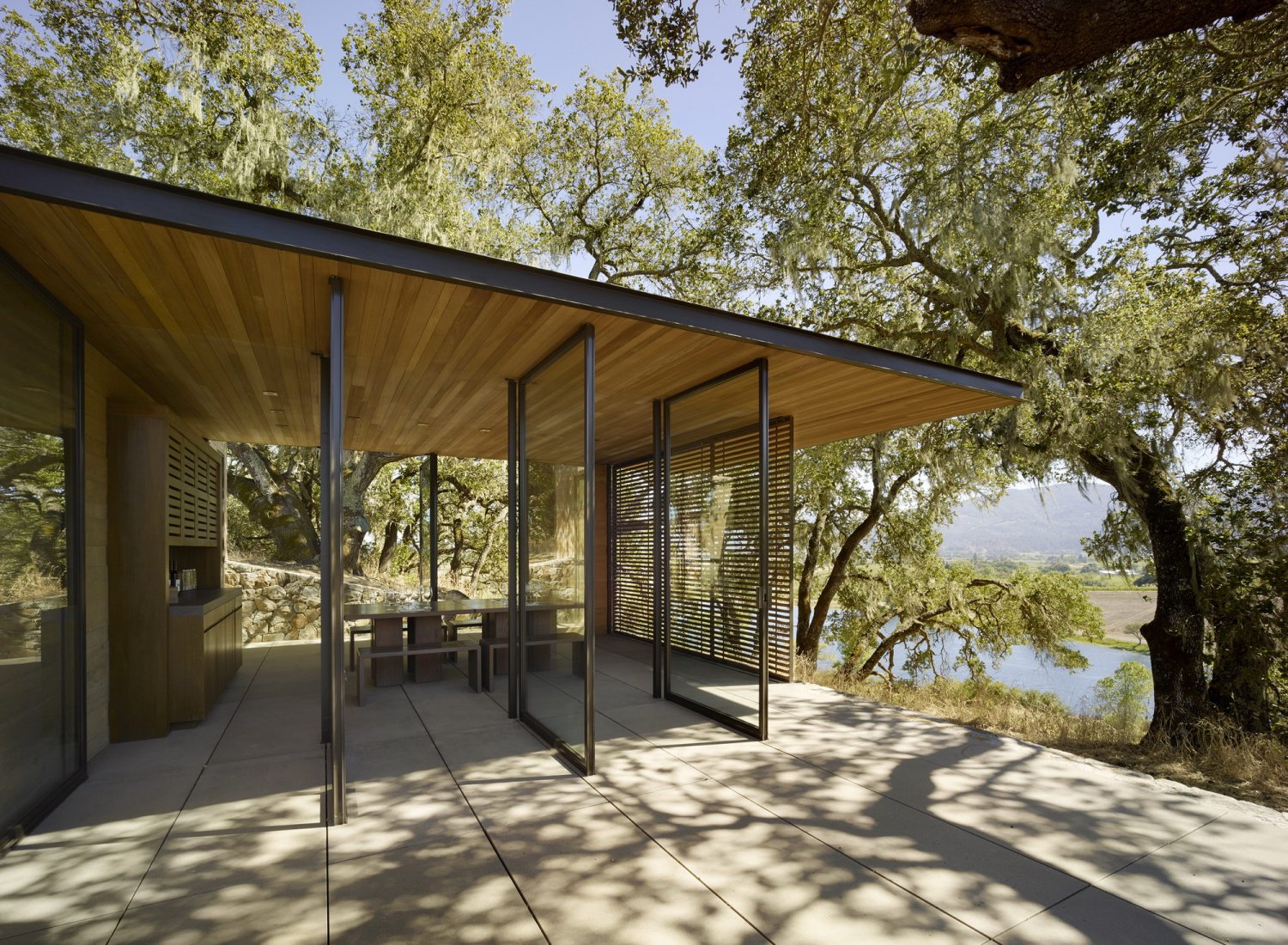

The prefabricated steel structure creates long roof overhangs that protect visitors from the elements while expansive walls of operable doors help to maximize the openness for light, views and cross ventilation. The low retaining walls are made of Napa syar stone and the terrace surface is made of locally prefabricated concrete pavers. Casework and ceilings are made of reclaimed Sinker cypress chosen for its durability and warmth. Custom furnishings made from FSC Certified Afromosia are designed to accommodate a range of group sizes. The surrounding plantings are drought resistant native grasses intended to soften the transition from the pavilions to the vineyards.

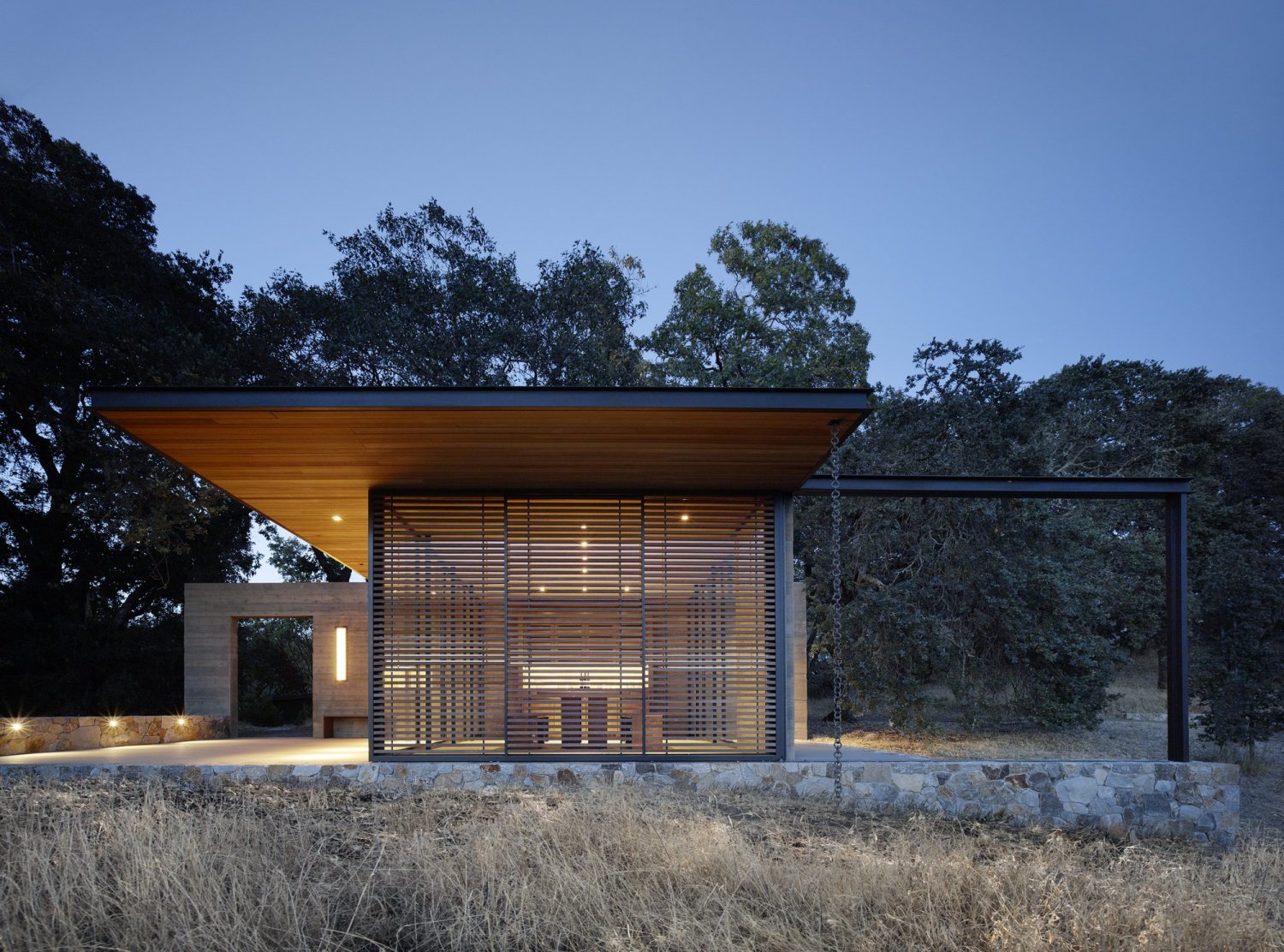

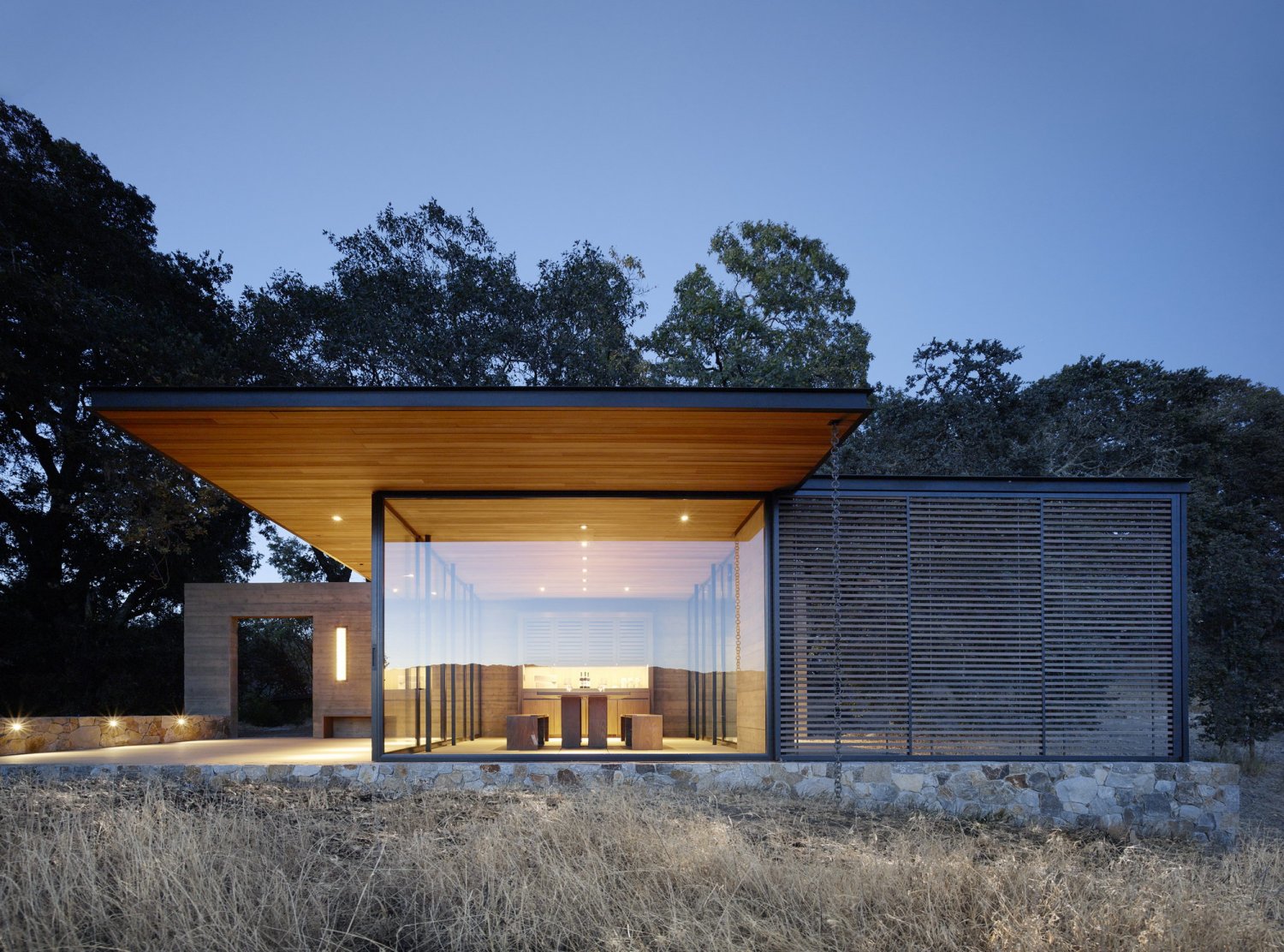

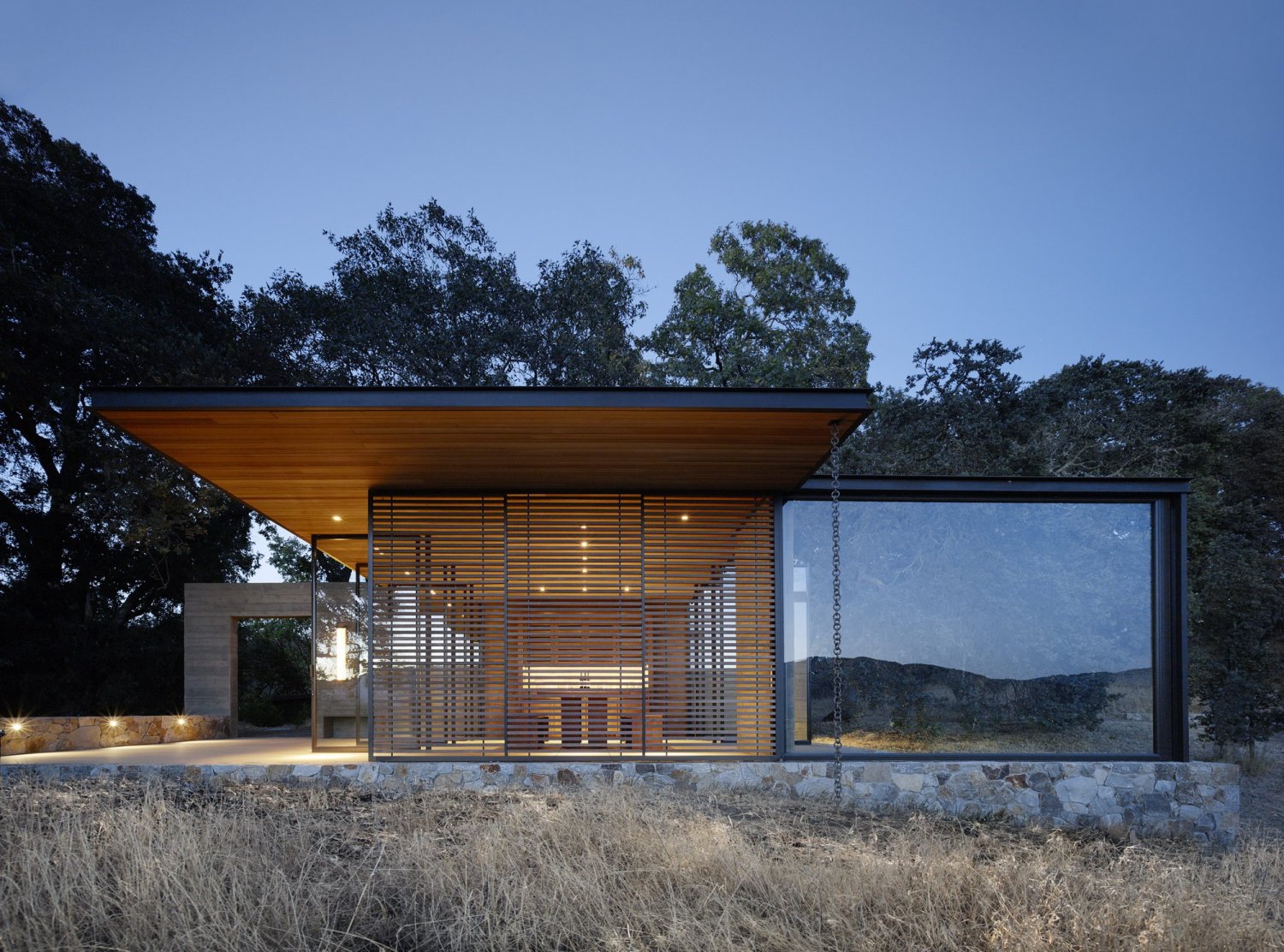

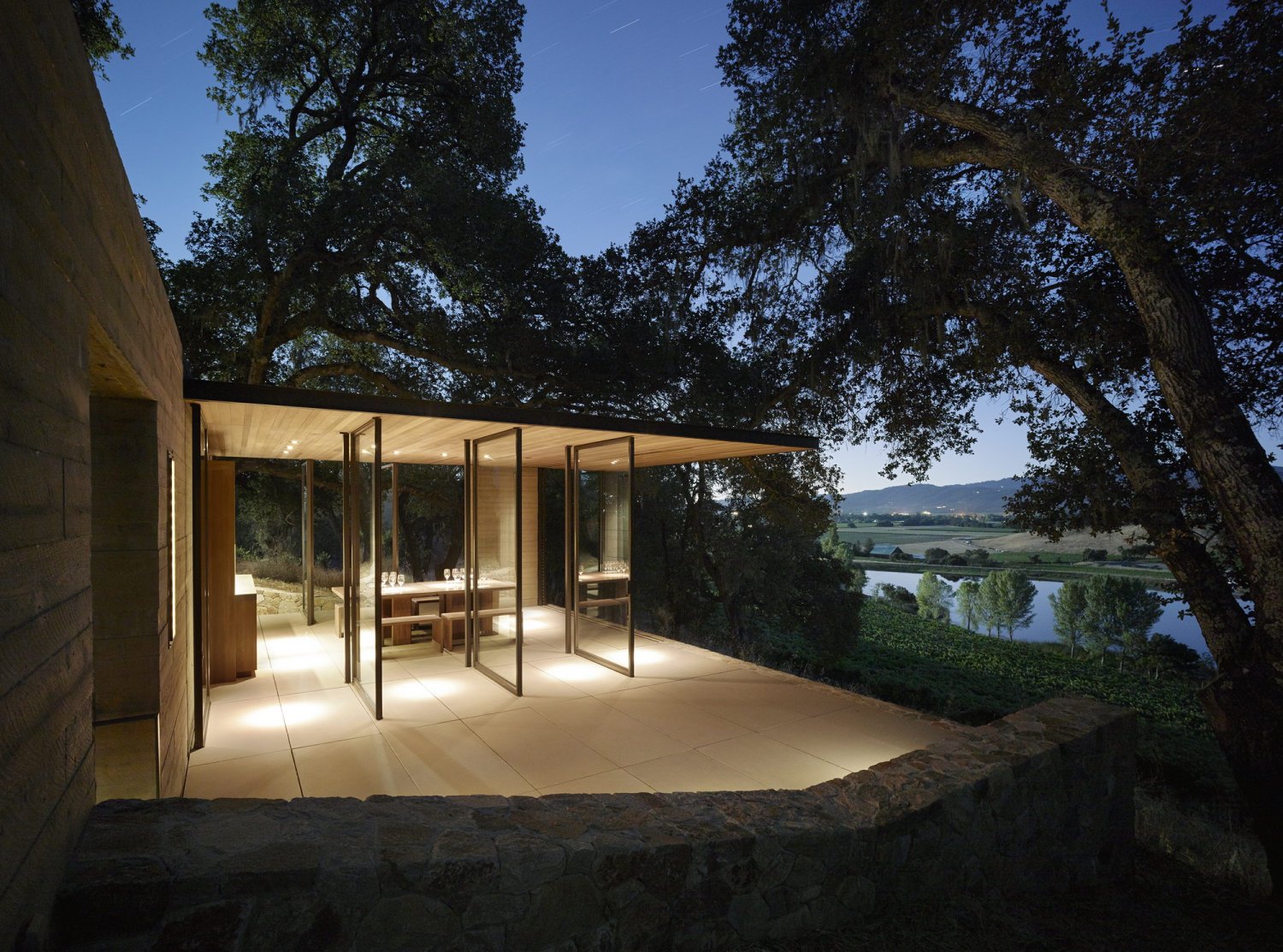

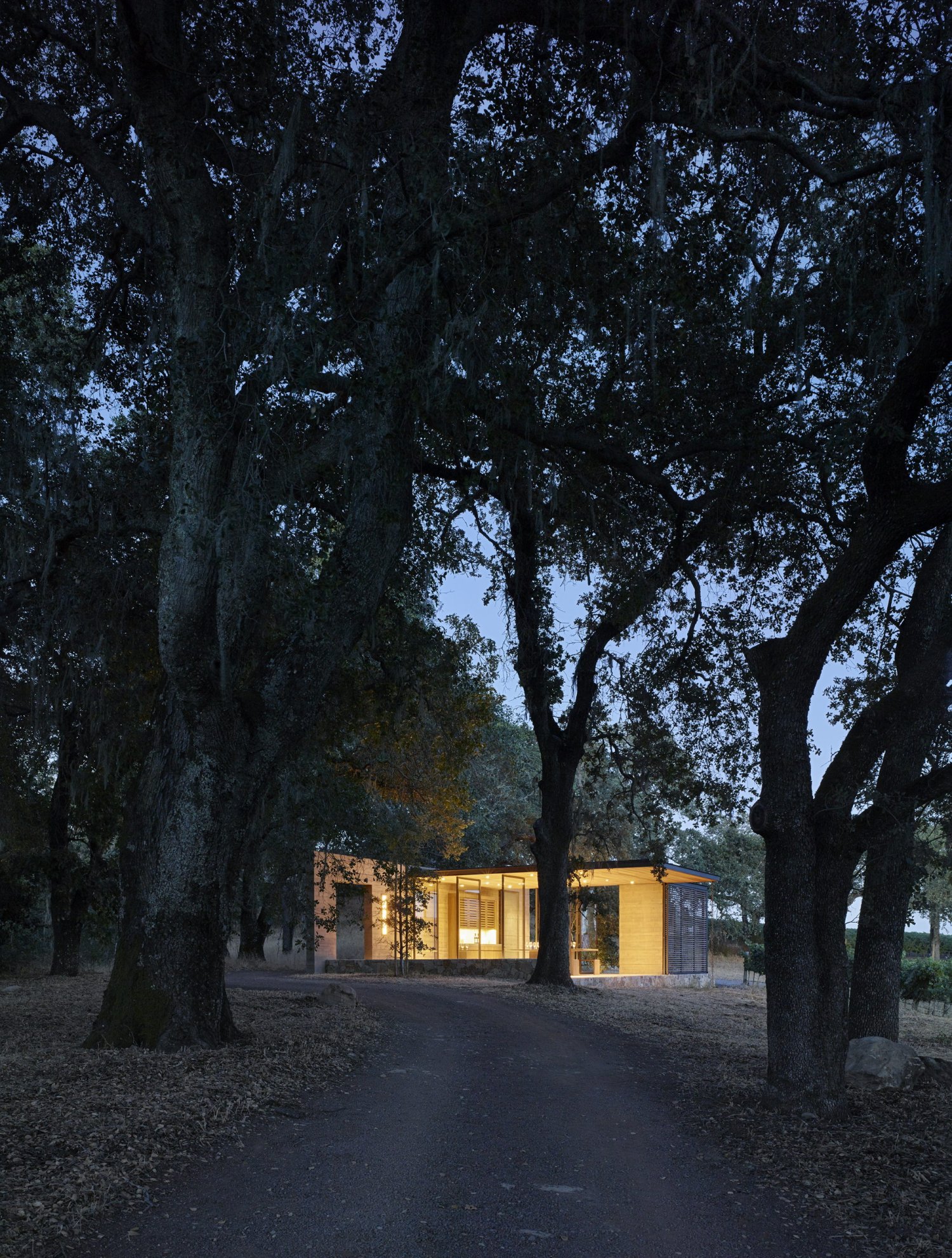

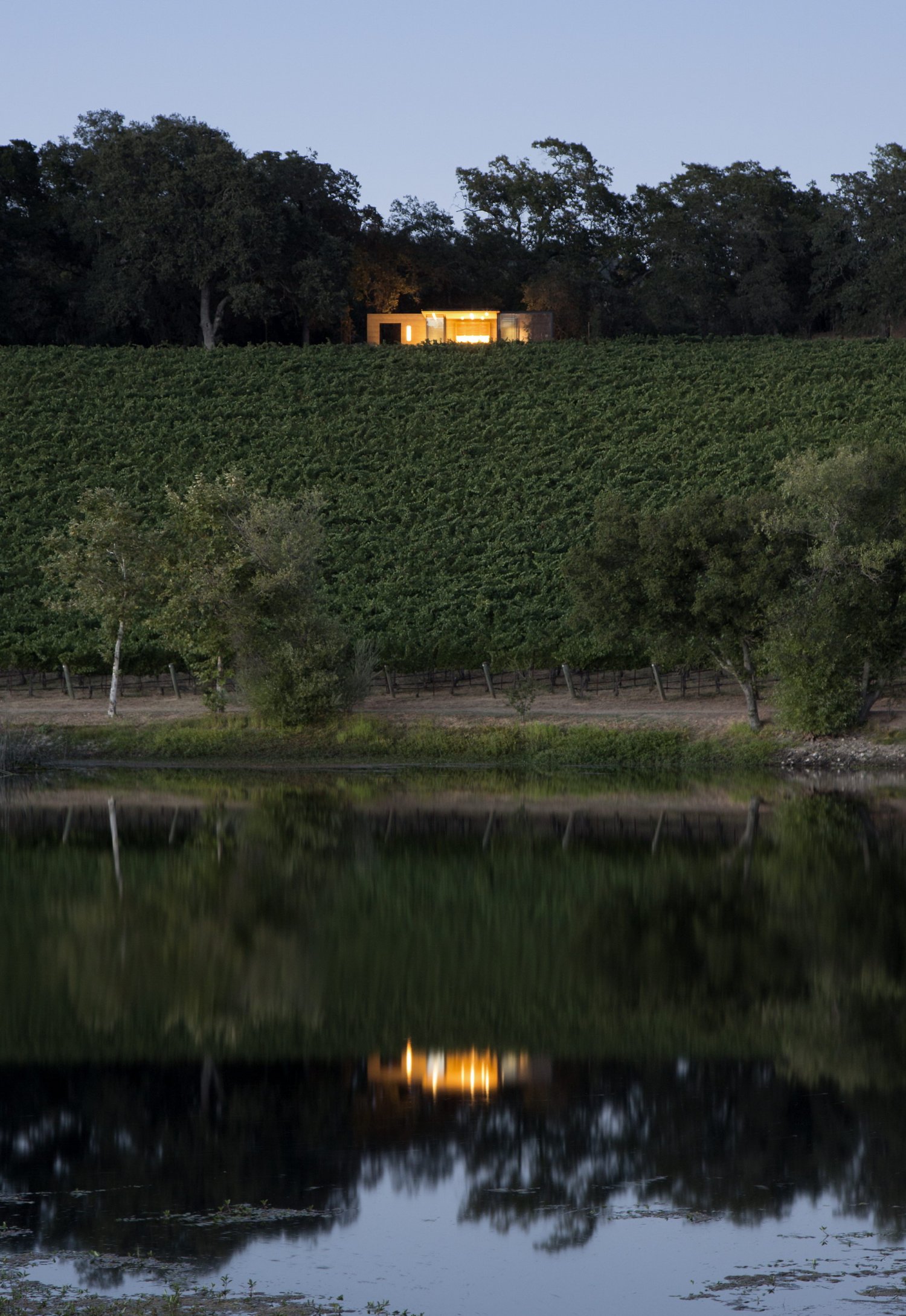

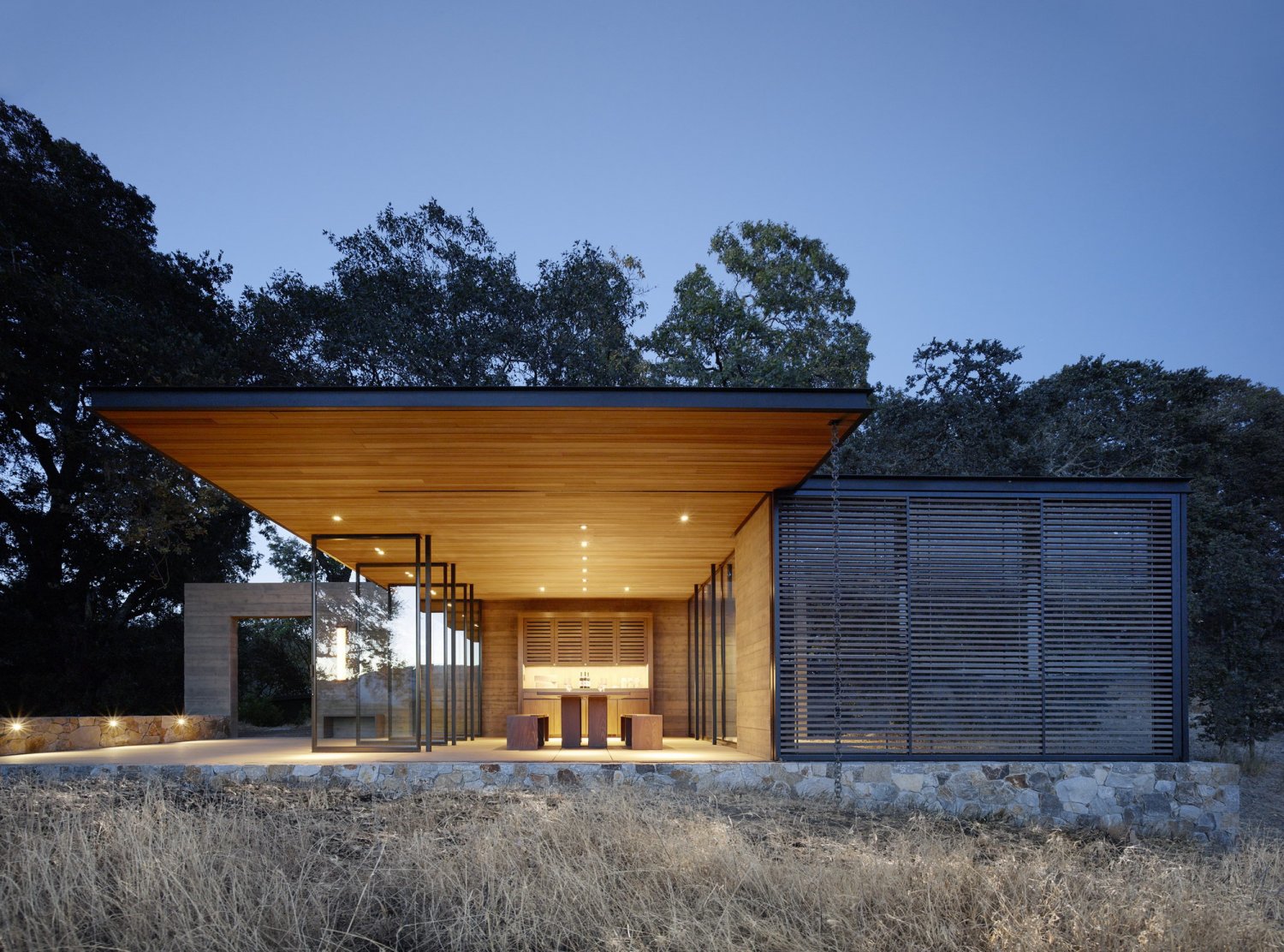

▽夜景效果，Night view effect.

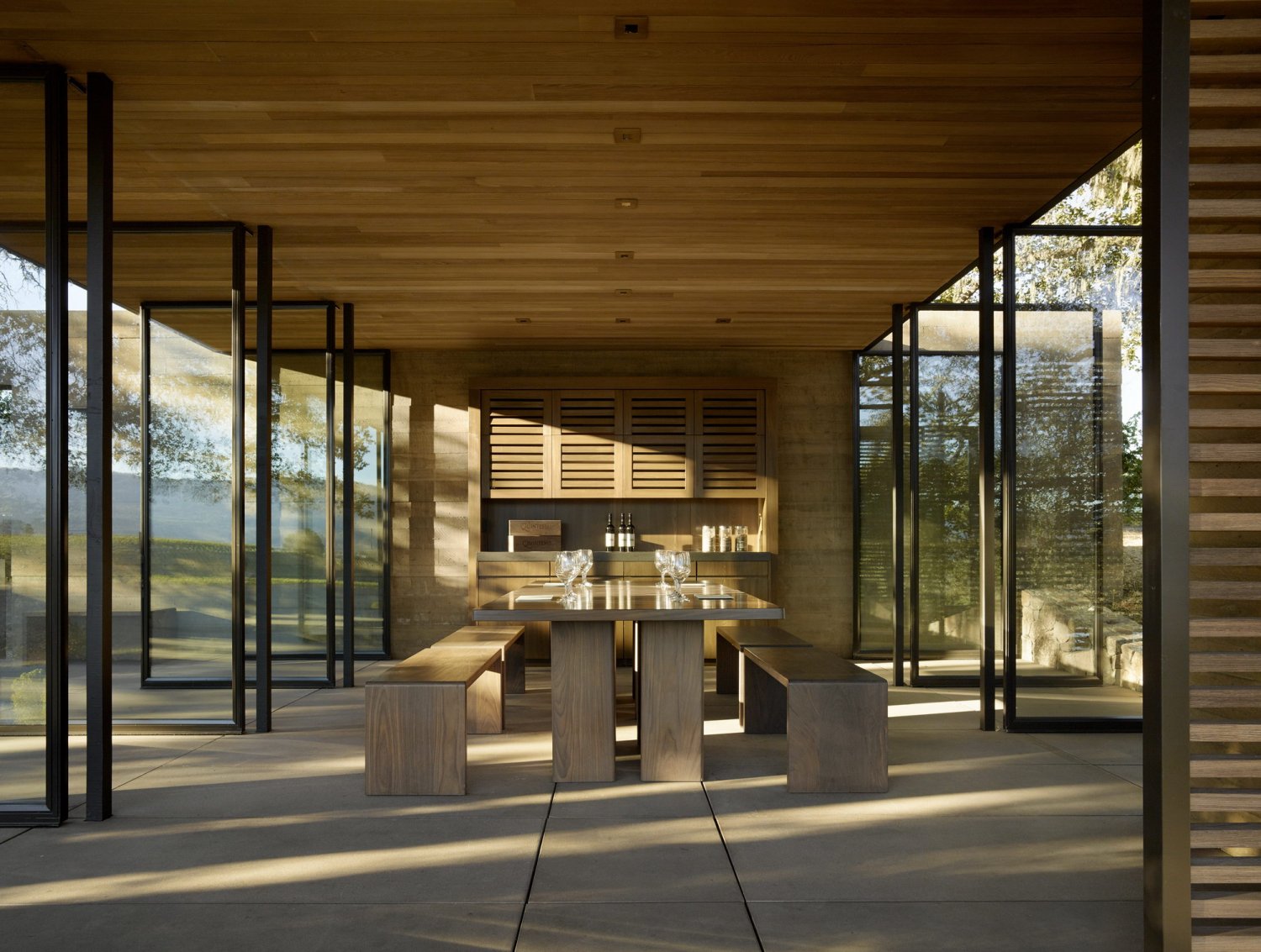

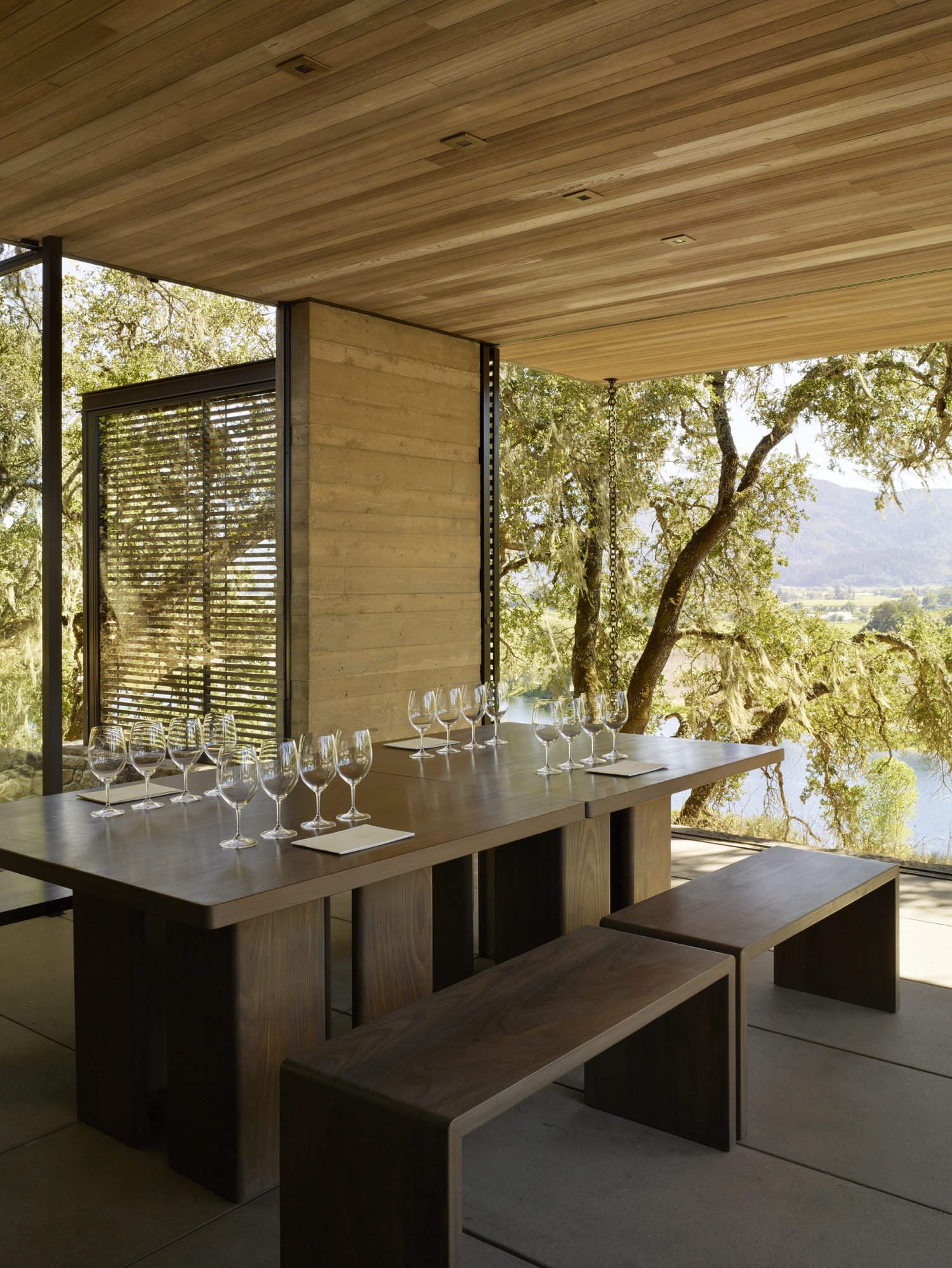

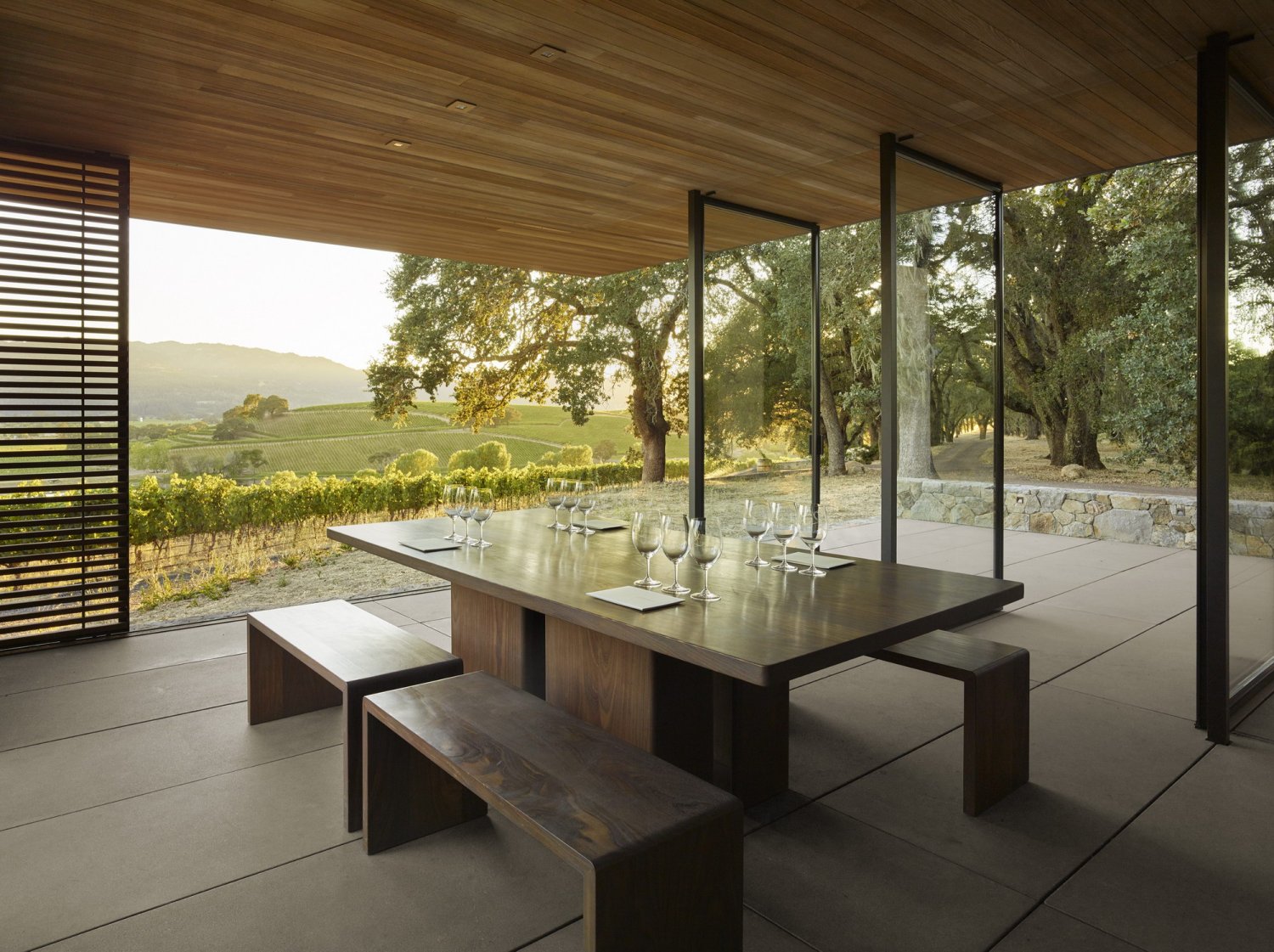

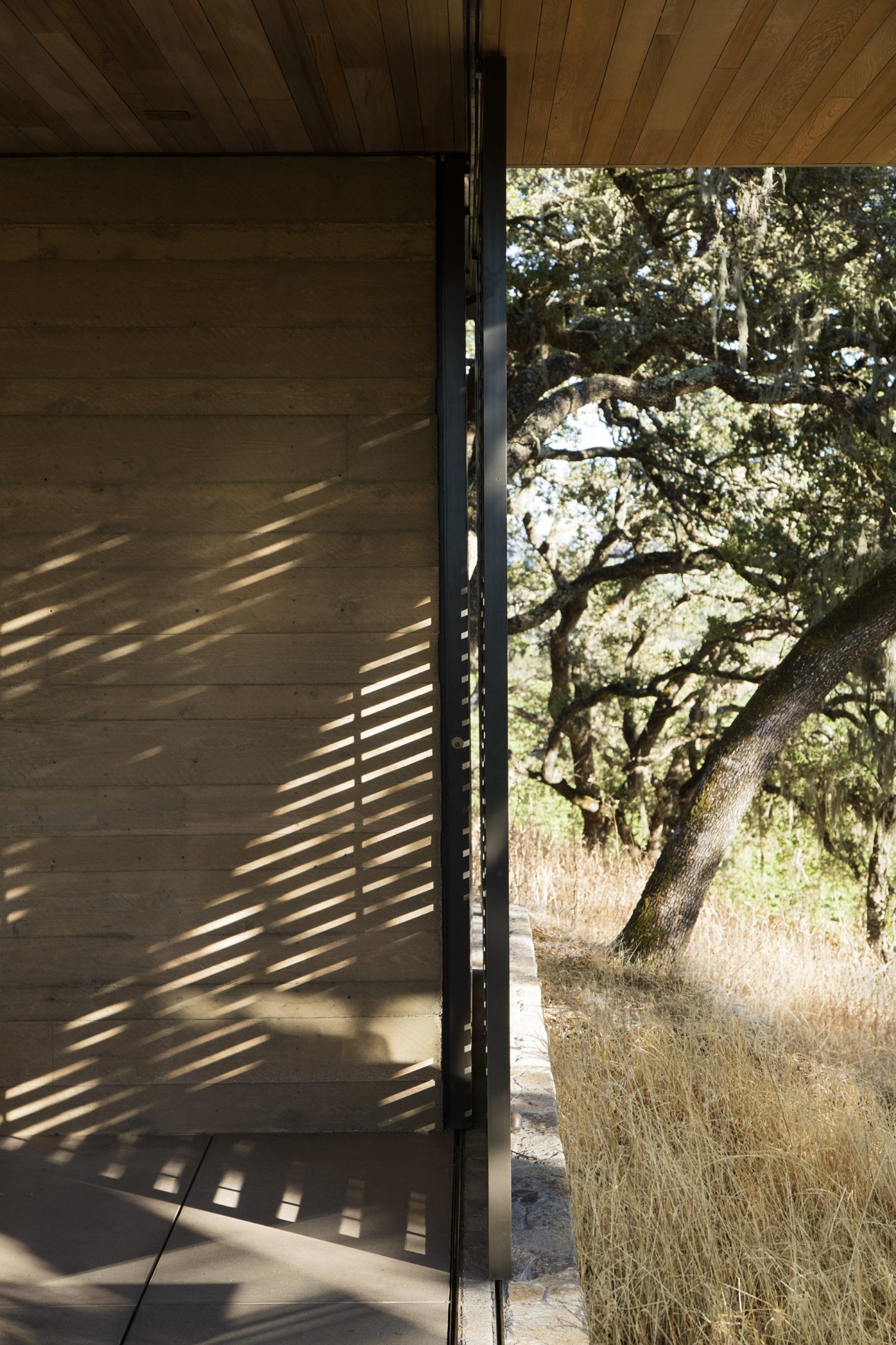

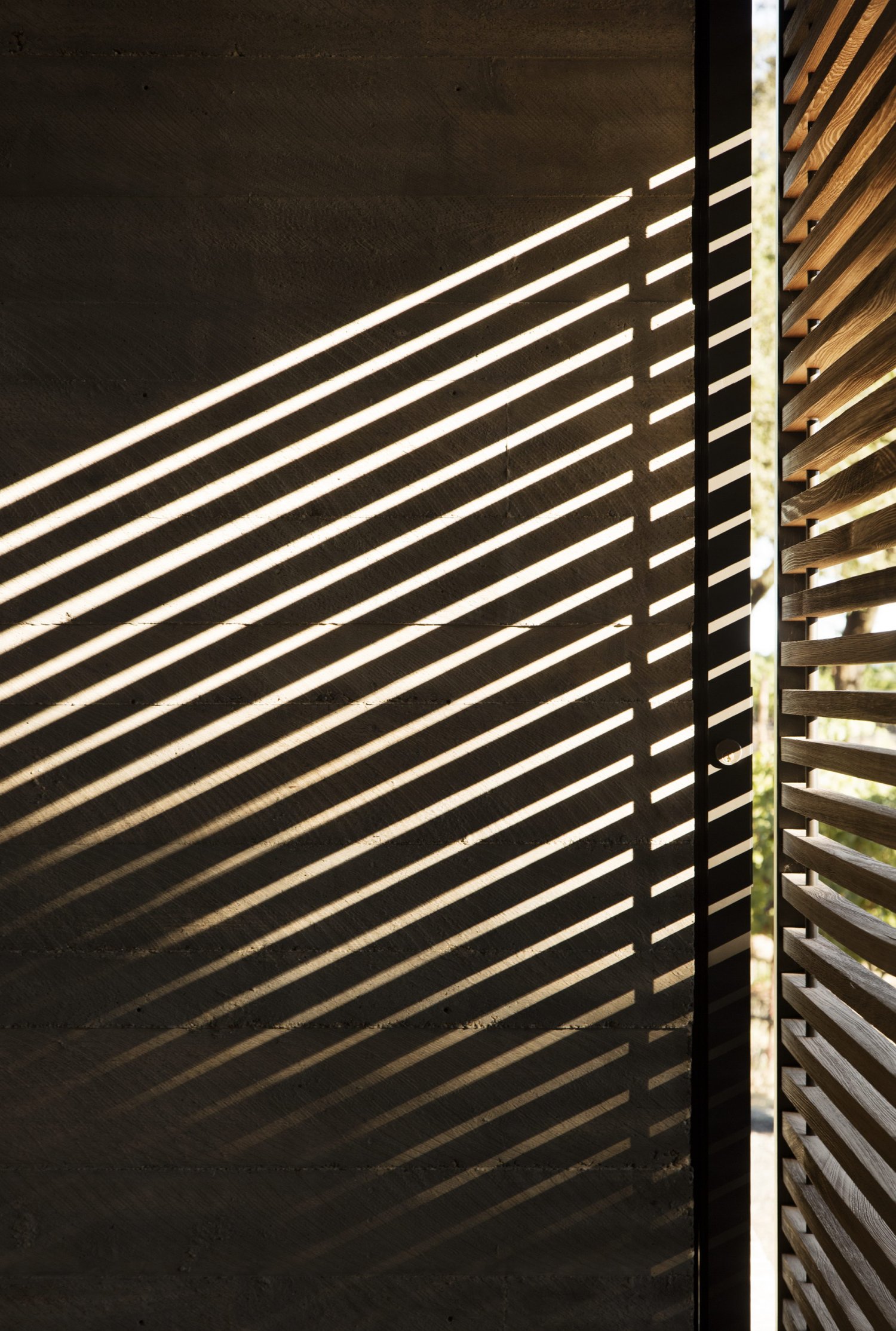

▽亭子细部，Pavilion details.

Walker Warner建筑师事务所设计团队

Greg Warner

Mike McCabe

项目团队

Walker Warner建筑师事务所（建筑）

Cello&Maudru建筑（总承包商）

Maca Huneeus Design（室内设计）

Lutsko Associates（景观）

Applied Civil Engineering （土木工程）

Daedalus Structural engineering（结构工程）

McEwen Lighting Studio（自定义照明）

Arc Wood & Timbers（木材）

Napa Valley Cast Stone（铺路机）

摄影

Matthew Millman

Walker Warner Architects design team

Greg Warner, Principal

Mike McCabe, Principal

Project team

Walker Warner Architects (architecture)

Cello & Maudru Construction (general contractor)

Maca Huneeus Design (interior design)

Lutsko Associates (landscape)

Applied Civil Engineering (civil engineering)

Daedalus Structural engineering (structural engineering)

McEwen Lighting Studio (custom lighting)

Arc Wood & Timbers (wood)

Napa Valley Cast Stone (pavers)

Photography

Matthew Millman
