Raumplan住宅

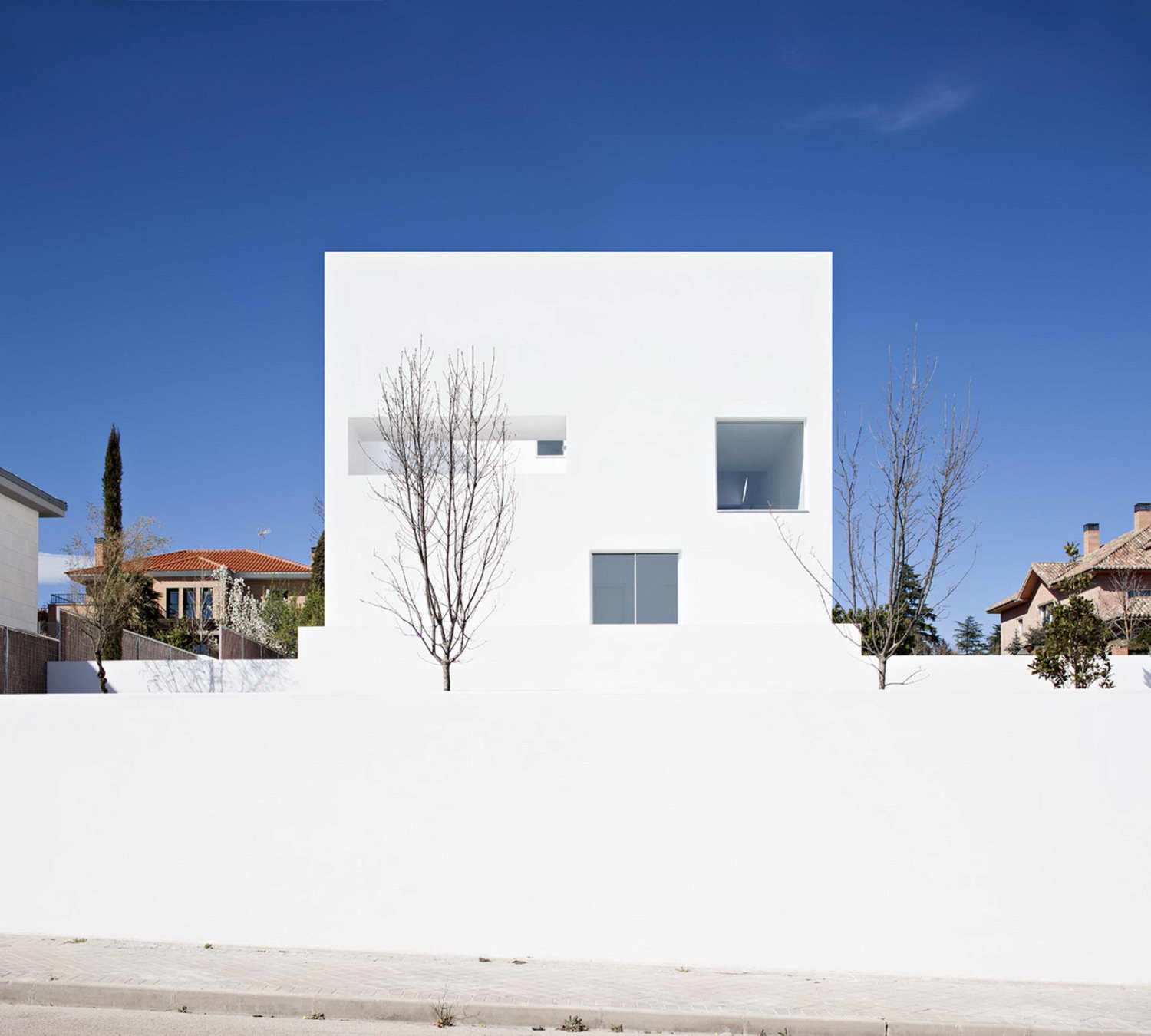

房子位于一个倾斜的地块上，远处地平线的景观不是别的，而是马德里的西部山脉。在地面上，它似乎没有什么特别之处，但当我们上去后，我们的眼睛就会看到马德里东部的城市景观的全景。从左边的四座塔到右边的马德里塔。很美，也很好奇。 从逻辑上讲，房子的更多公共部分将在上层，以框住和享受迷人的景色。

The house is located on a sloping plot with a landscape of distant horizon none other than Madrid’s western mountain range viewed. At ground level it doesn’t appear to be anything special, but as we go up we feast our eyes on a panoramic view of the urban landscape of the east of Madrid. From the four towers to the left to the Madrid tower to the right. Beautiful, and curious also.  Logically the more public parts of the house will be at the upper levels to frame and enjoy the stunning views.

遵照现行法规，我们被要求在12x12米的正方形地面上工作，并将其分为四个6x6米的正方形。按照这个模式，地面平面被抬高，一个方块一个方块的，有一个简单的螺旋形运动。这些空间是双倍的高度，并相互交错，产生对角线，这也是螺旋形的。这个结果很好地解释了我们提出的建议，即2+2+2远远大于6。

Complying with prevailing regulations we are required to work with a square ground plan of 12x12 m that is divided into four 6x6 m squares. Following this pattern, the ground planes are raised, square by square, with a simple helicoidal movement. The spaces are of double height and intersect with one another producing diagonality which is also helicoidal. The result very well explains the proposal we set out with, namely that 2+2+2 is more than just 6.

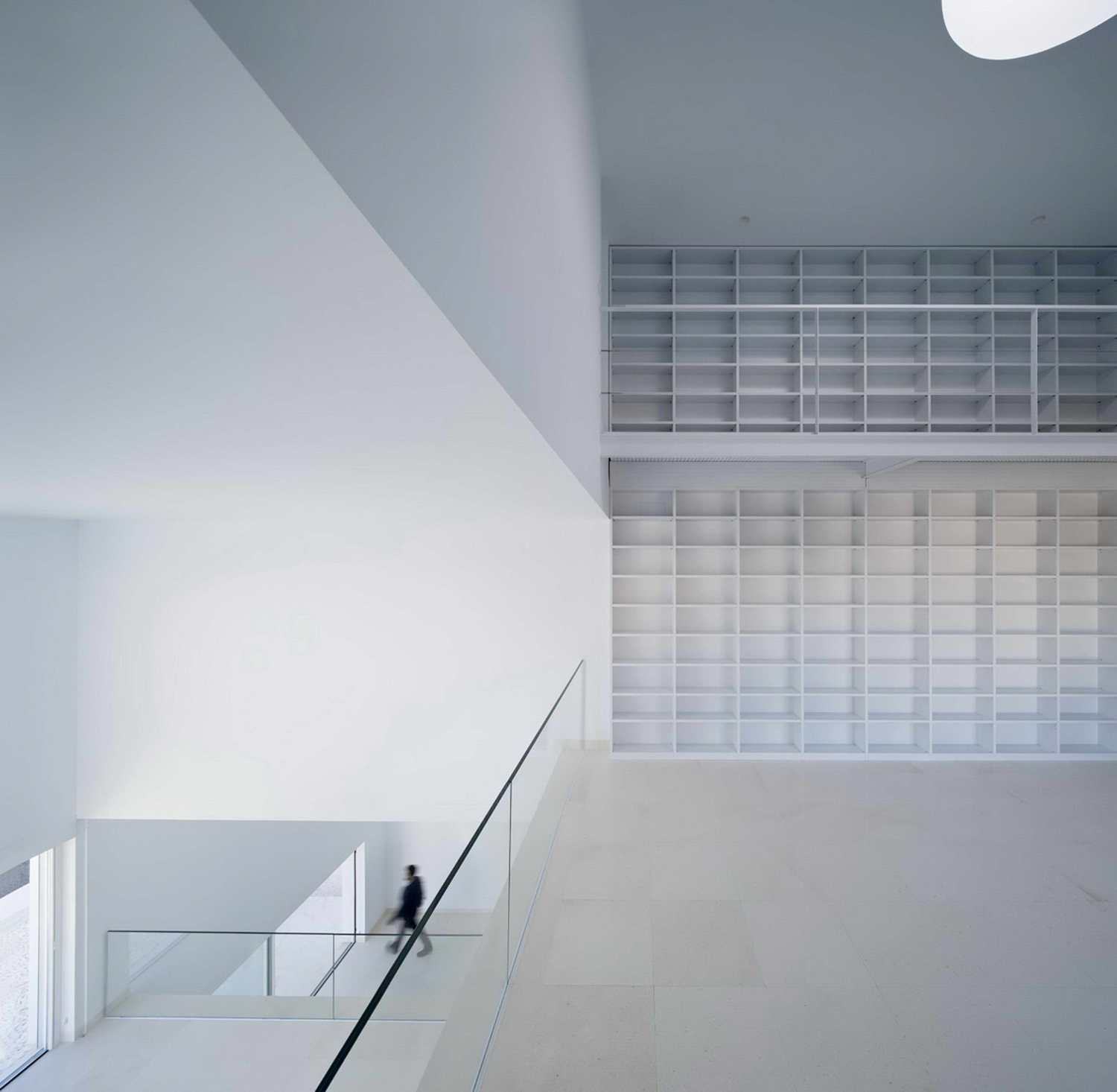

因此，在这所房子里，我们采用了一种已知的空间机制，即Raumplan，即螺旋式双空间的连接。每两个双层空间通过垂直位移连接，这样就形成了一个对角线空间。如果我们向上走，转90度并与其他两个空间相连，如果我们继续向上走，再转90度，我们会得到一个惊人的空间结构：三个螺旋形的对角线空间的串联，就像一个开瓶器，这进一步解释了我们所说的2+2+2比6要多。

Thus in this house a known spatial mechanism is employed, the Raumplan, with the concatenation of spiraling double spaces. Each two double spaces are connected by vertical displacement so that a diagonal space is created. If, as we go up, we turn 90 degrees and connect it with the other two, and if we continue to go up turning a further 90 degrees, we get an amazing spatial structure: the concatenation of three spiraling diagonal spaces, just like a corkscrew, which further explains our statement that 2+2+2 is much more than 6.

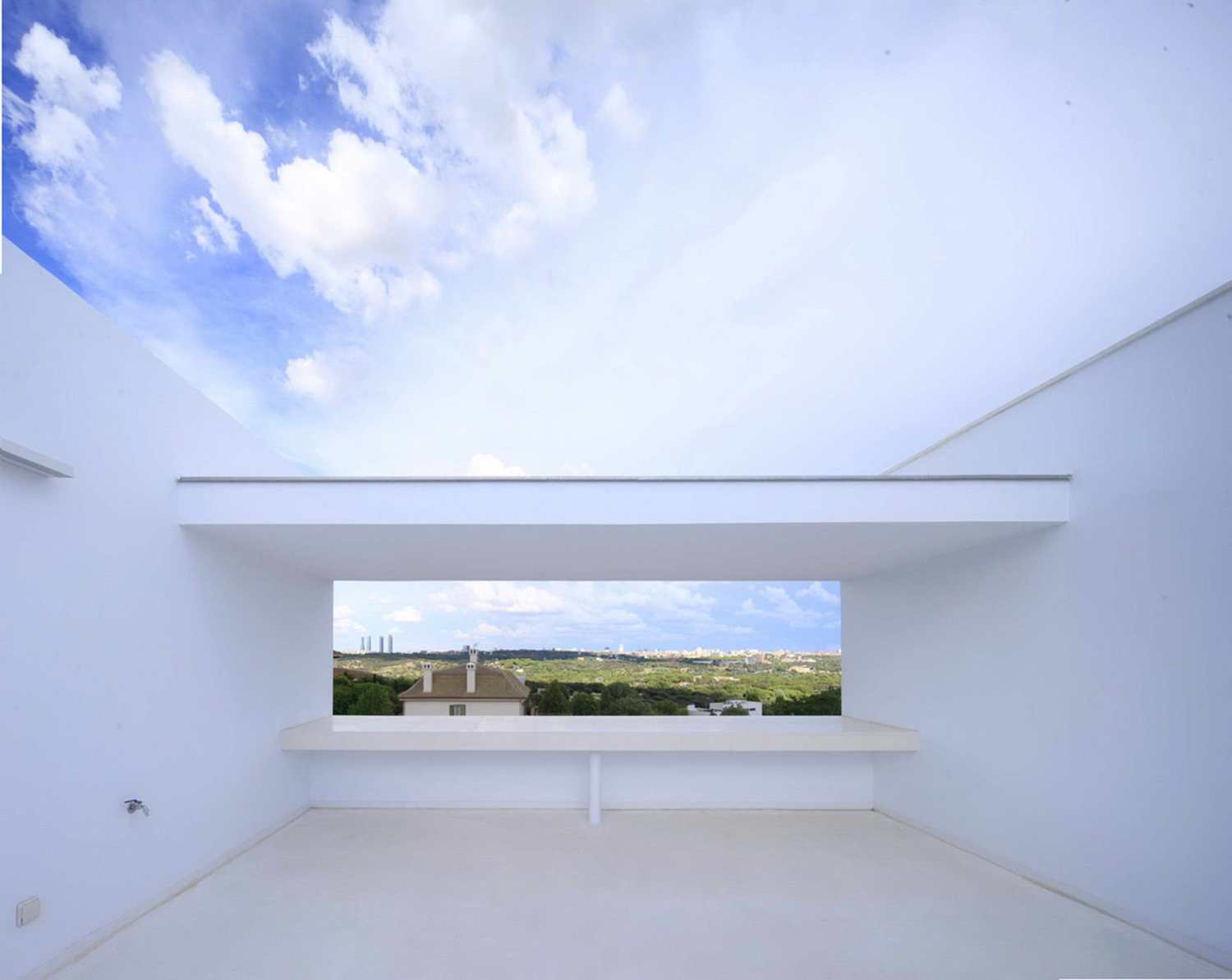

一旦房子建好了，并且做了适当的开口，就像乐器的开口一样，这样它就充满了光线，一旦这个乐器被调好了，我们就可以突出太阳的固体光在一天中的运动。种植着茉莉花和藤蔓的屋顶将是一个令人愉快的特征，它们的大空间框住了这个奇怪的马德里景观。同样地，下面的门廊也将被藤蔓和茉莉花框住，通向花园。

Once the house is built and the appropriate openings are made, just like those of a musical instrument, so that it is filled with light, and once that instrument is tuned, we can highlight the movement of the solid light of the sun throughout the day. The rooftops planted with jasmine and vines will be a delightful feature, their large spaces framing this strange Madrid landscape. Similarly framed with vines and jasmines will be the porches below opening onto the garden.

Project: RAUMPLAN HOUSE

Location: MADRID Aravaca

Project: 2013

Built: 2015

Area: 500 m2

Architect: Alberto Campo Baeza

Collaborators:Ignacio Aguirre López, Alejandro Cervilla García, Alfonso Guajardo-Fajardo, Manel Barata, Jesús Aparicio Alfaro, María Pérez de Camino Díez, Tommaso Campiotti, Maria Moura

Structure: Andrés Rubio Morán

Quantity Surveyor: Francisco Melchor Gallego

Contractor: Serviteco

Photography: Javier Callejas Sevilla
