The X2 Pattaya Oceanphere is a villa resort situated in Pattaya, a well-developed beach town with cliché tourist destinations, hotels, and resorts chains. The site is located on the eastern seaboard of Thailand, facing the Gulf of Thailand where there are long stretches of beaches without much dramatic rocky or cliff terrain. The architectural language of the villa resort is derived from the aim to create man-made landscape with available materials and efficient construction methods.

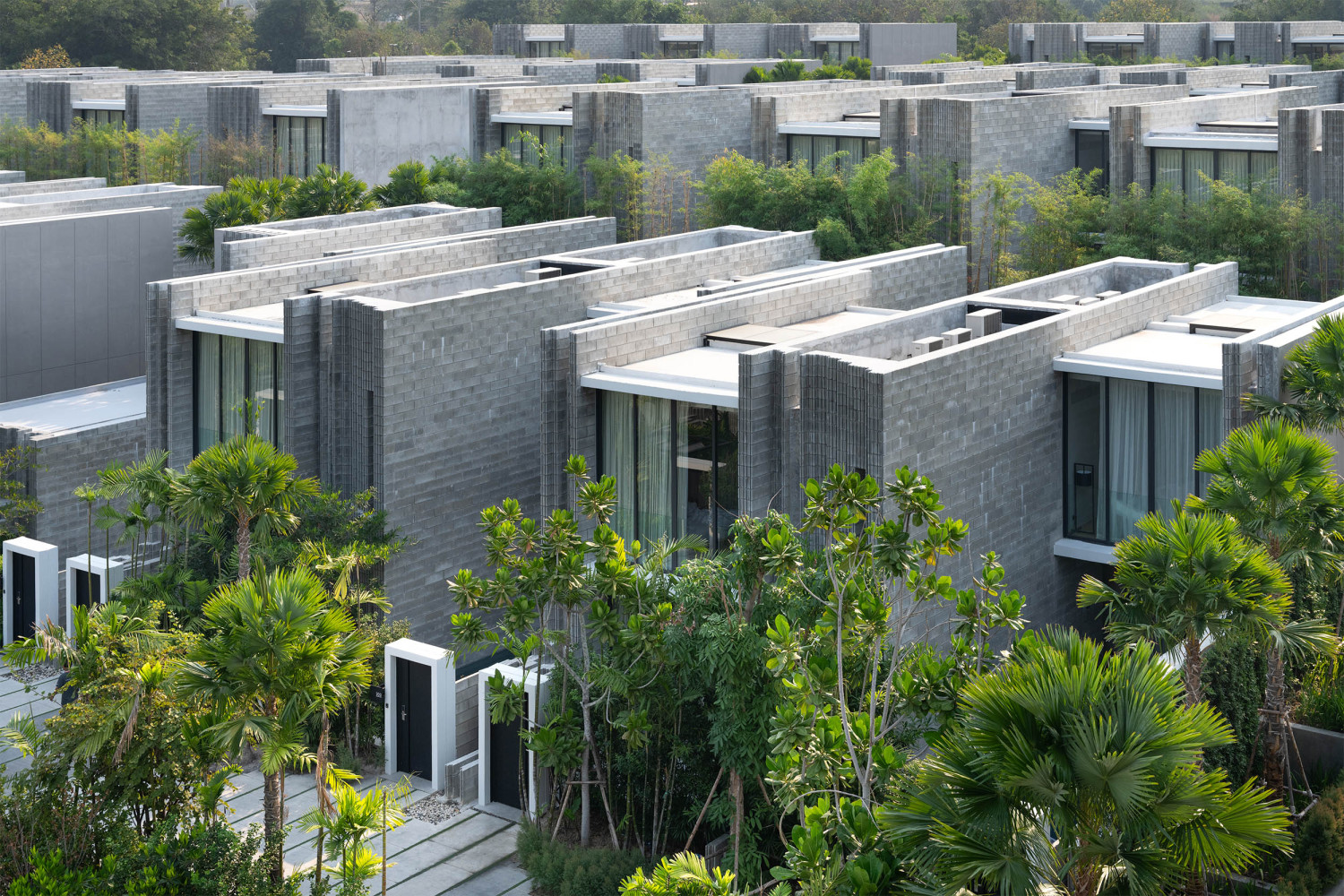

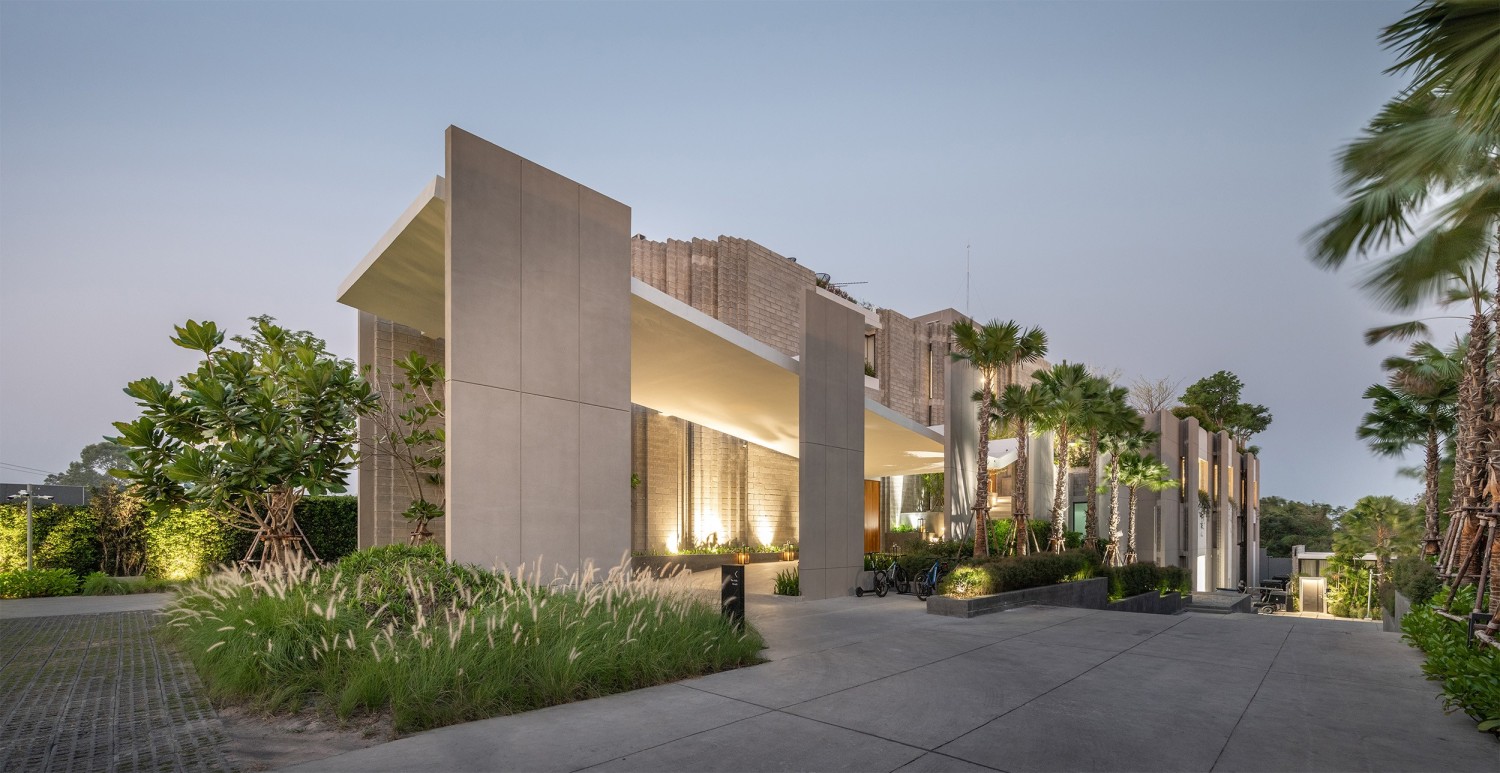

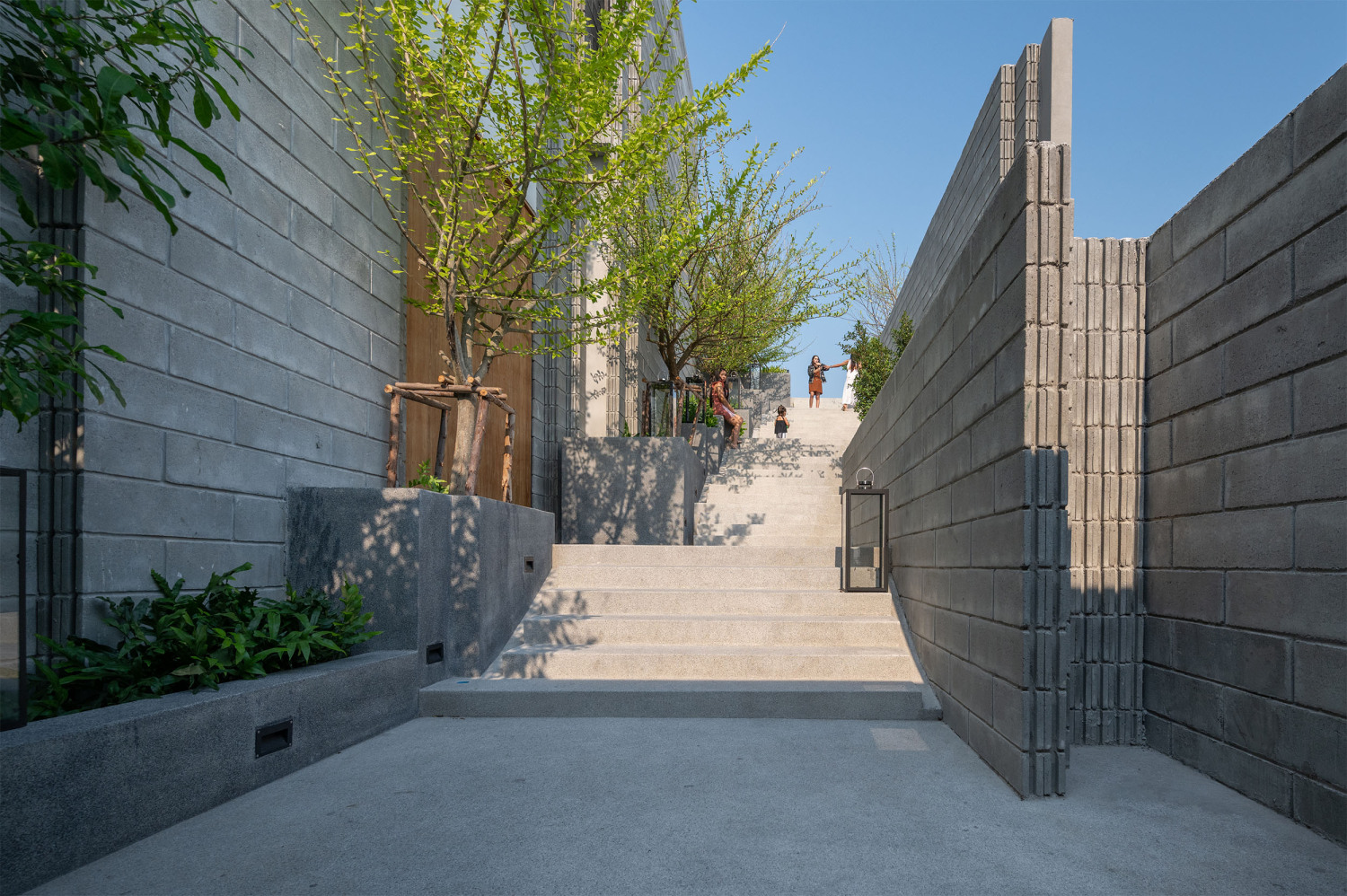

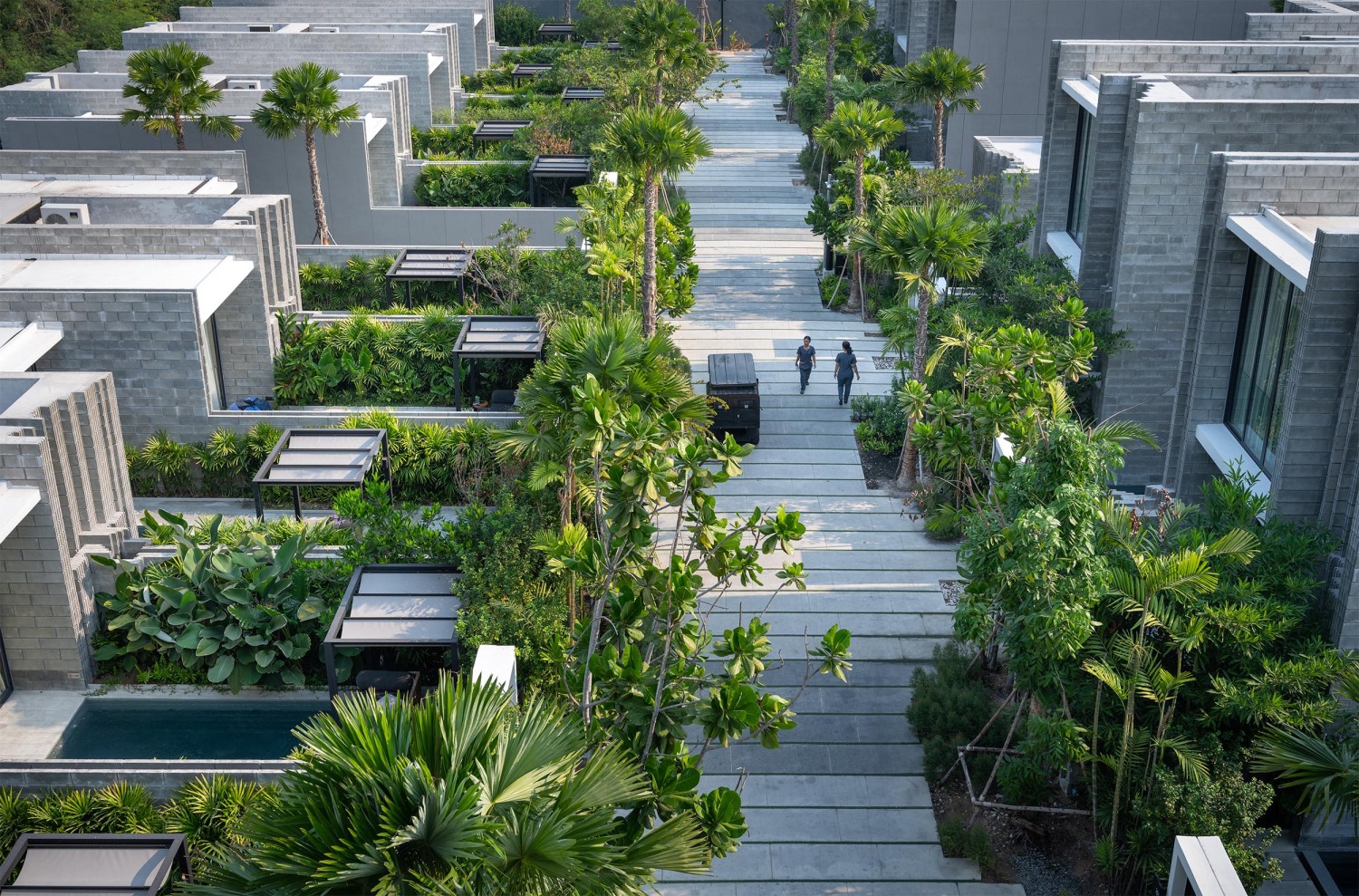

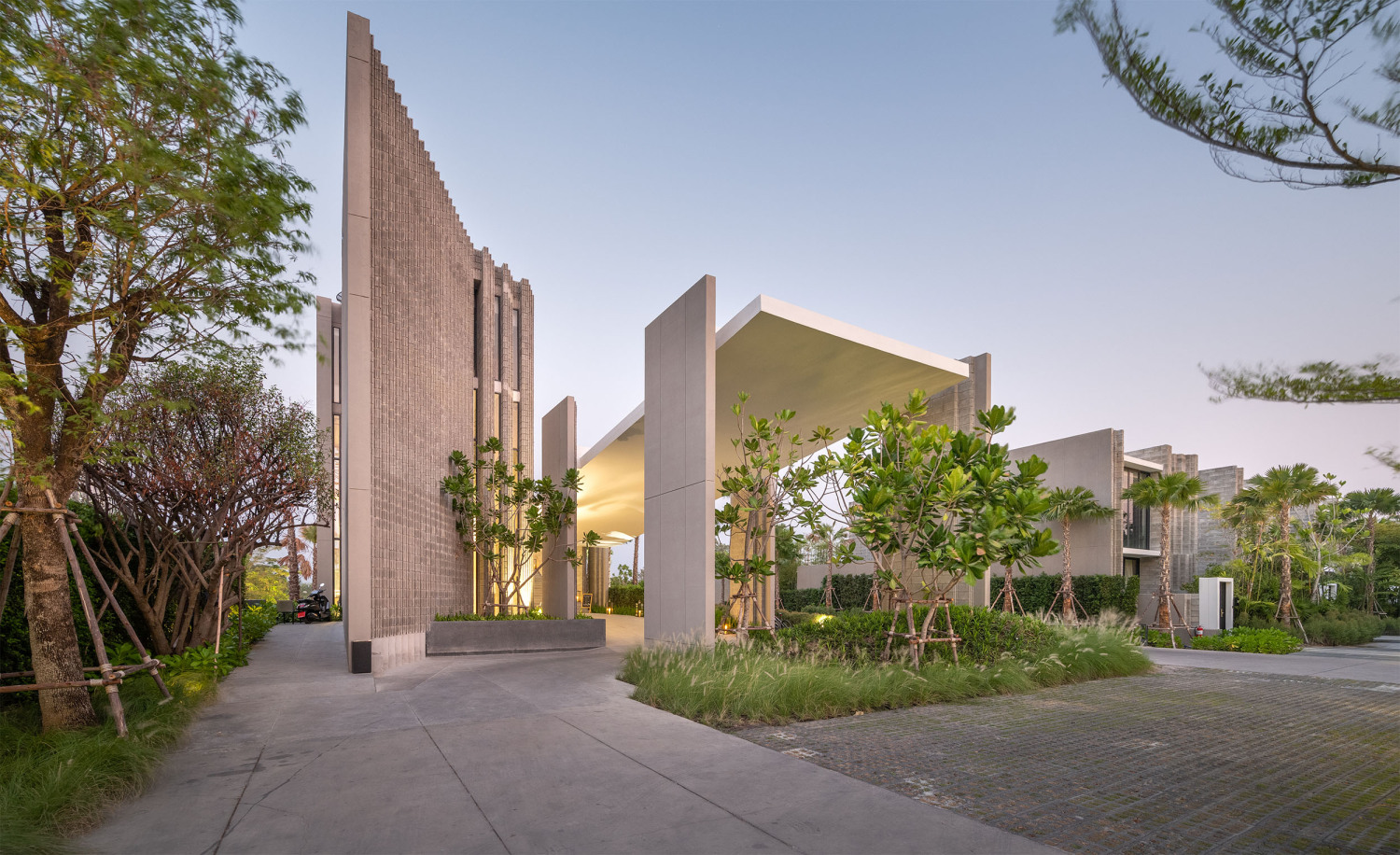

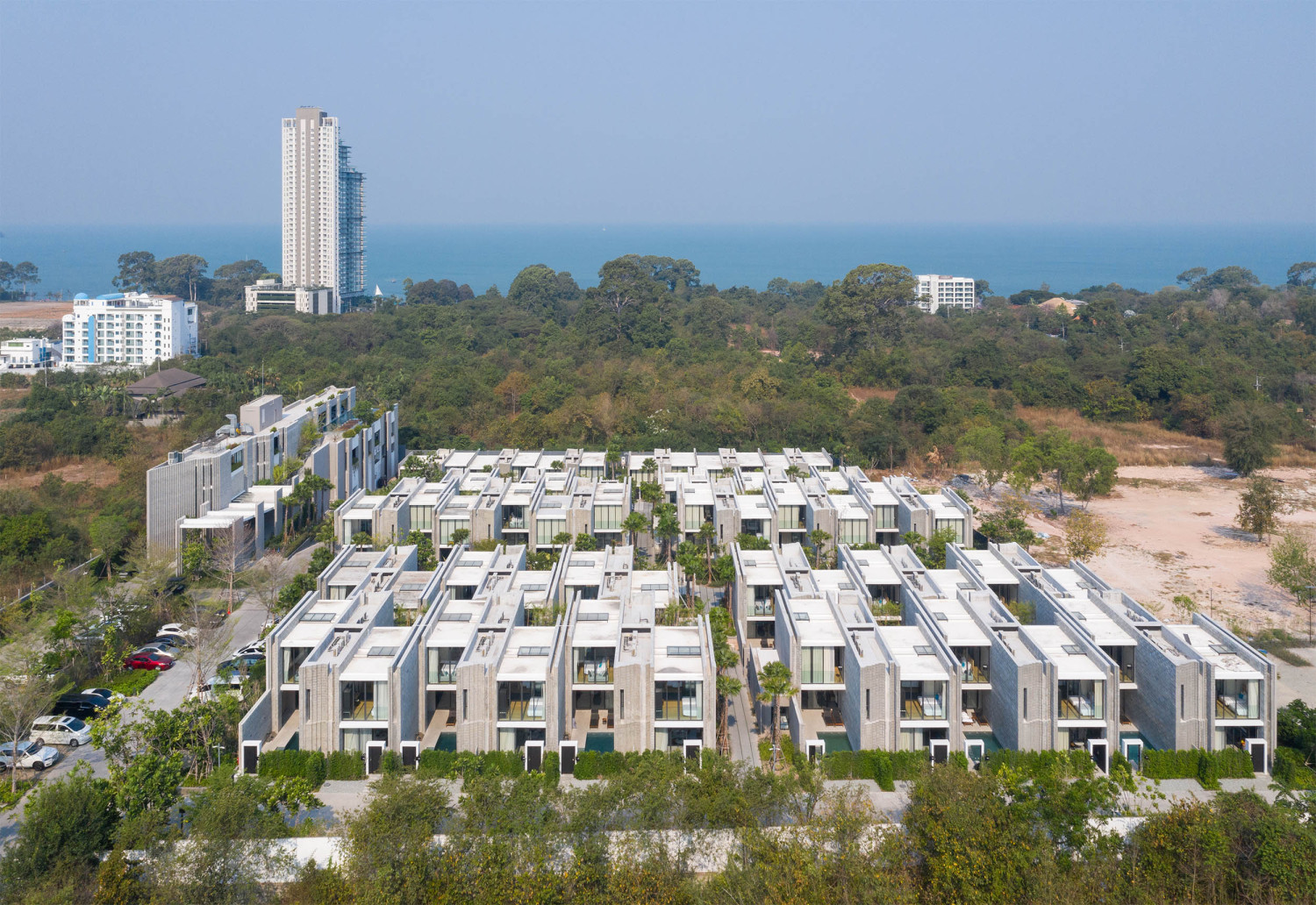

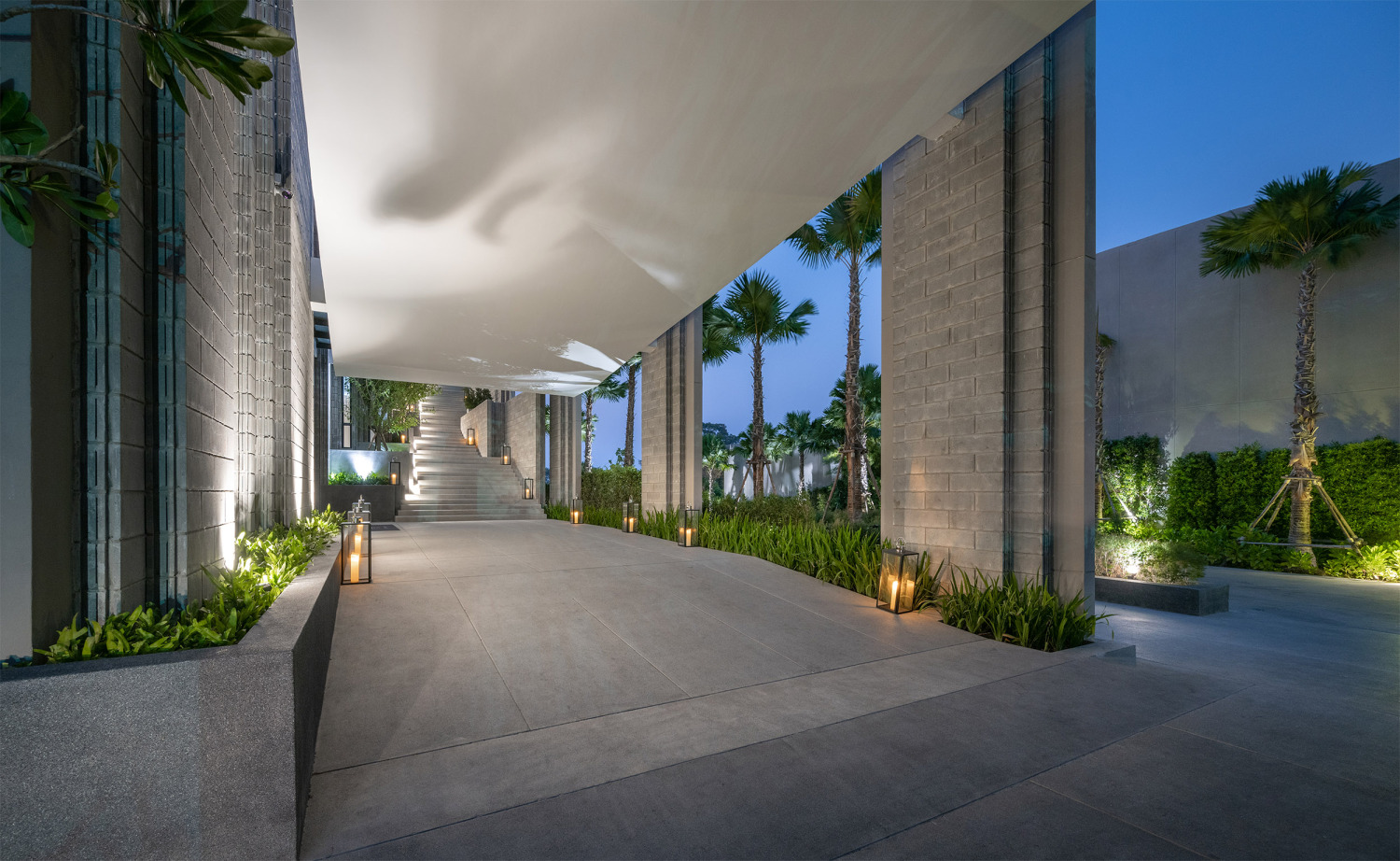

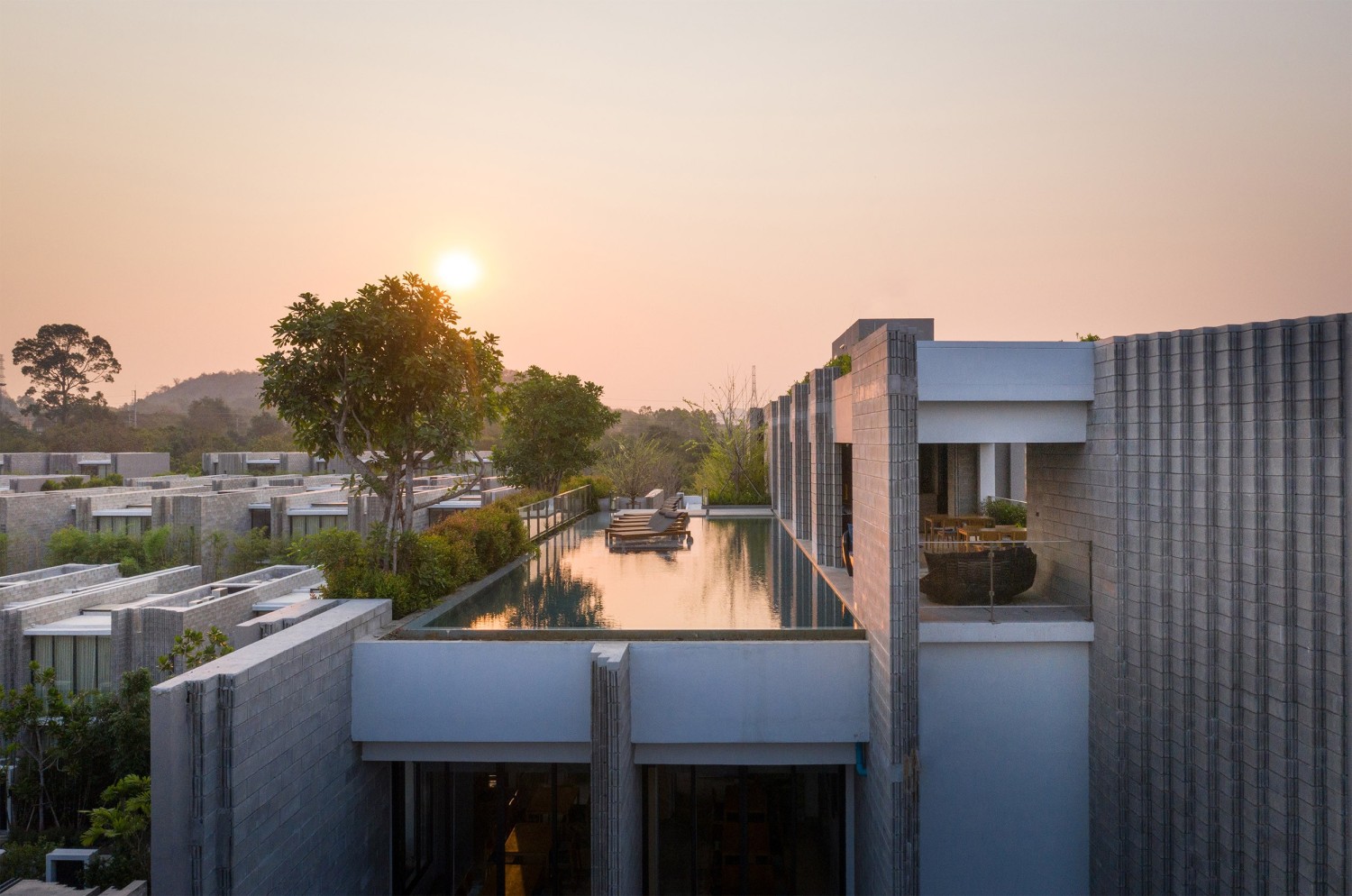

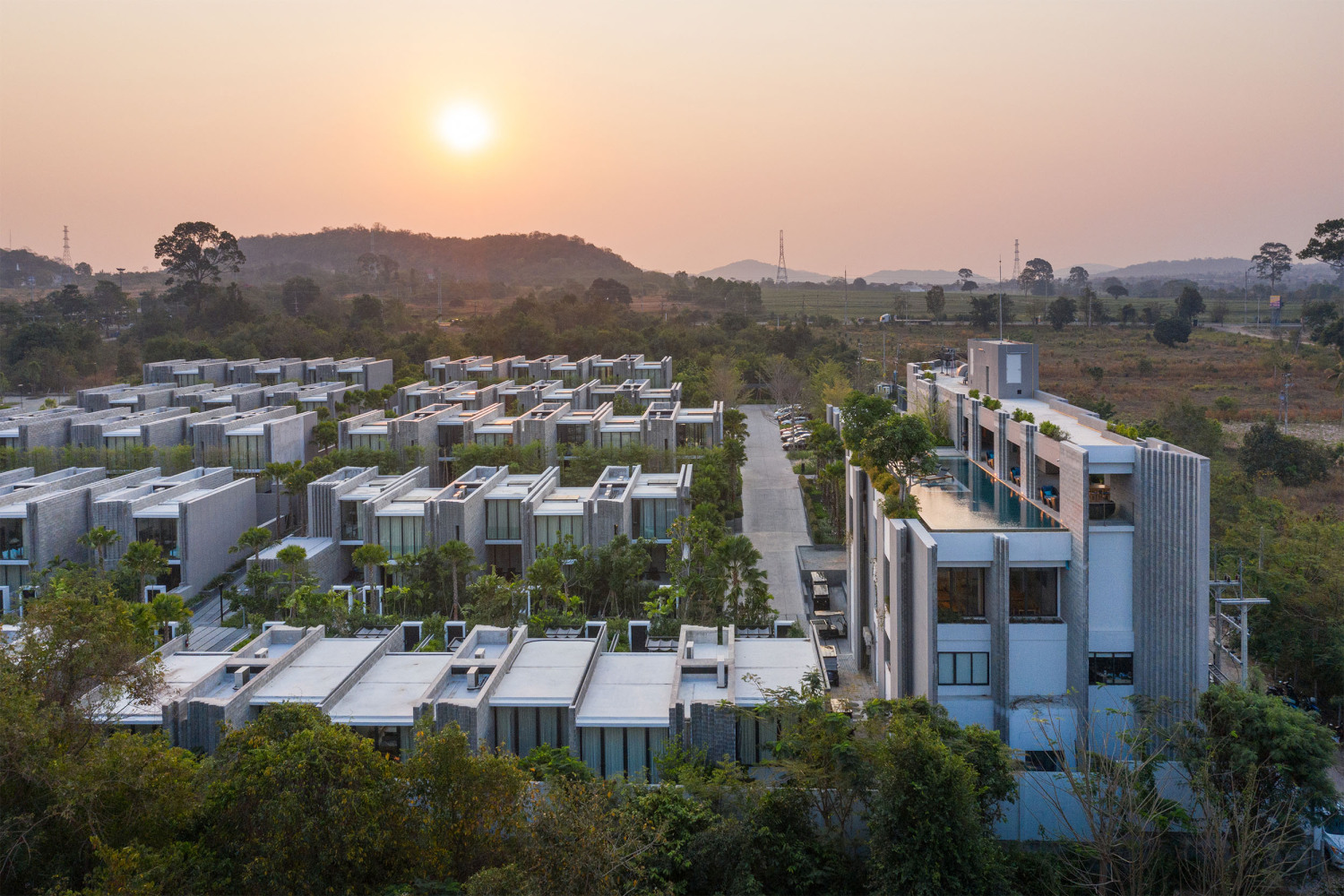

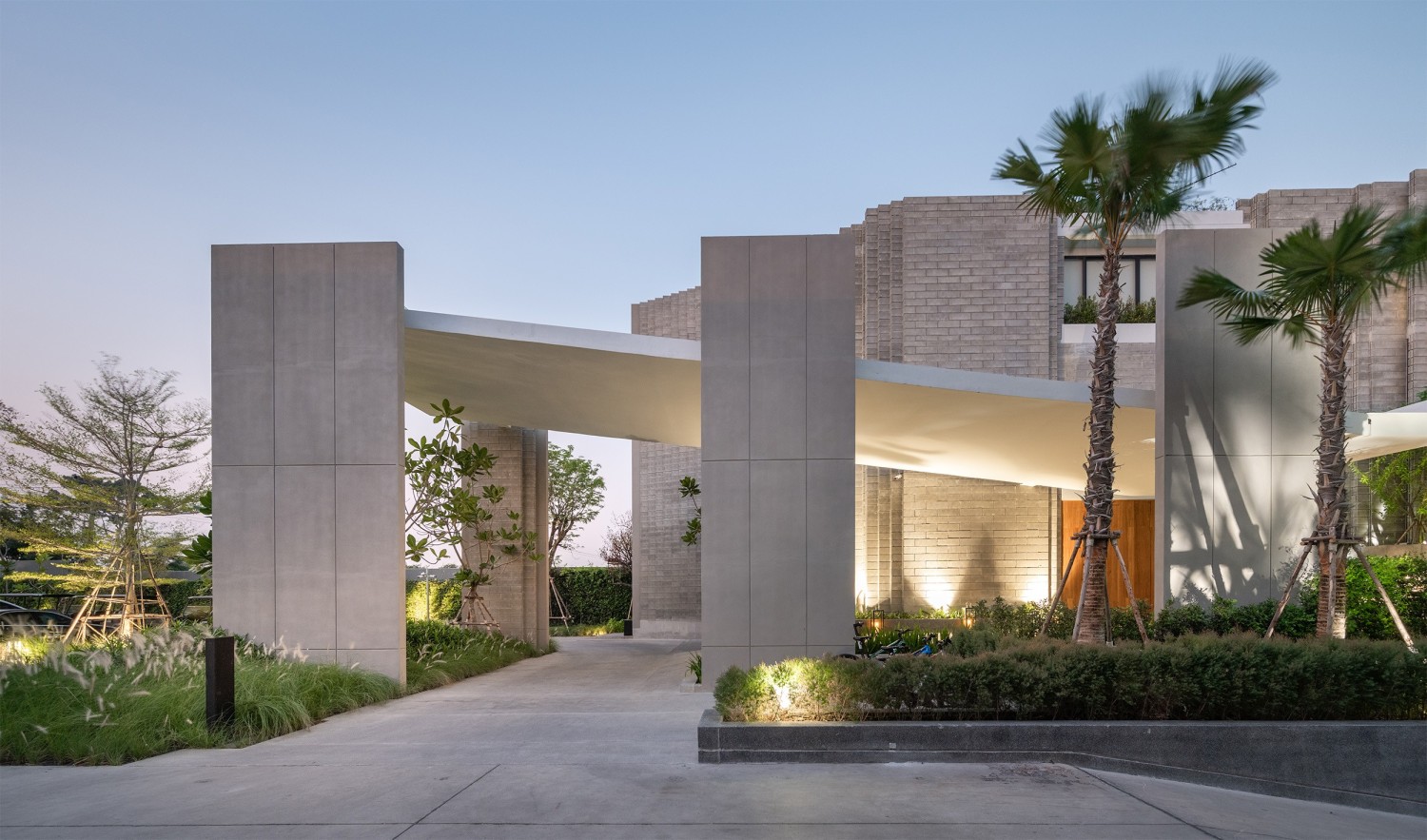

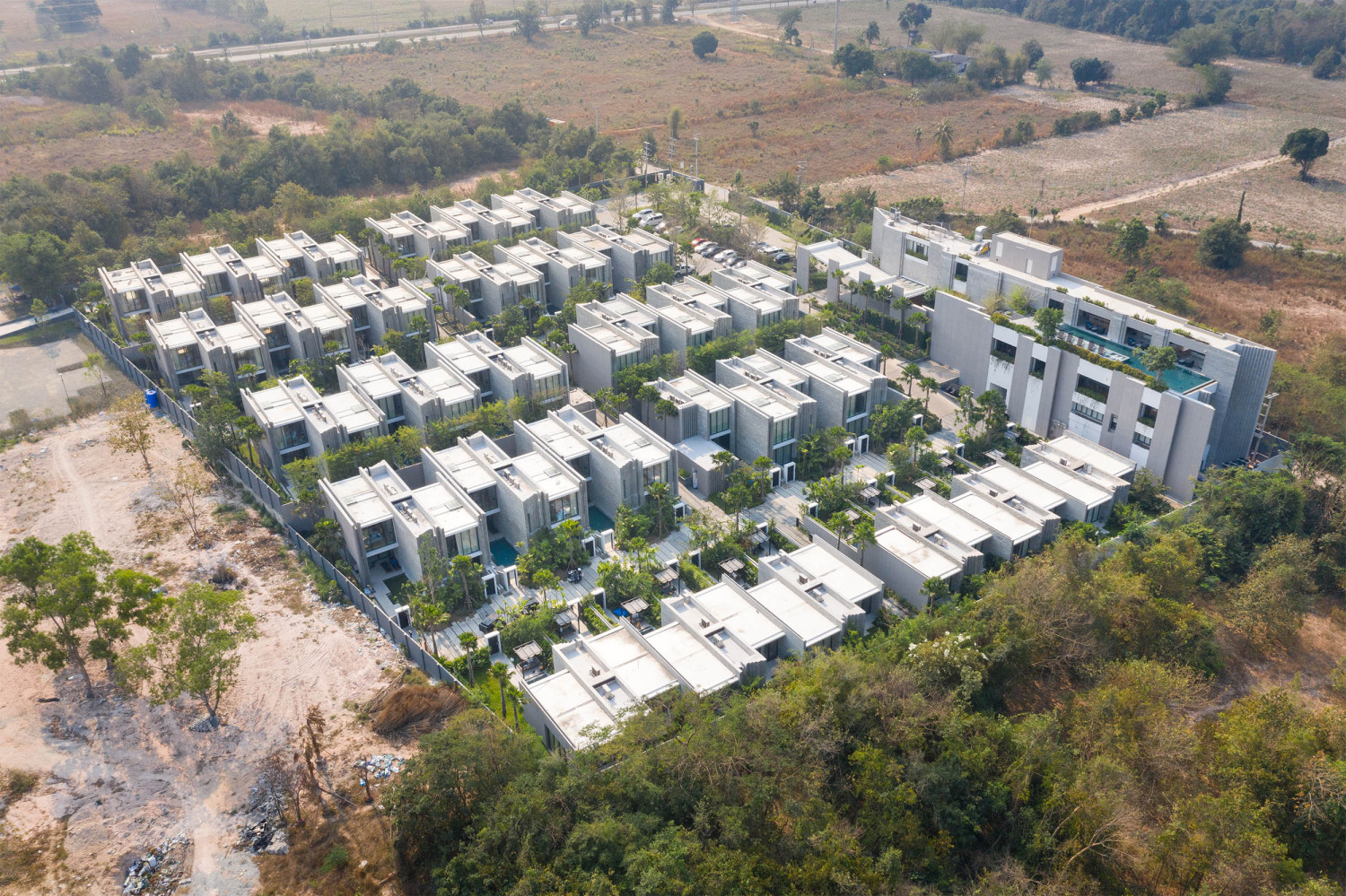

The site has a mild sloping contour with a 500 meter offset from the beach line. Upon arrival, there is a monolithic cliff-like 3 story building with escalating landscaped steps, a club house with an arrival lobby, the back of house at ground floor, a restaurant at second floor, and the main pool at the third floor. These facilities were raised to bring the guests to the elevation where they can thoroughly enjoy the scenic sea view. The villas are arranged following the existing slope with minimum cut and fill operations to allow for the second floor of most villas to accommodate the ocean view.

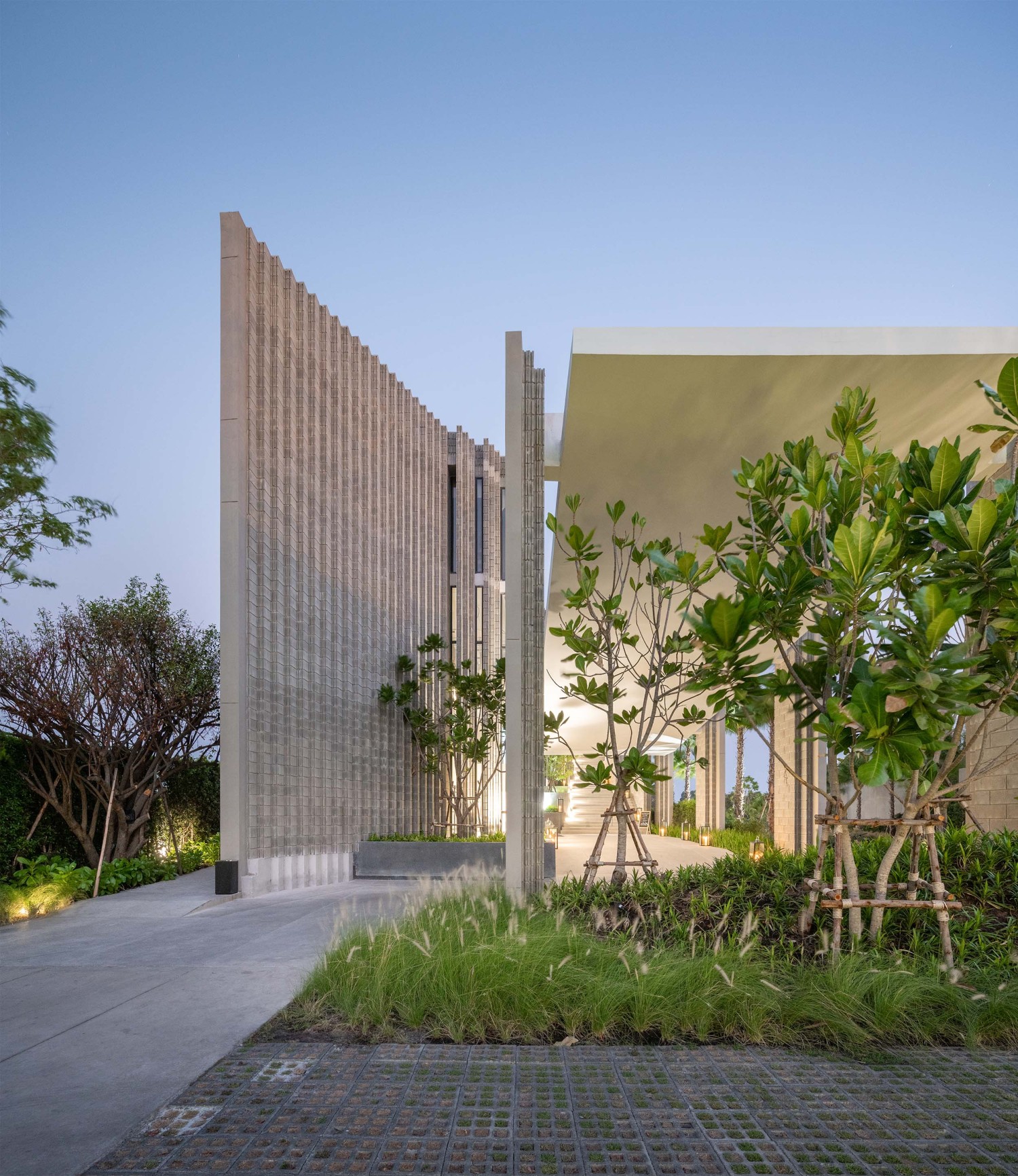

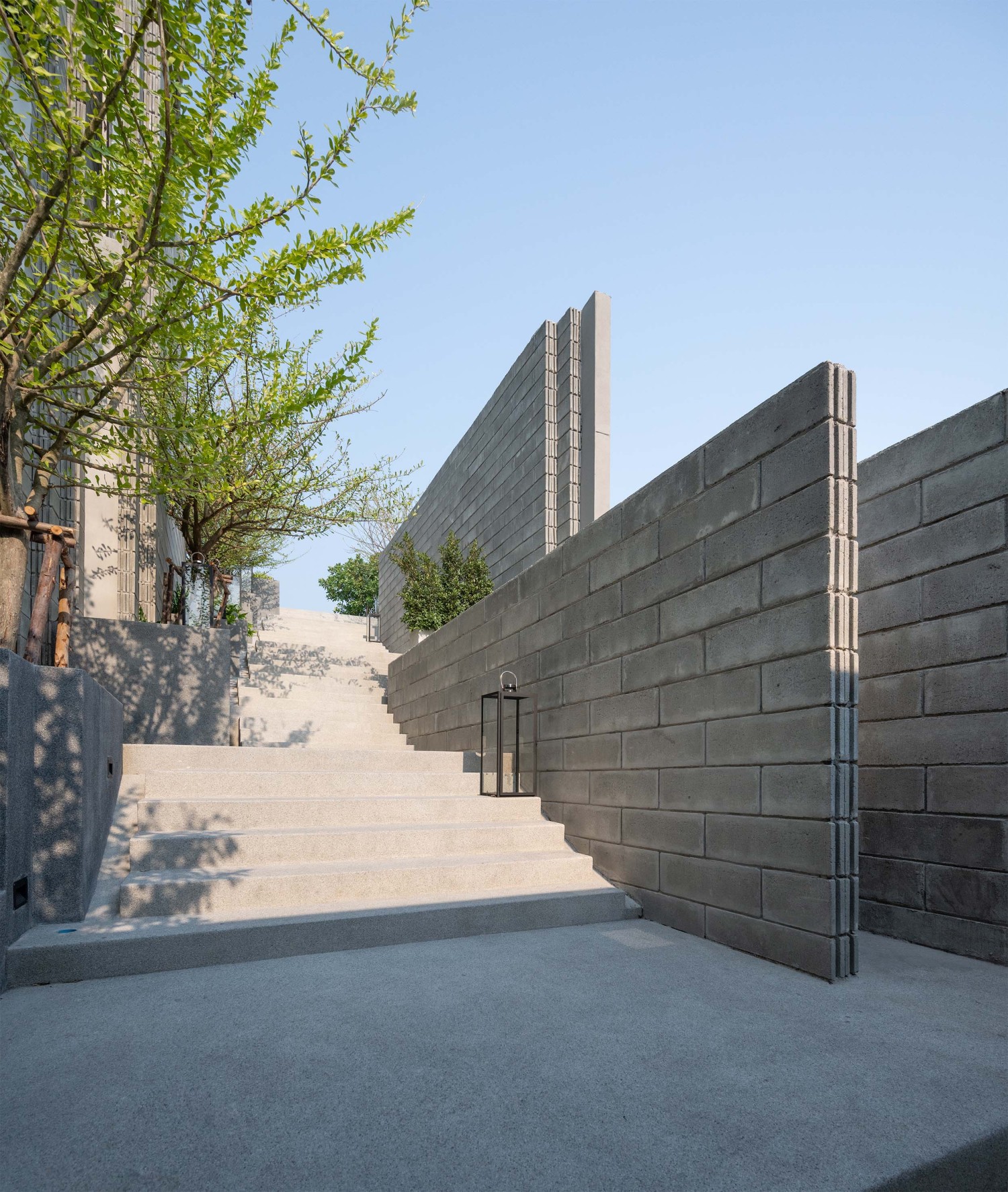

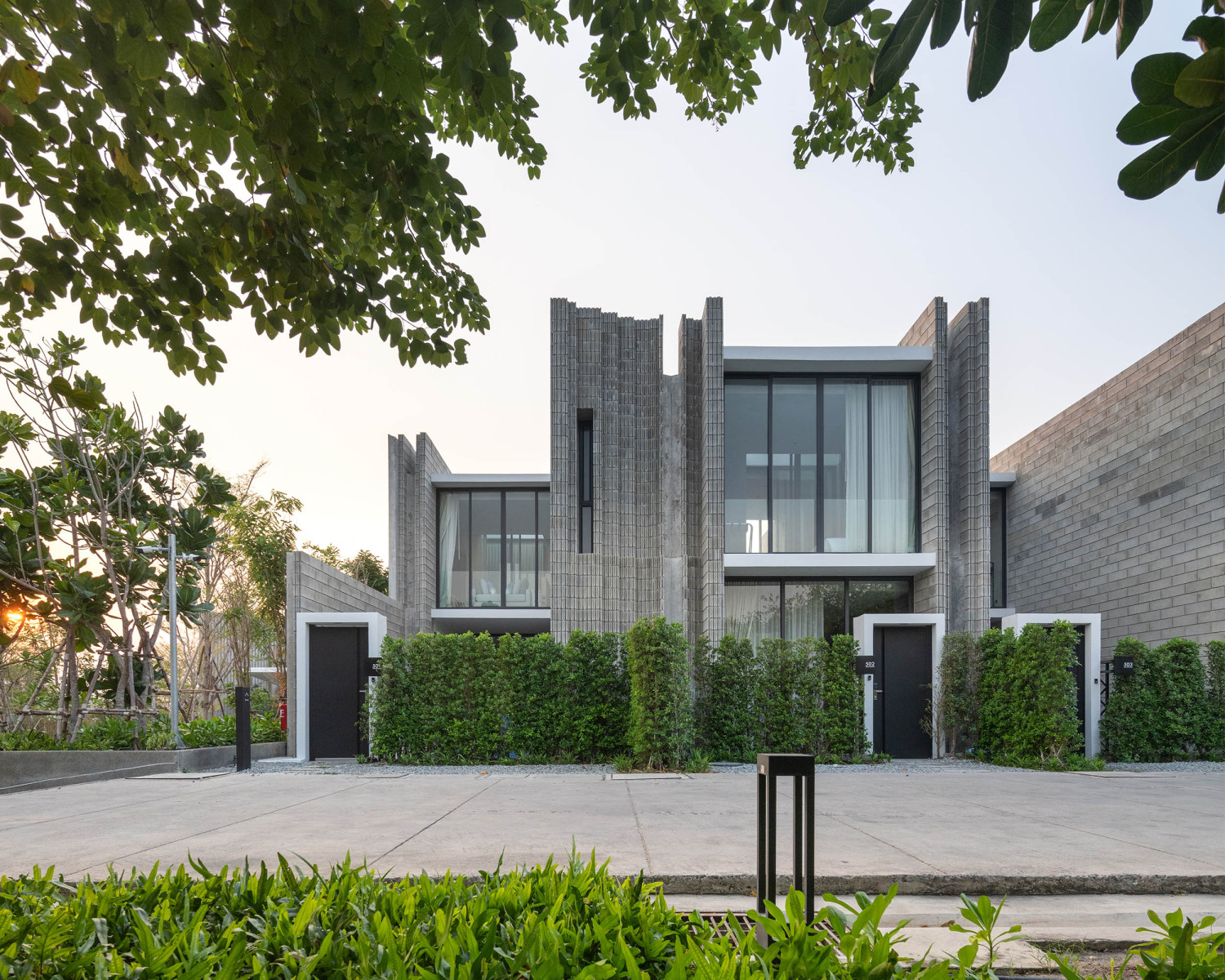

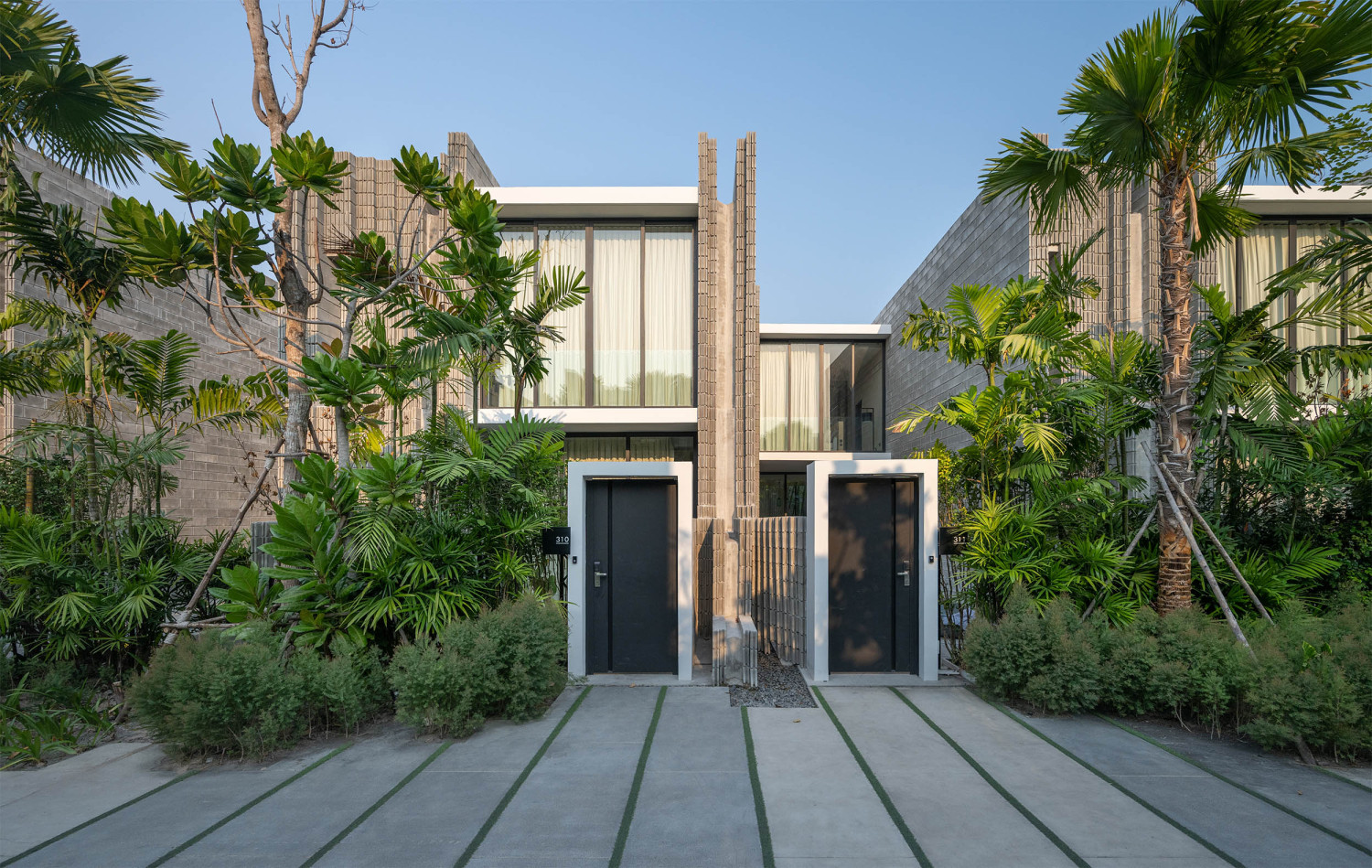

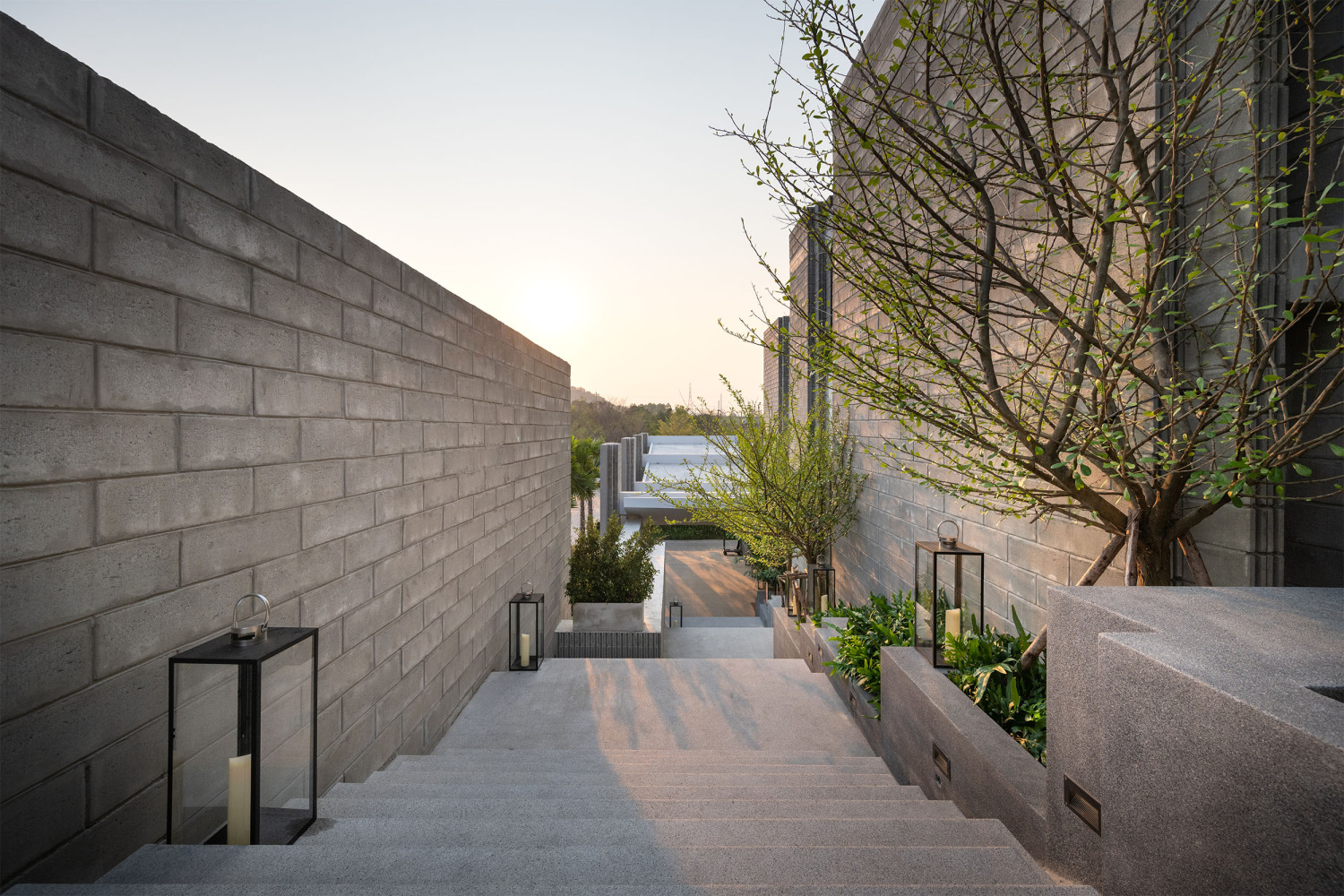

The plan of the villa is separated into two distinct parts. The first part is the main living and sleeping area while the second part is dedicated to services and circulation. The living area was designed as an open space which can be enclosed with high glass sliding doors or slide and fold doors which can be completely concealed when open. While the service area is treated as solid cliff-like walls, it is constructed with local concrete blocks with customized edge profile forming the tapered front façade of doubling also as an exposed rain waterway, connecting roof gutter to on ground landscape site drain.
This block wall was developed into the larger and deeper walls incorporating all the services, lift cores and resting areas of the club house. The overall architectural design aims to prove that simple tectonic and natural mechanisms can be appreciated when highlighted properly.

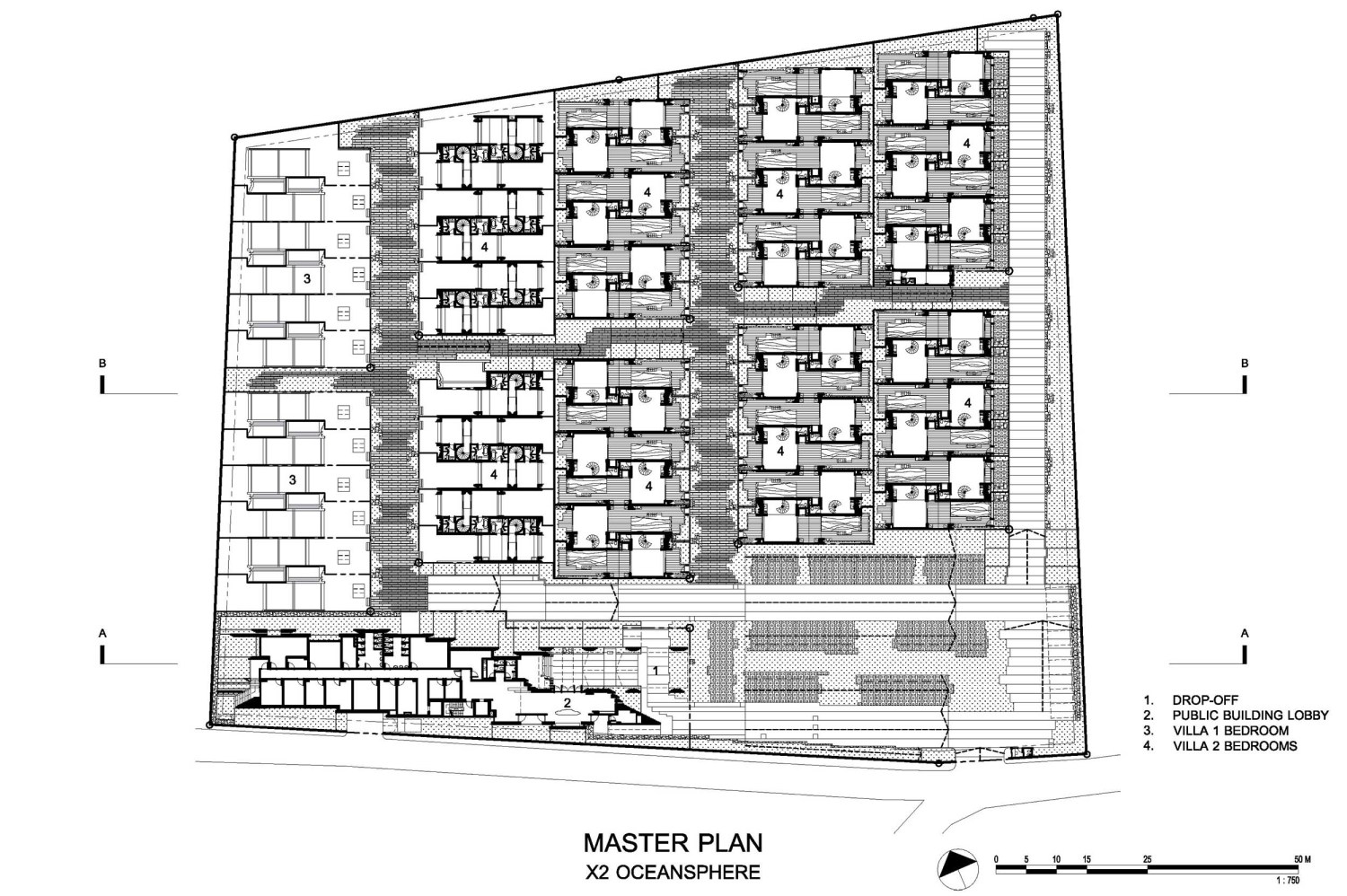

▼项目总平面图 Master Plan
▼项目公共建筑一层平面图 1st Floor Plan Public Building
▼项目公共建筑B1层平面图 B1 Floor Plan Public Building
▼项目公共建筑二层平面图 2nd Floor Plan Public Building
▼项目公共建筑三层平面图 3rd Floor Plan Public Building
▼项目一室别墅户型 一层平面图 1st Floor Plan Villa 1-Bedrooms
▼项目二室别墅户型 一层平面图 1st Floor Plan Villa 2-Bedrooms

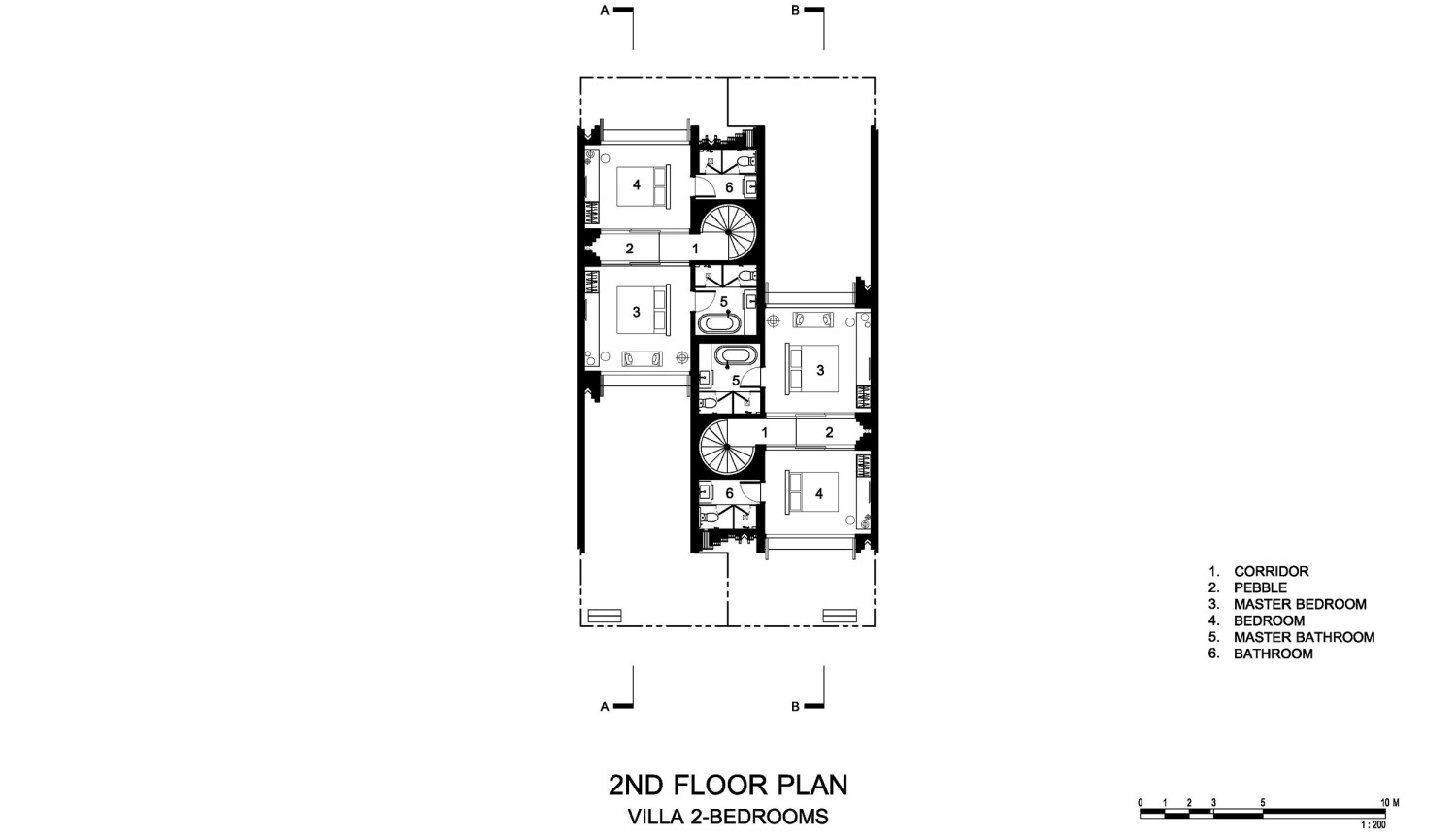

▼项目二室别墅户型 二层平面图 2nd Floor Plan Villa 2-Bedrooms
项目名称：X2 PATTAYA OCEANPHERE
项目类型：景观 / 度假 / 室内设计 / 别墅
其他参与者：EXM Consultant Co., Ltd. , Wor Consultant Co., Ltd.
Project name: X2 PATTAYA OCEANPHERE
Company name: Creative Crews
Type: Hospitality / Interior / Landscape/ Villa
Contact e-mail: Contact@creative-crews.com
Project location: Pattaya, Thailand
Completion Year: 2019
Building area (m²): 18,000 sqm.
Other participants: EXM Consultant Co., Ltd. , Wor Consultant Co., Ltd.
Photo credits: ©Rungkit Charoenwat
