Piil悬空度假屋

公司：	Arsenit	Type：	建筑
Area：	爱沙尼亚	Label：	别墅私宅

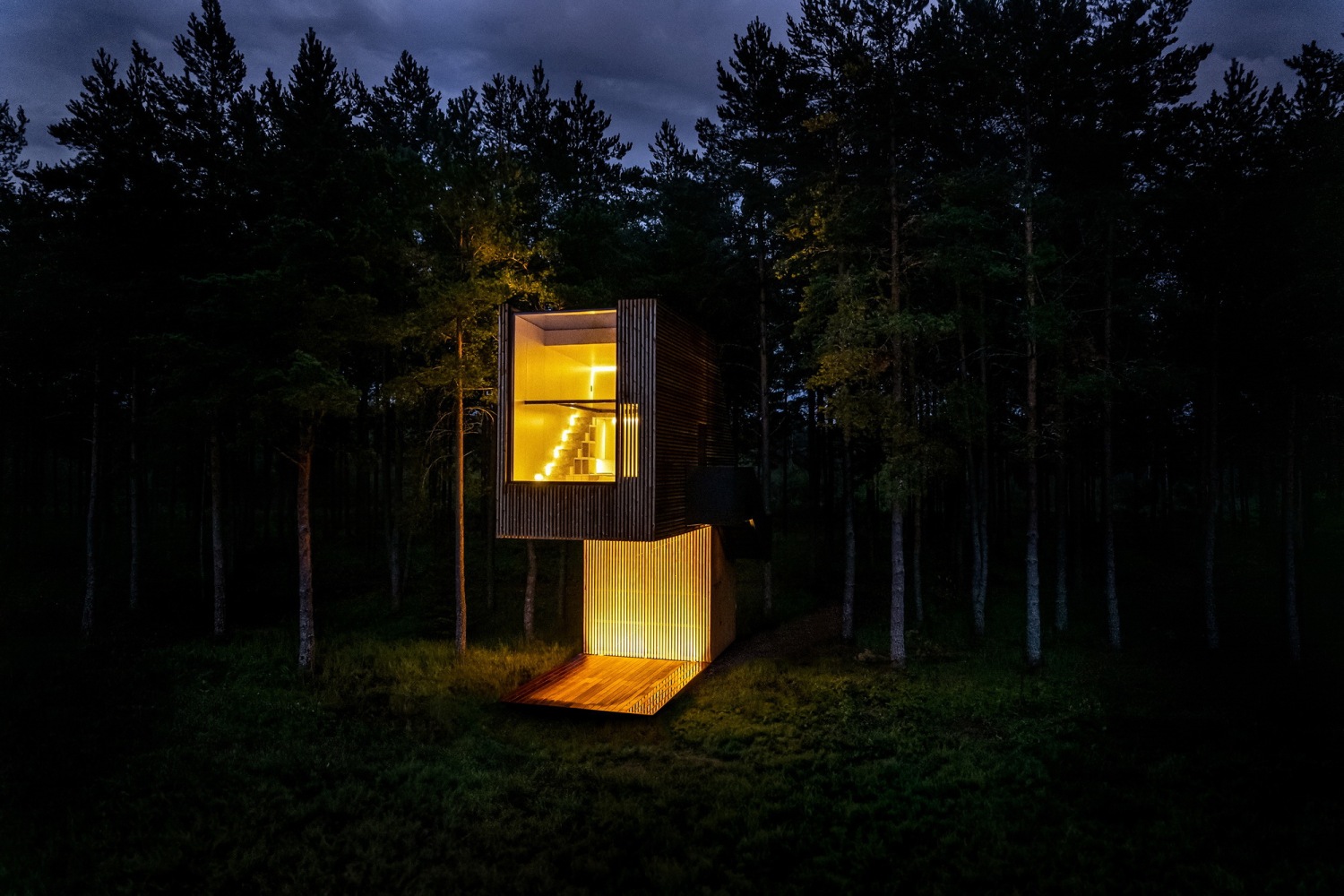

Piil 得名于爱沙尼亚语“piiluma”，意为“偷看/看”，是一座优雅的 9m 高预制树屋，平面紧凑，升高以最大限度地减少地面存在，事实上，提供了广阔的爱沙尼亚荒野的壮丽景色。

Piil, named for the Estonian word ‘piiluma’ for ‘peeking/looking’ is an elegant, 9m tall pre-fabricated treehouse with a compact plan, elevated to minimise ground-level presence and indeed, provide generous views out to the vast Estonian wilderness.

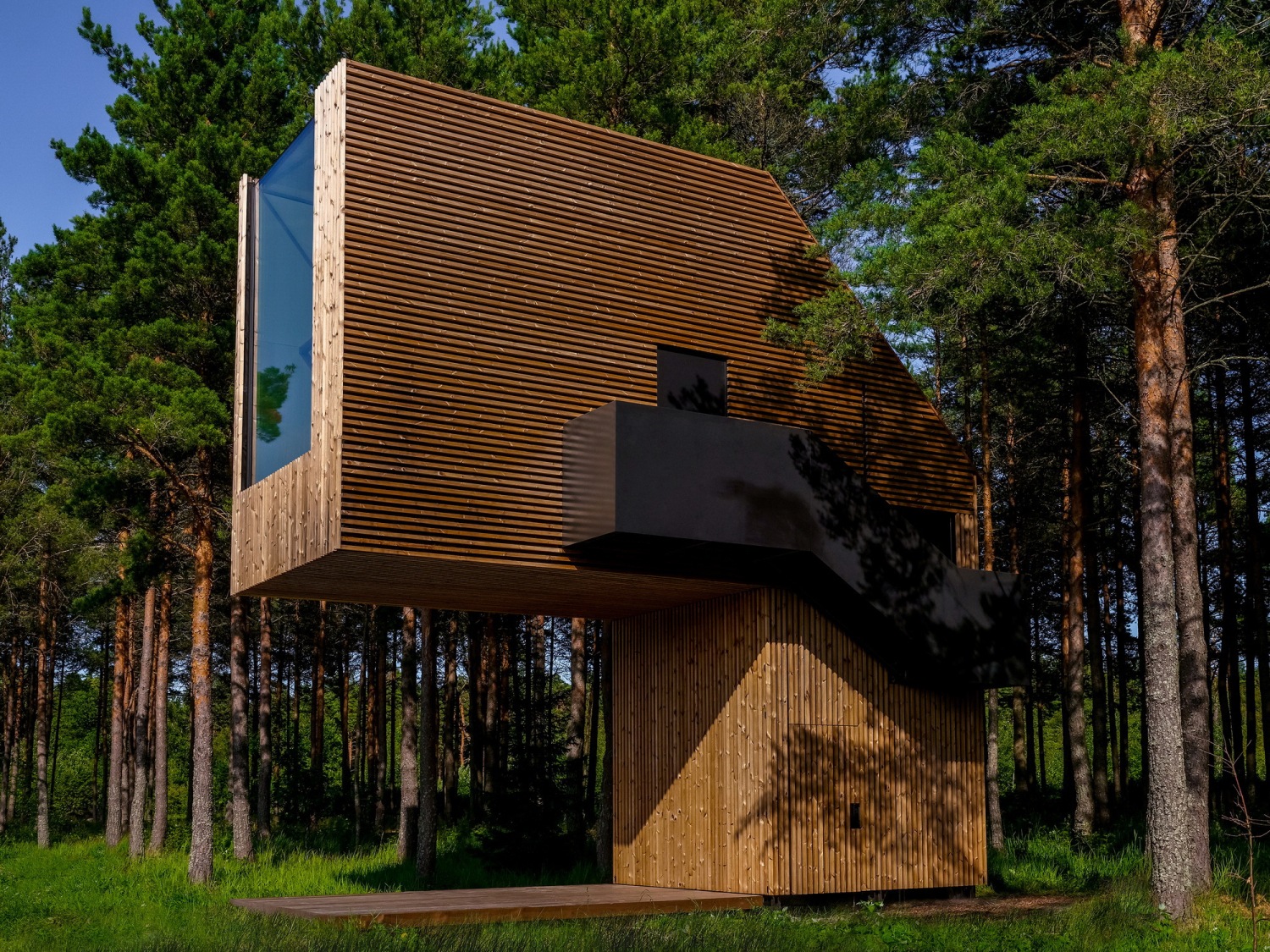

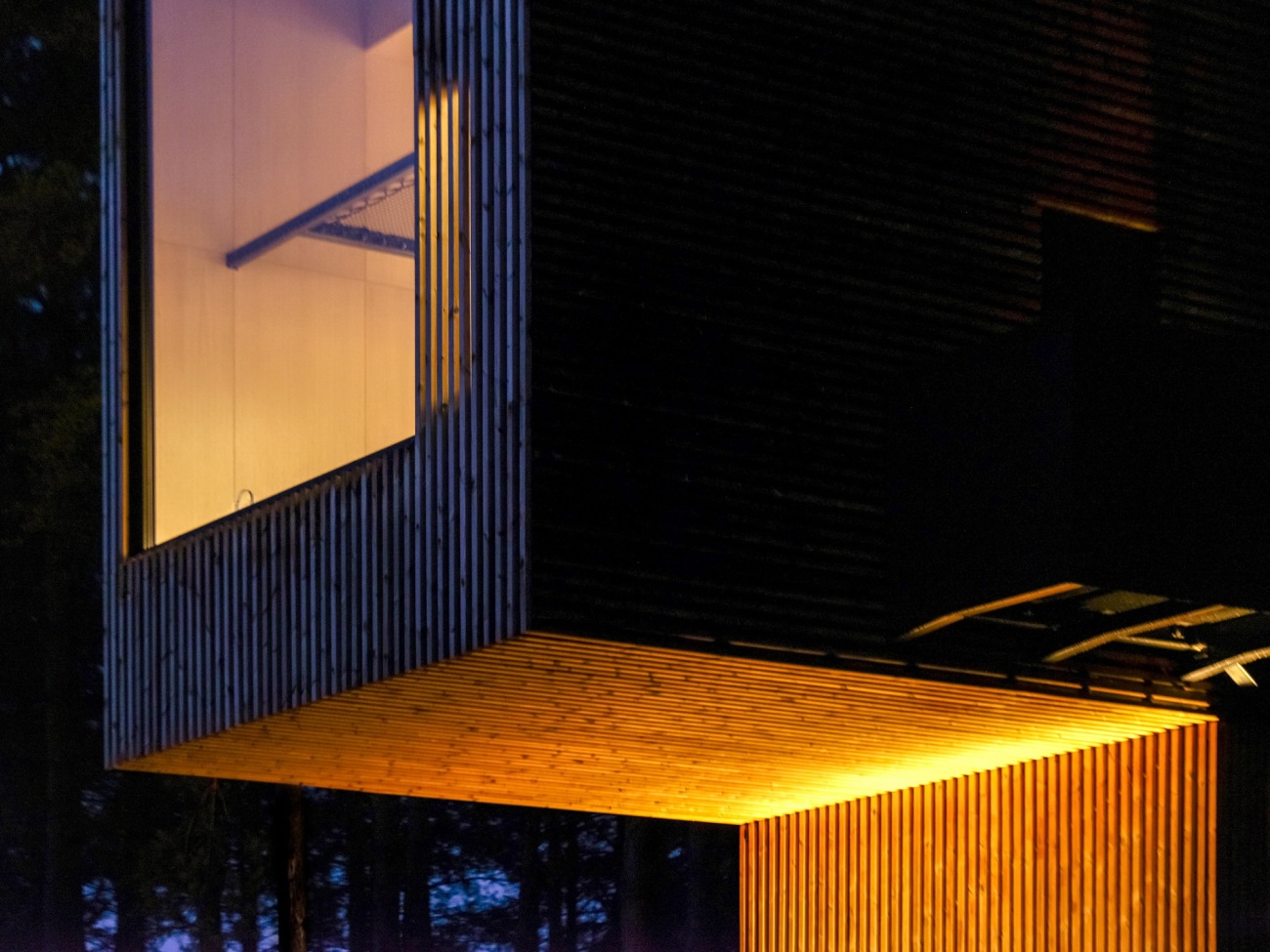

这座 19 平方米的结构以一条“腿”站立，悬挂在露台上方，形成一个避雨雪的露天“客厅”。一扇隐蔽的门提供了内部通道，外部覆盖层被撕开，露出支撑壮丽悬挑部分的金属结构。这个“腿”和上面的住宿模块都充当大型钢桁架，由客户自家制造，金属制造商Levstal Group提供支持。覆盖着松木板的“腿”内部包含楼梯、设施以及一个体育器材储藏室。升高的卧室提供了更大的隐蔽性、独特的有利位置以及在树枝间休息的机会。

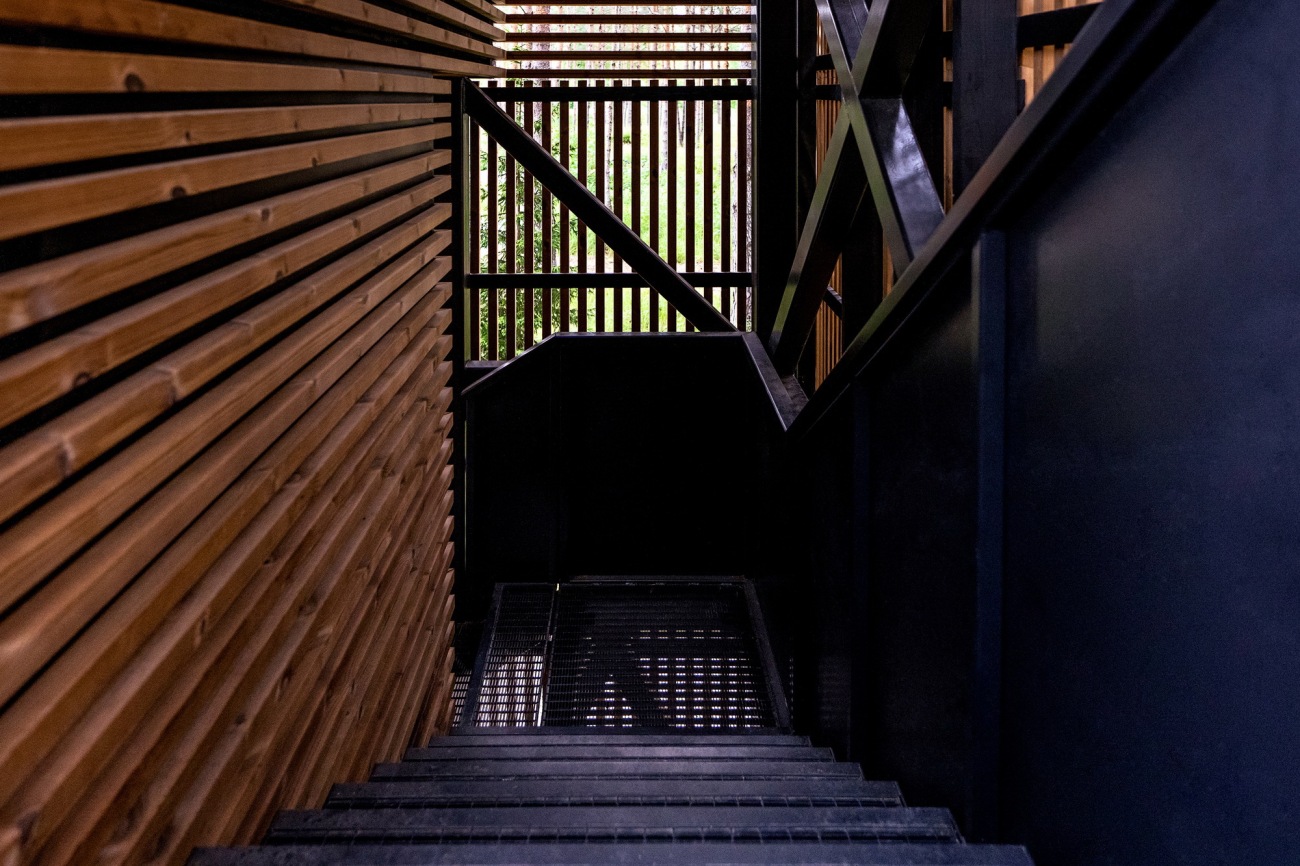

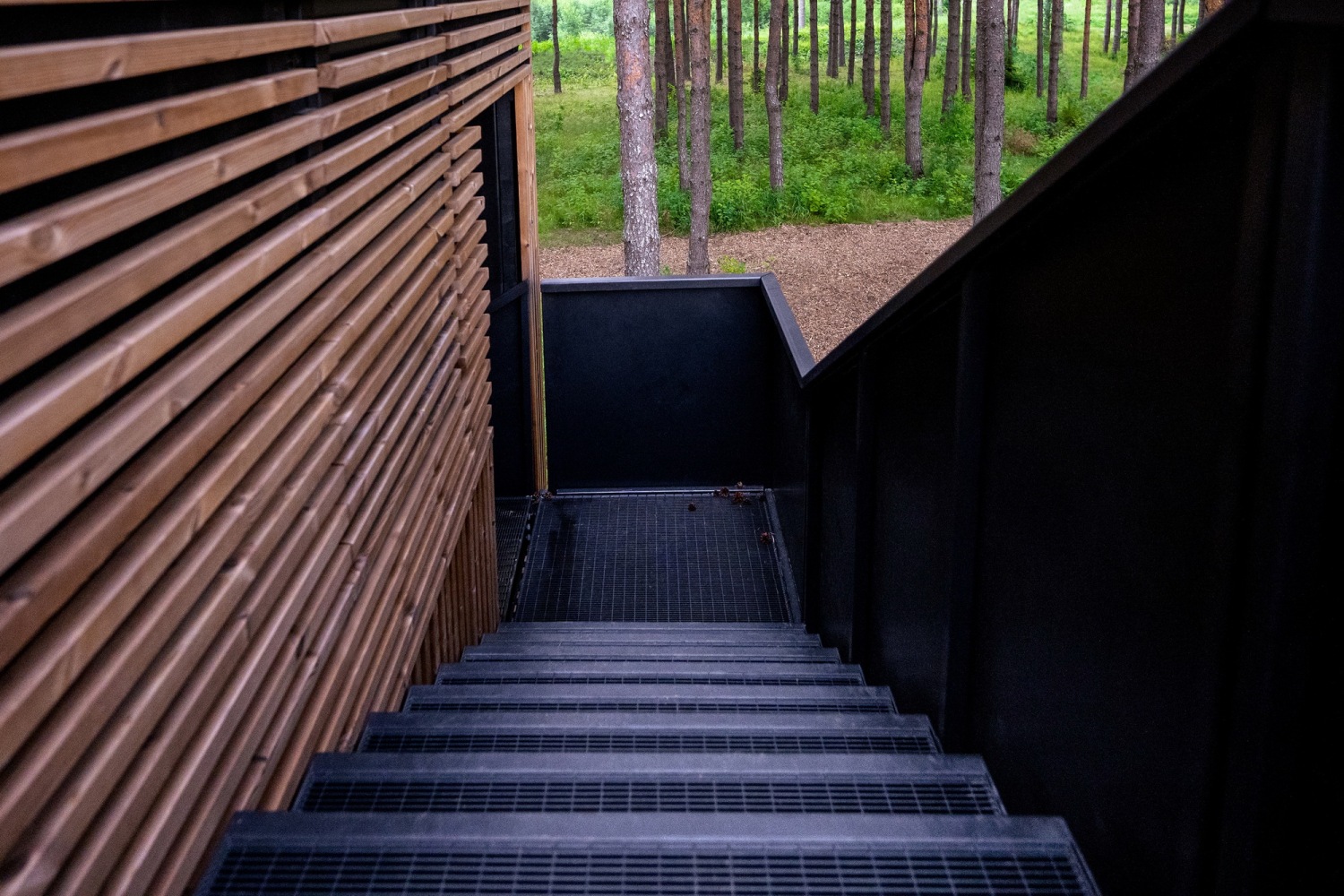

The 19m2 structure stands on one ‘leg’, suspended over a terrace to create an open-air ‘living room’ sheltered from rain and snow. A discreet door provides access inside, with the cladding layer peeled back to reveal the metal structure supporting the impressive cantilever. Both ‘leg’ and the accommodation modules above act as large steel trusses — made in-house by the Client, metal manufacturer Levstal Group. Wrapped in hit-and-miss pine cladding, the ‘leg’ contains a staircase, services, and a sports equipment store. The raised bedroom provides greater seclusion, a unique vantage point, and an opportunity to rest among tree branches.

▽建筑结构动图，Building structure gif.

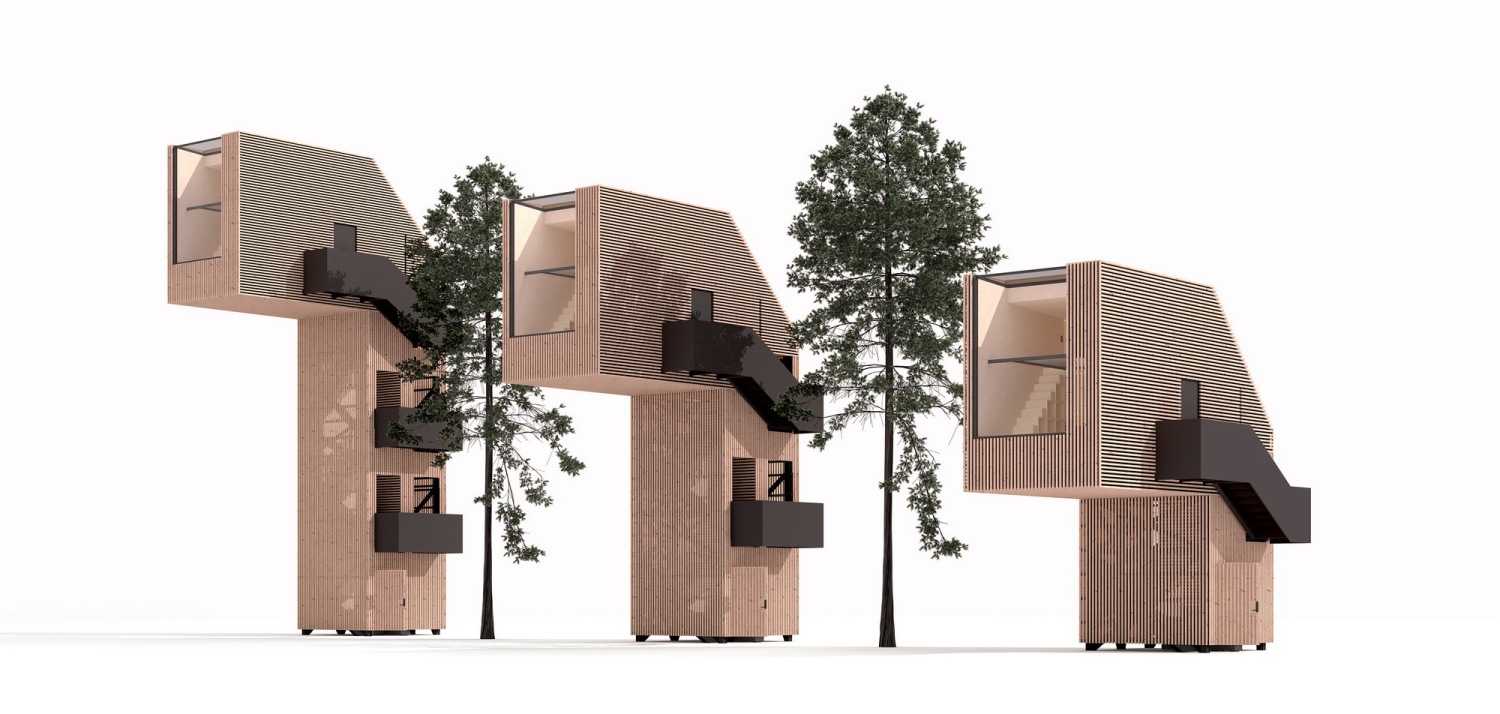

▽概念设计，Concept Design.

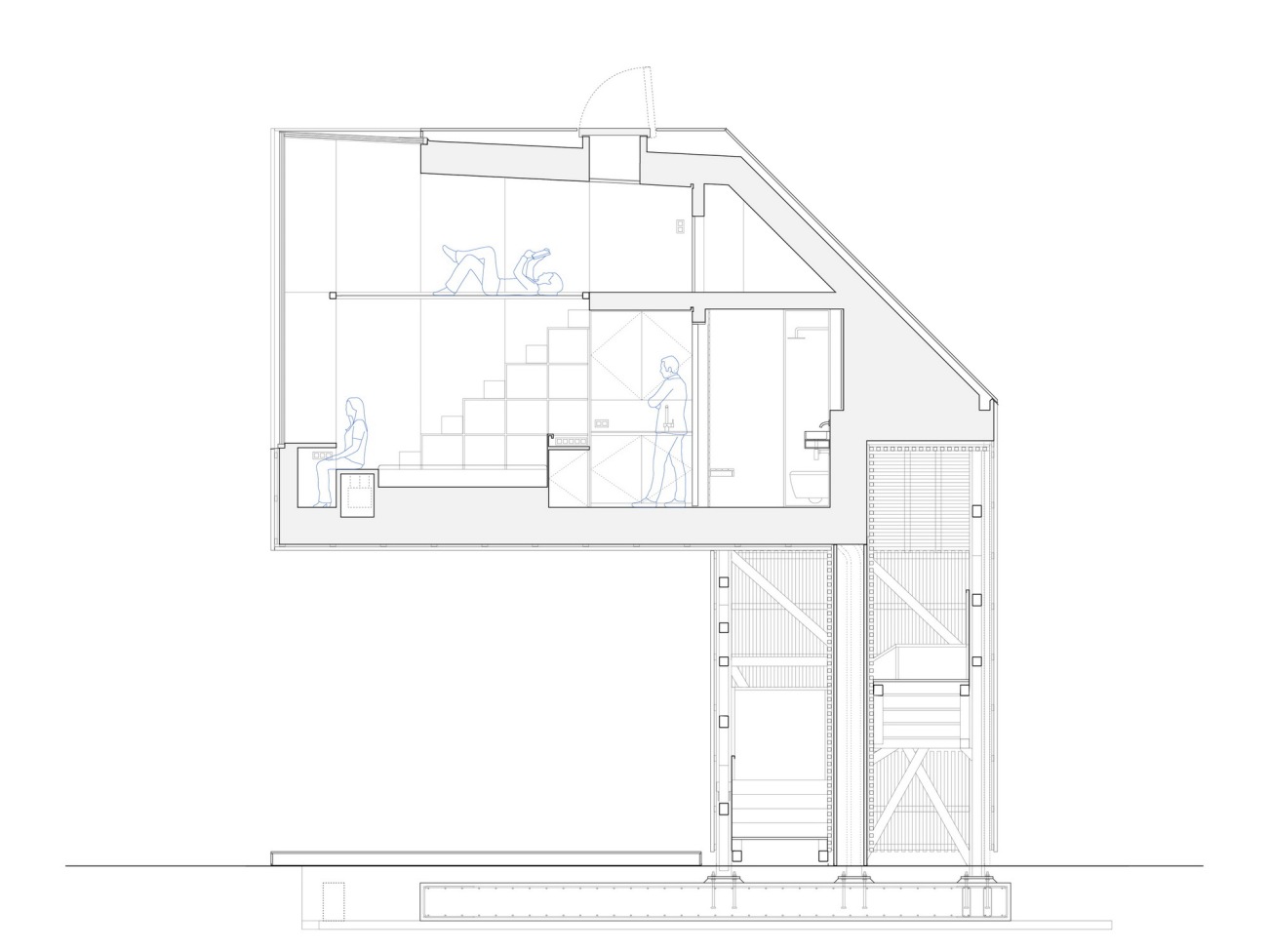

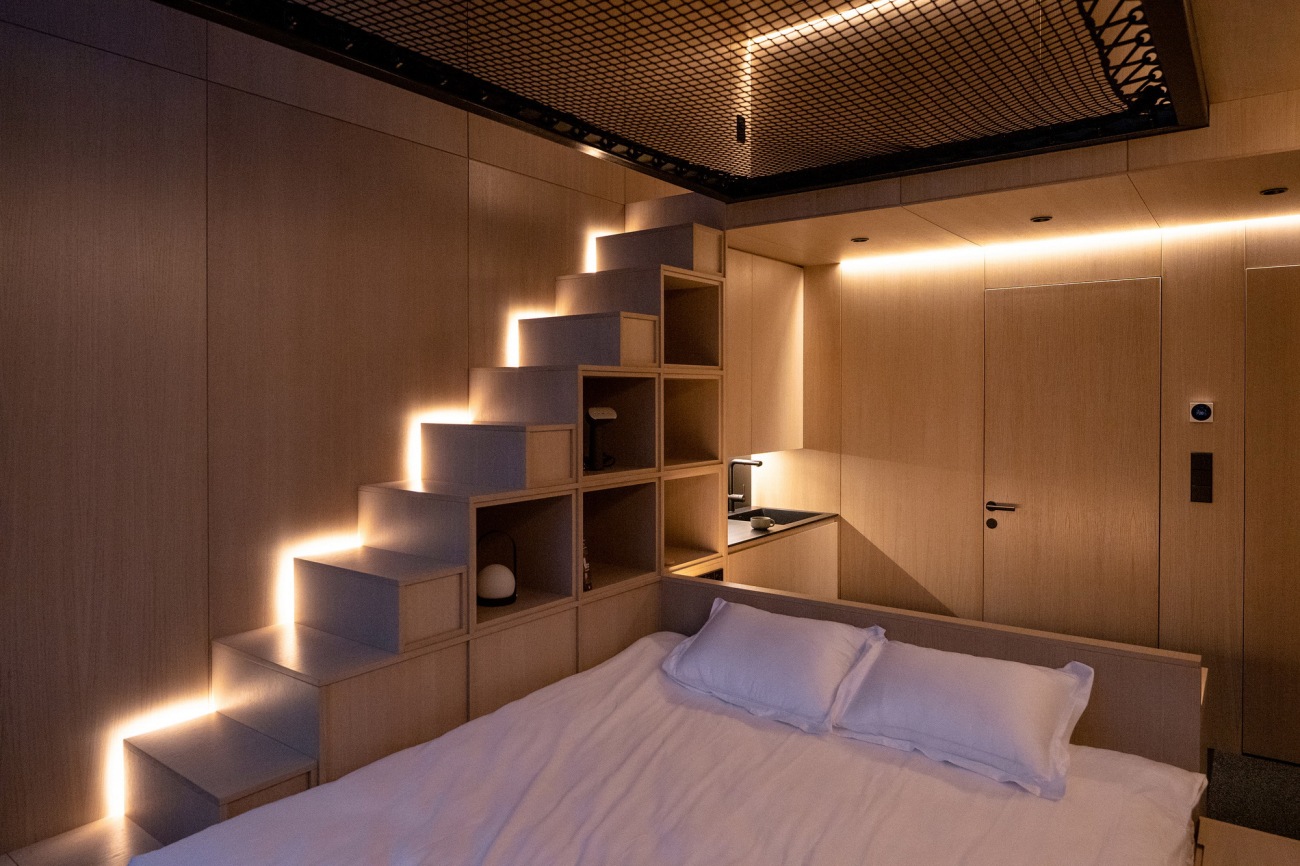

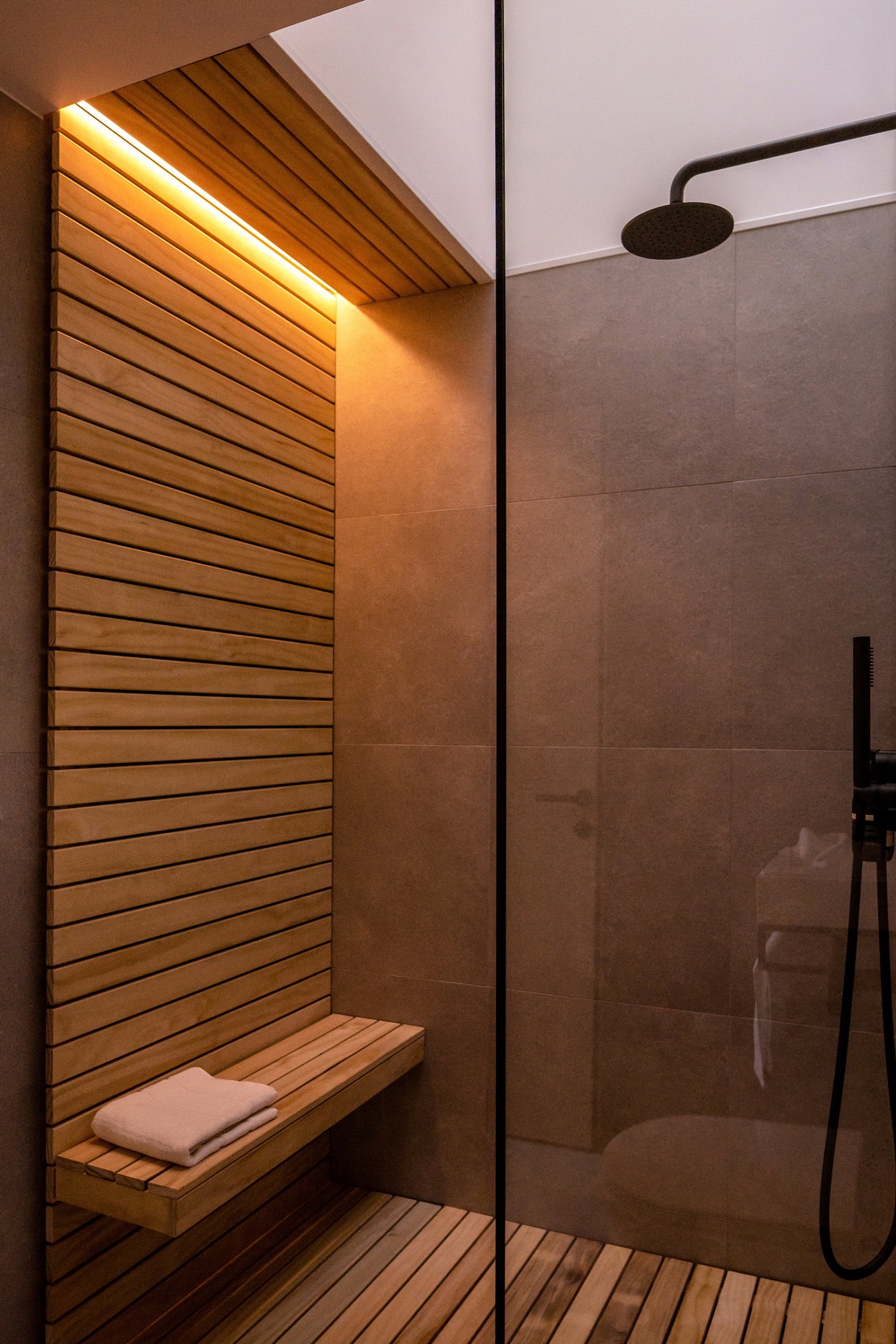

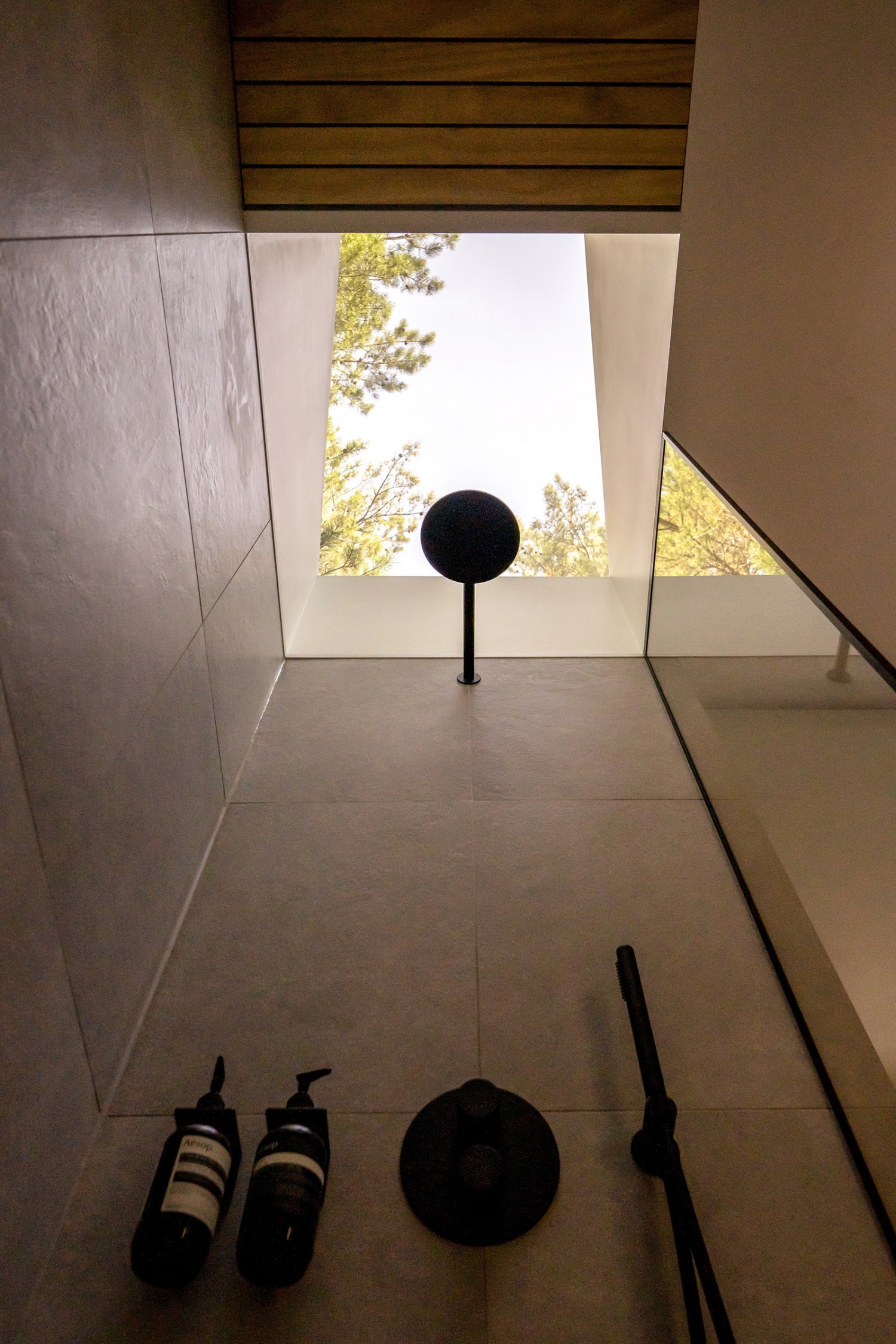

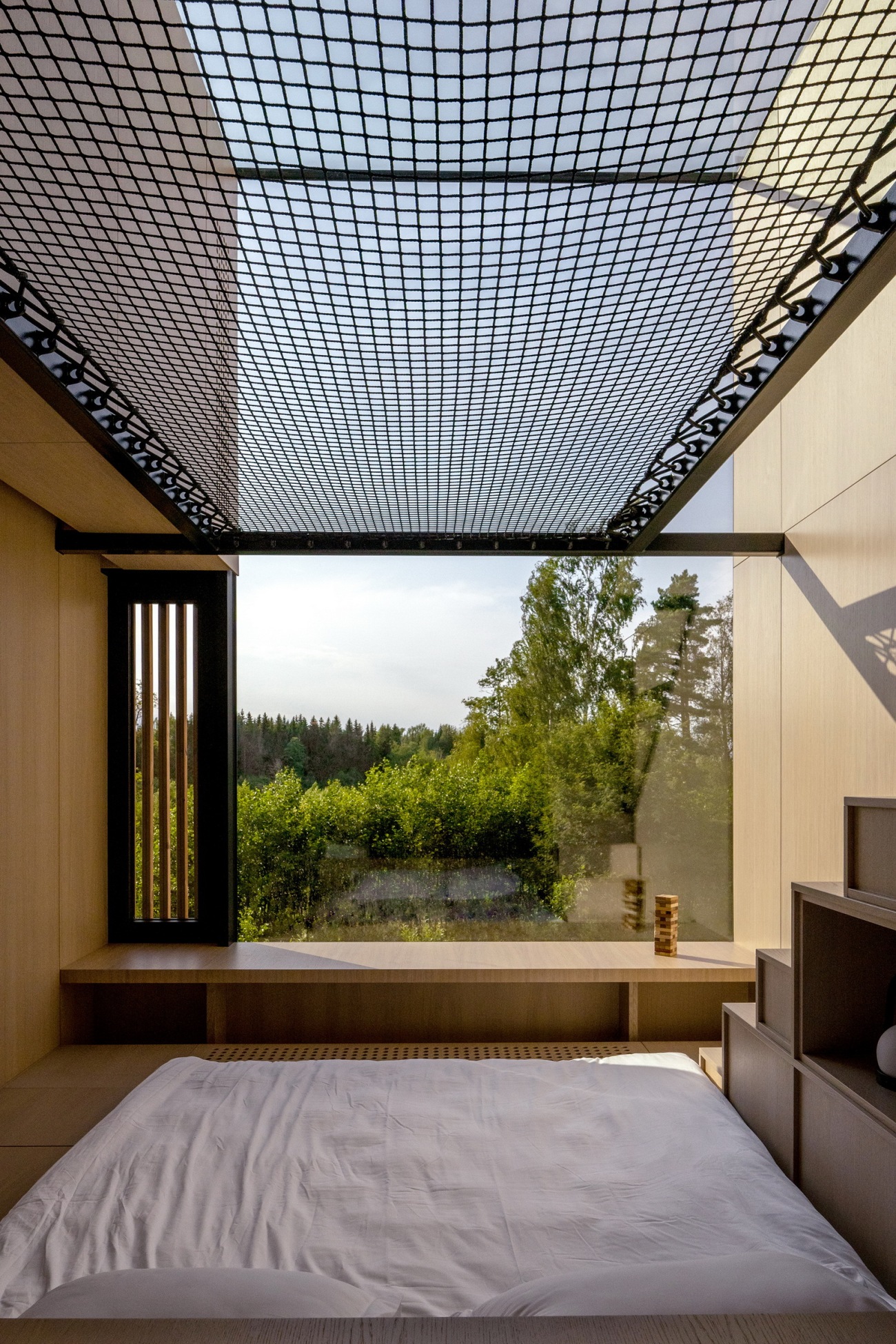

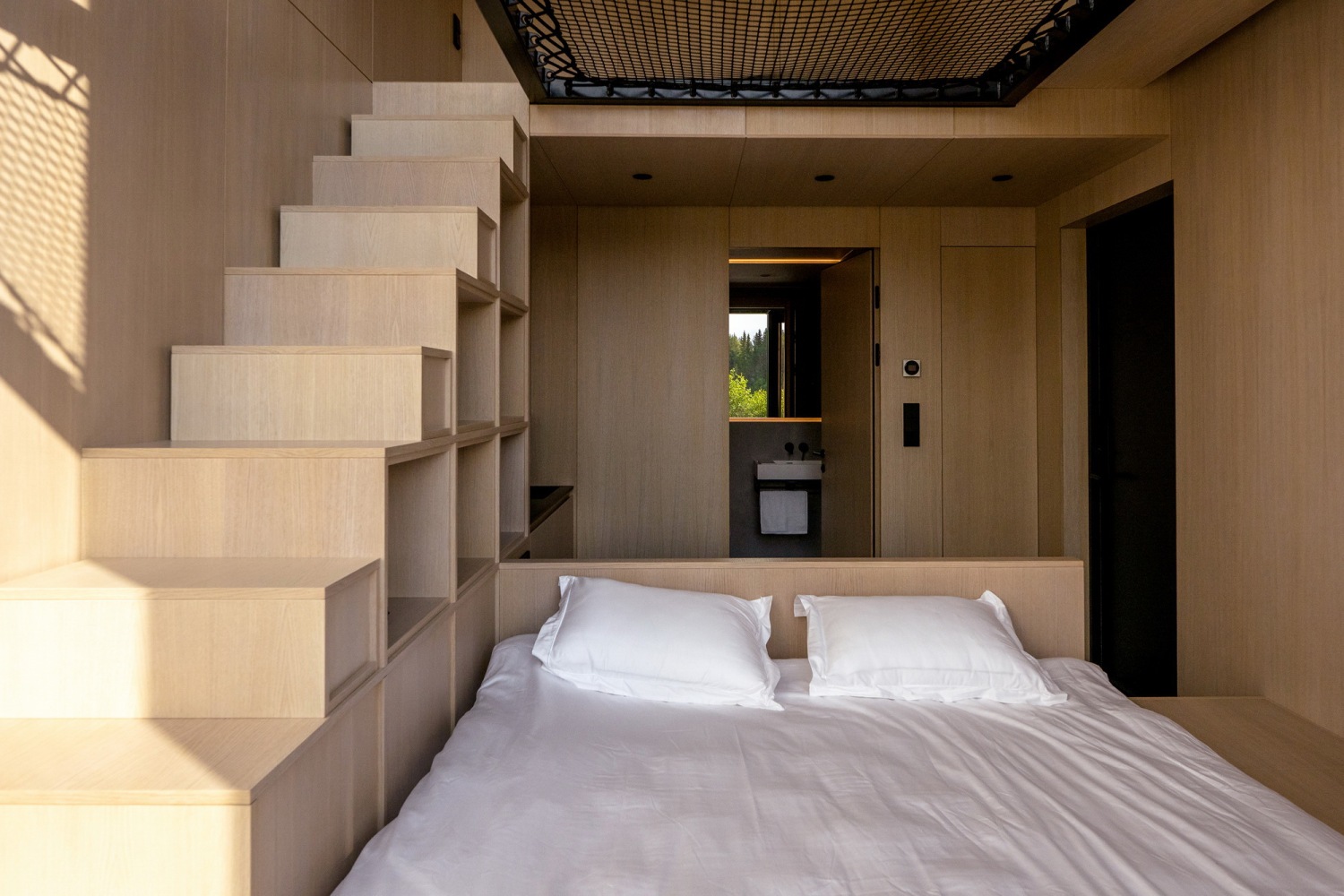

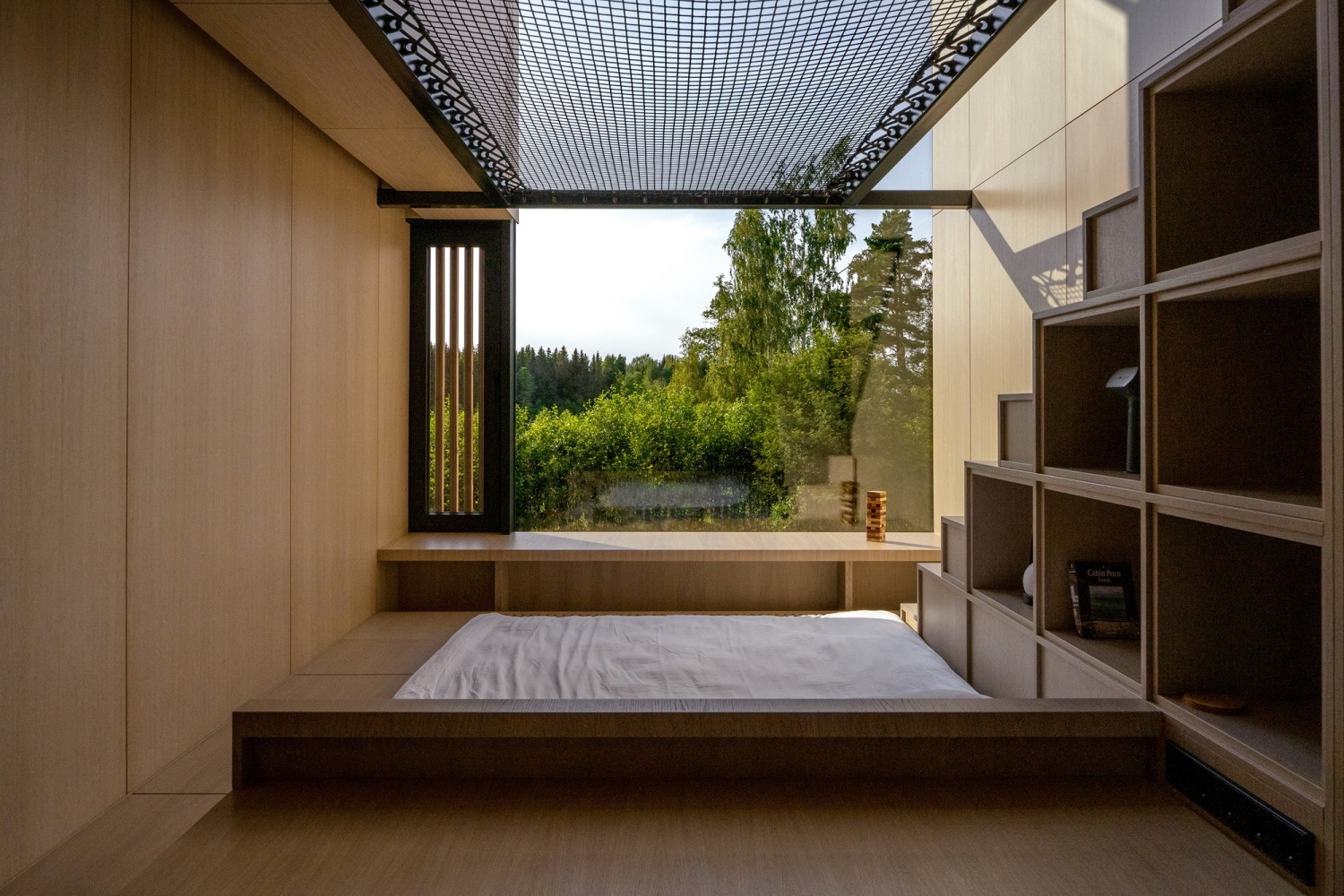

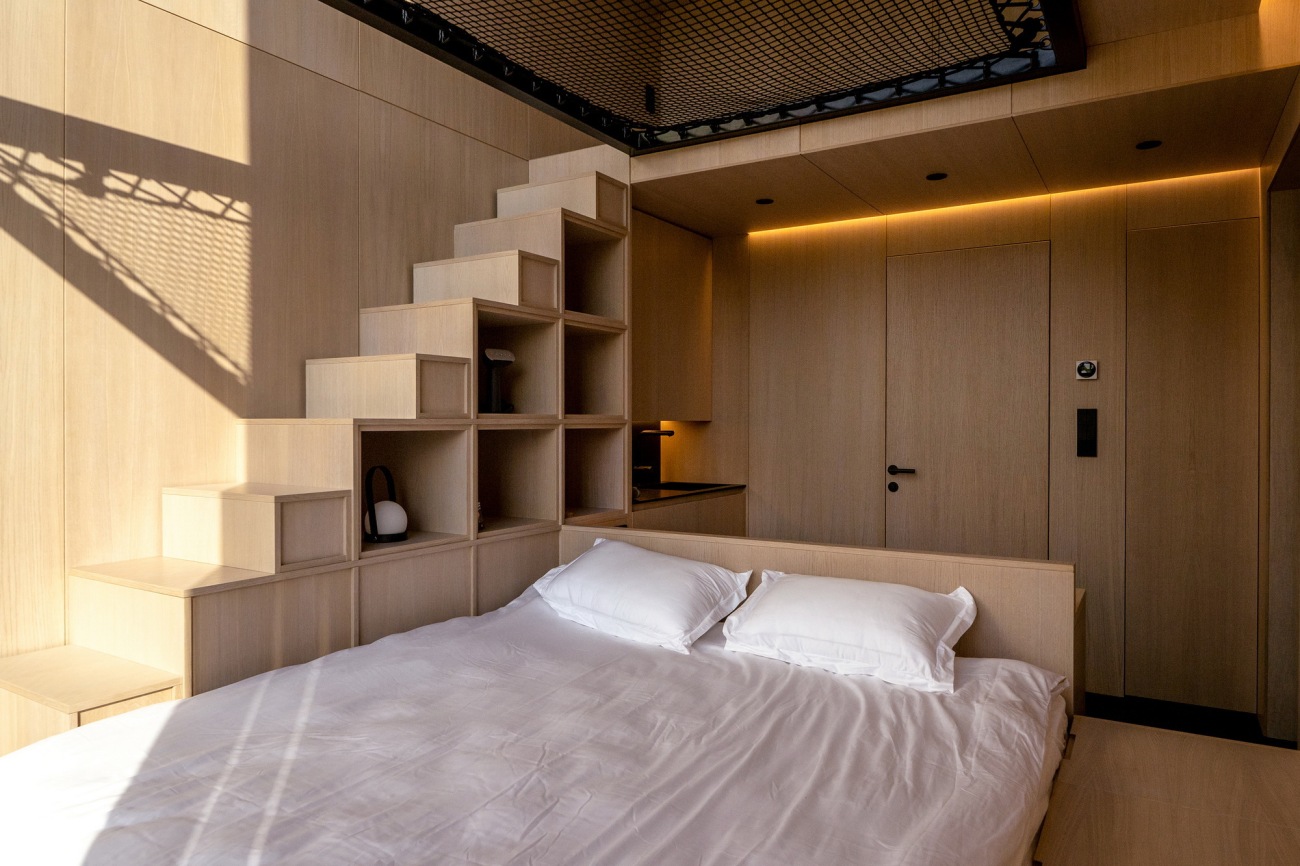

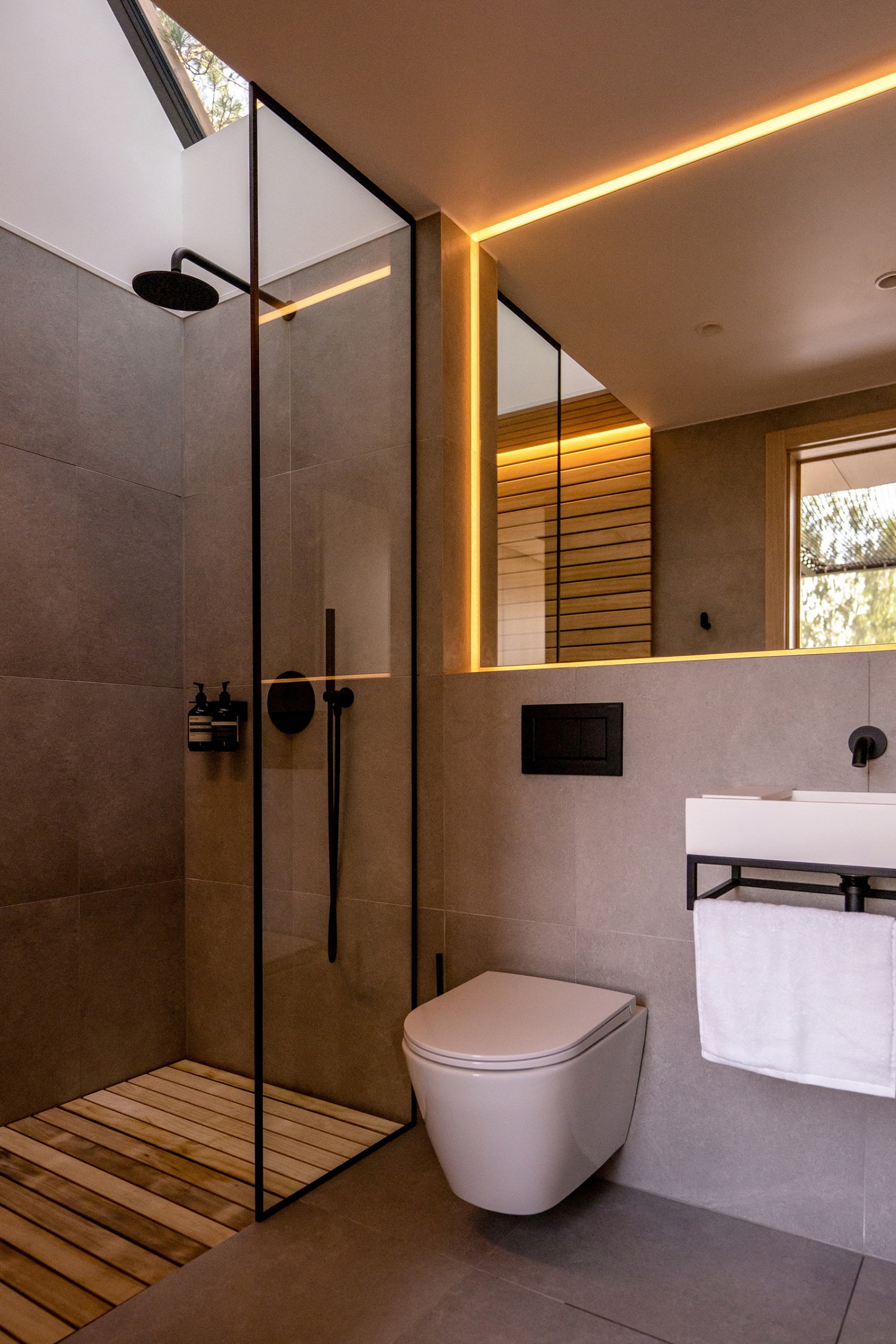

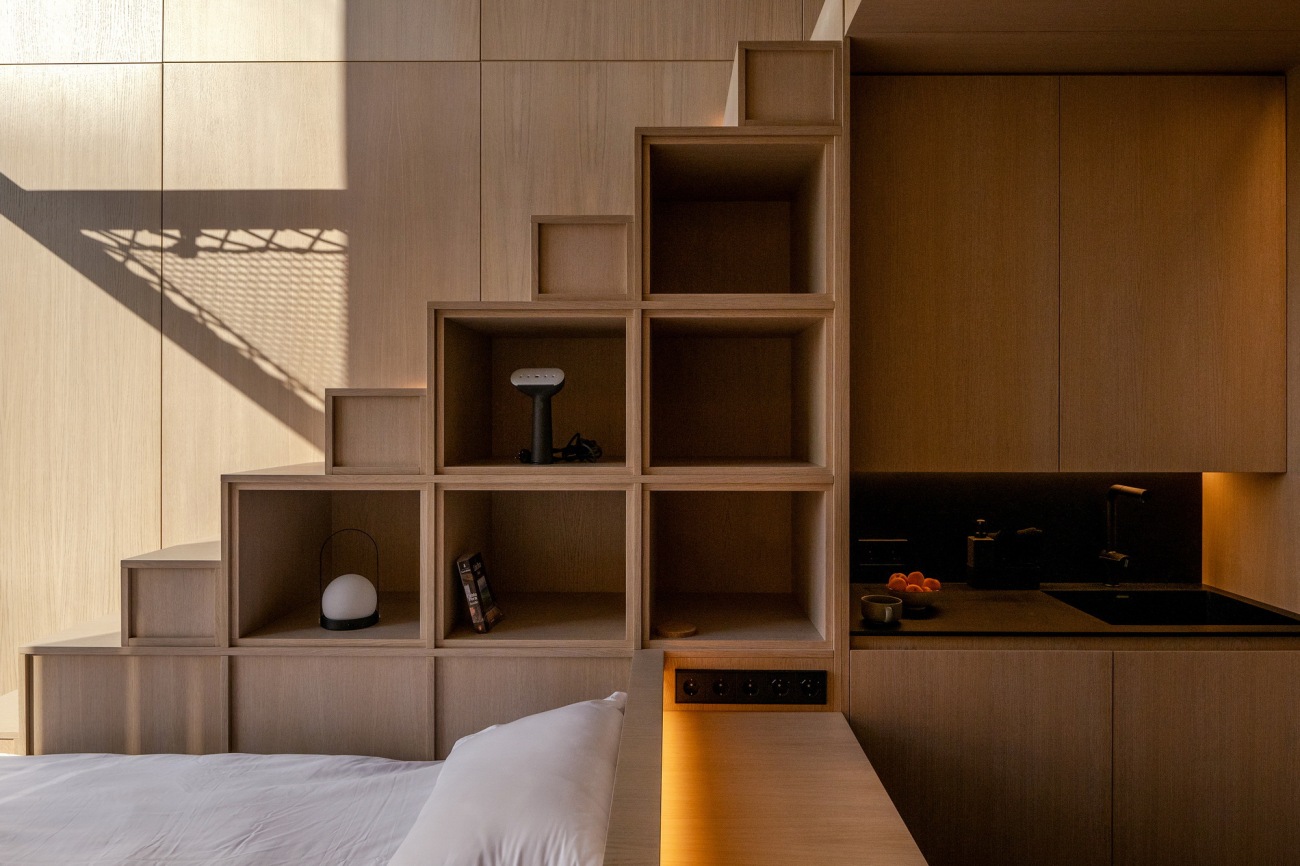

空间的内部被构想为一块大型的家具，全部采用白色橡木制成。不同水平面的相互作用使水平表面可以非正式地用作桌子、座位或展示空间，而垂直的木板装饰增添了类似树屋的质感。Piil 提供远程工作和舒适休息的设施：一张特大号床、两张工作台、一间小厨房、充足的隐蔽储物空间以及一间带顶光淋浴的宽敞浴室。主要亮点是巨大的窗户/天窗搭配宽敞的吊床夹层，是一个让人感觉仿佛悬浮在森林中央的地方，除了前方的全景和上方树梢的轻轻摇曳之外什么也没有。

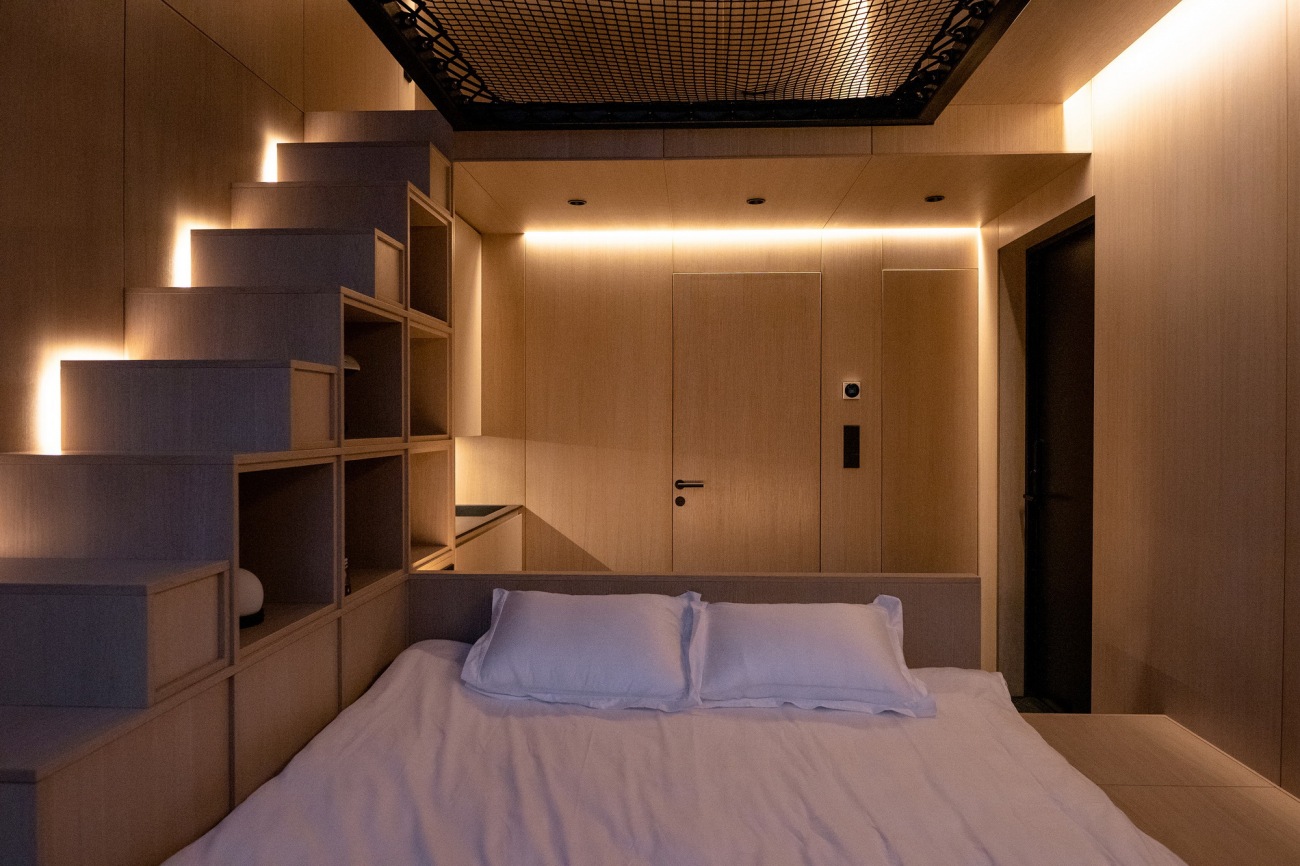

The interior of the space is conceived as a large piece of joinery, all in white-washed oak. The interplay of levels allows horizontal surfaces to be used informally as tables, seats or display spaces, while the vertical timber panelling adds a tree-house-like quality. Piil offers the facilities for remote work and comfortable rest: a king-size bed, two working tables, a kitchenette, ample concealed storage, and a generous bathroom with a top-lit shower. The main highlight is the huge window / skylight paired with the generous hammock mezzanine — a place to feel suspended mid-forest, with nothing but the panoramic view ahead and the gentle sway of treetops above.

▽室内空间动图，Interior space gif.

从外部看，Piil 由 Thermory 未经处理的热改性松木制成，这种材料几乎不需要维护，并且会优雅地风化成银灰色，使建筑物与周围的松树林融为一体。这种带有方形横截面的雨屏装饰增加了视觉深度；过滤光线和空气进入建筑物，同时赋予其块状外观；为可打开的窗户提供遮荫；封闭地面存储空间；屏幕服务和 MVHR 格栅。最后，木材覆层的方向性凸显了 Piil 的独特形式。

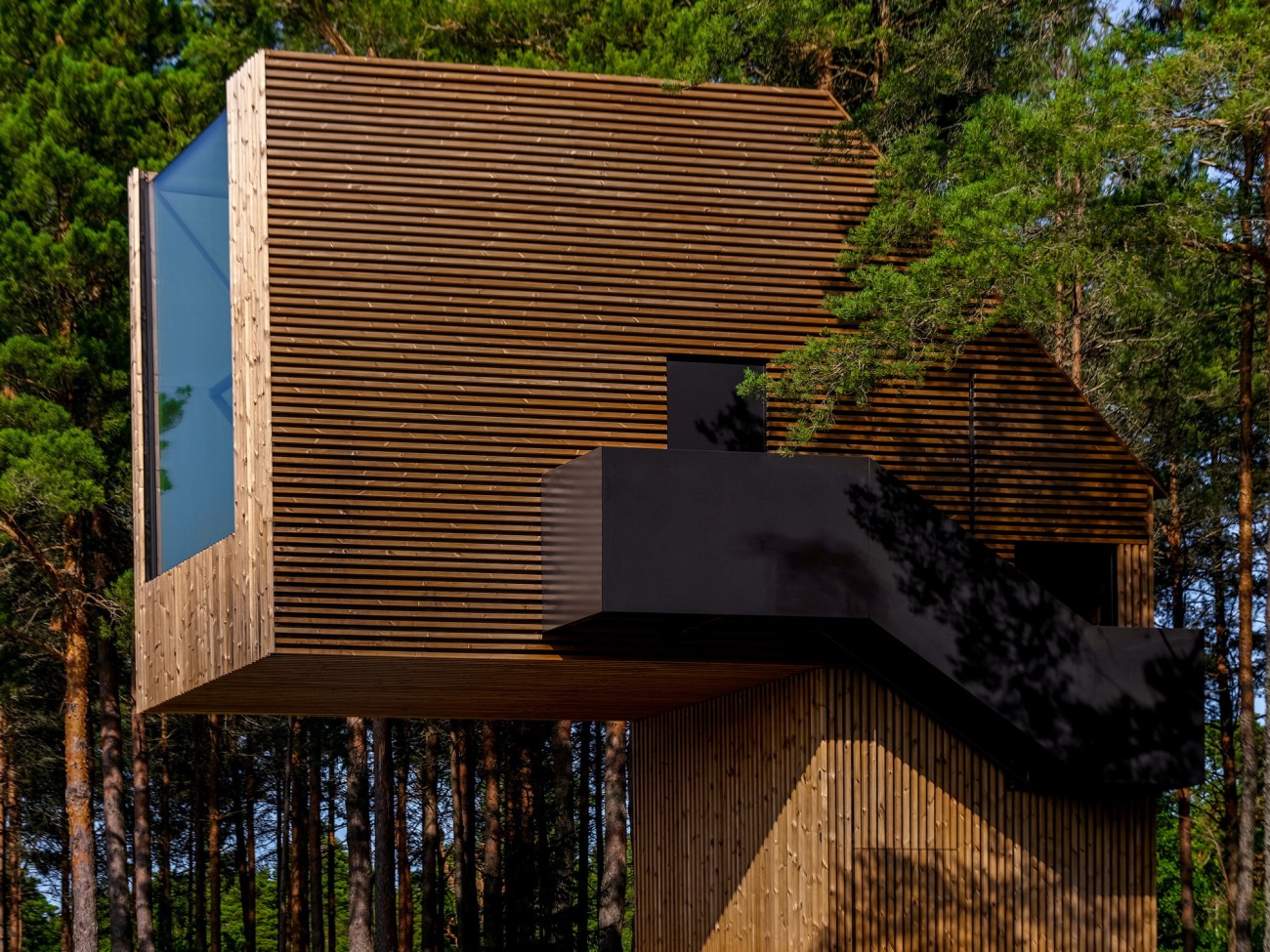

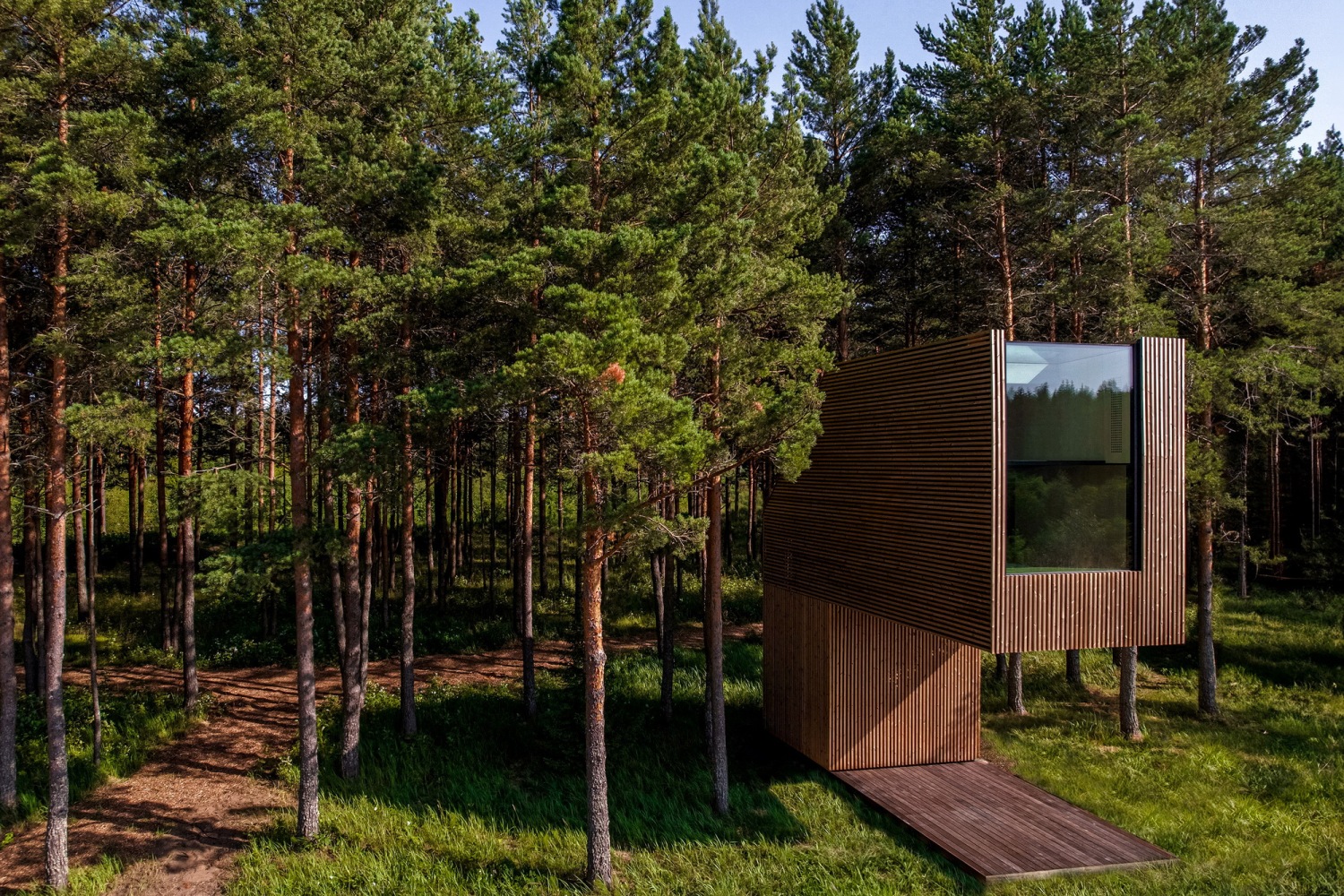

Externally, Piil is finished in untreated, thermally modified pine by Thermory — a material that requires little maintenance and will weather gracefully to a silver-grey, helping the building blend in with the pine tree forest in which Piil has been carefully placed. The use of this rain-screen cladding with a square cross-section adds visual depth; filters light and air into the building while giving it a monolithic appearance; provides shade to the openable window; encloses a ground-level storage space; screens services and MVHR grilles. Finally, the directionality of the timber cladding accentuates Piil's unique form.

Piil 的所有元素均设计为在场外工厂完成，然后运送到偏远且风景优美的地点，在那里组装成一个整体。场外制造意味着更高水平的工艺，从而形成具有三层低辐射玻璃的隔热良好的住宿单元。具有 MVHR 的高效空气源热泵可在一年中的大部分时间提供通风、供暖、制冷和热水，并在特别寒冷或炎热的日子里提供集成散热器或外部冷凝器的额外支持。

All the elements of Piil are designed to be finished in a factory off-site and then delivered to remote and scenic locations, where they are assembled into a whole. Off-site fabrication means a higher level of workmanship, resulting in a well-insulated accommodation unit with triple-glazed low-E glazing. An efficient air-source heat pump with MVHR provides ventilation, heating, cooling and hot water throughout most of the year, with additional support from an integrated radiator or external condenser on particularly cold or hot days.

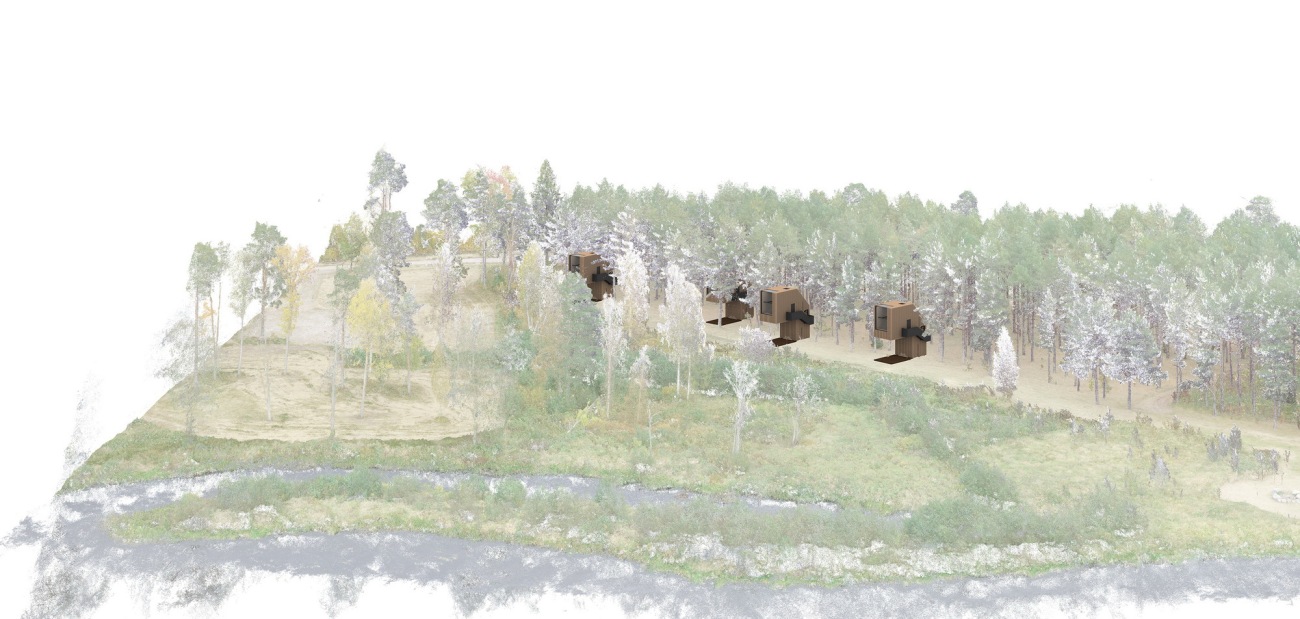

Piil 的第一个原型版本于 2023 年初完成。该地点总共规划了四个 Piil，使用森林点云模型仔细定位它们，以框出贾加拉河的日落景观。

The first, prototype version of Piil was completed in early 2023. In total, four Piils are planned for the site, where they have been carefully positioned using a point cloud model of the forest to frame sunset views of the Jägala river.

Arsenit 的创始人 Arseni Timofejev 表示：“客户的需求是建造高耸的‘豪华露营’住宿，可以用作休养所或微型酒店。受到爱沙尼亚各地风景名胜的观景塔的启发，皮尔想象了在其中过夜的感觉。在 Piil 的第一个原型版本中，单层‘腿’将住宿单元抬高到地面以上 4.25m——在未来的迭代中，更高的‘腿’可以将住宿单元提升到更深处，甚至高于树枝！”

Arseni Timofejev, the founder of Arsenit, said: “The client’s brief was for raised ‘glamping’ accommodation, which could be used as a retreat or a micro-hotel. Inspired by the observation towers placed in scenic locations throughout Estonia, Piil imagines what it would be like to stay in one overnight. In the first, prototype version of Piil, a single-storey ‘leg’ elevates the accommodation 4.25m above ground — in future iterations, taller ‘legs’ could raise the accommodation units further into, or even above the tree branches!”
