公司: | line+建筑事务所 | 类型: | 建筑 |
---|---|---|---|
地区: | 中国 | 标签: | 居住社区 |

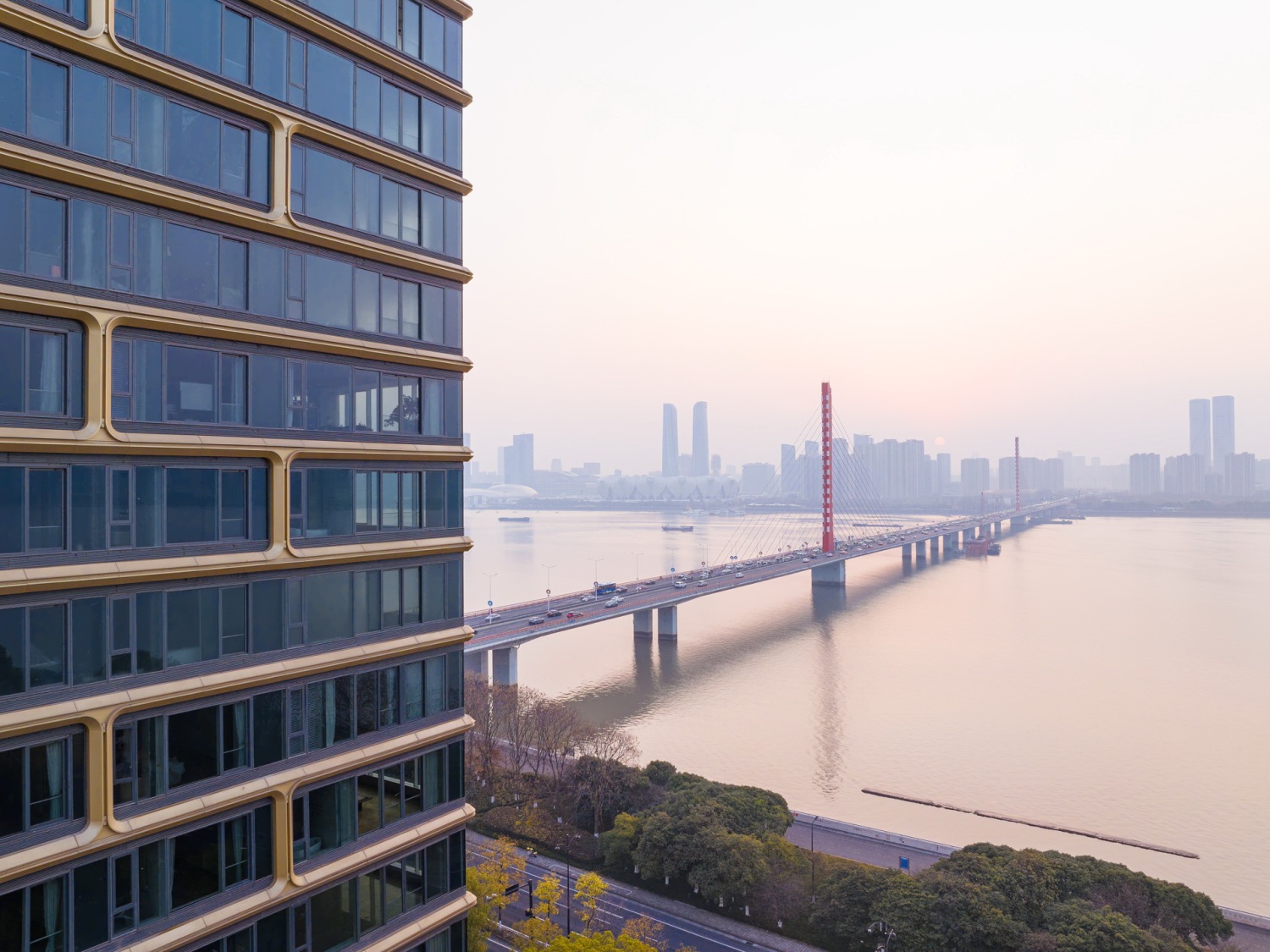

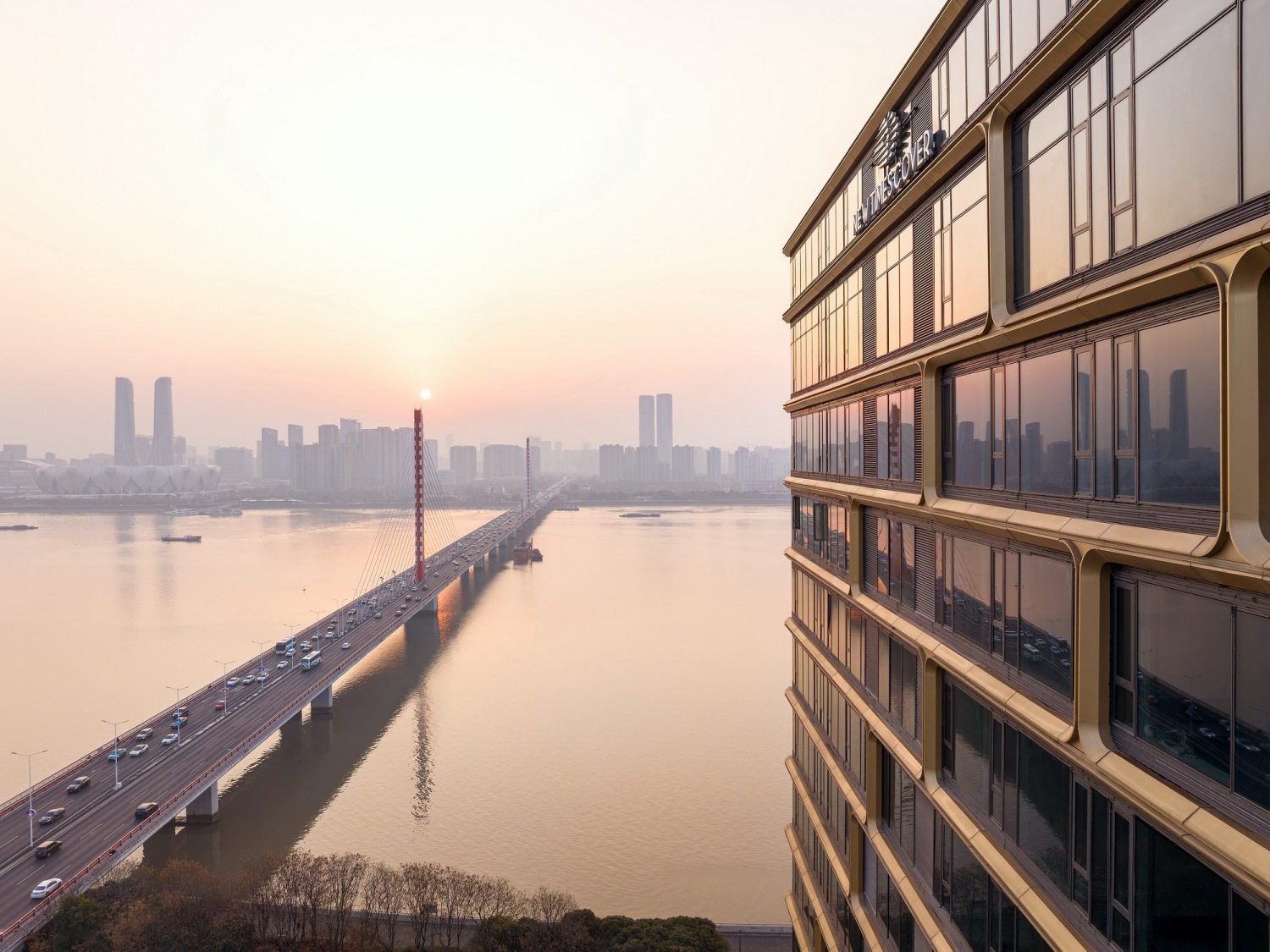

一线江景
Riverfront View
“每次往返机场的必经之地,它就像是这座城市的一个注脚,镶嵌在江岸边,见证着杭州的时代推进。”
——孟凡浩
“It’s a place I pass every time on the way to and from the airport—a quiet insert along the river’s edge, like a footnote to the city, quietly witnessing Hangzhou as it moves through time.”
— Meng Fanhao

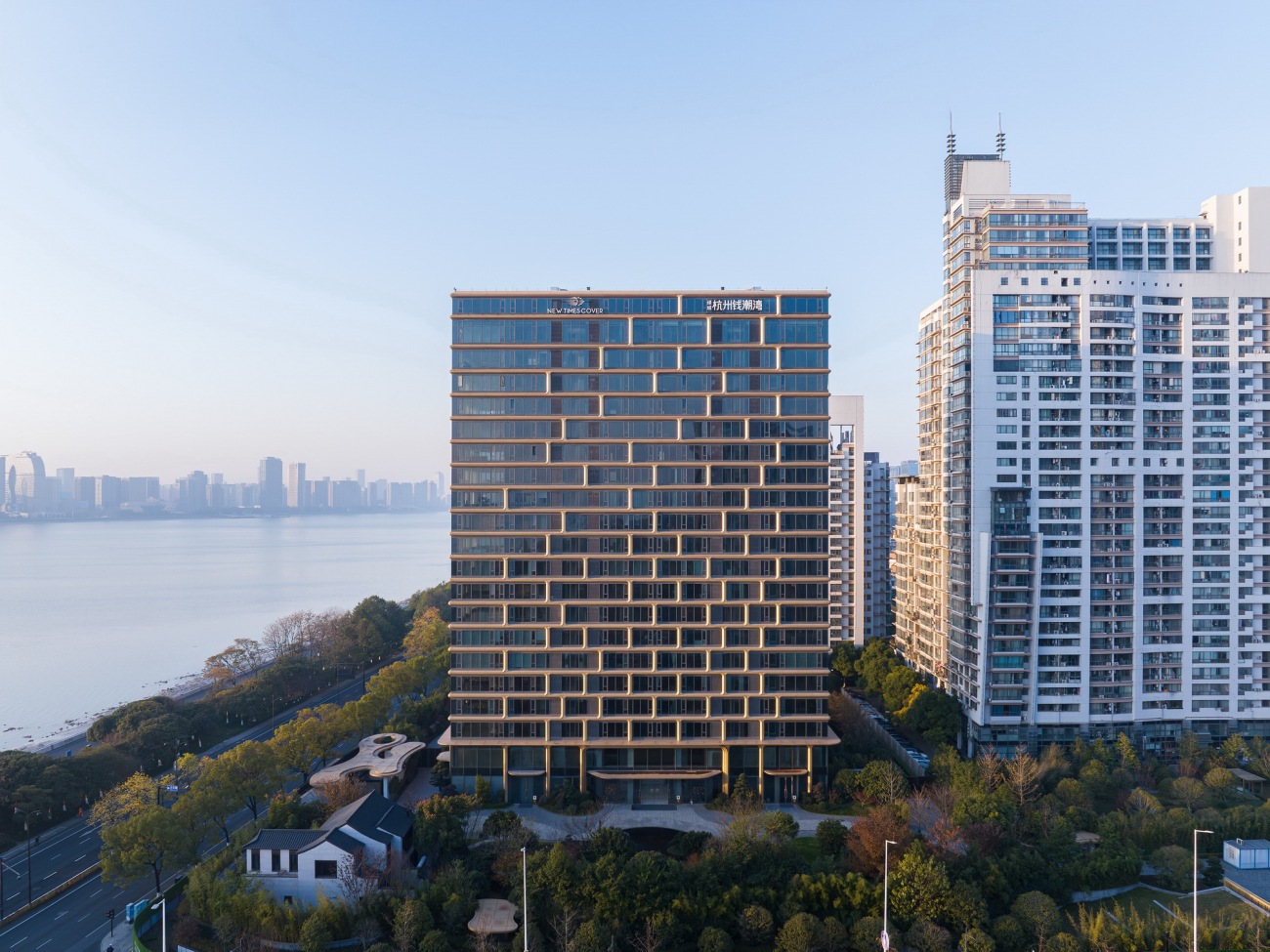

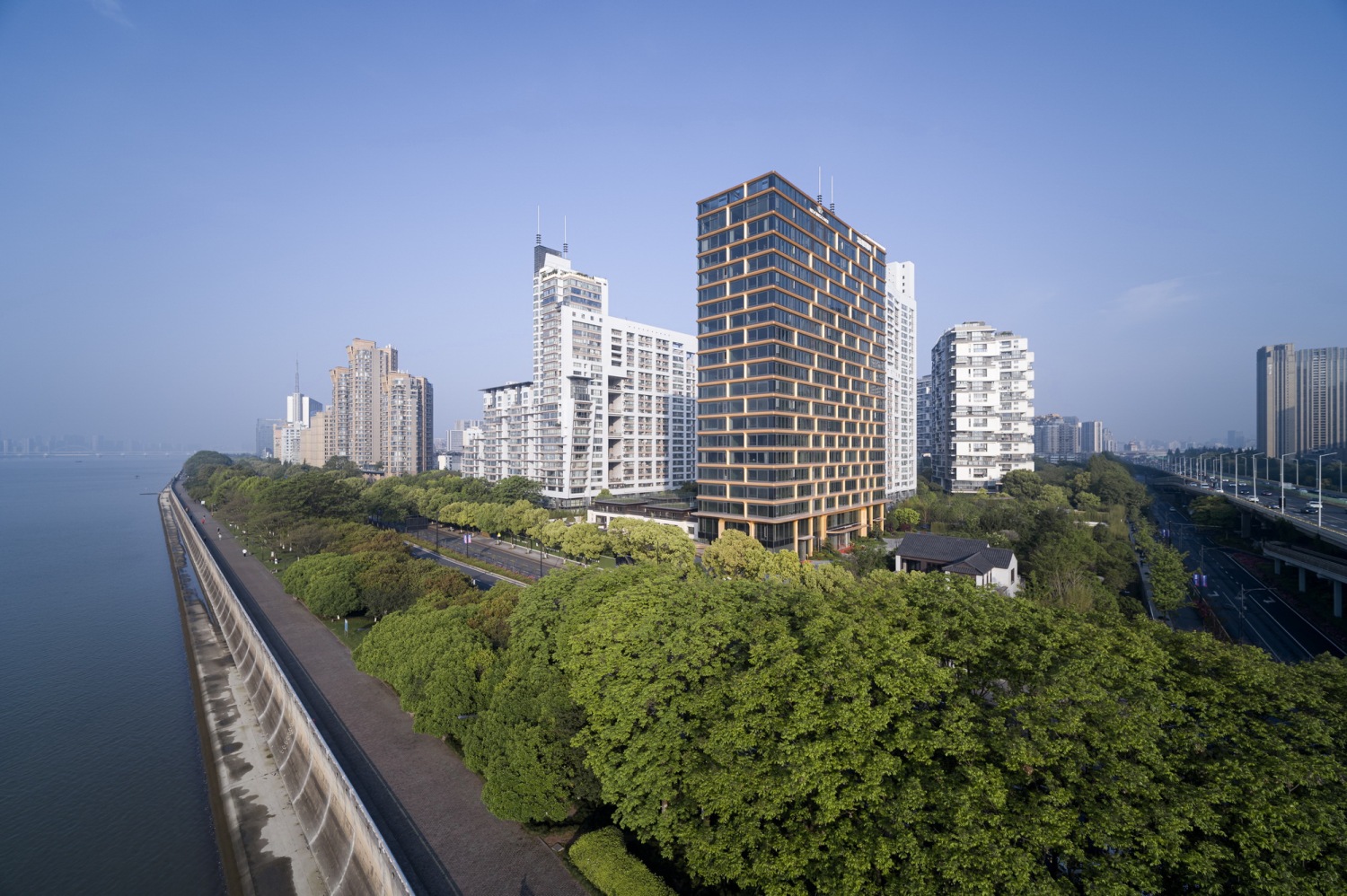

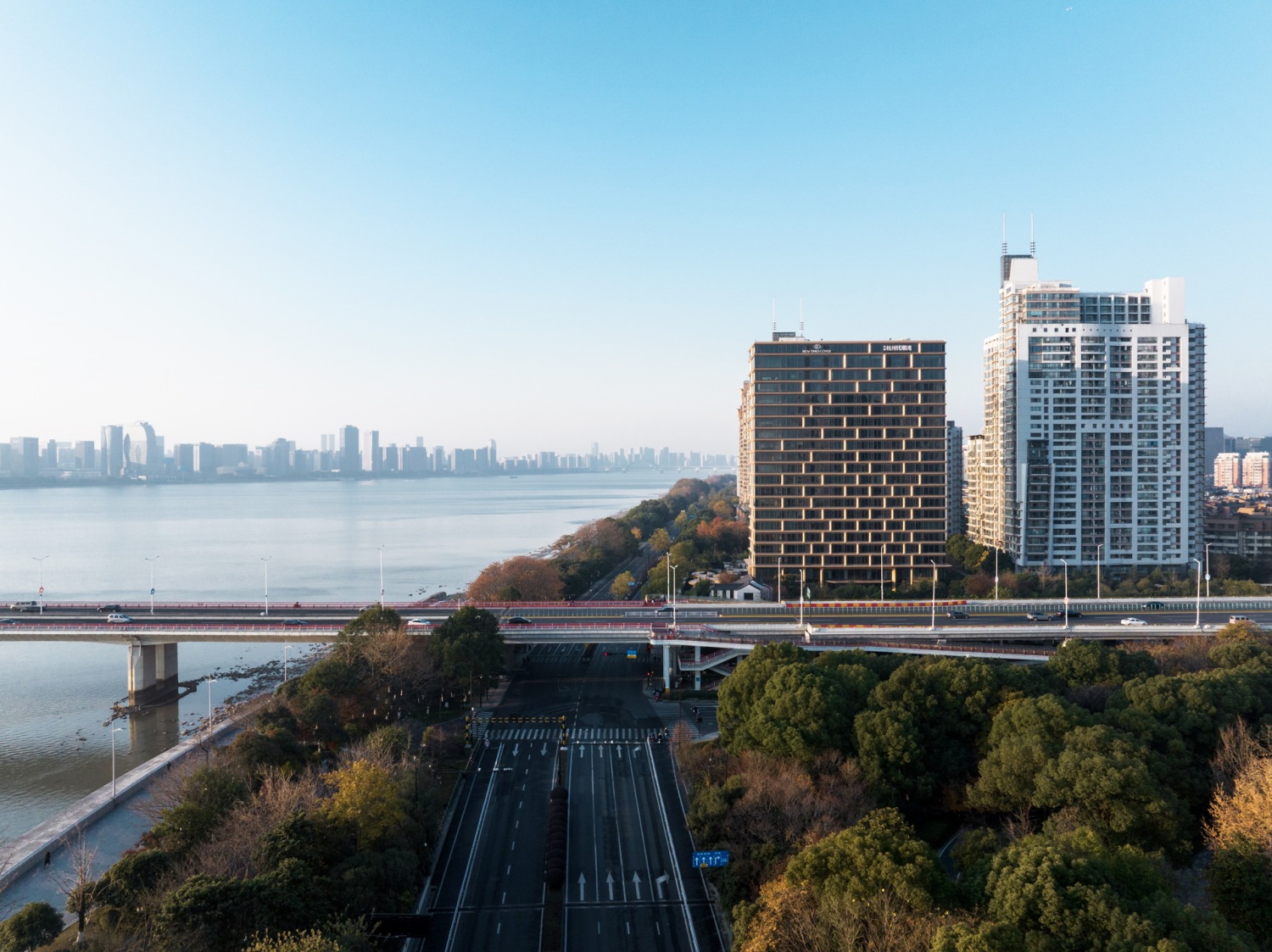

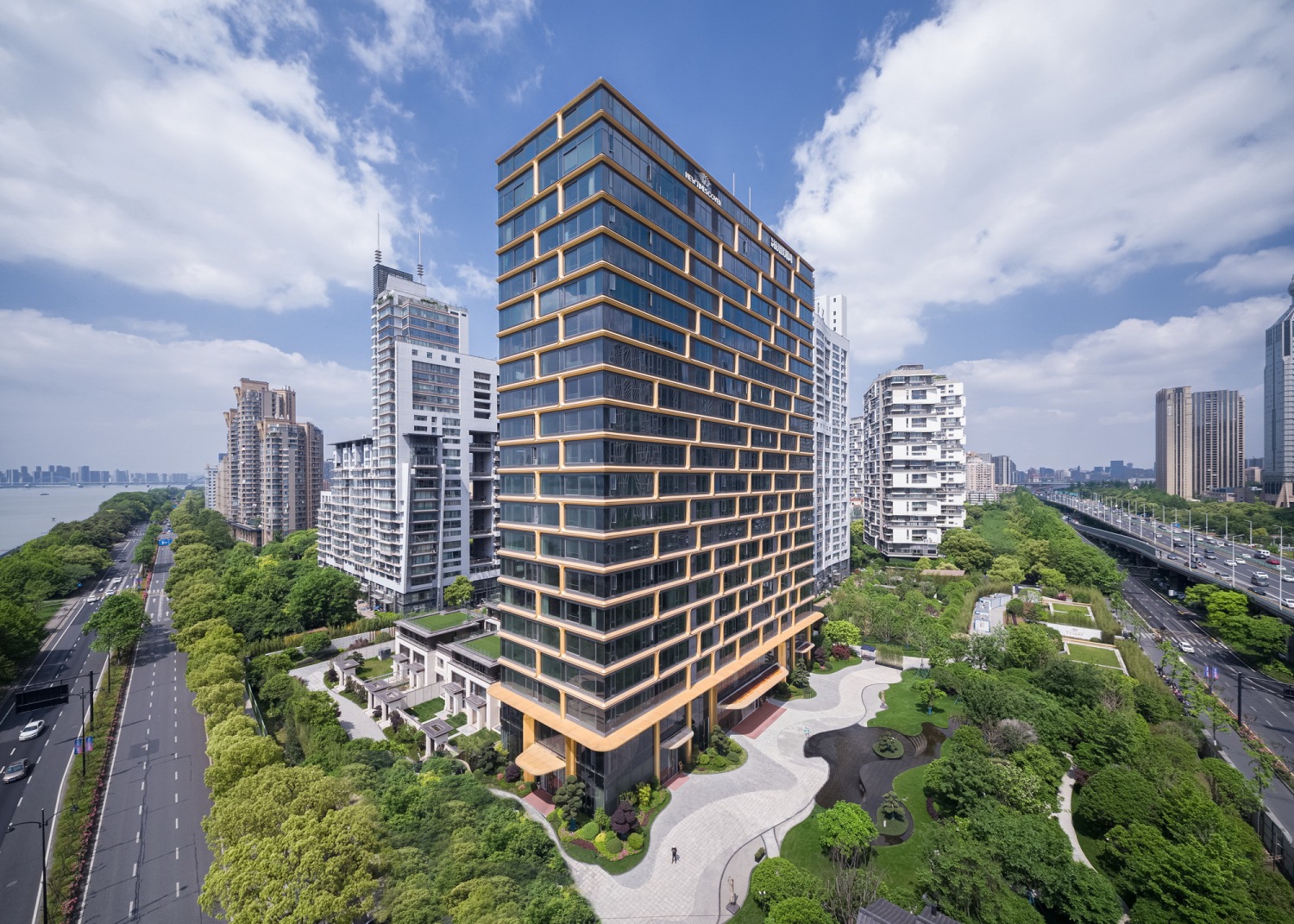

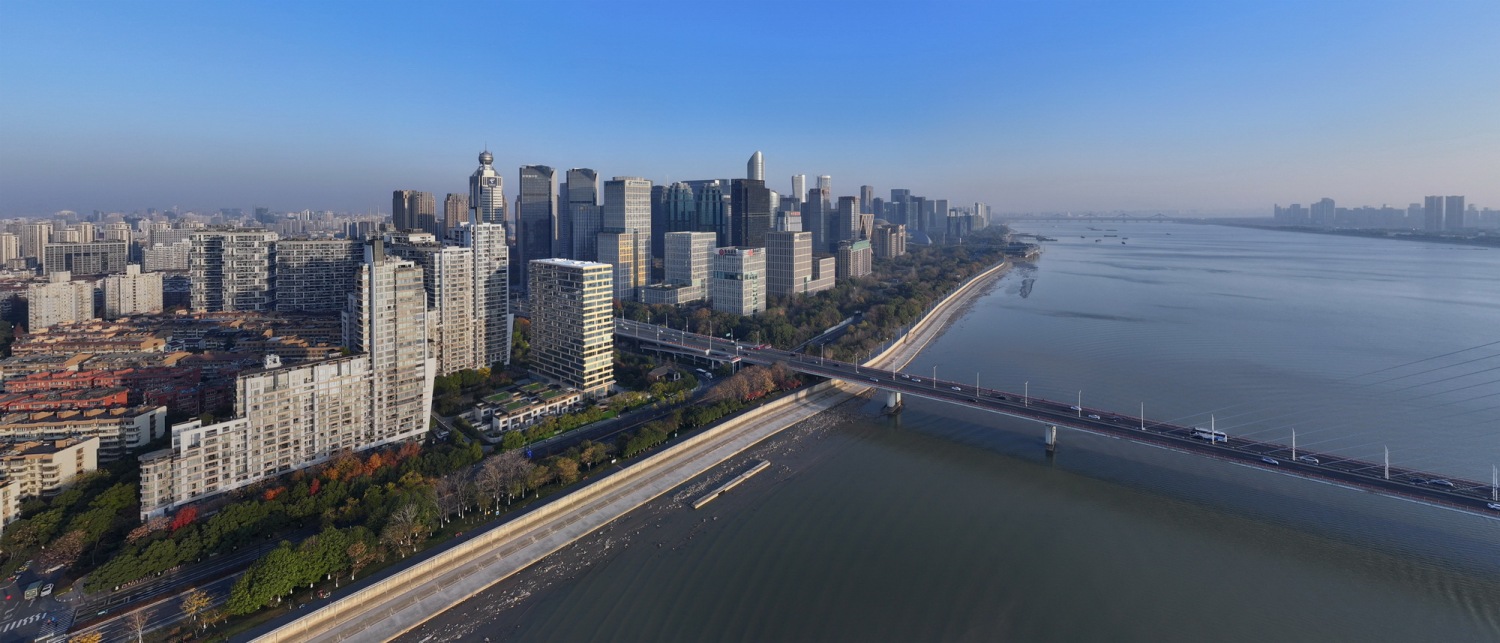

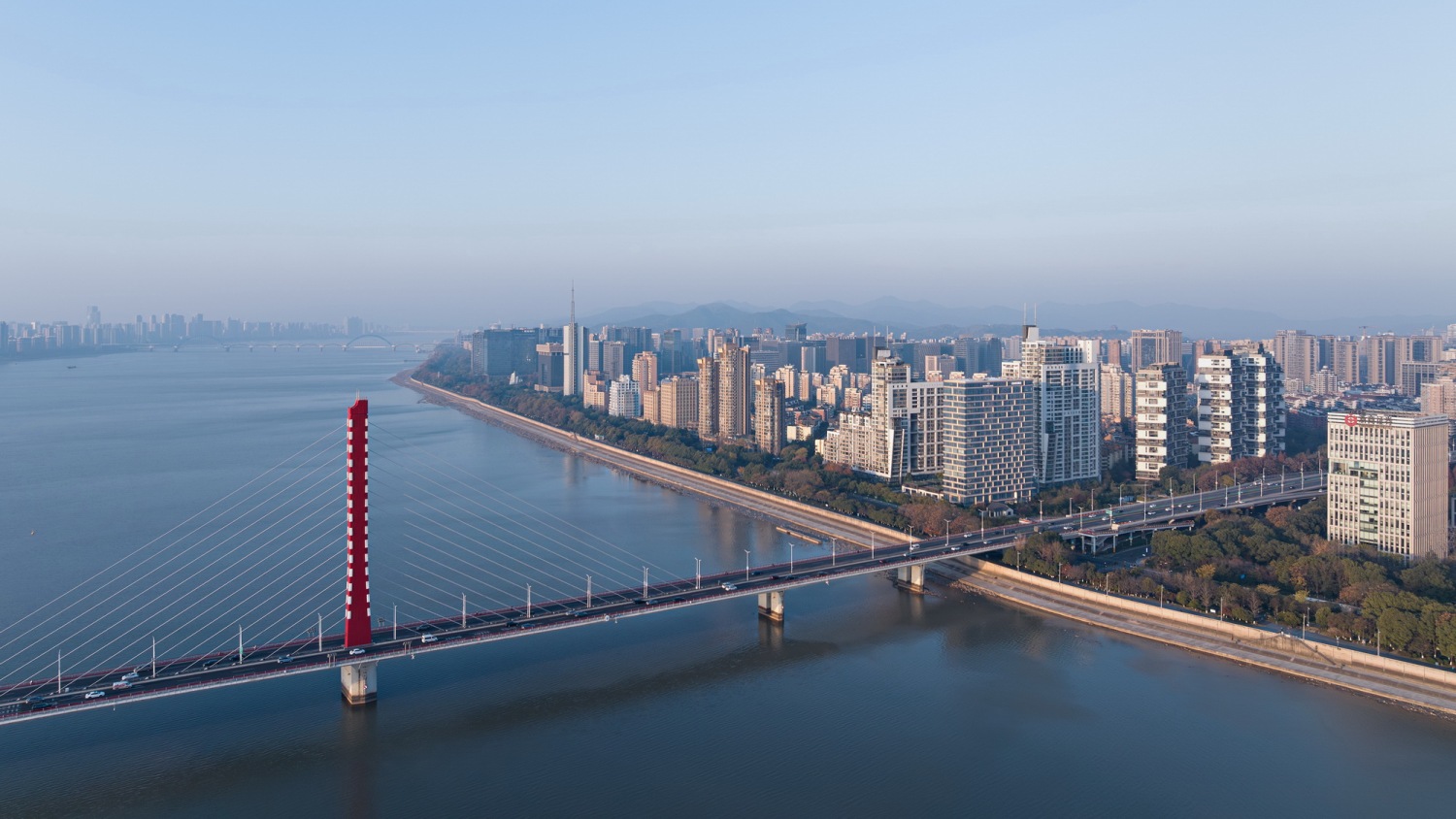

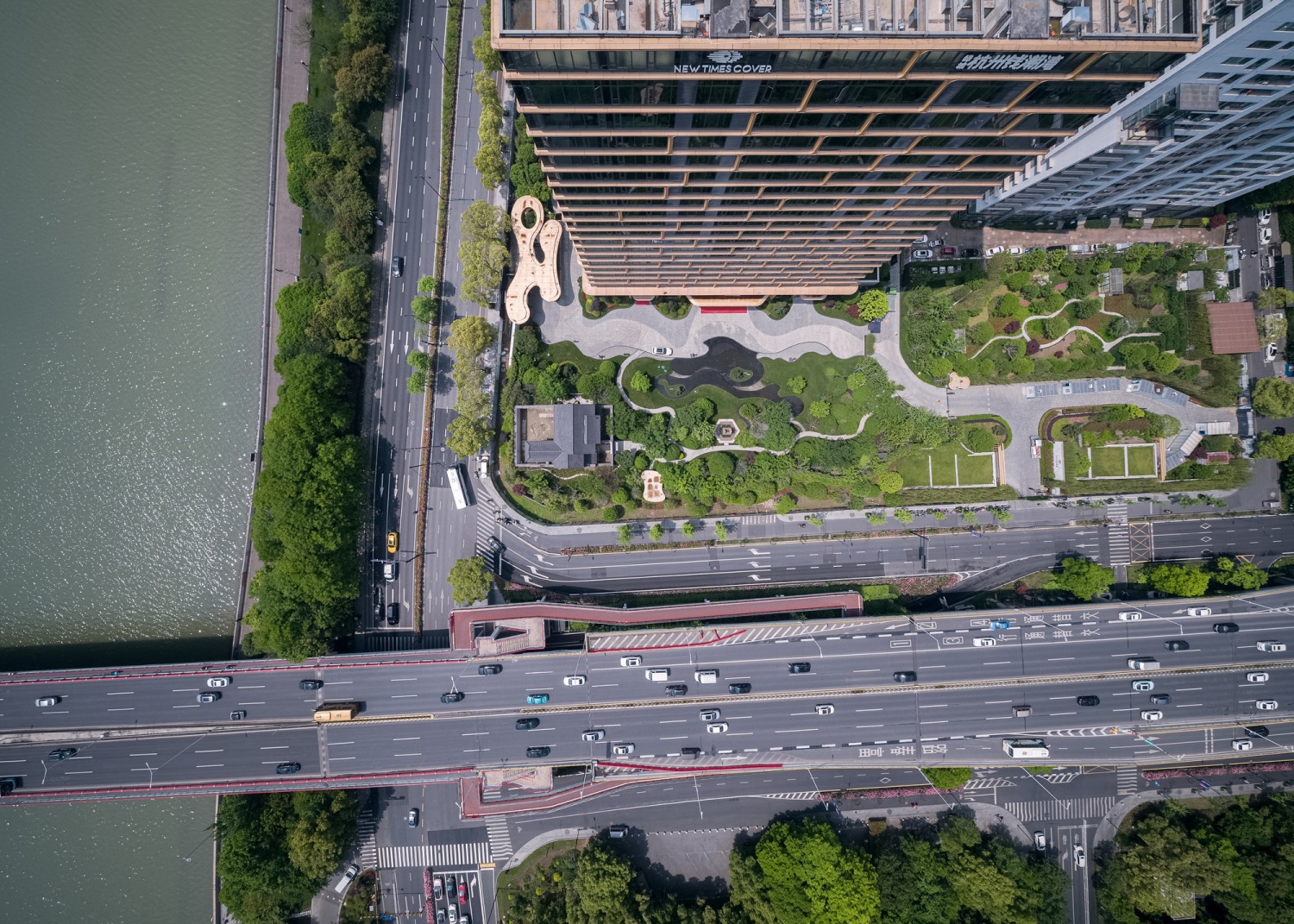

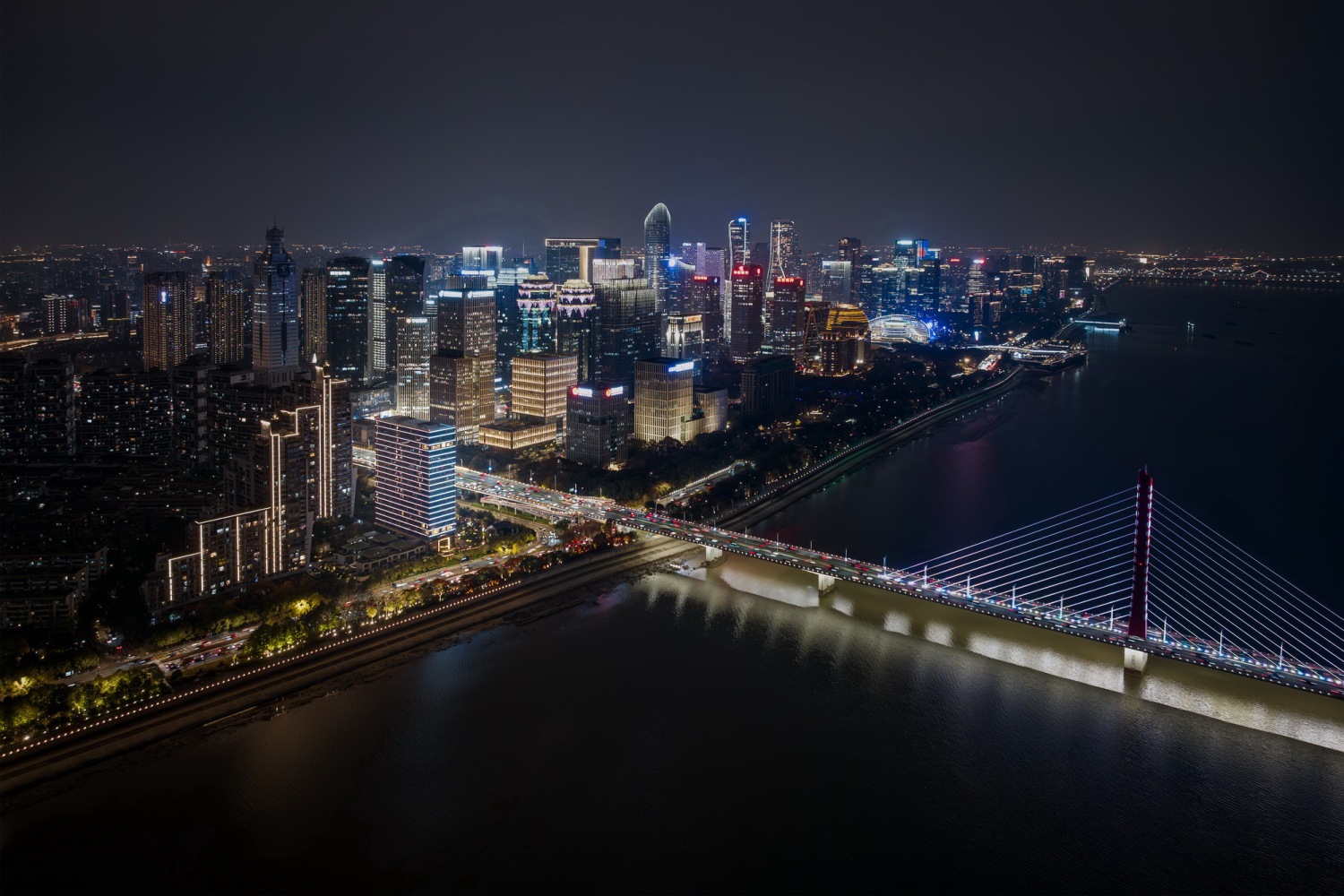

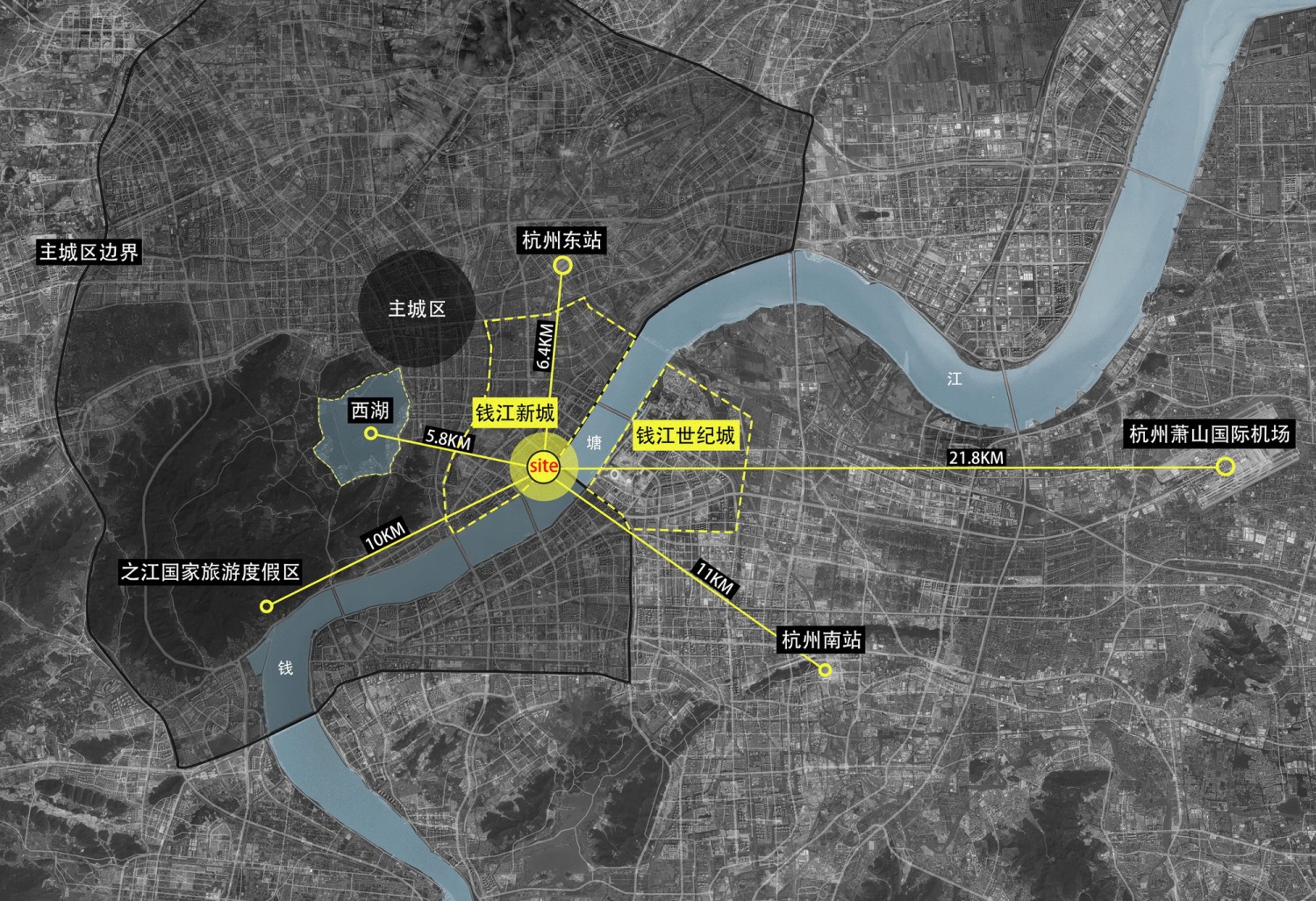

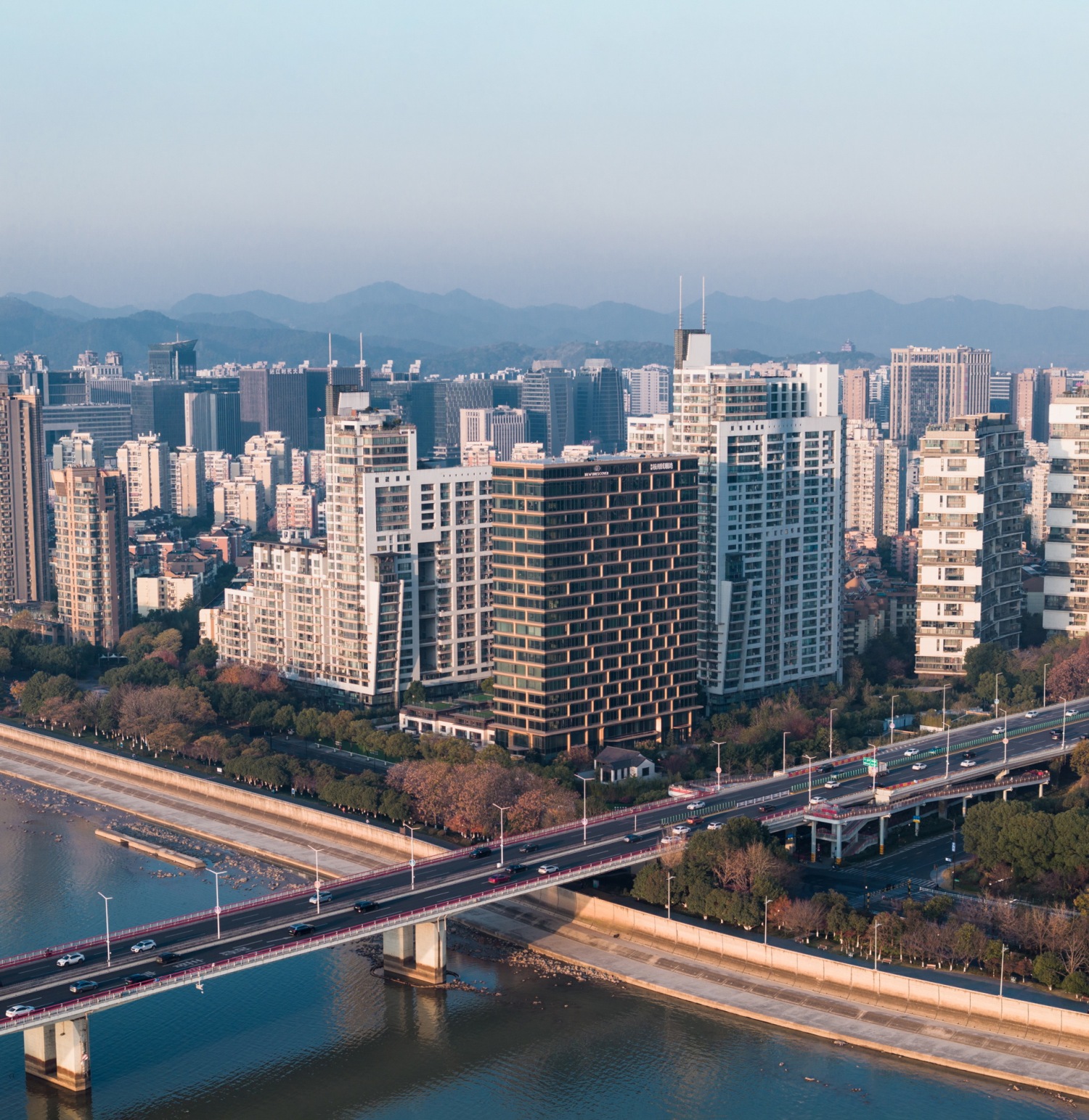

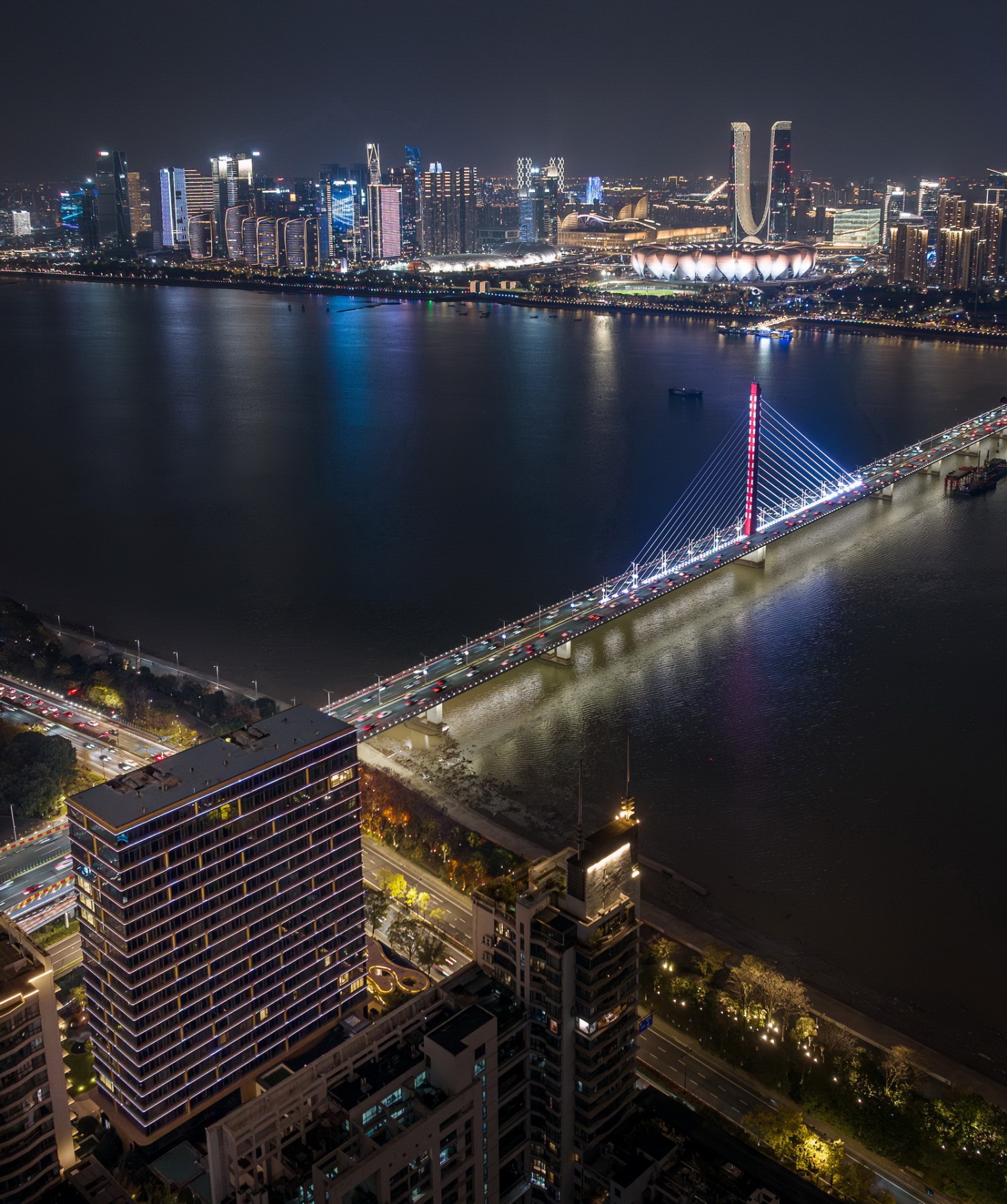

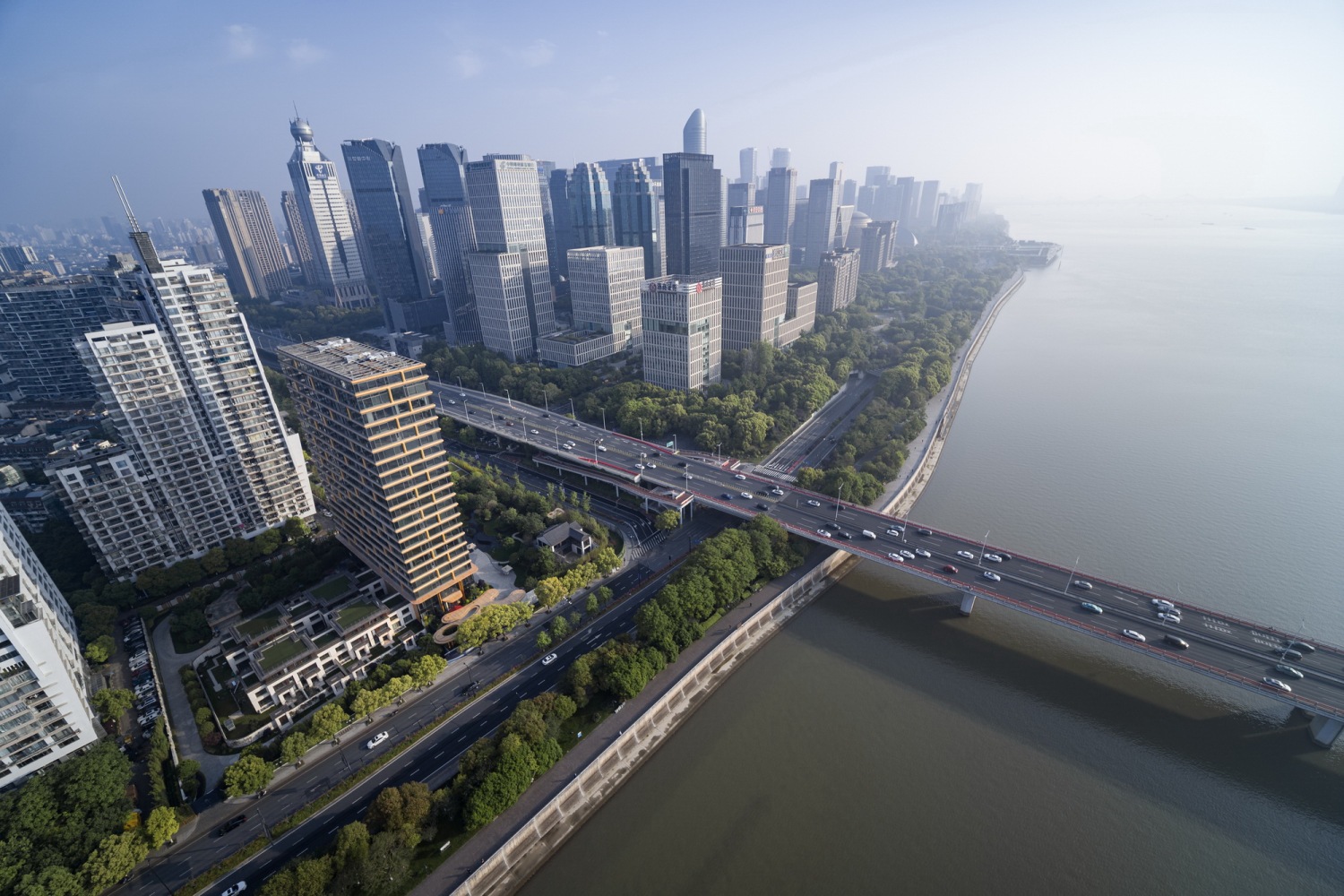

在杭州从“西湖时代”迈入“拥江3.0时代”的转折点上,绿城·杭州钱潮湾,伫立于钱江三桥桥头,紧邻钱江新城CBD核心区域,成为这座城市主城核心区江岸线上的最后拼图,定义了城市滨水界面的另一种可能。
At the turning point where Hangzhou shifts from its “West Lake Era” to the “Embrace-the-River 3.0” phase, Greentown New Times Cover anchors the foot of the Qianjiang Third Bridge, directly adjoining the CBD core of Qianjiang New Town. As the final puzzle piece along the city’s primary riverfront axis, the project doesn’t simply complete the edge—it redefines what this interface can become.

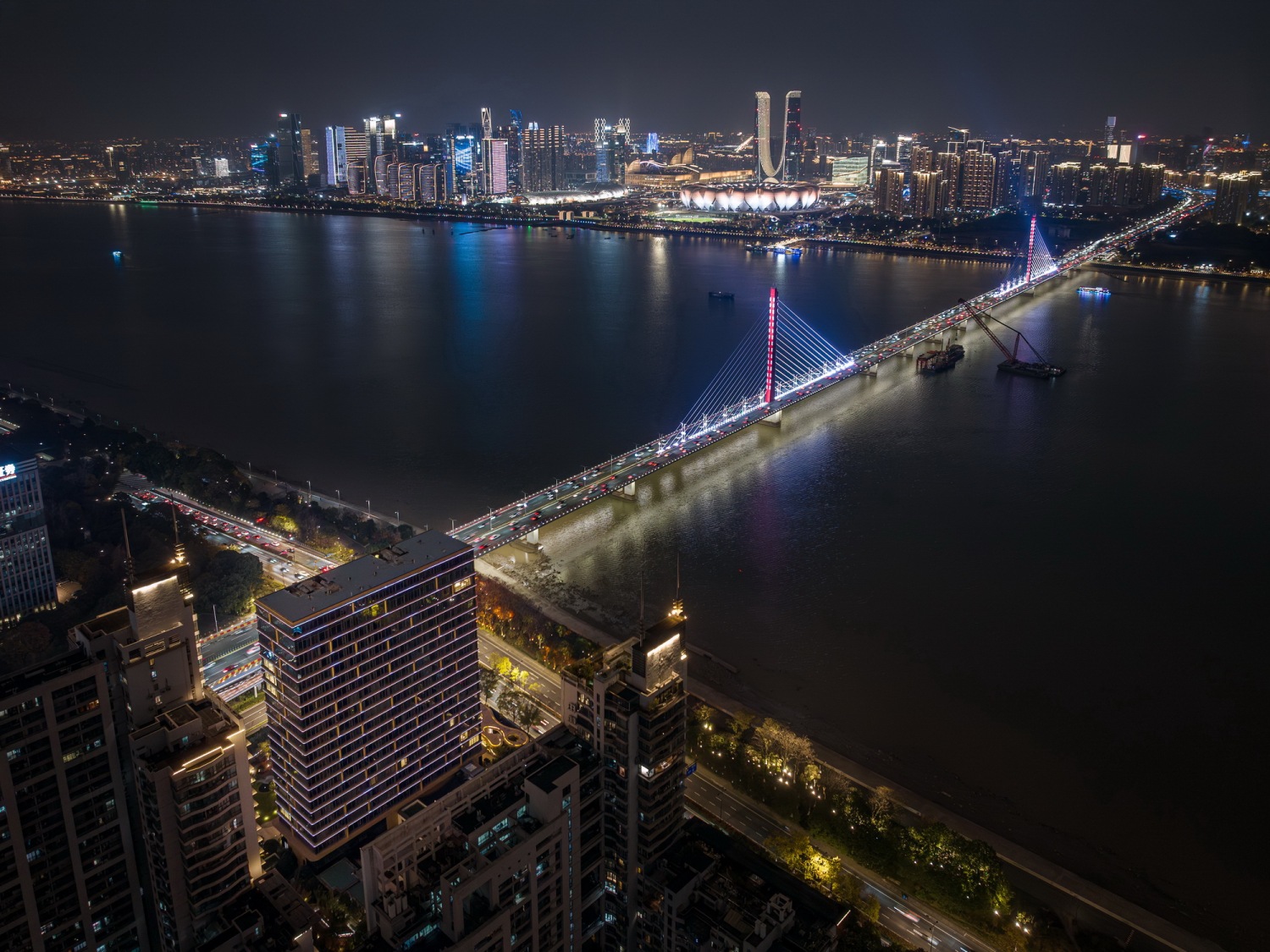

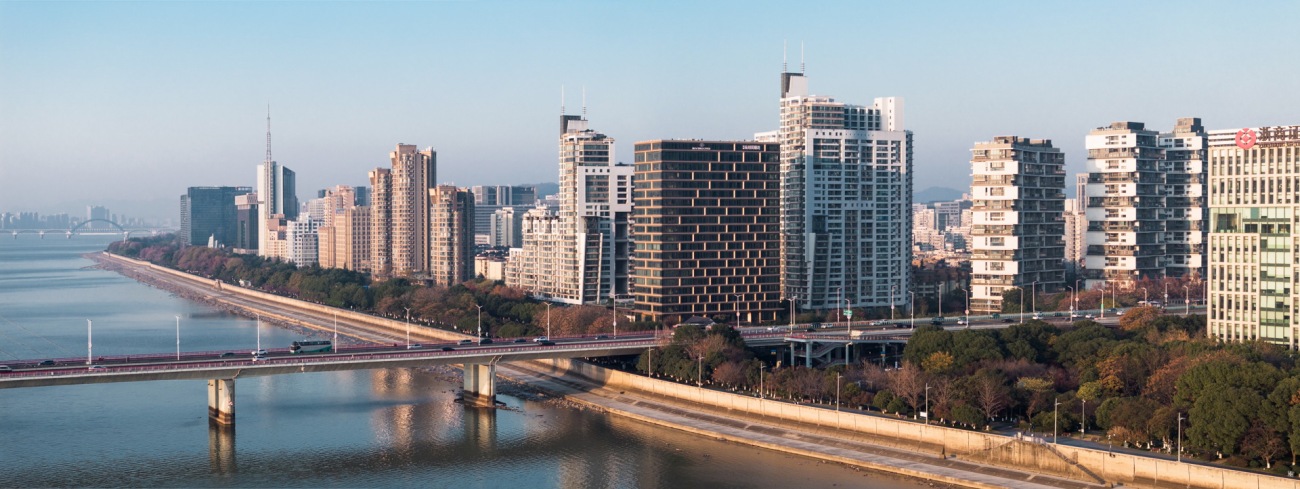

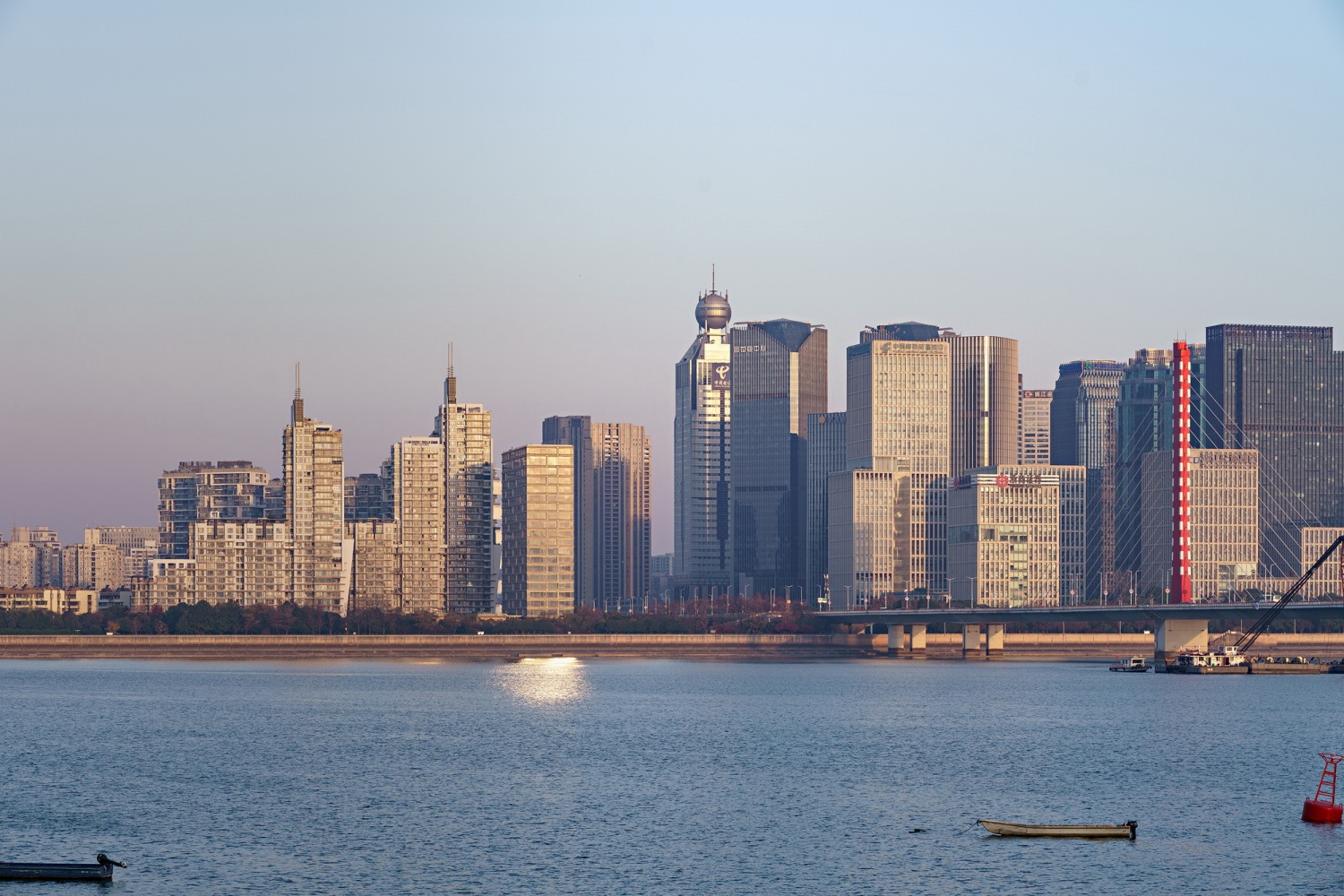

这片城市滨水界面,如同伦敦的泰晤士河畔、纽约的哈德逊河边,天然稀缺且自带地标属性。正是在这样一块“嵌入式”的黄金地段,line+联合创始人、主持建筑师孟凡浩受业主委托主持设计绿城·杭州钱潮湾,以建筑营造赋能城市,以引领性的颜值标准定义城市封面,对话杭州的“亚运会、大都市、现代化”新时代。
Like the banks of the Thames in London or the Hudson in New York, Hangzhou’s riverfront is both inherently scarce and spatially iconic. It is on such an embedded, high-stakes site that line+ co-founder and principal architect Meng Fanhao was invited to design Greentown New Times Cover—not merely as a building, but as a new face for the city. Through architecture, the project engages directly with Hangzhou’s shift into an era shaped by the Asian Games, metropolitan ambition, and urban modernization.
PART 01
从商办到大平层,
弹性更新的“新样本”
项目最初定位是写字楼,后续业主希望将其更新成兼具城市界面形象与顶级居住体验的大平层产品。从写字楼到顶豪大平层的转换,不仅是功能上的更新,更是对城市滨水界面、地标价值与居住体验的深度重构。
Originally envisioned as a commercial tower, the project was later reprogrammed into a high-end residential development of large-scale apartments that merge landmark presence with elevated living. This typological shift marked not only a change in function but also a deeper recalibration of the urban waterfront—its public interface, symbolic weight, and capacity for domestic intimacy.

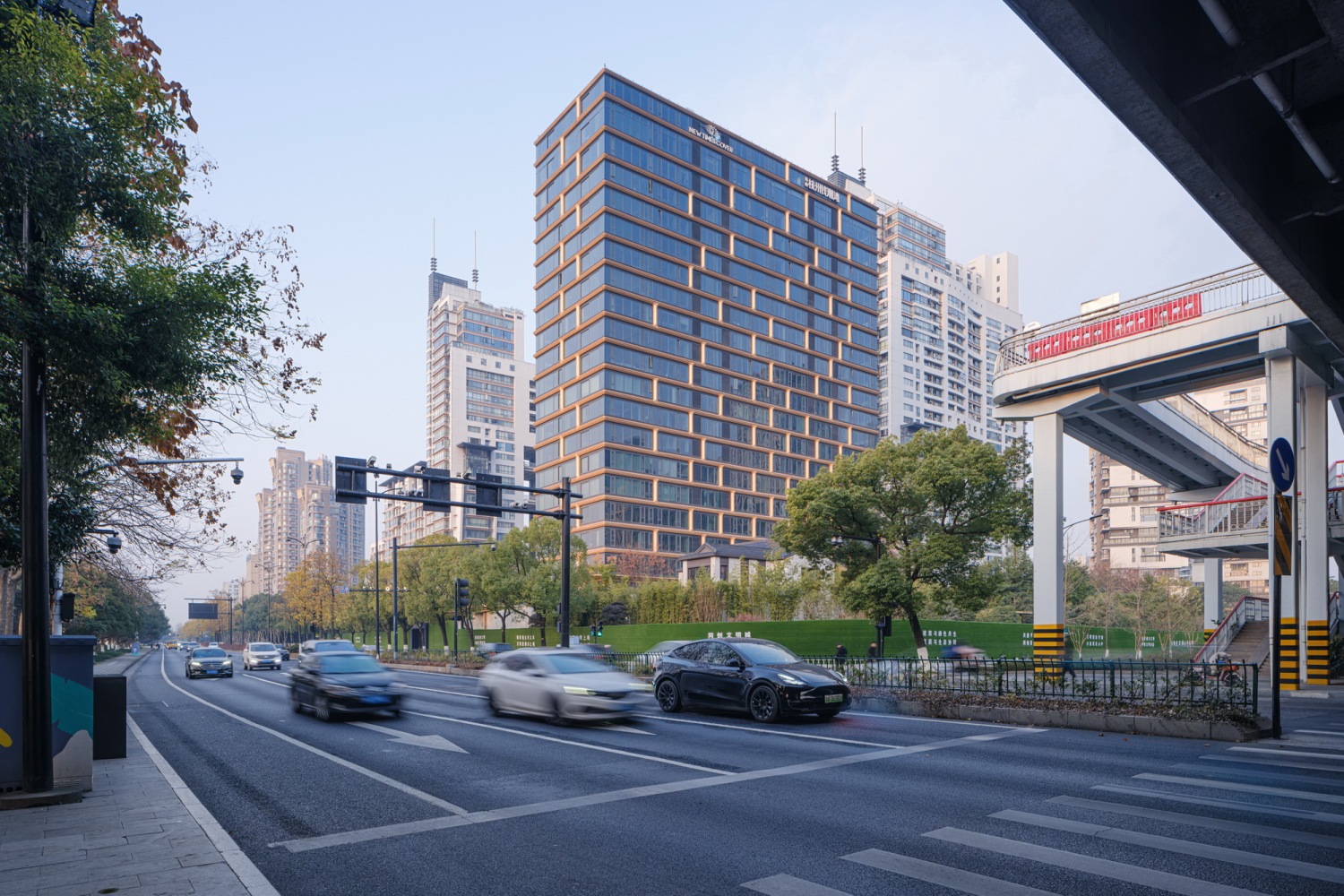

line+在设计中大胆突破传统住宅逻辑,转化国际都市中的高端住宅模型:独栋塔楼结构 × 公建化立面 × 高区景观视野最大化。最终呈现的,是一栋融汇建筑美学、居住体验与城市地标属性的当代城市观景台。
line+ responded with a design that transcends conventional residential logic, adopting a hybrid model drawn from global metropolitan typologies: a freestanding tower, a civic-scale façade, and panoramic views from upper levels. The resulting form is a contemporary observatory of the city—where architectural presence, residential quality, and urban symbolism converge.
PART 02
源于潮涌,立于江岸,构建“流动的立面”

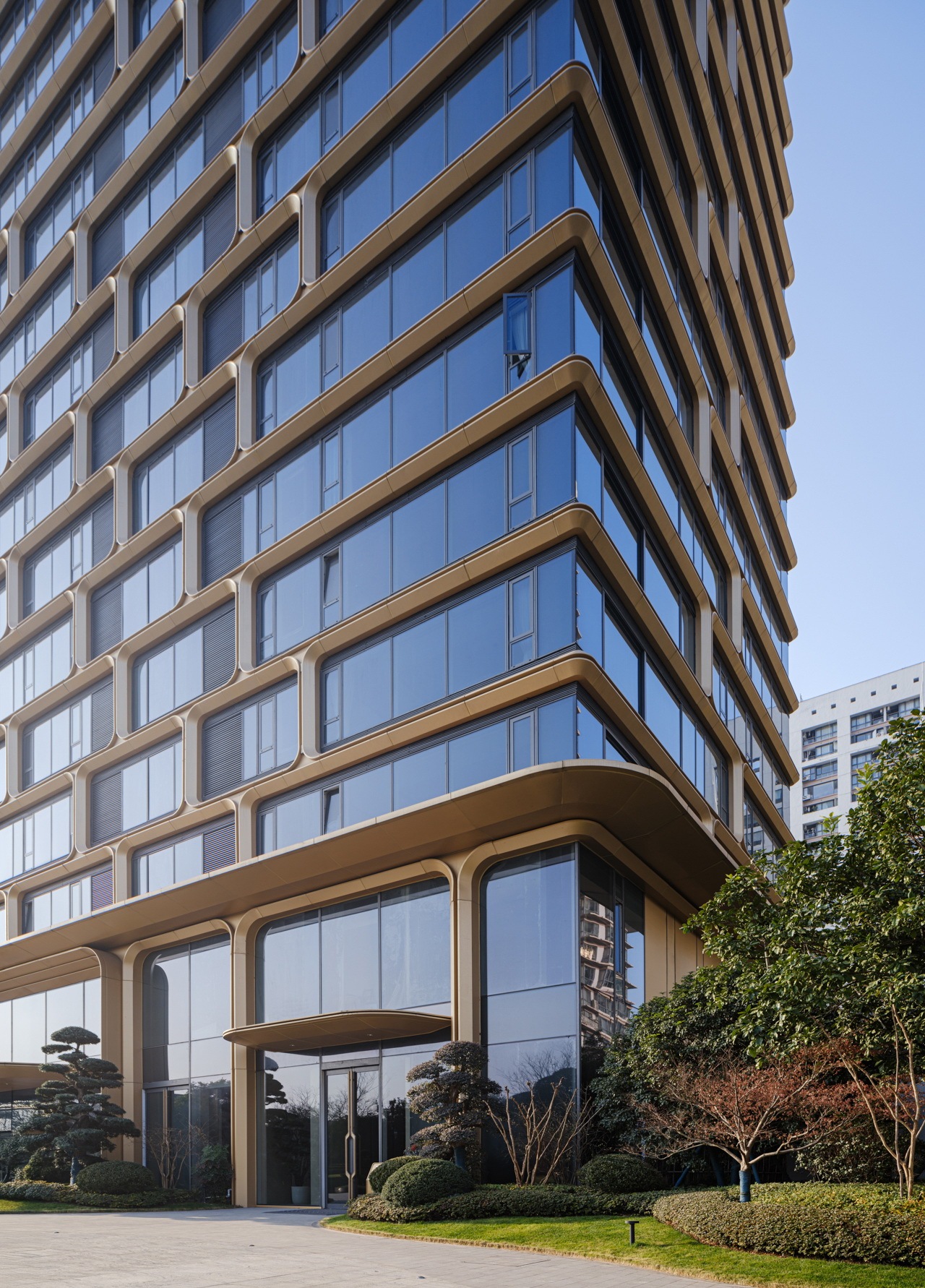

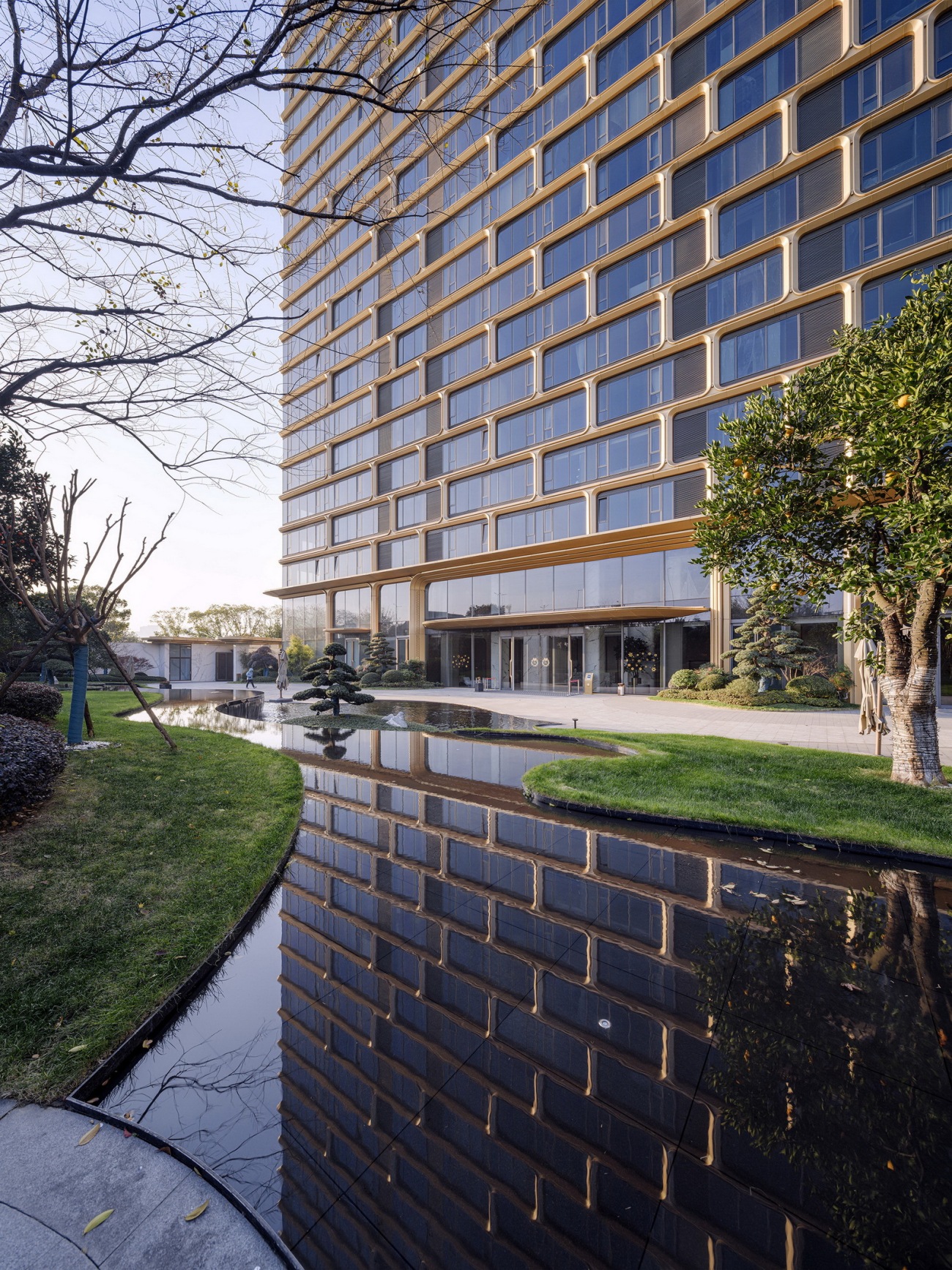

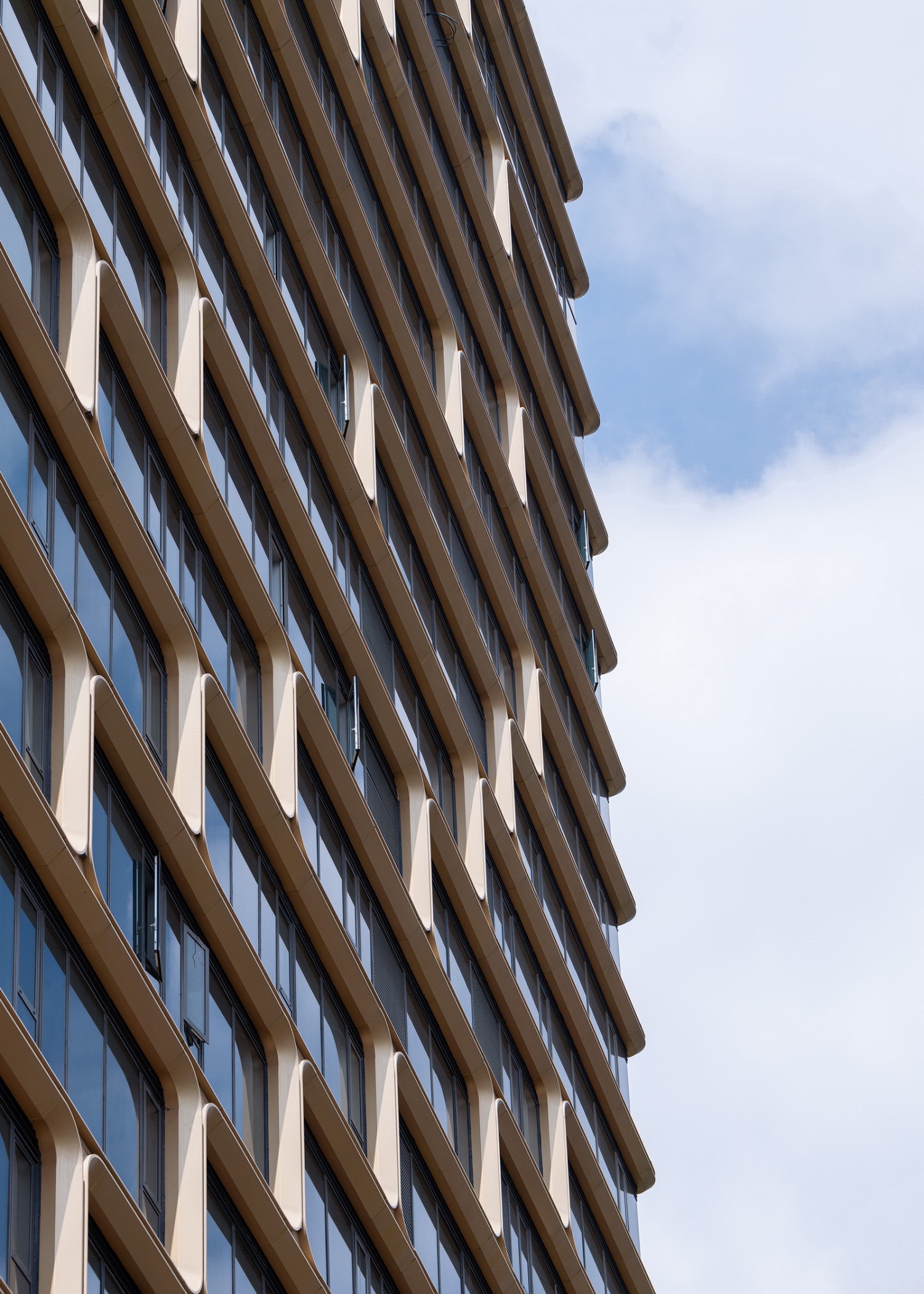

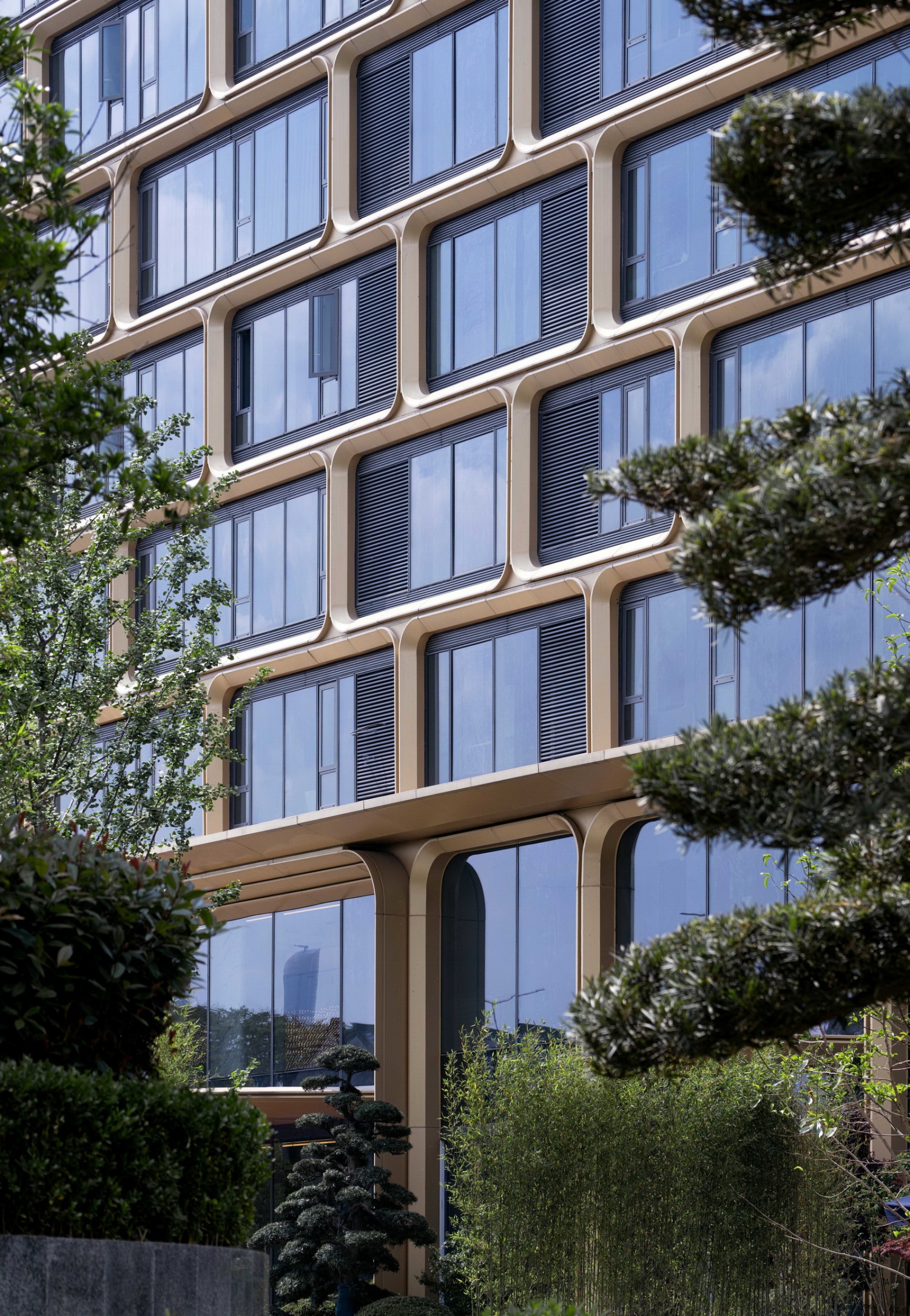

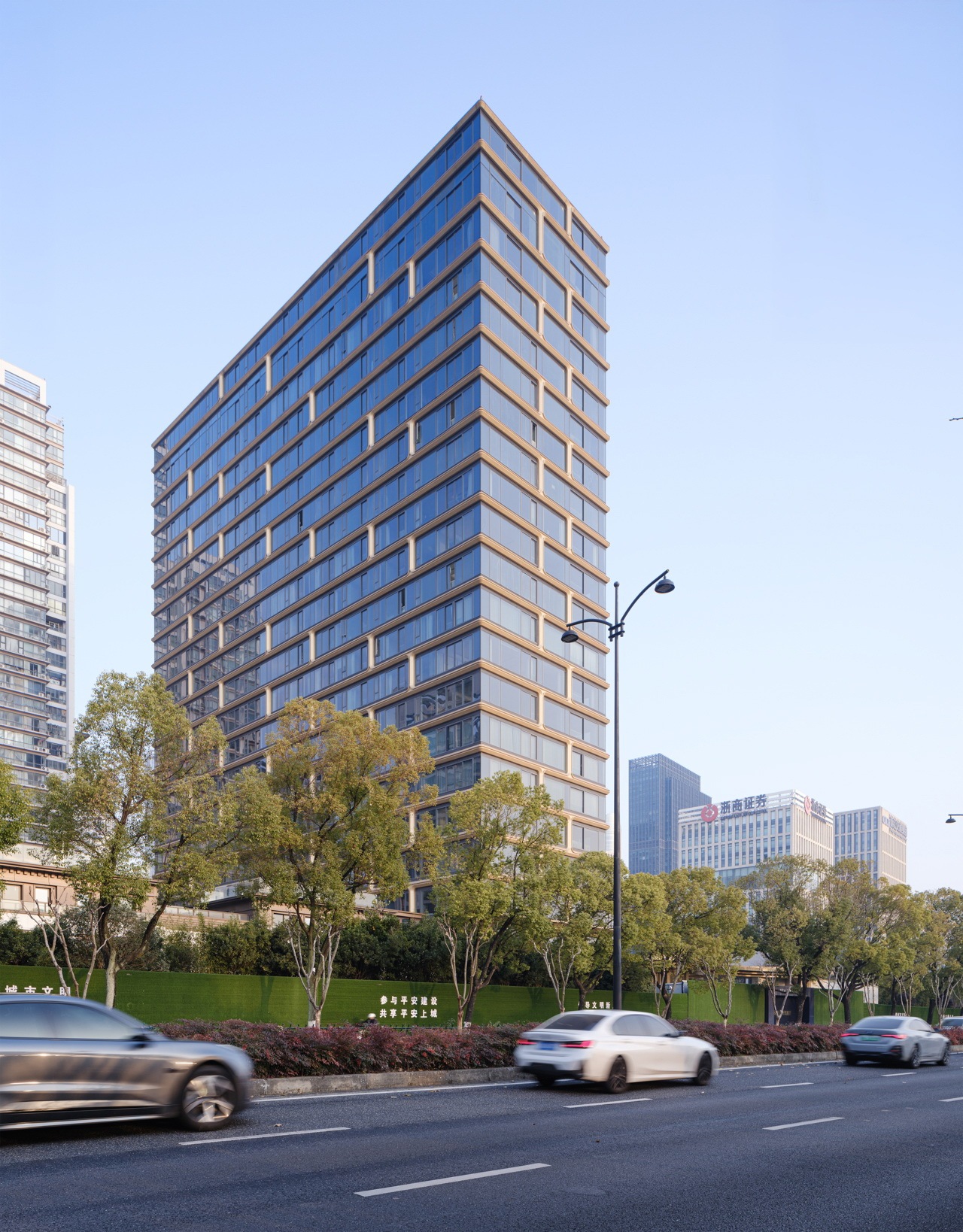

以“潮涌”为意象,立面设计提取钱塘江水的流动节奏,抽象为层层律动的香槟金色曲面铝板与大面玻璃系统交织的建筑语言。
Evoking the tidal pulse of the Qiantang River, the façade distills its fluid rhythms into an expressive architectural composition—layered champagne-gold curves in aluminum flowing seamlessly alongside sweeping panes of glass.

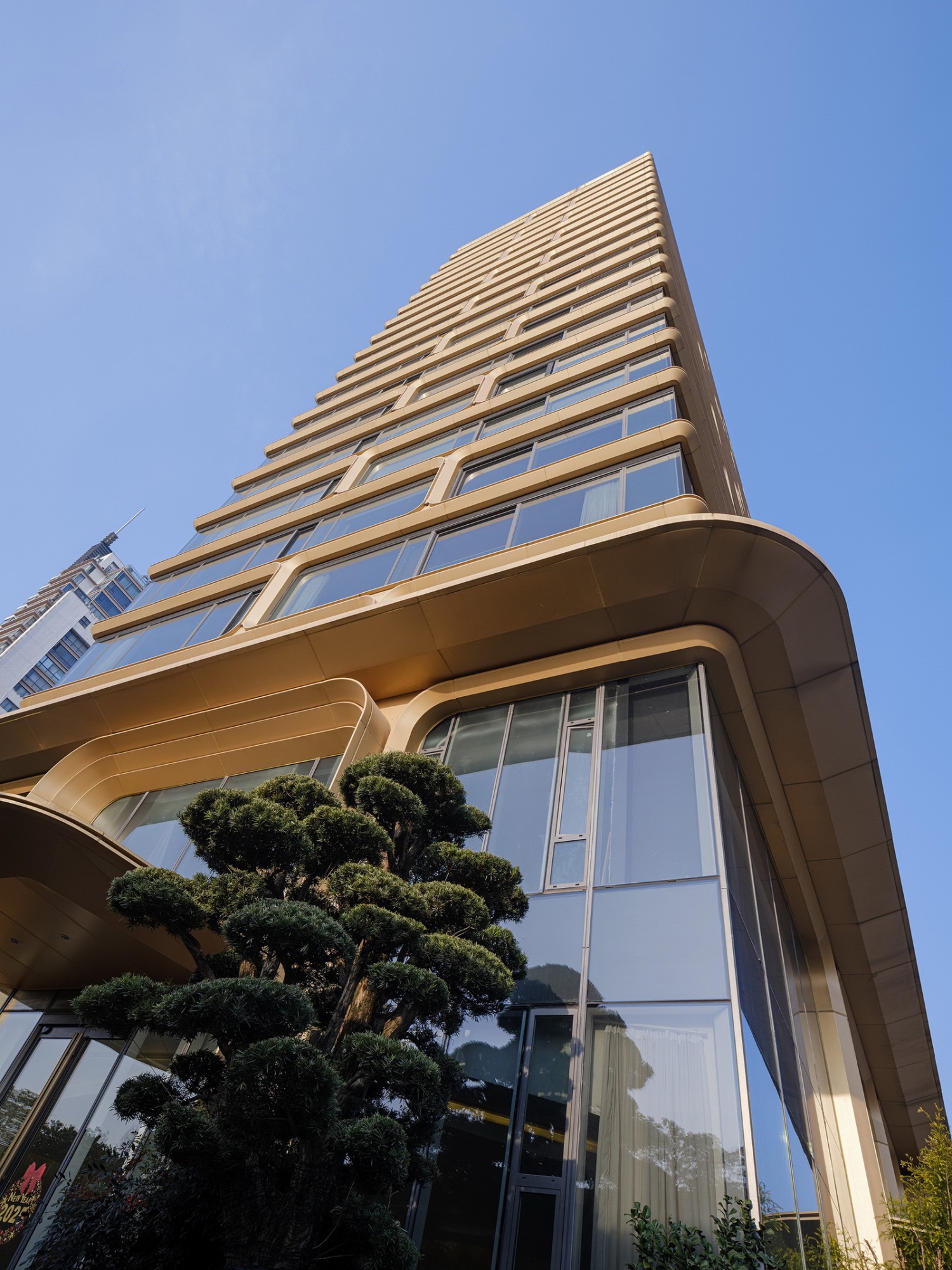

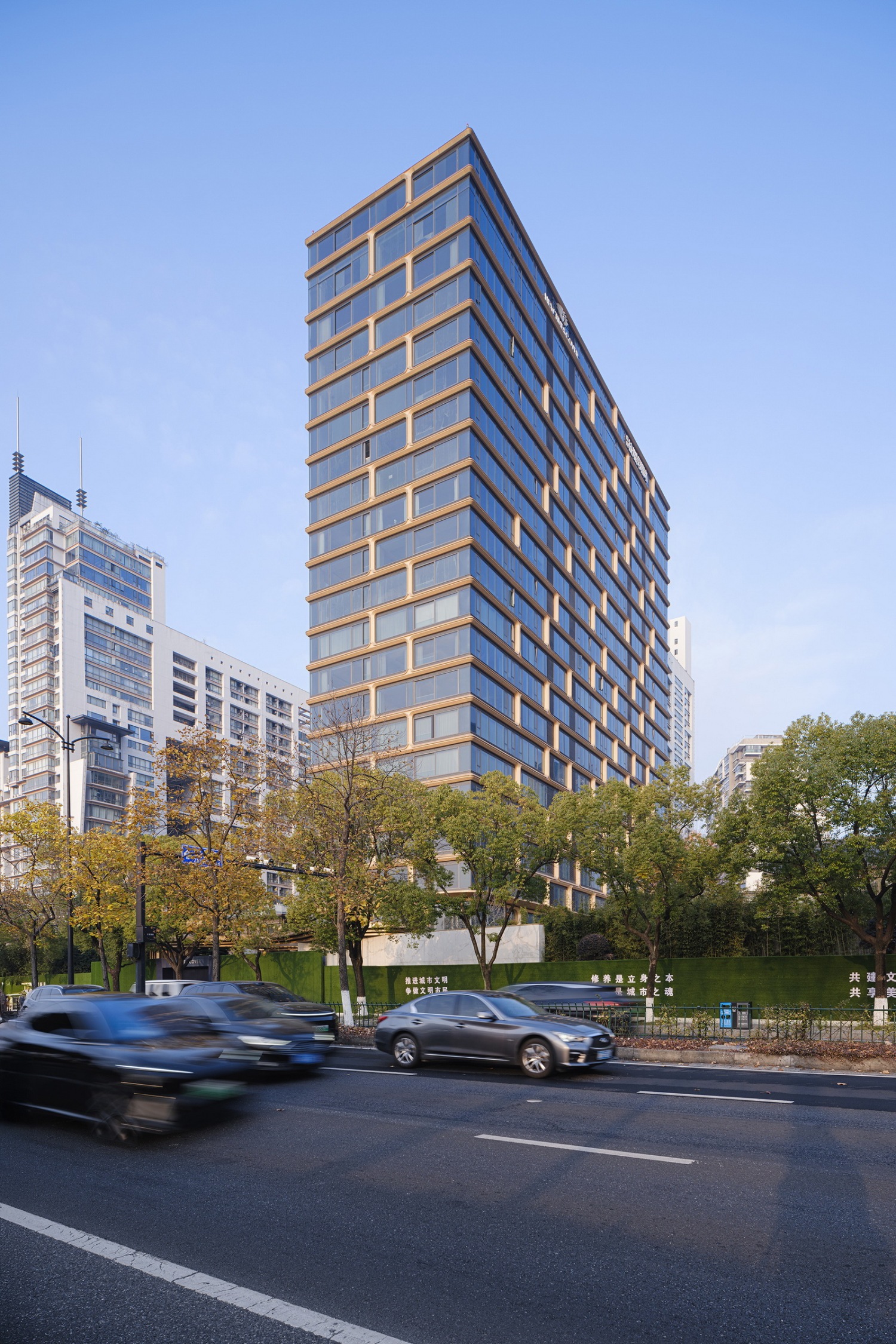

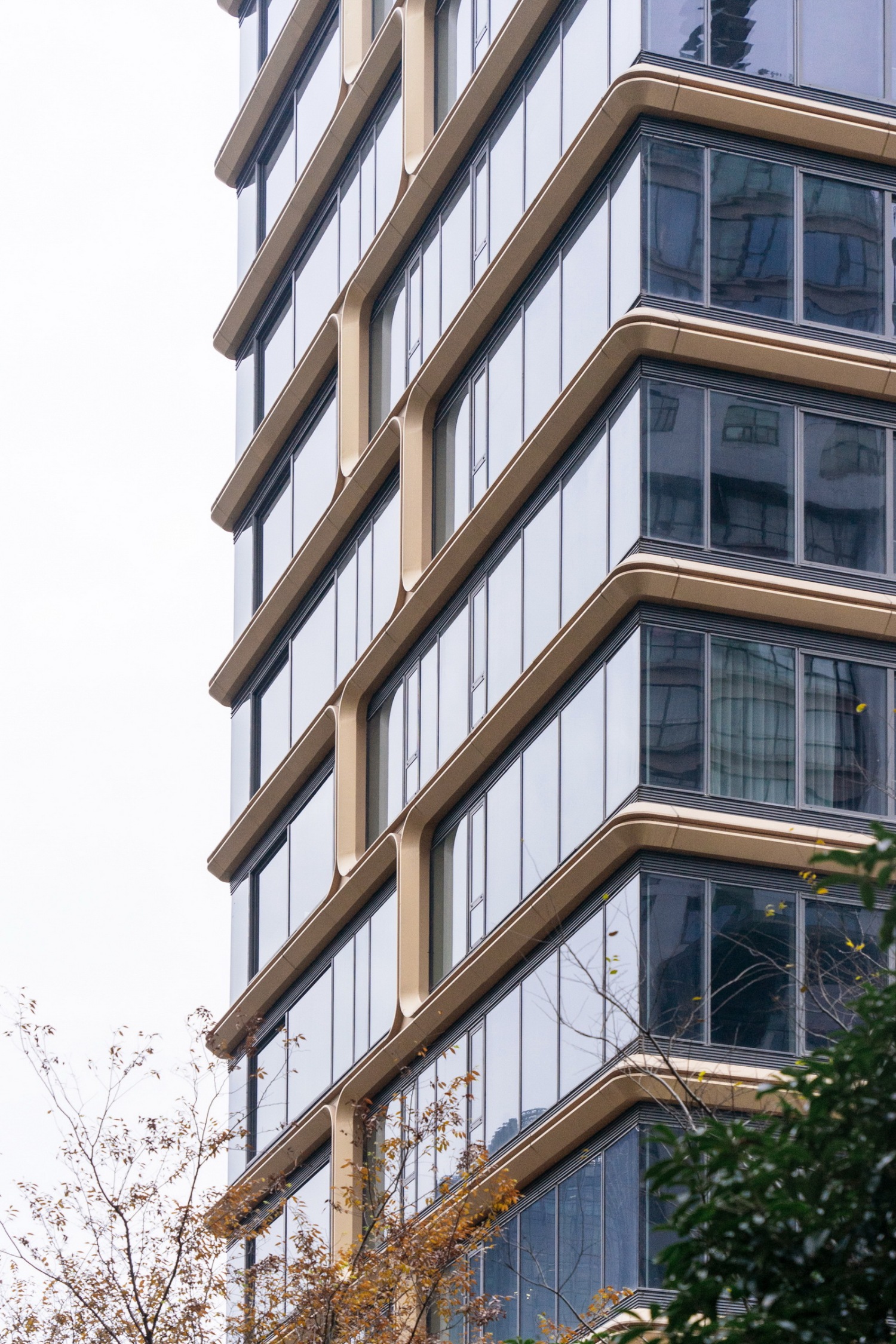

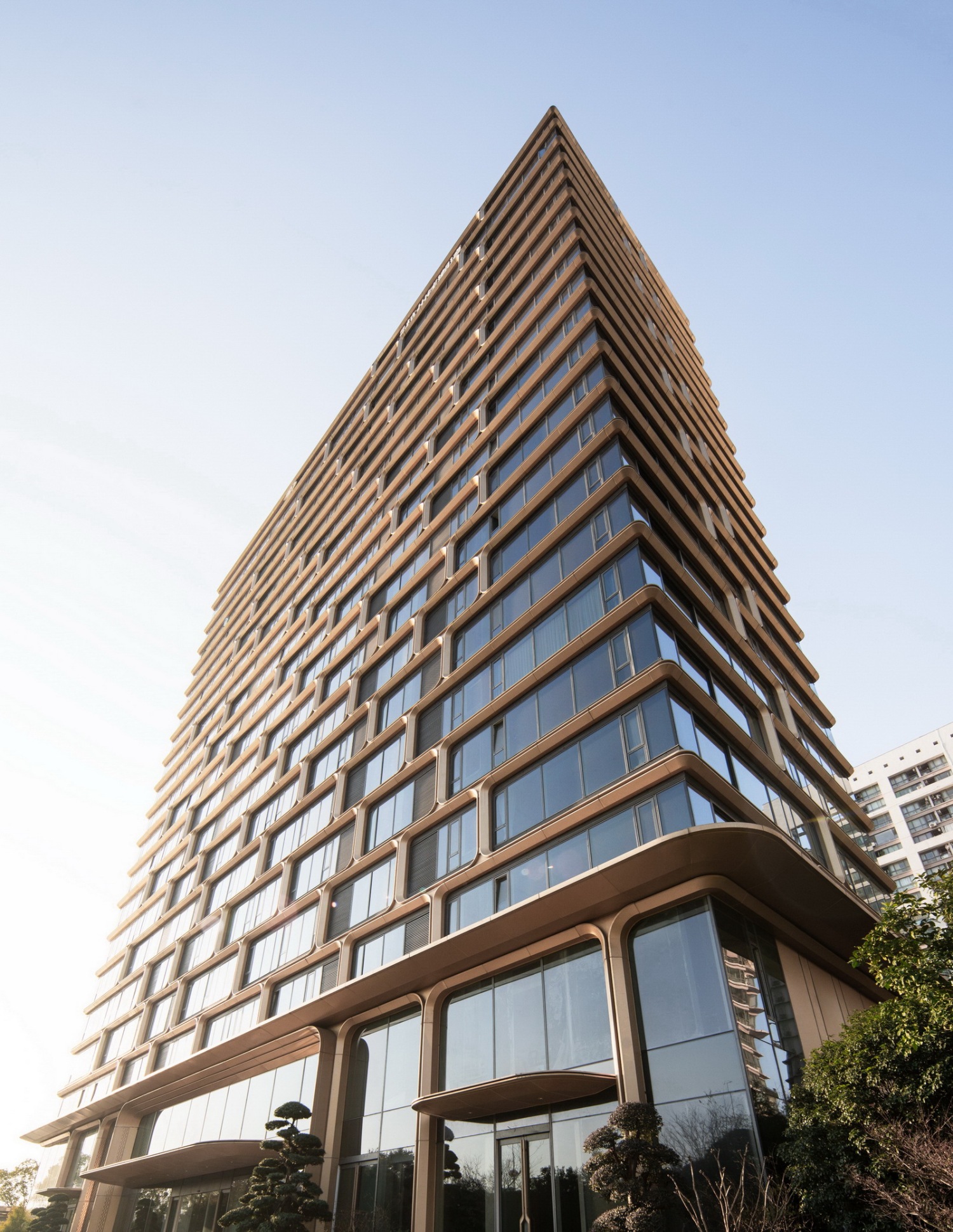

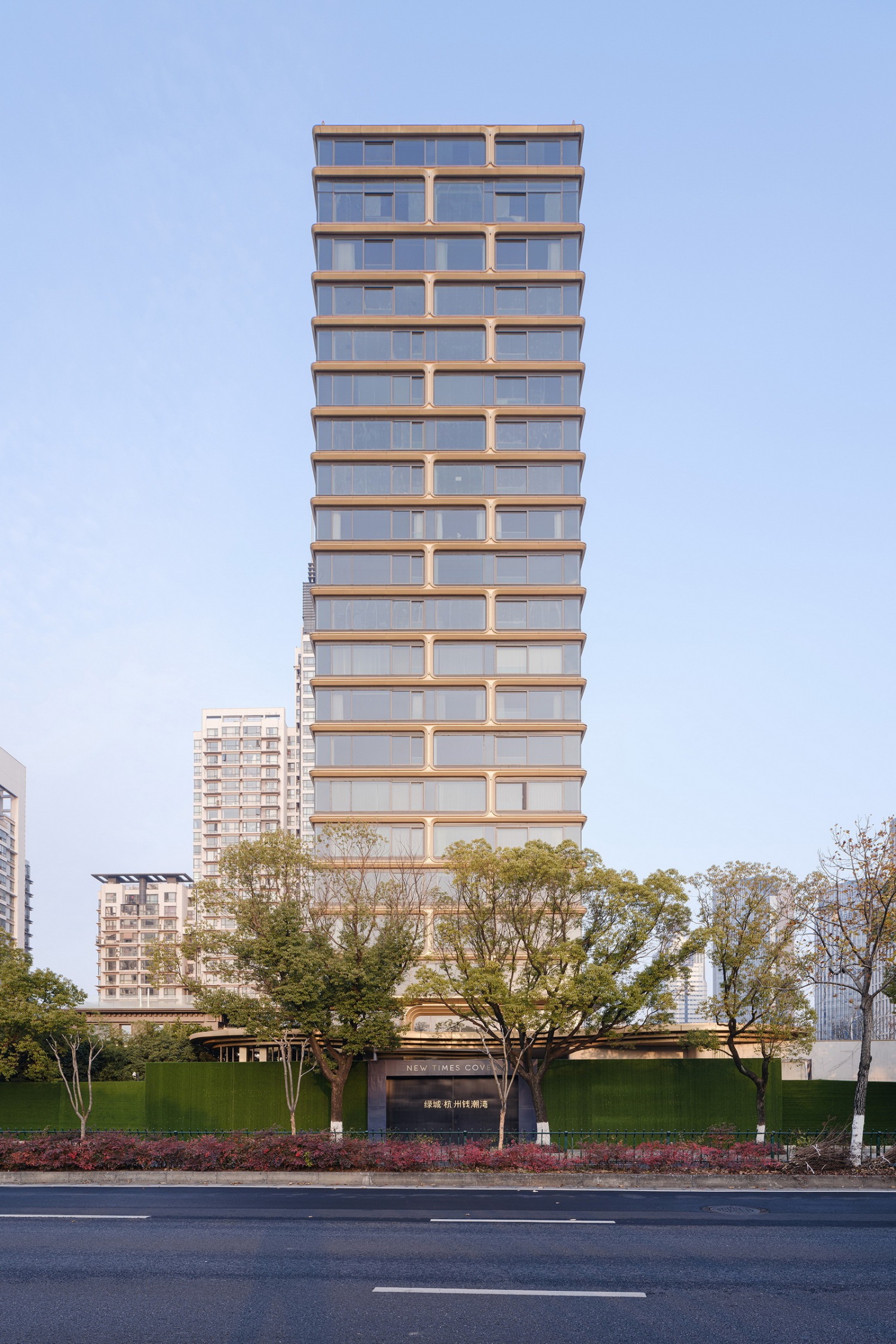

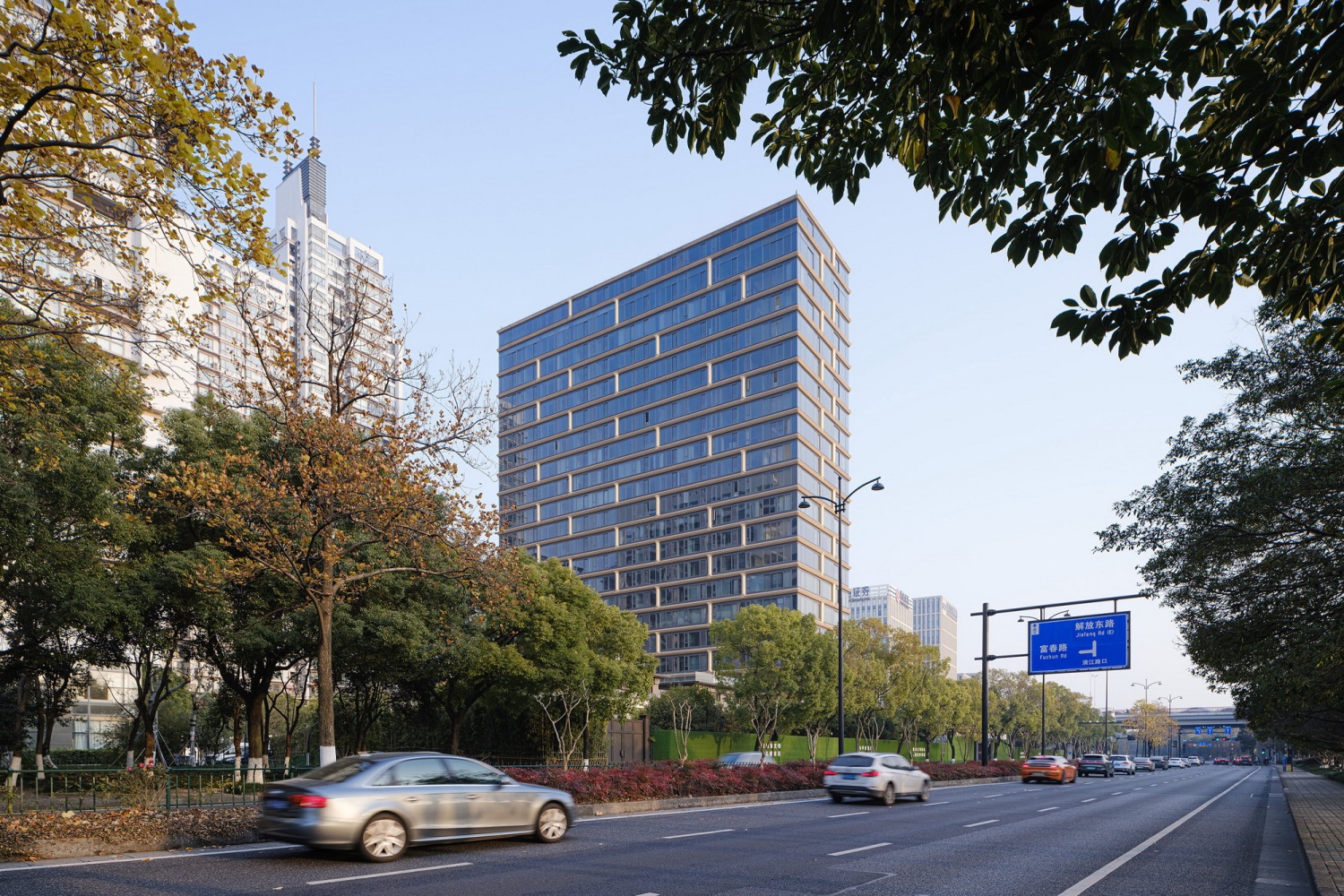

竖向线条密度自下而上逐渐疏朗,下段收束密实,高区则逐步疏朗,对应基座稳重与高区通透。每一道曲面、每一条竖线都与户型功能和观景方向一一对应,形成如潮水般层层推进的动态界面。
The façade tightens at the base and loosens as it climbs—vertical lines pressed close together below, then gradually spaced apart above—echoing the grounded heft of the podium and the clarity of the sky-facing crown. This structural cadence is not ornamental: every curve, every upright, is keyed precisely to the spatial program and viewing axis within, composing a kinetic elevation that advances in tidal increments, as if the river itself were pushing the building upward in rhythmic surges.
PART 03
细节极致,打造杭州
“颜值标杆”
在材质与节点的深化上,line+不吝啬对细节的打磨。线条交接处采用预制无缝弯弧的精细化处理,所有外立面细部,均通过工厂预制与现场拼接配合,精度可达毫米级。
line+ approached material articulation with rigorous precision. Junctions between lines were resolved through seamless prefabricated curves, ensuring continuity across the façade. Every component was fabricated off-site and assembled on-site to exacting tolerances—down to the millimeter—so that no detail felt incidental, and no line broke rhythm.
外墙样板、构造节点及材料色彩的选样持续长达将近一年的时间,现场实体挂样更是高达十余次之多,通过对比不同颜色、不同尺寸在各个时间、各种天气的视觉效果,甄选最佳。
Over the course of nearly a year, the team returned again and again to the site—testing over a dozen full-scale façade mock-ups, each assessed in shifting light and changing weather. Subtle differences in tone and proportion were studied not in abstraction but in context, until the final palette emerged not as a decision, but as a resolution.

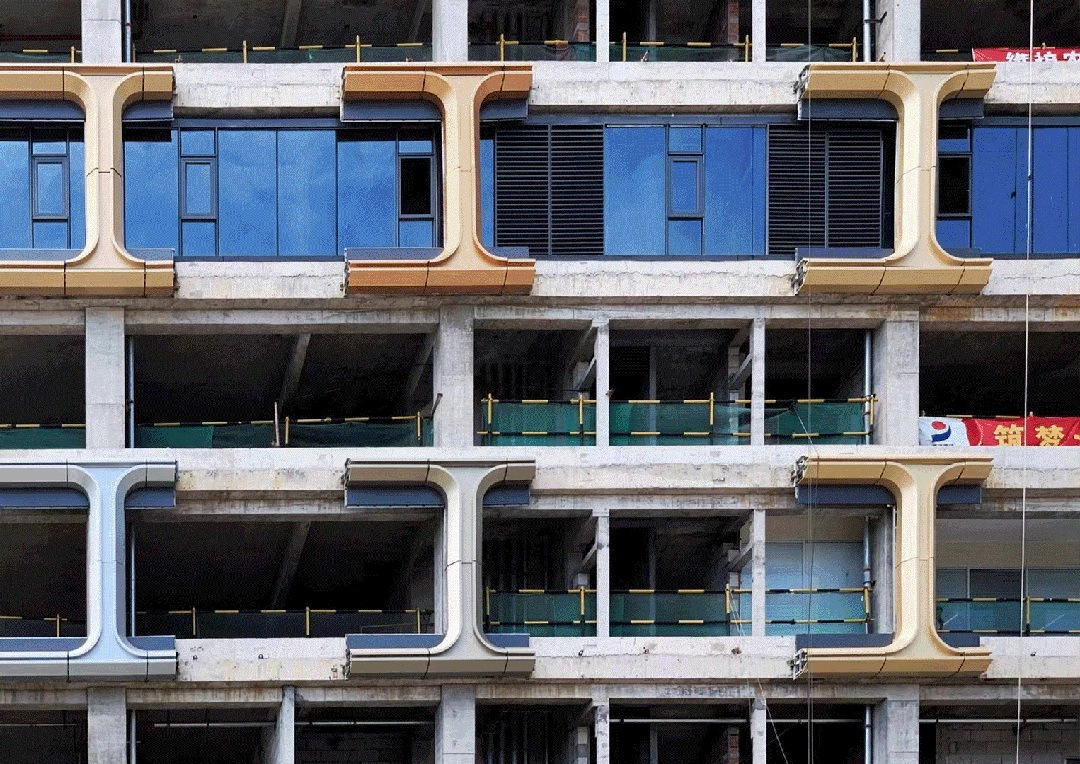

△ 现场实体挂样
△Full-scale on-site mock-up

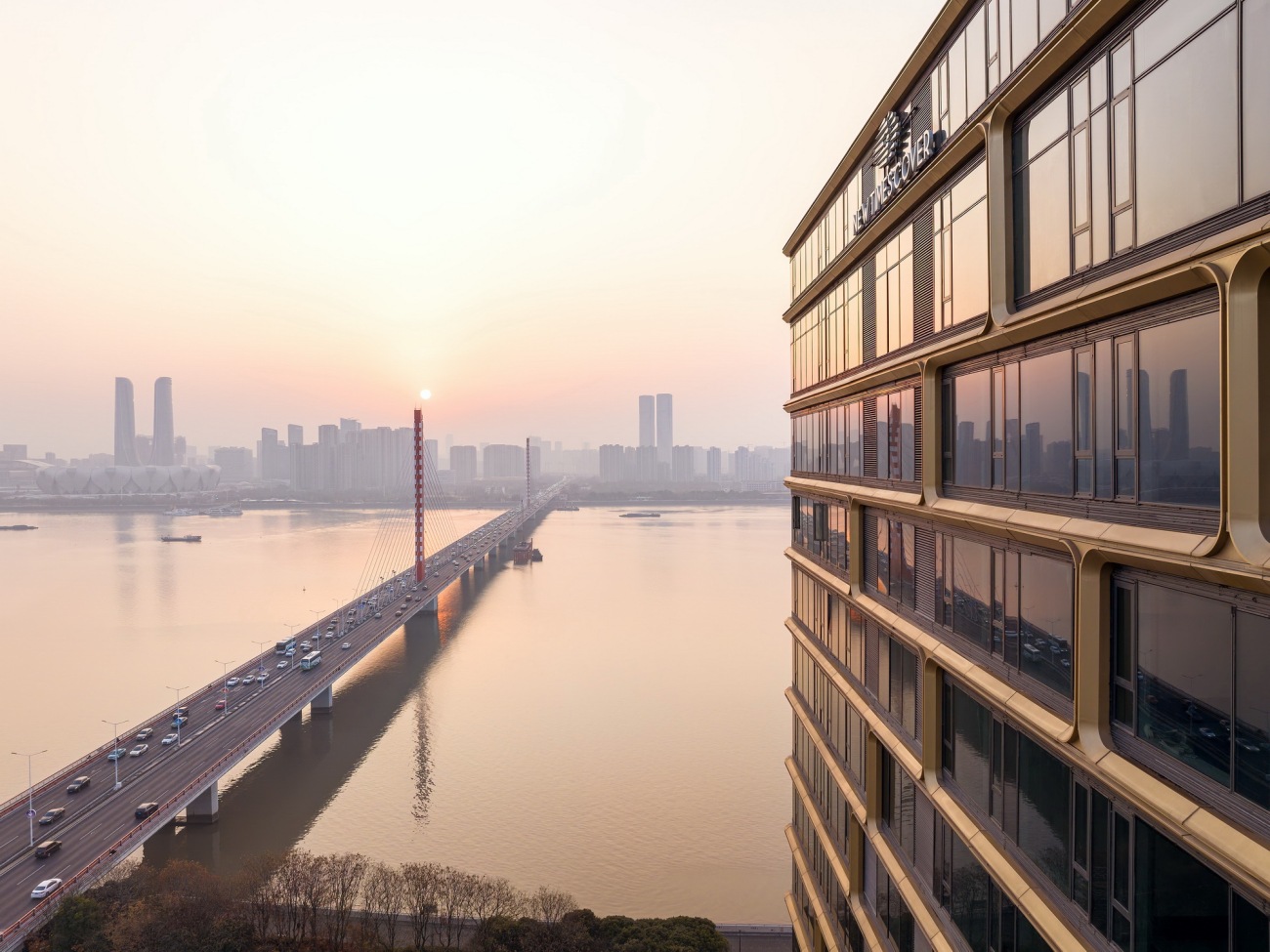

旭格定制的三层中空系统门窗,最宽可达3.6米,最大开启尺寸可达2.4米,俯视江景的同时又可隔绝嘈杂的环境,独享安静私人的居住空间。
Schuco’s bespoke triple-glazed system spans up to 3.6 meters wide, with openings as large as 2.4 meters—framing the river in full while sealing out the city’s noise. It creates a threshold where expansive views meet absolute quiet, allowing the residence to remain both open and inward.
可开合的阳台系统在保持立面完整性的同时,为住户提供灵活的270度江景观景舱。
A retractable balcony system is seamlessly embedded into the façade, preserving its clarity while unfolding into a 270-degree viewing chamber—an immersive threshold between interior life and the river beyond.

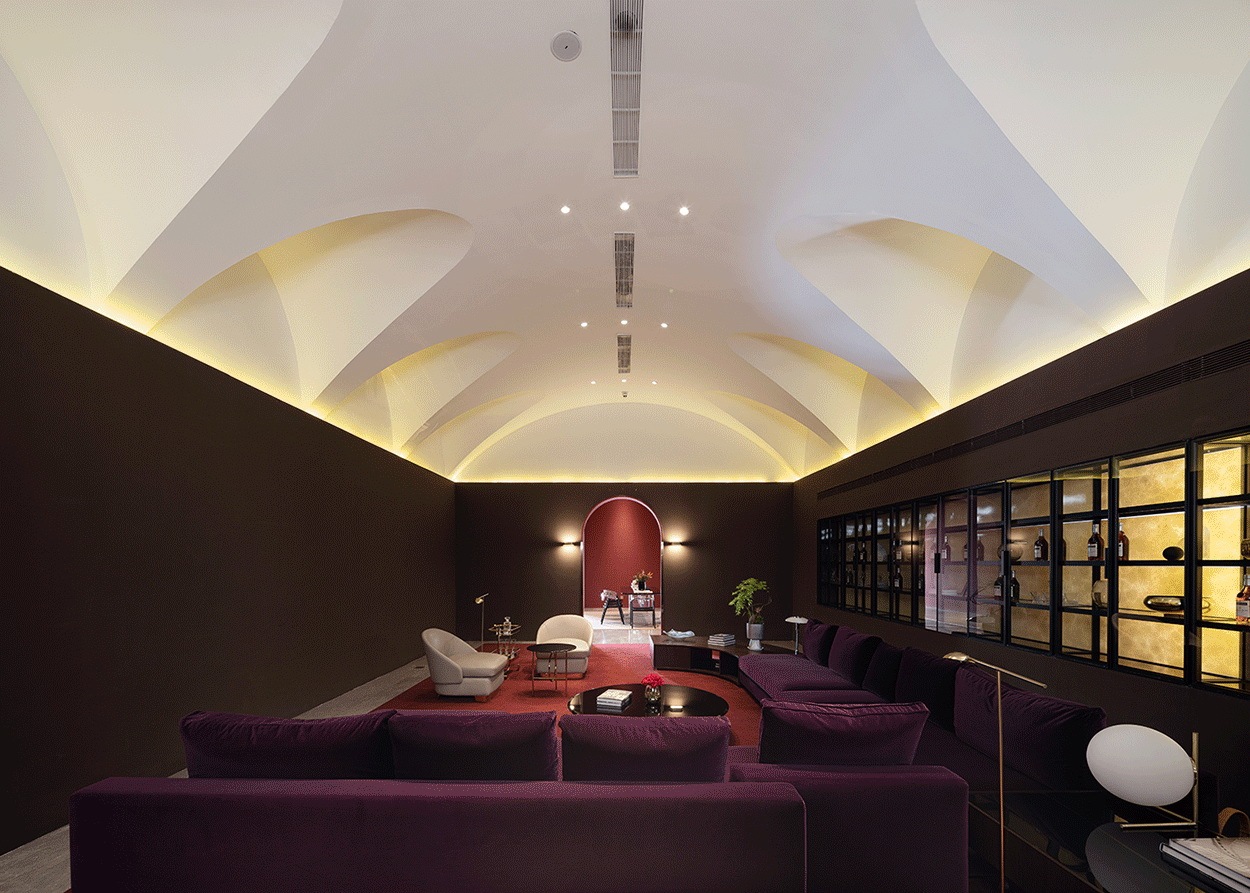

△ 室内空间
△ Interior space
PART 04
不只是居所,更是城市与时代的注脚

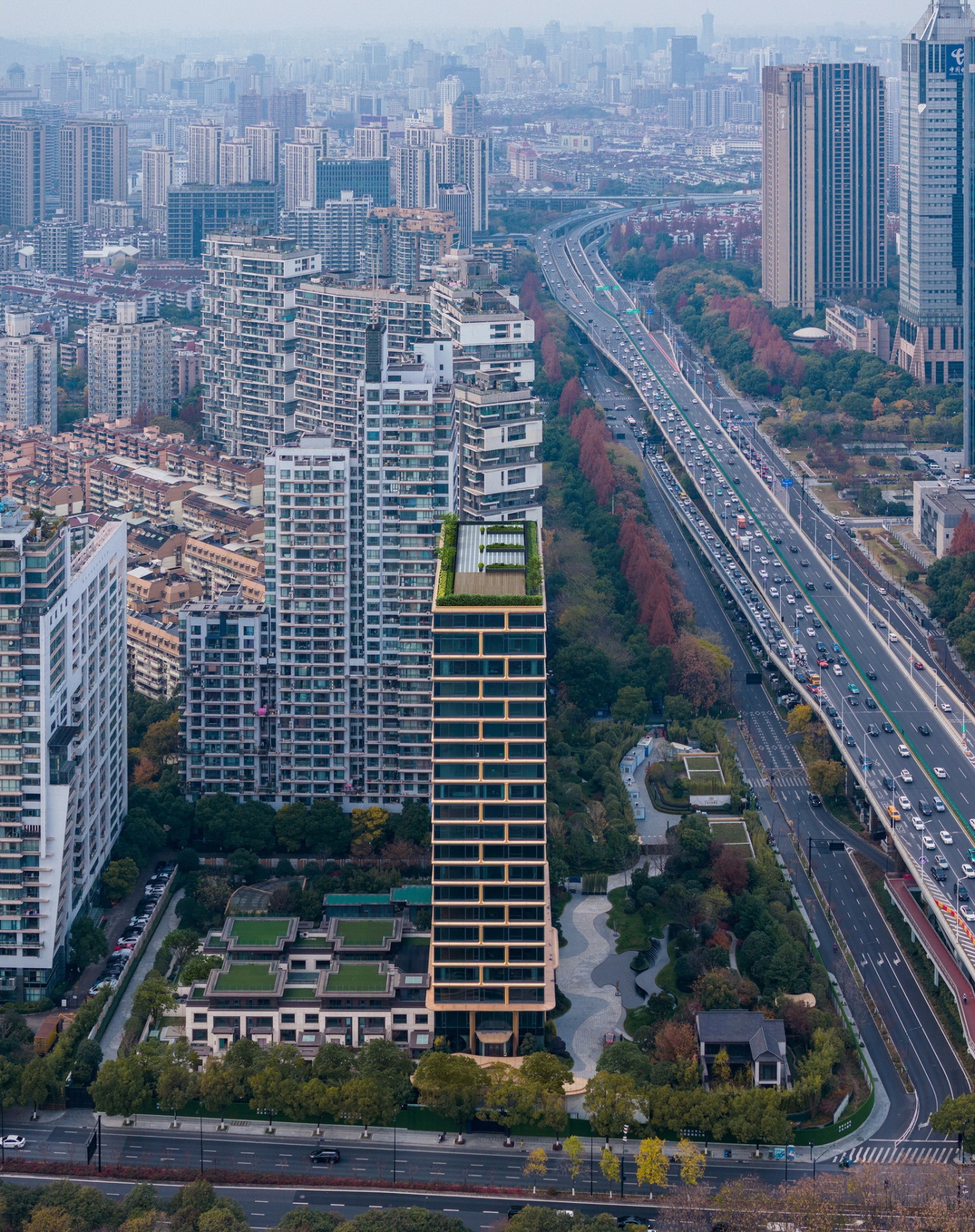

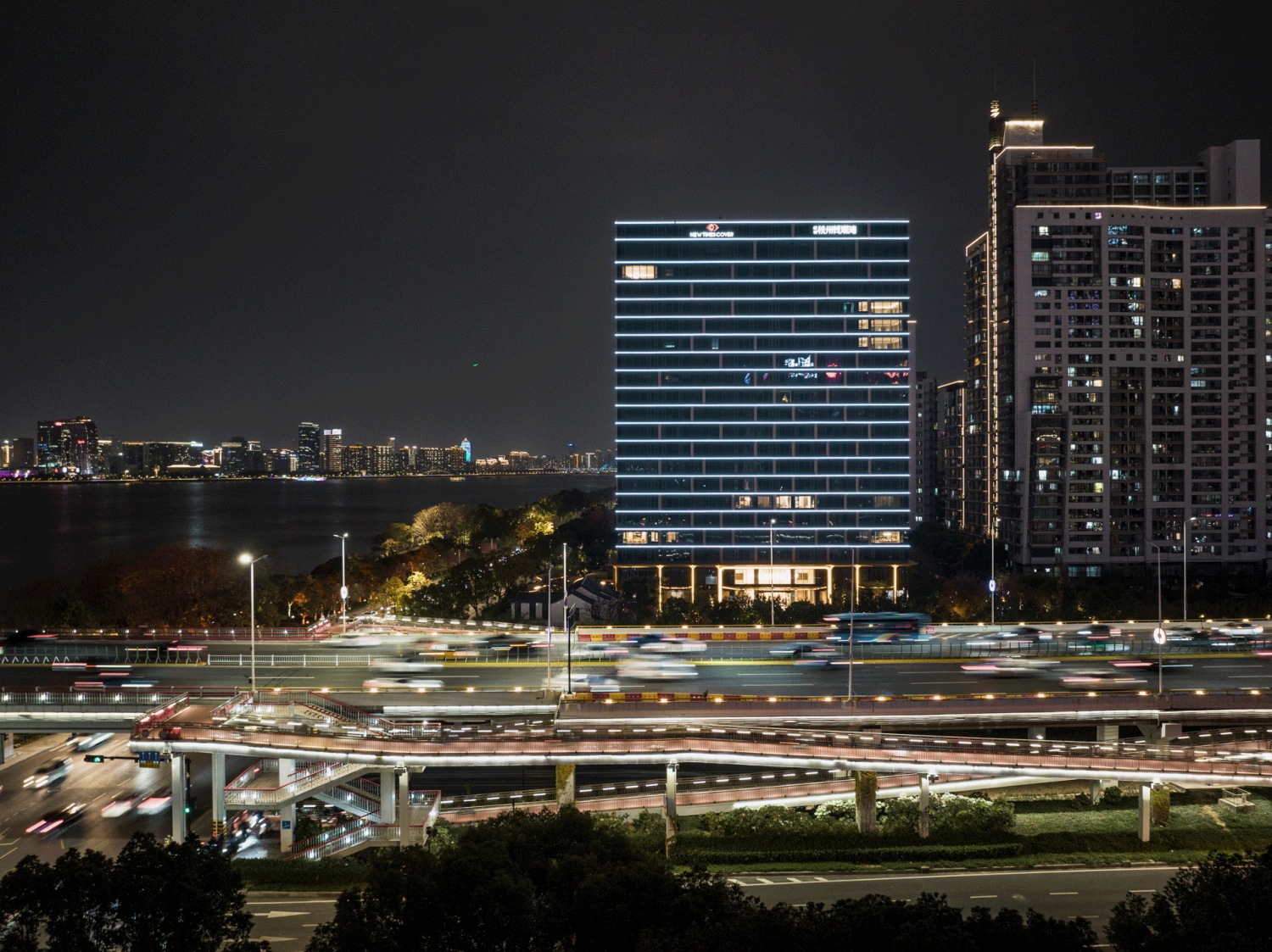

从最初的办公楼改造命题,到如今拔地而起的“城市地标”,钱潮湾完成了一次关于“城市封面”的想象与落地。它在高密度滨水城市语境中,为“城市大平层”重新定义了形象表达,也提供了一种当代住宅的更新路径。
What began as a brief to convert an office tower has materialized into an urban landmark—one that gives tangible form to the idea of a city’s frontispiece. Within the dense, high-value riverfront context of Hangzhou, Greentown New Times Cover redefines the image of the large-format urban residence and charts a new course for contemporary high-rise living.
在亚运杭州的背景下,它如潮水般隐现,安静而坚定地标记着属于杭州、属于这个时代的空间坐标。
Amid the atmosphere of the Hangzhou Asian Games, the tower emerges with the quiet force of the tides—firmly situating itself as a spatial marker of this city and this moment in time.
项目名称:杭州绿城 · 钱潮湾
设计单位:line+建筑事务所
主持建筑师/项目主创:孟凡浩
设计团队:缪纯乐、邢舒、何雅量、朱骁靖、梁曦
业主:杭州中厚置业有限公司
室内设计:SLD梁志天
景观设计:AECOM
施工图设计:汉嘉设计
幕墙设计:众创联合/汉嘉设计
灯光设计:亚星光电
项目位置:浙江,杭州
建筑面积:地上23947平方米,地下10975平方米
设计周期:2019/03-2019/08
建设周期:2019/09-2023/10
结构:钢混框架结构
材料:铝板、玻璃
摄影:shiromio、line+
Project Name: Greentown New Times Cover
Design Firm: line+ Studio
Chief Architect/Project Principal: Meng Fanhao
Design Team: Miao Chunle, Xing Shu, He Yaliang, Zhu Xiaojing, Liang Xi
Client: Hangzhou Zhonghou Real Estate Co., Ltd.
Interior Design: SLD Group
Landscape Design: AECOM
Construction Documentation: Hanjia Design Group Co.,Ltd.
Façade Design:Zhong Chuang Lian He Mu Qiang She Ji Yuan / Hanjia Design Group Co.,Ltd.
Lighting Design: Yaxing Optoelectronics
Location: Hangzhou, Zhejiang, China
Building Area: 23,947 sqm (above ground), 10,975 sqm (underground)
Design Period: 2019.03 – 2019.08
Construction Period: 2019.09 – 2023.10
Structure: Reinforced concrete frame
Materials: Aluminum panels, Glass
Photography: shiromio, line+
