| 公司： | Didzis Jaunzems Architecture | 类型： | 景观 |
|---|---|---|---|
| 地区： | 拉脱维亚 | 标签： | 公共设施 | 公园绿地 |
项目位于瓦尔米耶拉感官公园，设计的人行道和景观露台旨在提供通往高雅河的舒适性。 100m长的人行碎石路是从现有的柏油路修整的，逐渐变为木质小路，并在河边有机地转变成观景台。
Pedestrian path and view terrace in Park of Senses in Valmiera is designed to provide comfortable access to river Gauja. The pedestrian gravel road of 100m length is pruning from existing asphalted road, it gradually changes into timber path and organically transforms into a view terrace by the river.
平台前的长椅更接近水边，由路面自然上升，保持了流线的平稳过渡。平台的后面被作为一个座位区，逐渐变成了一个休息空间。曲线的墙壁将会与后面靠近平台的游客和从休息室欣赏风景的观游客分开。由于景观区域的一部分位于洪涝区内，一般情况下，每十年人行道都会被淹没一次，所以将平台从地面上升预防洪水。环形结构也是根据车辆转弯半径来设计的，同时考虑到了应急车辆过河的方便。

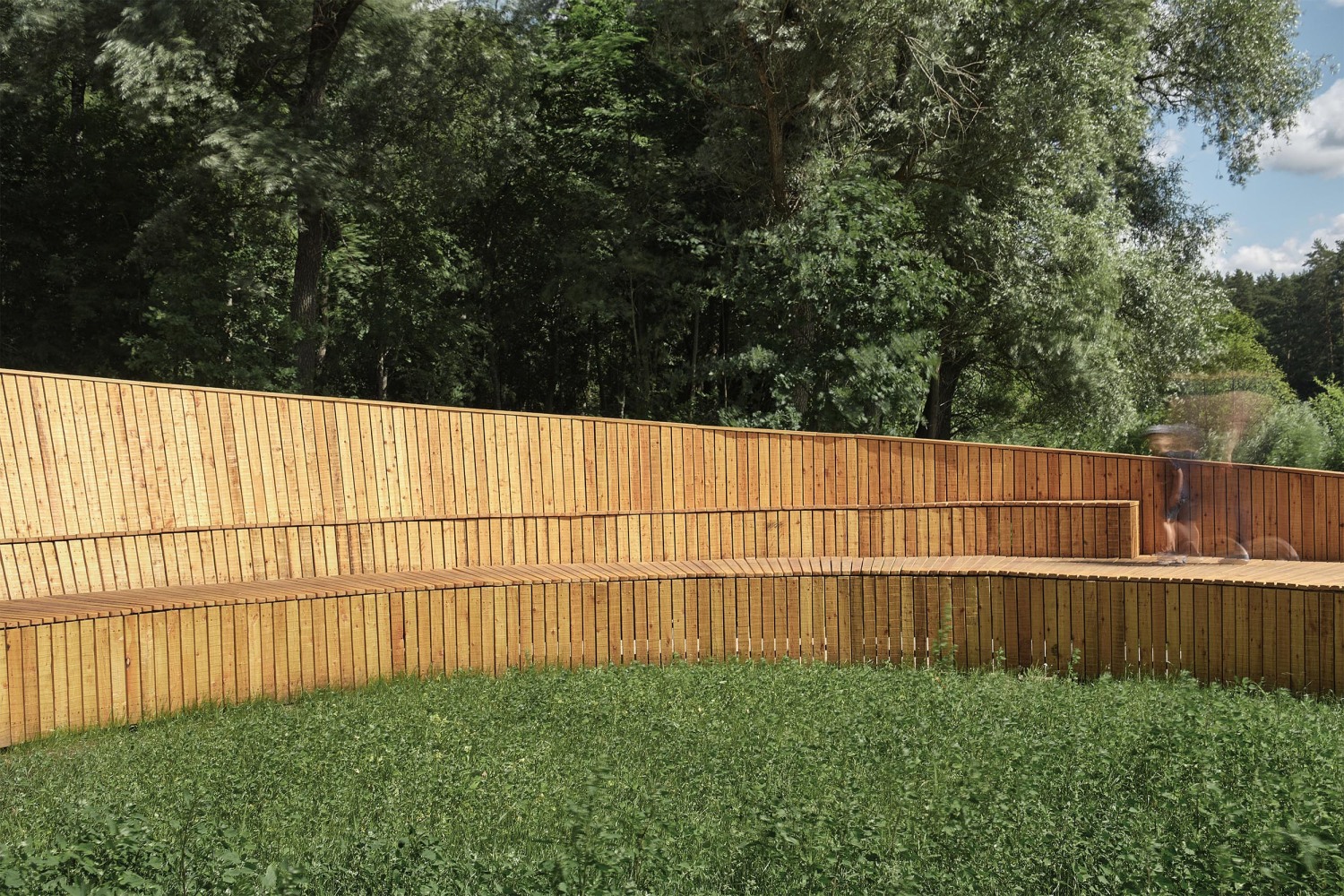

The bench in the front of the terrace, closer to the waterside, climbs up from the relief naturally, keeping the smooth transformation from the pathway. The rear of the terrace is created as a seating area that gradually turns into a lounger. A curved wall separates visitors approaching terrace from back and those who are enjoying view from a lounger. The terrace is raised from the ground, as the part of the landscaped area is within the flooding zone. On average every ten years all pedestrian path is under water. The circular shape is partly designed to follow the turning radius of the cars, taking to the account the need of accessibility of the emergency vehicles to river.
露台的承重结构由49根松木框架组成，但在一些现有的水管下的部分采用了混凝土板。平台用落叶松木板铺设，并采用特殊的防滑铣。
The load bearing structure of terrace is made of 49 pine wood frames but concrete slabs are used at some parts where existing water pipes are located under. The terrace is finished with larch planks with special anti-slip mills.

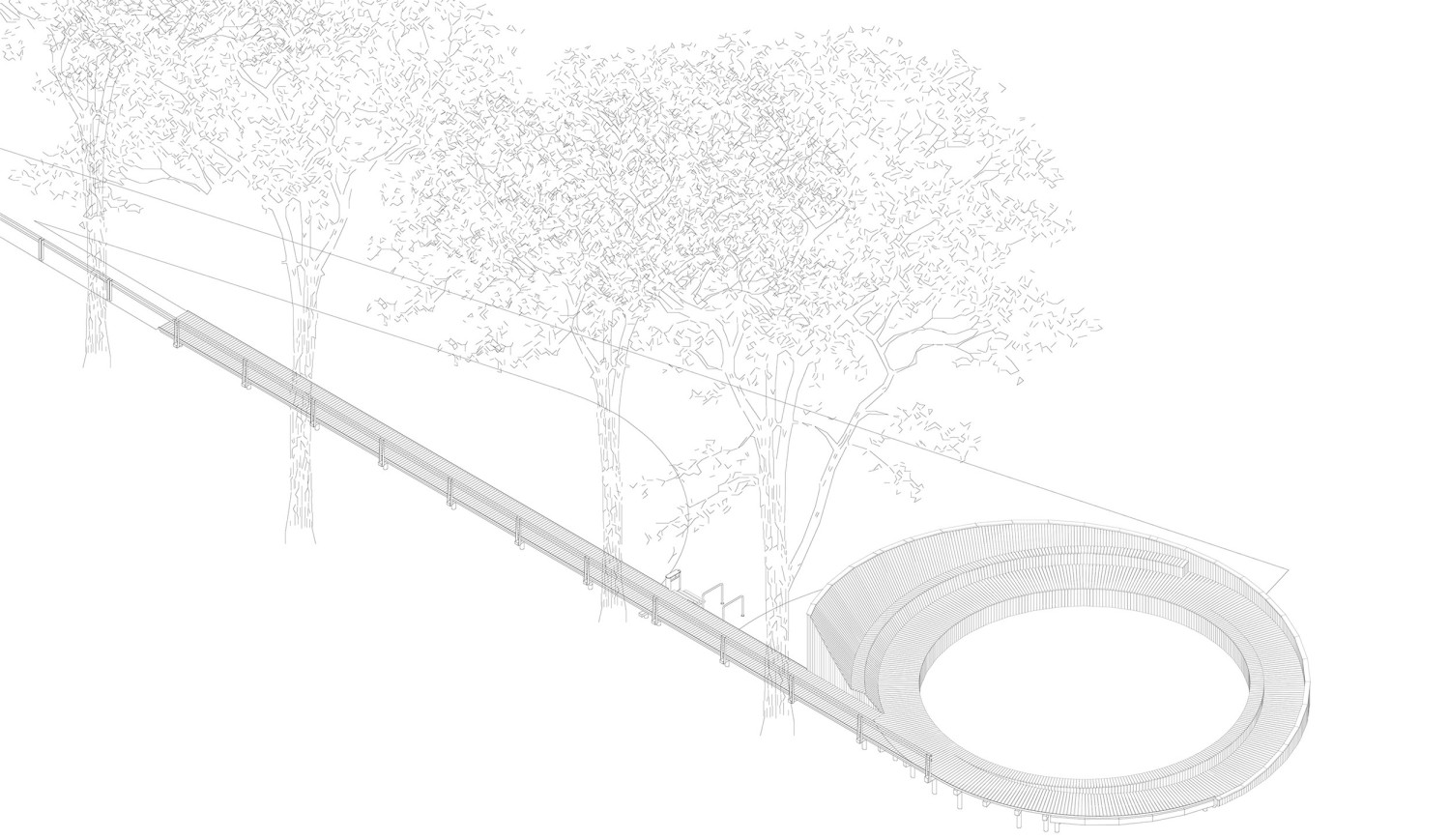

▼项目轴侧图 Axonometric
▼项目平面图 Plan
▼项目南立面图/1-1剖面图 South Elevation & Section 1-1
▼项目东立面图/3-3剖面图 East Elevation & Section 3-3
▼项目构造细部轴侧图 Axonometric Structure Detailed
▼项目3-3剖面构造大样 Section 3-3a&b
Project name: Pedestrian Path and View Terrace
Architects: DJA (Didzis Jaunzems Architecture)
Project location: Park of Senses, Valmiera, Latvia
Year: 2019
Client: Valmiera Municipality
Building area: 1830 m2
E-mail: dja@dja.lv
Phone: +371 28261221
Web: www.dja.lv
Photos Credit: Eriks Bozis
