The club house is composed of 3 masses of buildings, which are slightly separated from each other. First, the parking lot is placed at the front, while the second is the common lounge area set next to the parking area. And the last is Fitness and facilities. The 3 Components are designed to curve slightly follows the site context.

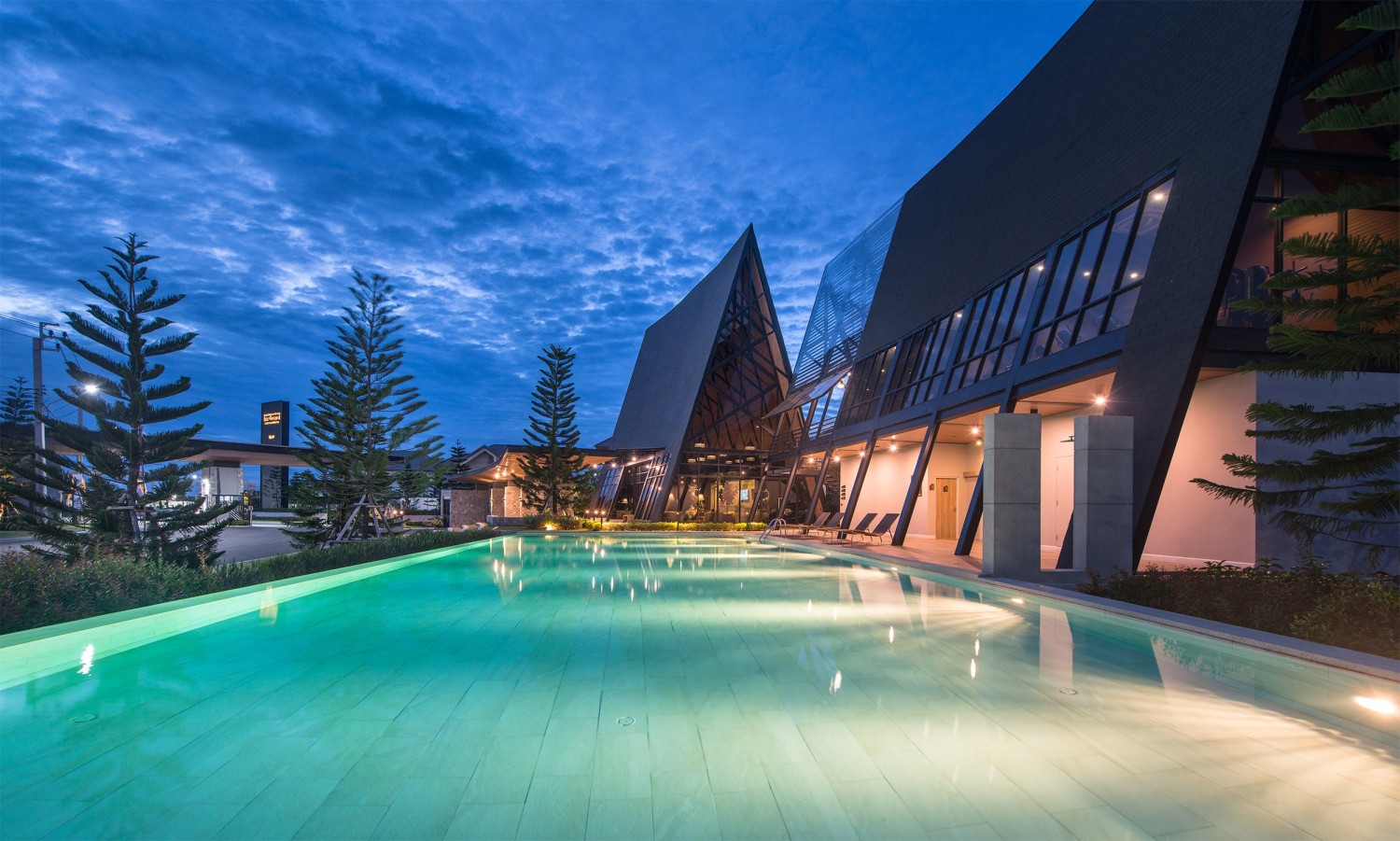

▼项目夜览 Night View

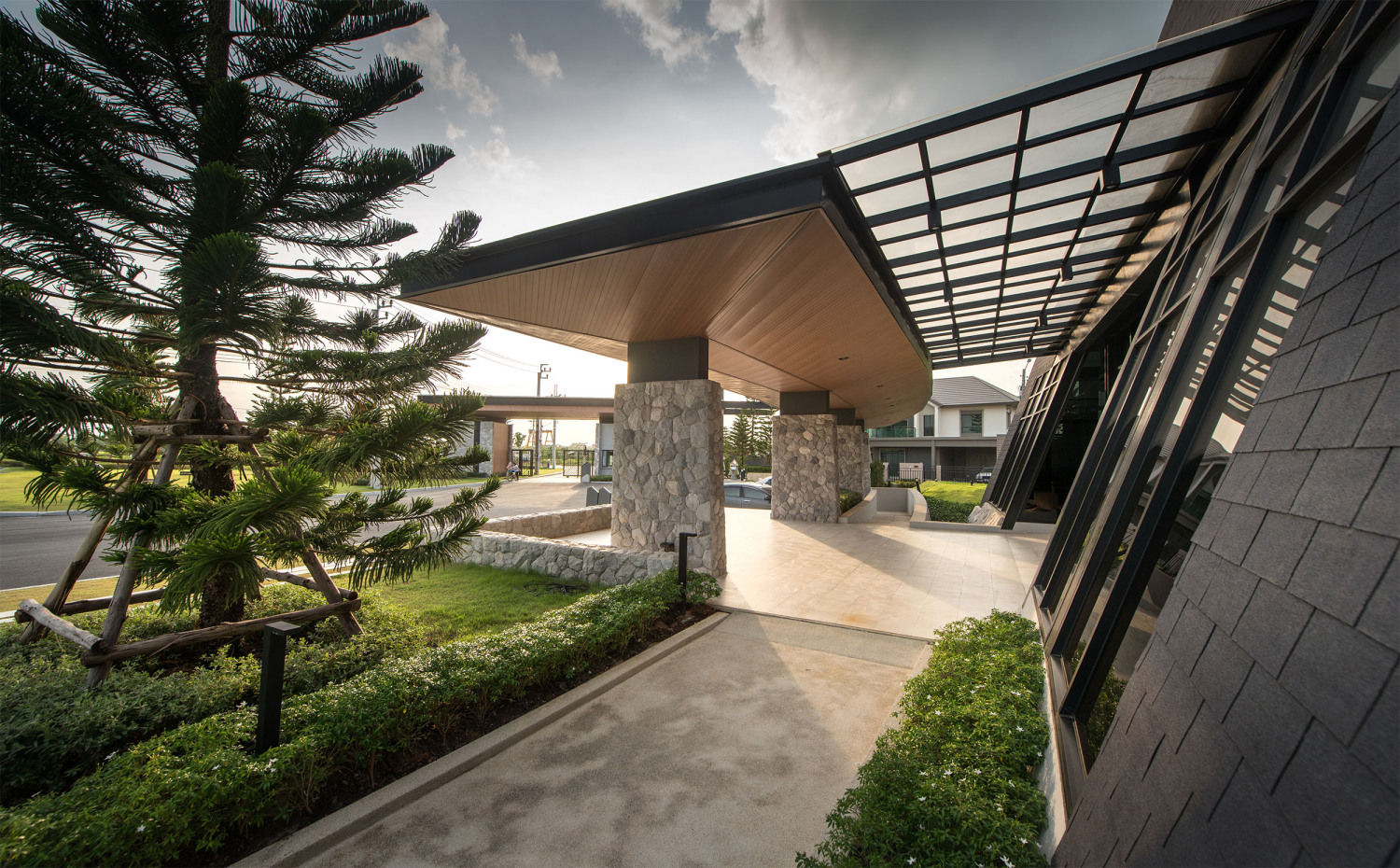

Entrance is formed by the Continued Roof between parking and the main building, gives an impressive opening and transfer to a widen and over-Scale space when entering the Common lounge area.

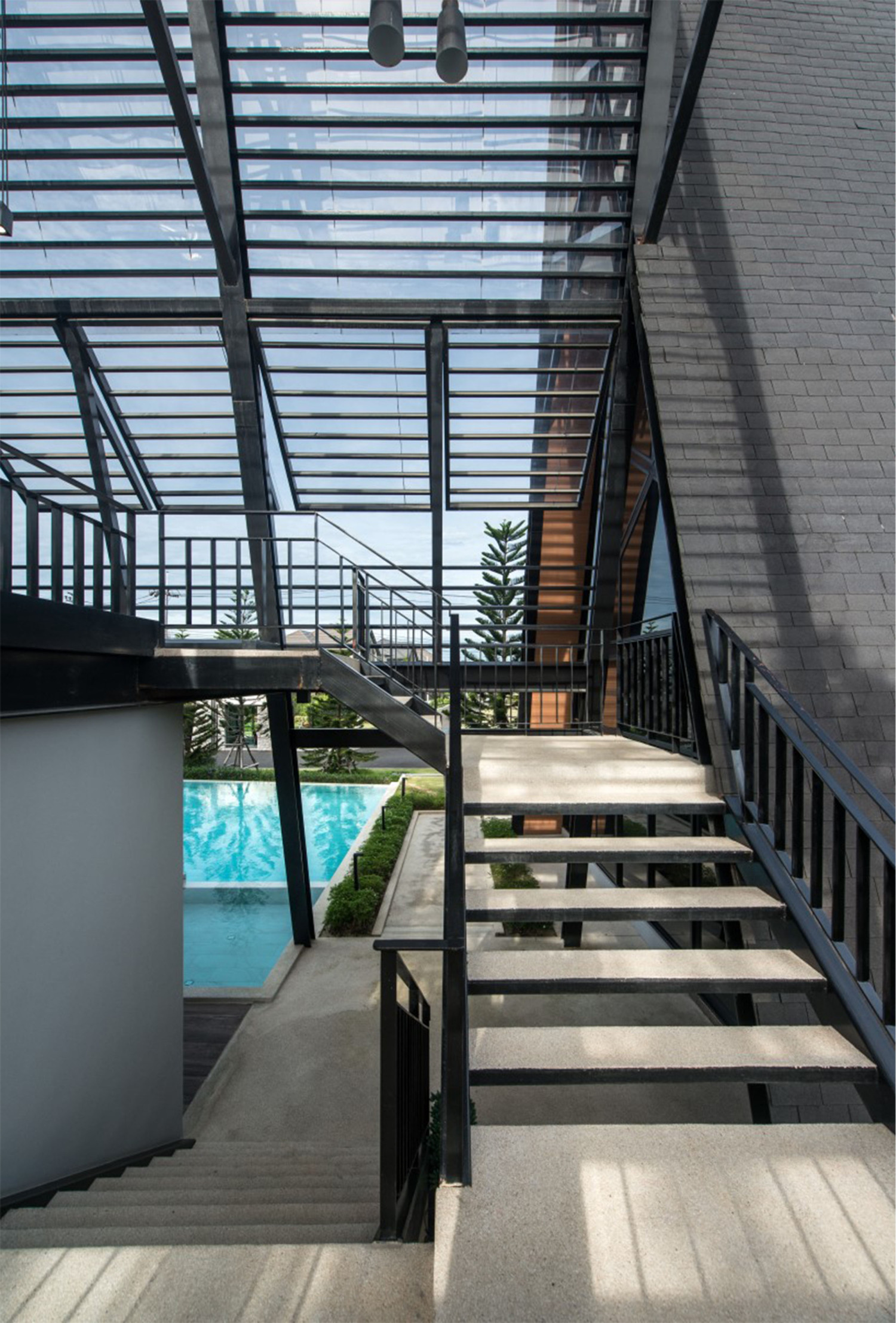

The main staircase between the 2-major buildings conveys the vertical circulation up to the Fitness and other facilities. Form of the significant buildings are curvy triangles, high ceiling space, and slightly shifted away from each other. Yet, they are connected to the open-air staircase provides the flowing of natural ventilation. Besides, it is covered with an exposed structure skylight roof, bringing dramatic light with shade and shadow during the day. The fitness area is located on the second floor. This function has been elevated, to make people who exercising perceive the scenery through swimming pool among the pine trees.

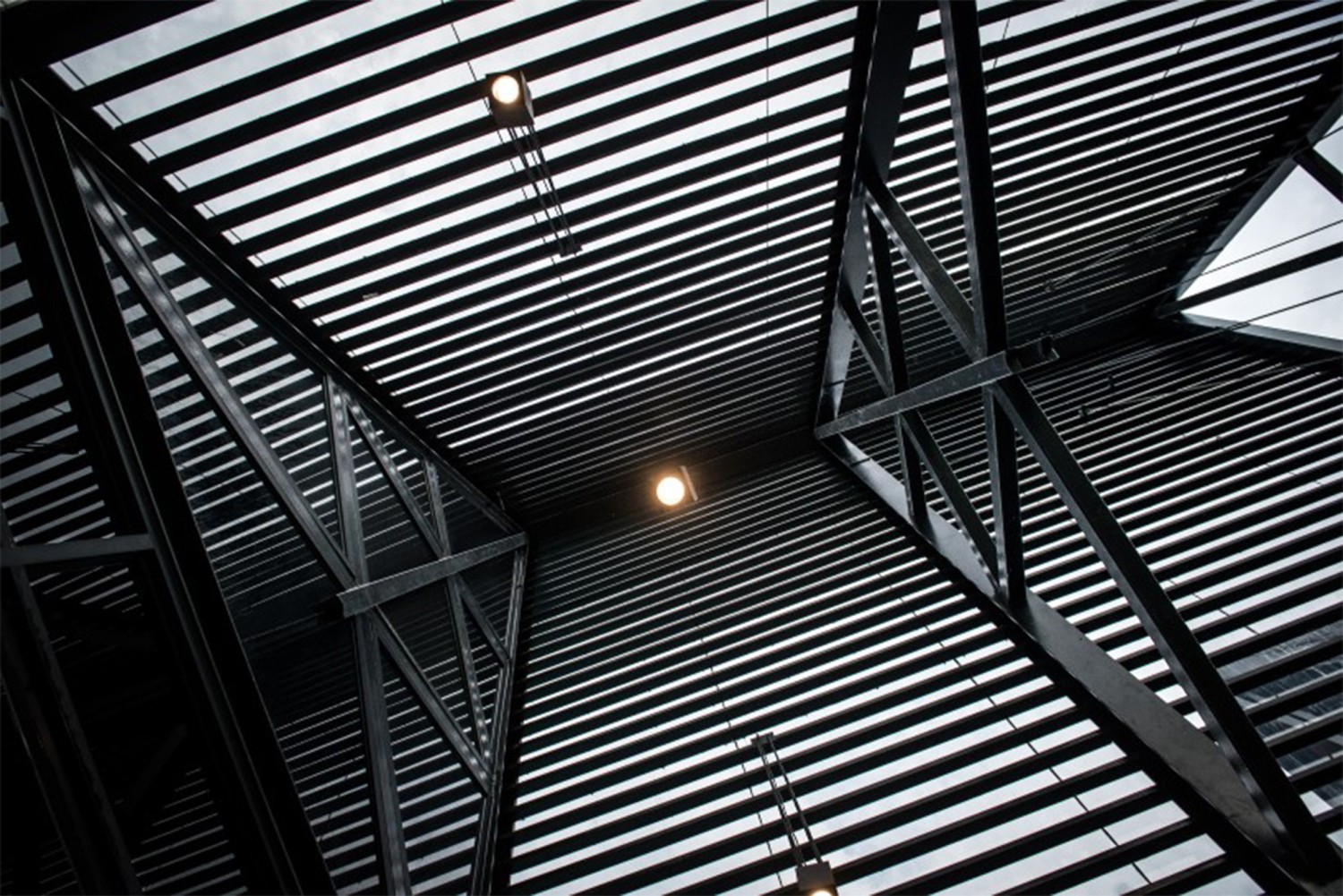

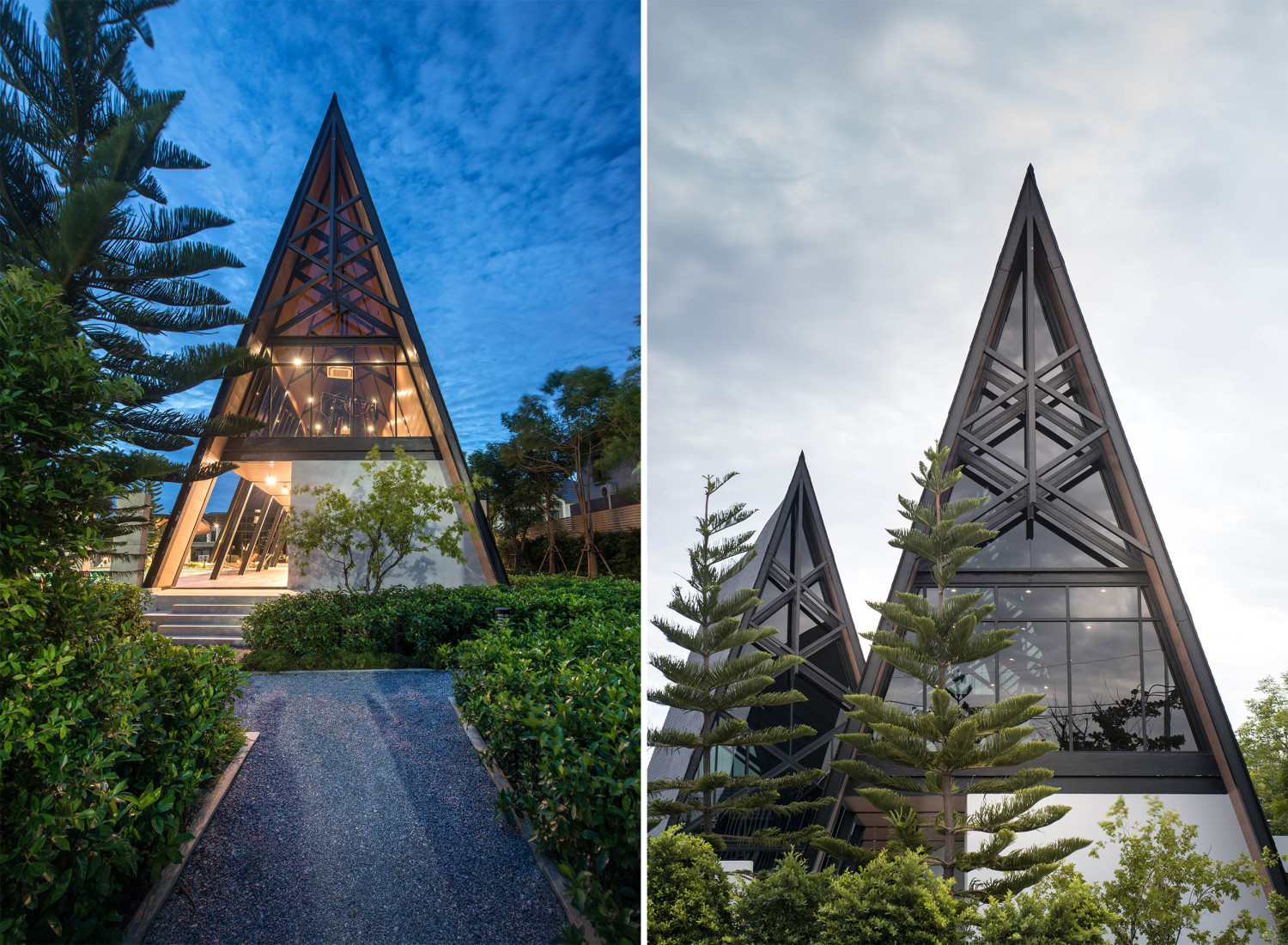

It’s an aspired keyword from Housing Estate. The Nordic interpretation toward modern contemporary, Man-made environment is inspired by pine trees which exist in all over Northern European forests. The organic triangle shape has derived from the tip of the Pine Tree. This attractive and simply compelling character of triangular shape has brought to the main concept of the project. Several of triangle steel structure, duplicating from one to another side, create an exciting space. It is unusually high and vast at the base. It has been relayed to secure and stable to human perception.
Project name: DOUBLE TREES
Company name: AplusCon Architects Co., Ltd
Contact e-mail: firstname.lastname@example.org
Project location: Bangkok Boulevard Changwattana-2,Bangkok, Thailand
Completion Year: 2018
GRAND TOTAL AREA: 948.71 sq.m.
OUTER AREA: 353.33 sq.m.
INNER AREA: 407.88 sq.m.
SWIMIMNG POOL: 187.50 sq.m.
Lead Architects: Silawat Arakwechakul
Design Team: SuppatThongUraiporn / ChalermphonKaewpiboon
Clients: SC Asset Corporation Public Co.,Ltd
Engineering: EP Consultant (Thailand)
Collaborators: PDD SC Asset Corporation Team
Photo credits: Rungkit Charoenwat
