泰国IDIN建筑事务所办公室

公司：	IDIN Architects	类型：	建筑
地区：	泰国	标签：	办公室

IDIN建筑师事务所办公室位于Ratchadaphisek地区，这是曼谷交通最便利的地点，但它也是曼谷最交通混乱的地区之一。这座建筑的主要概念是创造创意私人办公室空间的同时，又躲避多样化环境的想法。为了实现这一目标，所有设计过程（从规划建筑设置的主要因素到选择材料的次要因素）都必须协同合作。

IDIN architects office is located in the Ratchadaphisek area which is the best location for transportation but it is also one of the most chaotic districts in Bangkok. The main concept of this building comes from the idea of creating a creative private office space while hiding from the diversified context. In order to achieve that, all design processes from a major factor as planning building settings to the minor as selecting materials must collaborate together.

©SPACESHIFT STUDIO

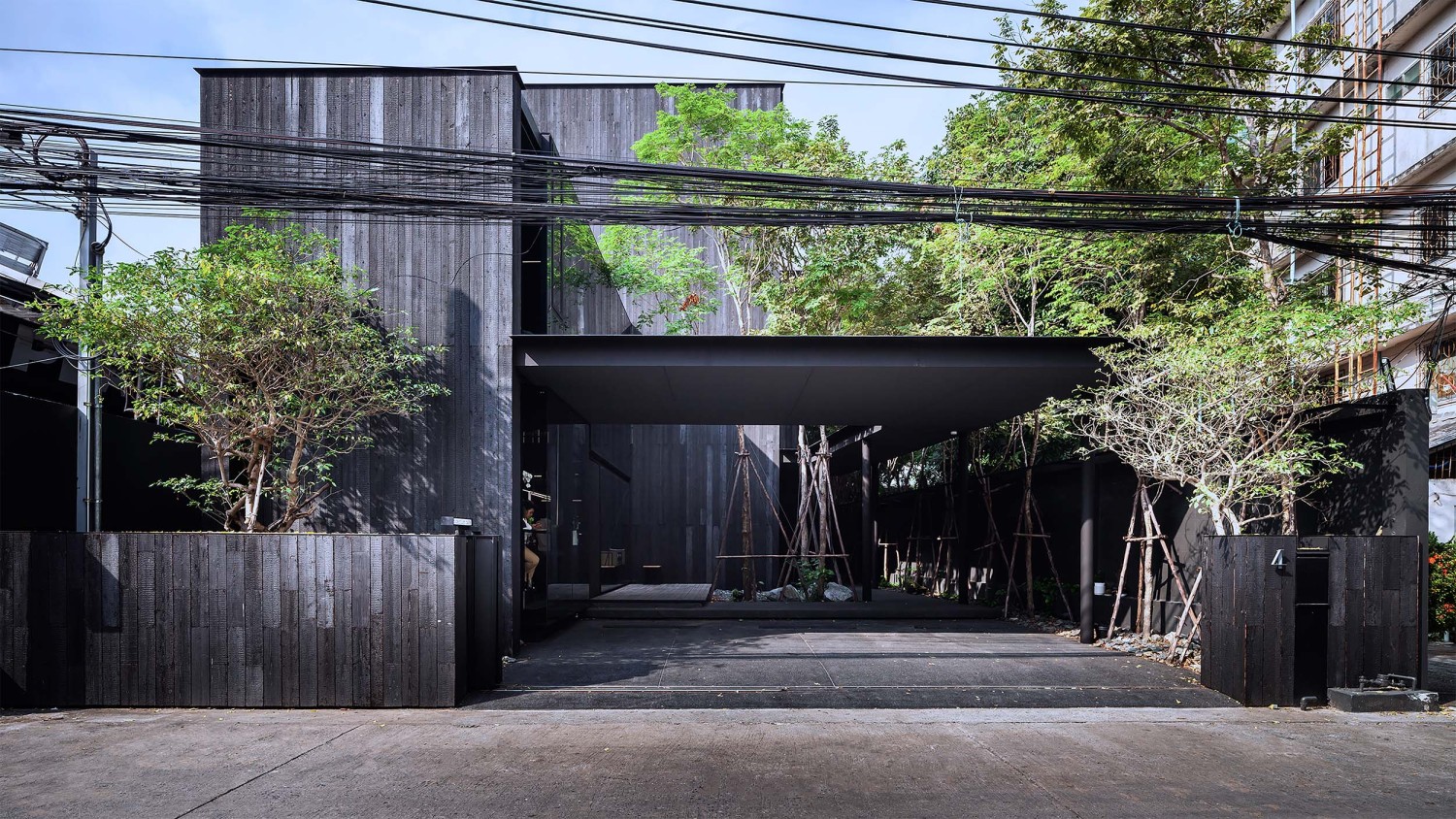

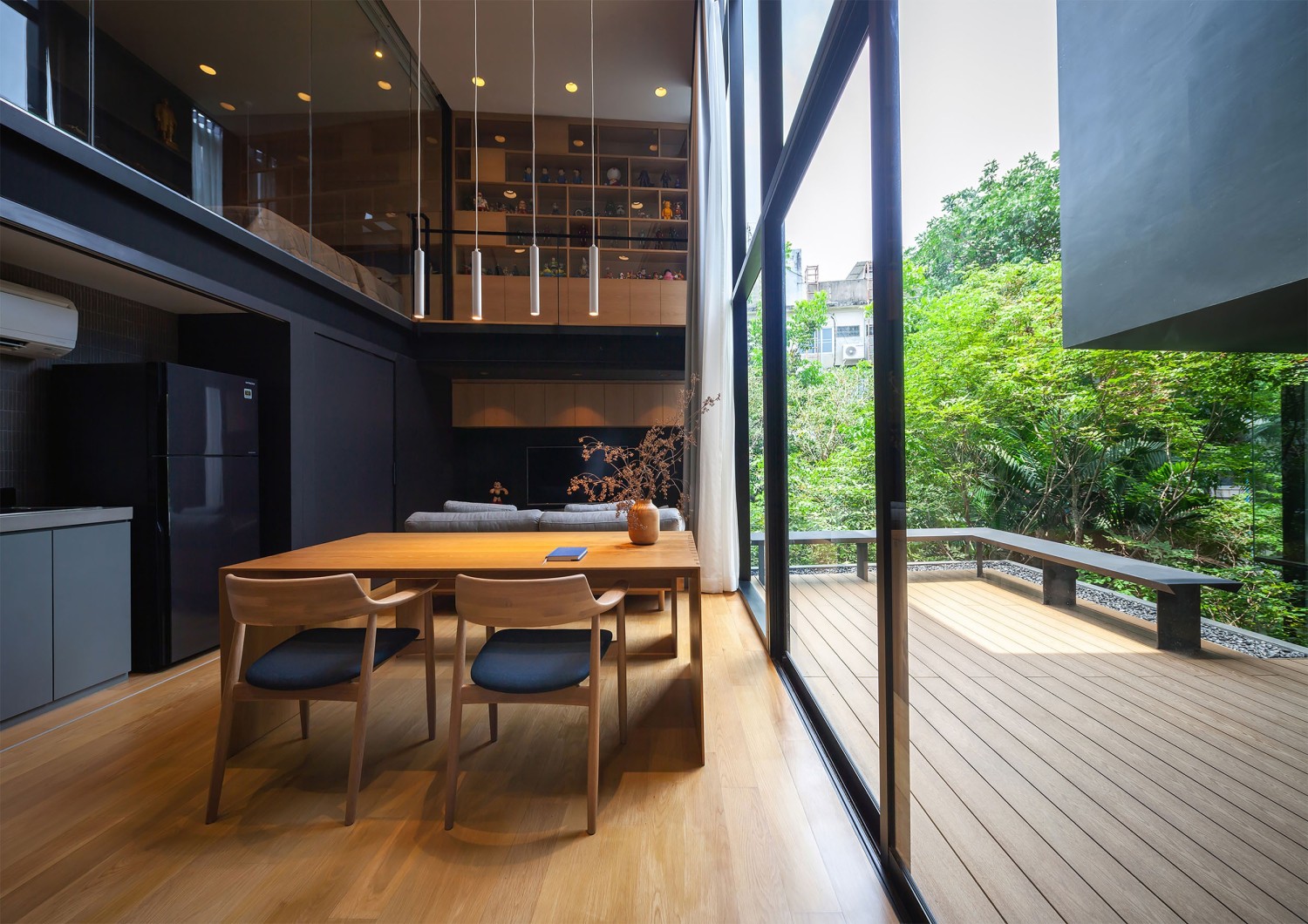

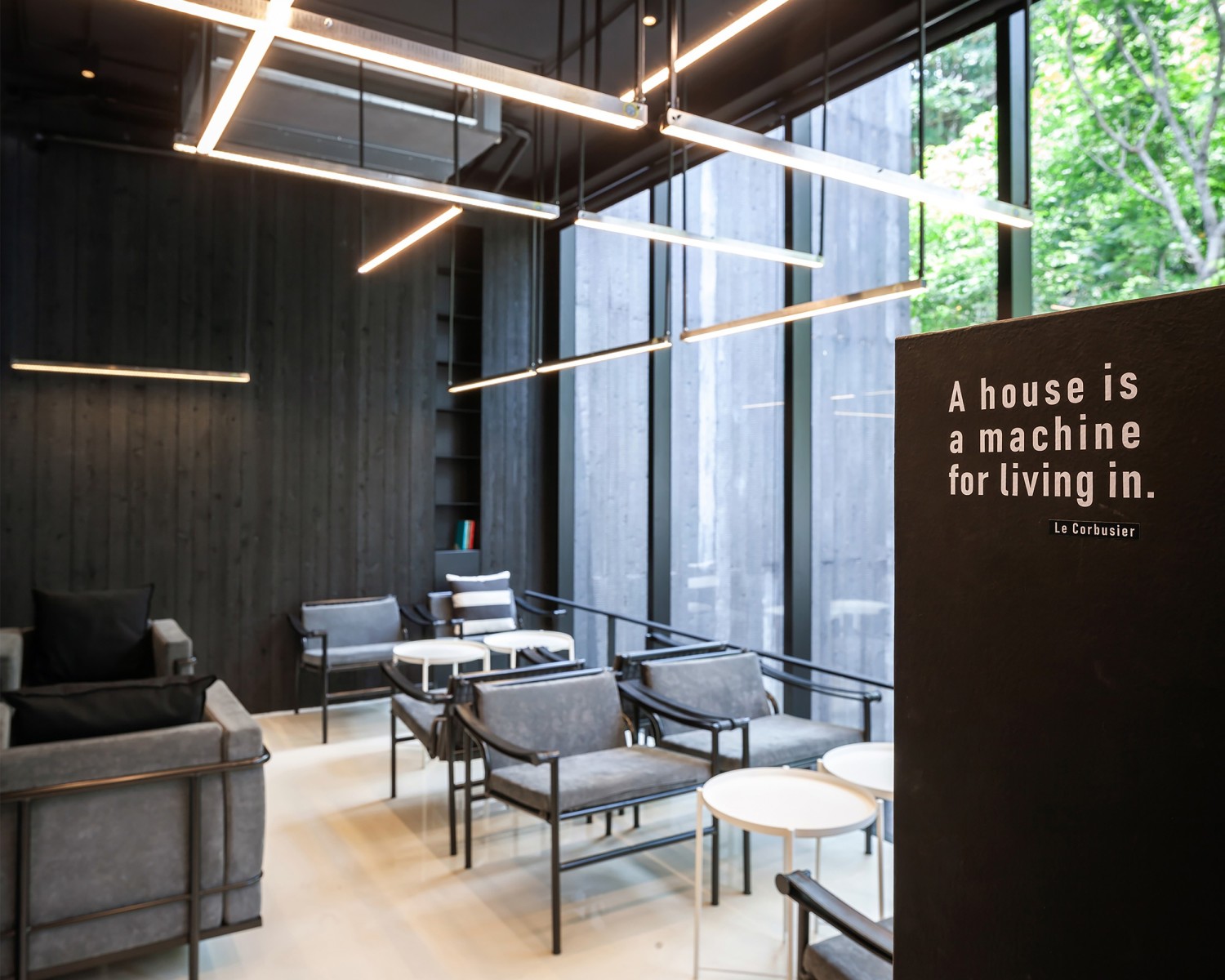

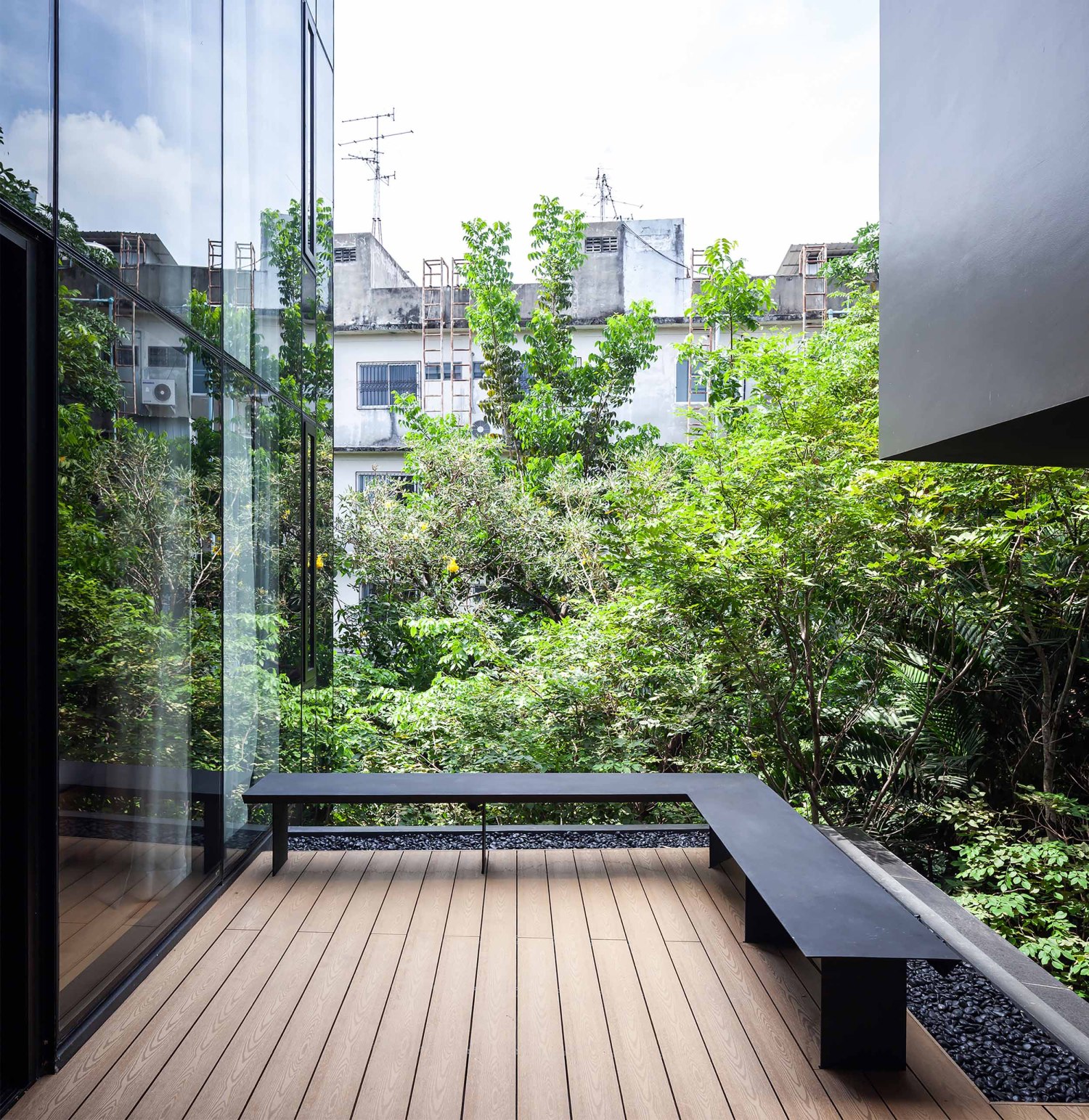

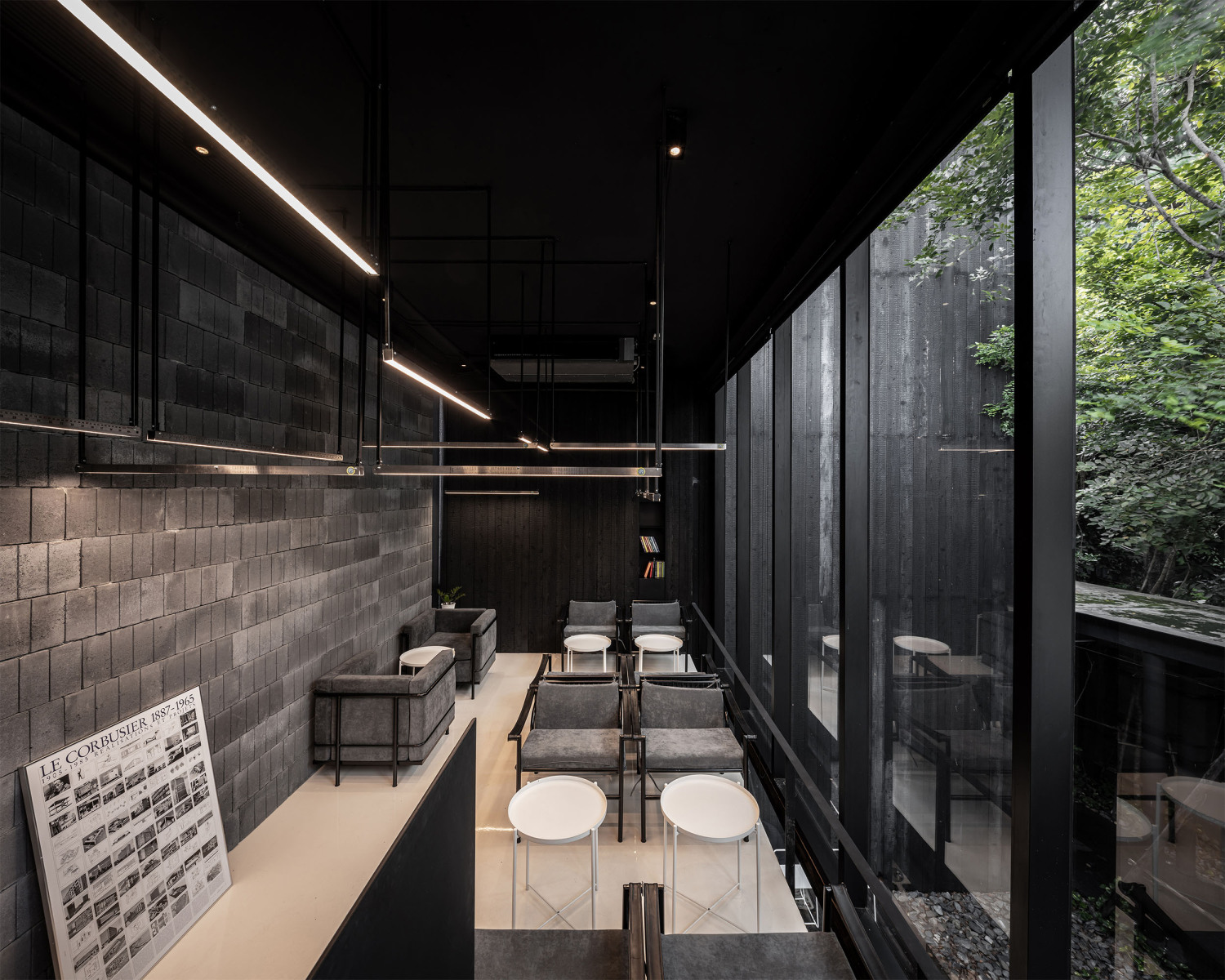

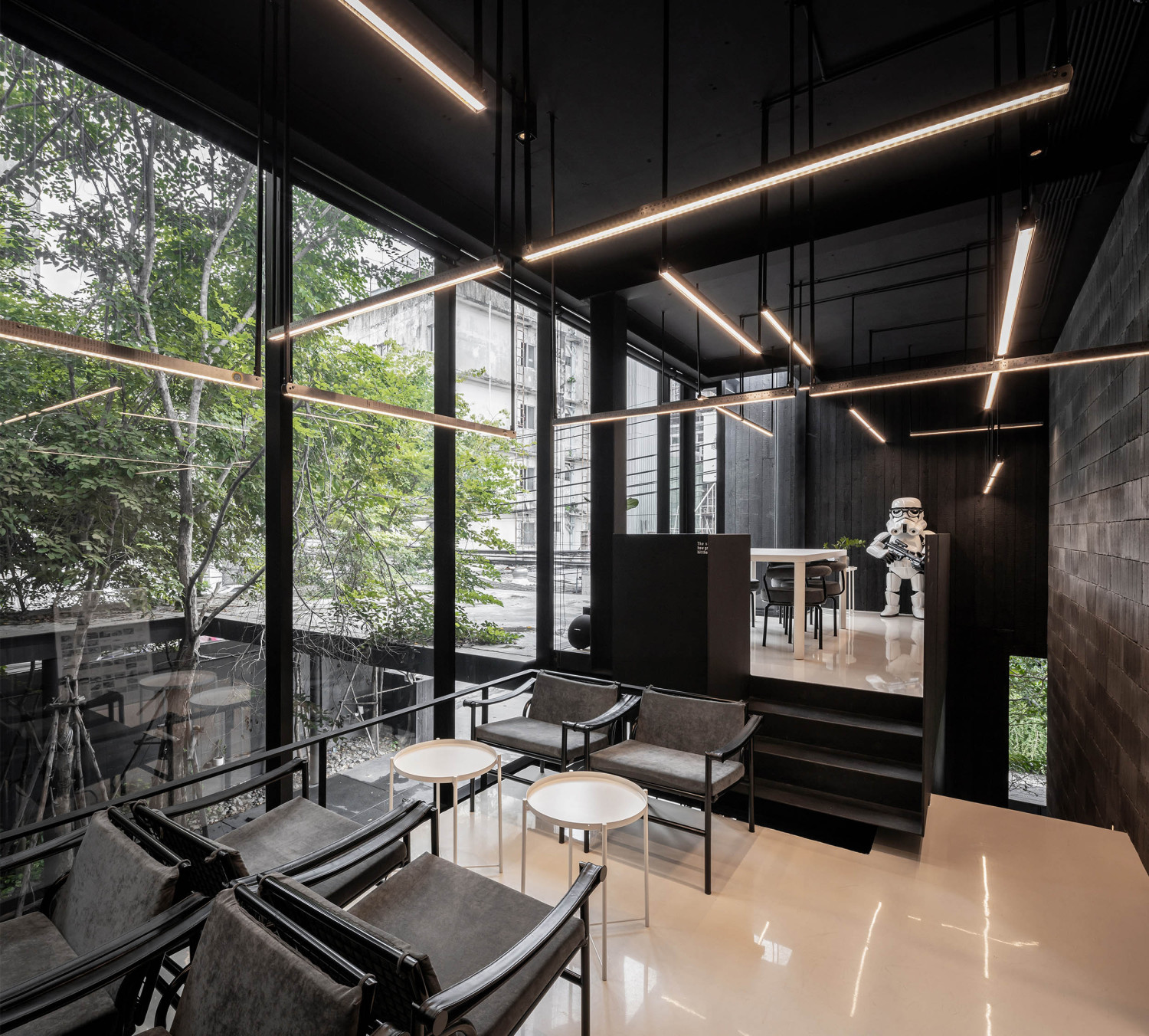

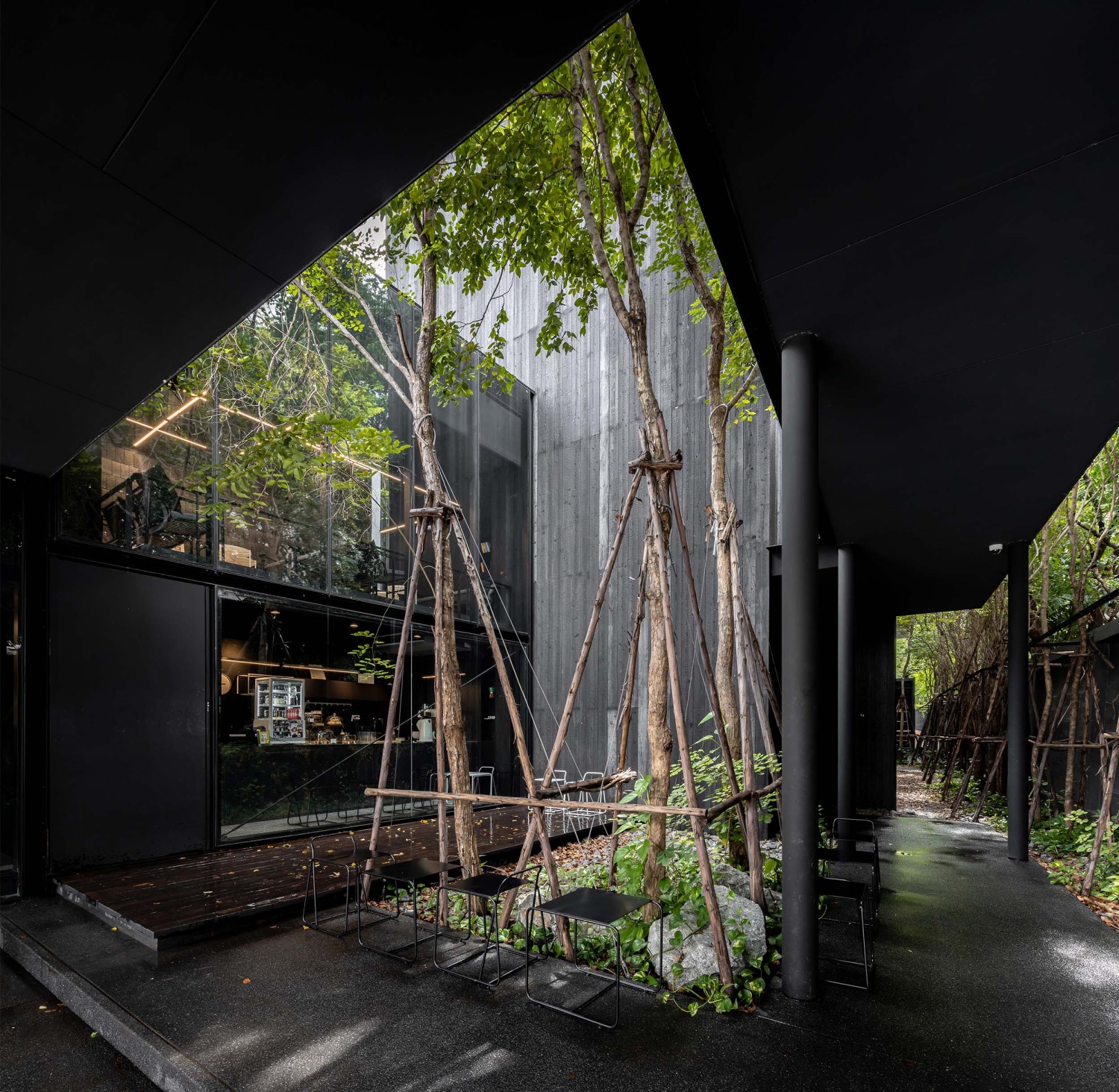

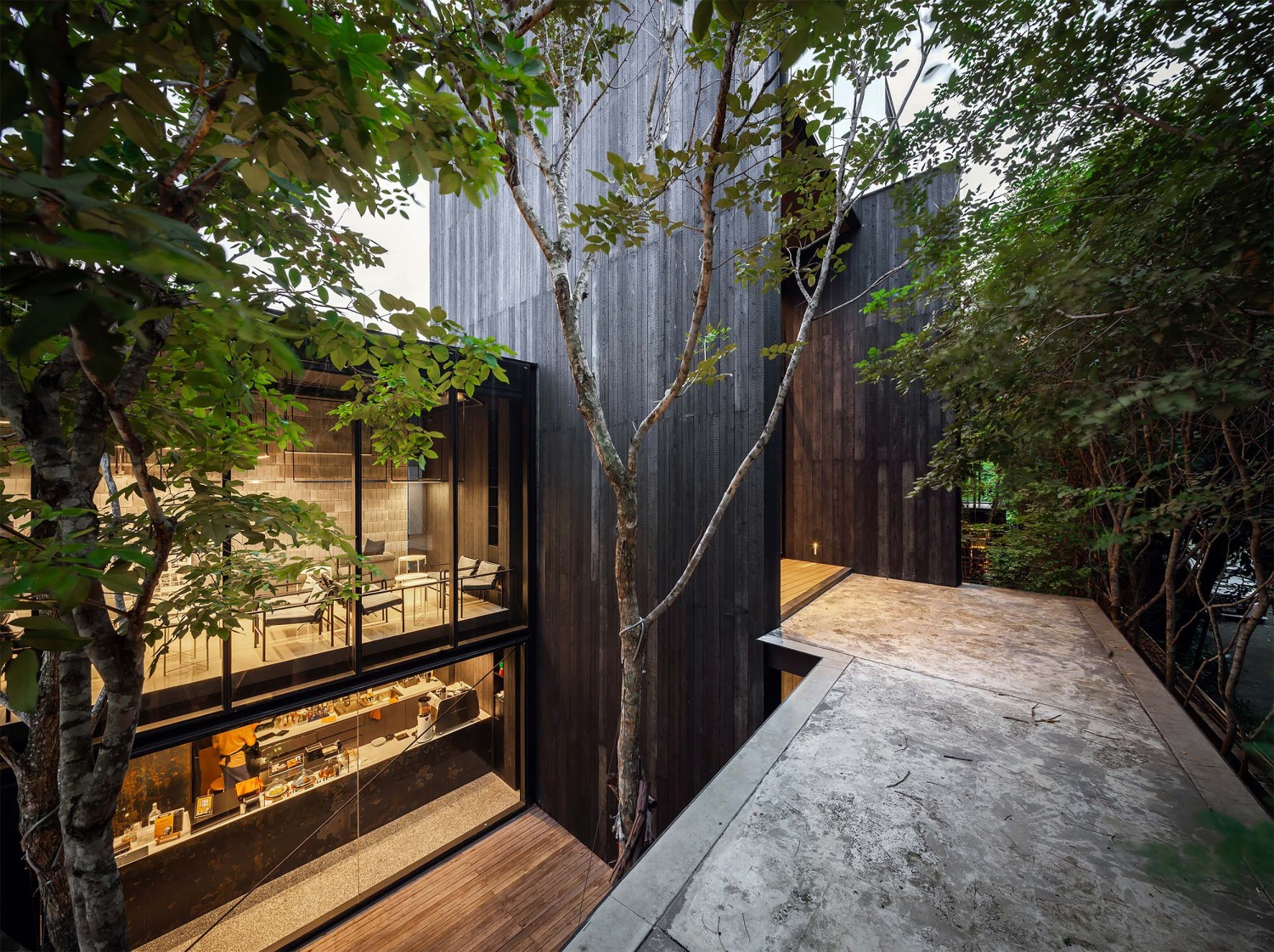

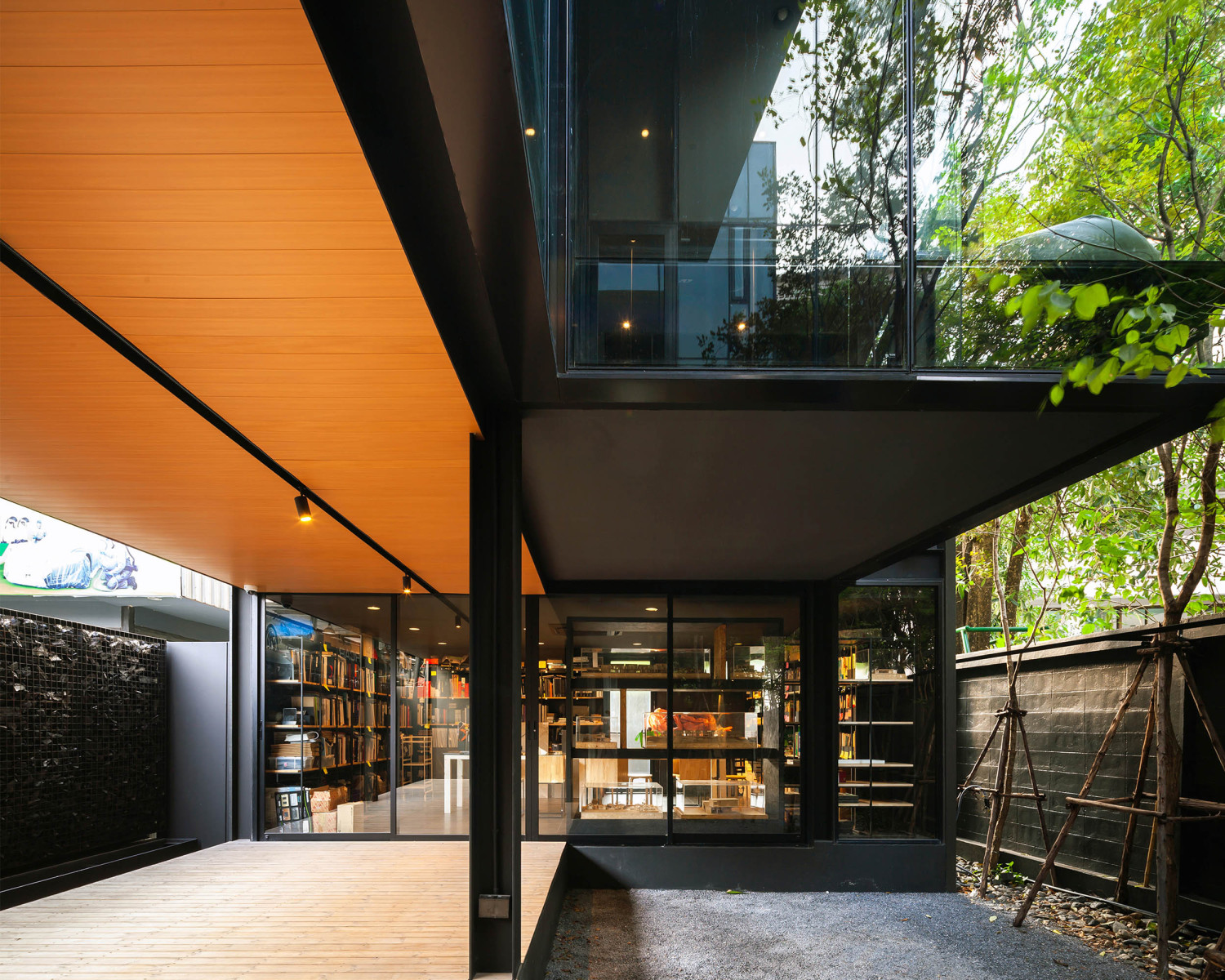

该建筑主要由三个区域组成：一个覆盖大部分区域的建筑师办公室，一个既欢迎咖啡爱好者并接待公司客户的咖啡馆，白天的员工休闲区以及一个私人住宅区为办公室的负责人。设计过程从紧紧包装所有功能开始，并用高大的树木围绕它们，这些高大的树木用作围栏，既可以防止繁忙的环境，又可以使人放松身心。由于土地狭窄，因此适合将建筑物与土地长度对齐；这增加了每个空间和树木之间的开放空间。然后，将这种长而紧凑的建筑材料拉长，以便在区域之间插入露台和庭院，以使更多的表面与自然光和绿色区域相连。

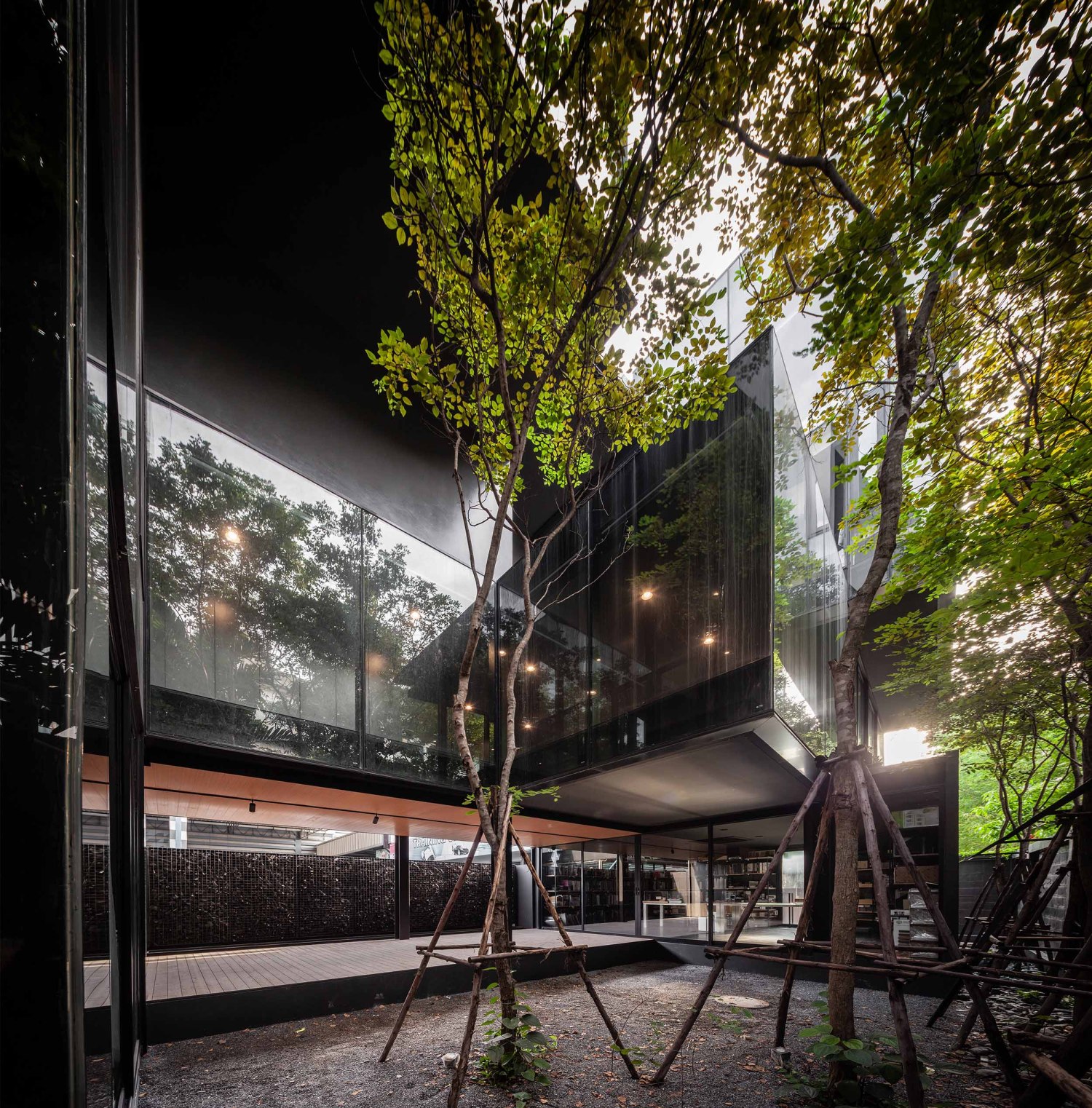

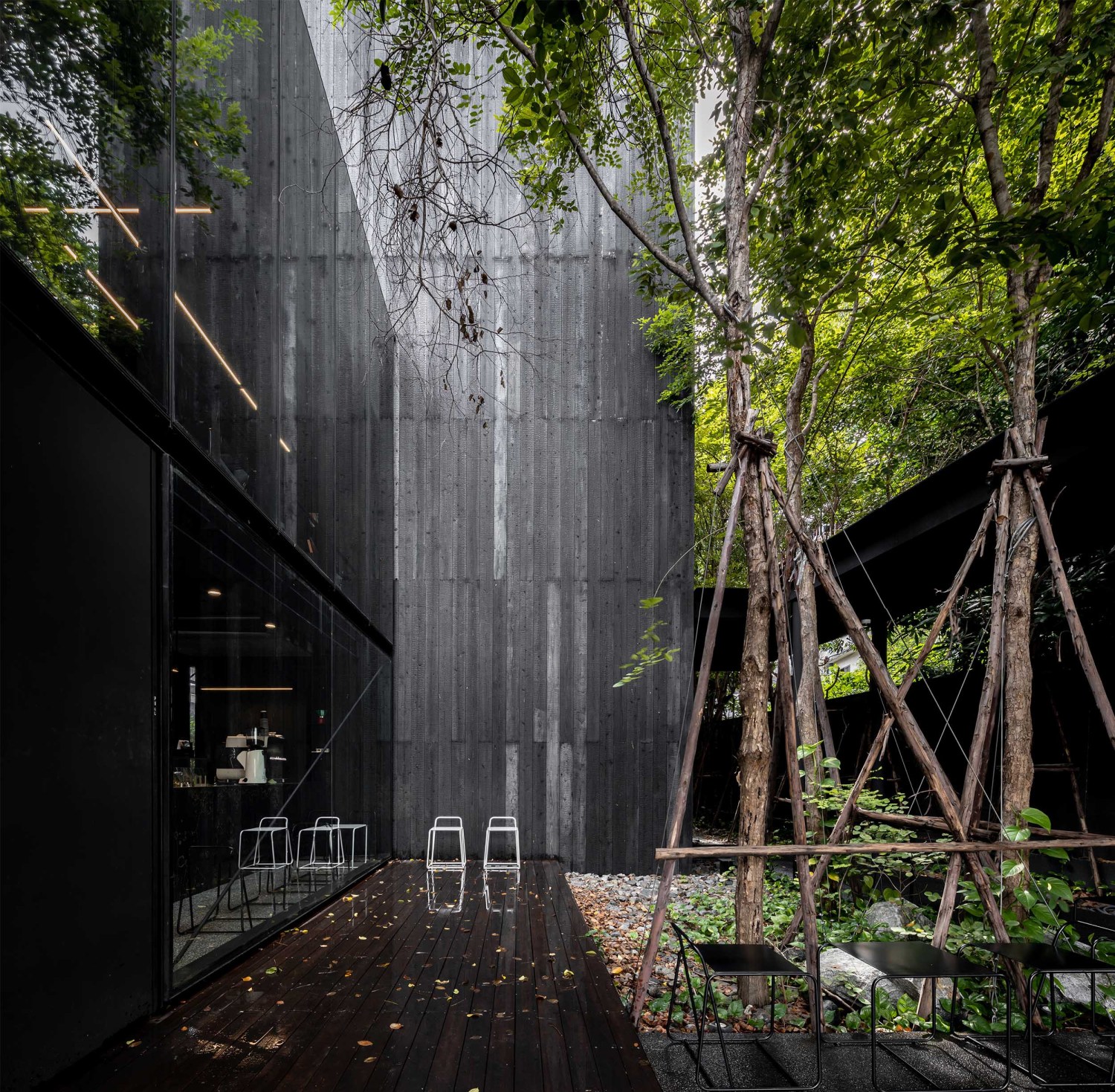

This building mainly consists of three zones: an architect office which covers most of the areas, a cafe which both welcomes coffee lovers and serves as a reception for company's clients as well as the recreation area for staffs during the day, and a private residential area for the office's principal. The design process starts with packing all functions tightly and surrounds them with tall trees which work as a fence for both preventing from busy surroundings and being a relaxing greenery view. Due to the narrow land, it is suitable to align the building along with the land’s length; this increases open spaces between each space and trees. Then, this long compact building mass is stretched out for inserting terraces and courtyards in between the areas for more surfaces connecting with natural light and green area.

▼概念生成

©SPACESHIFT STUDIO

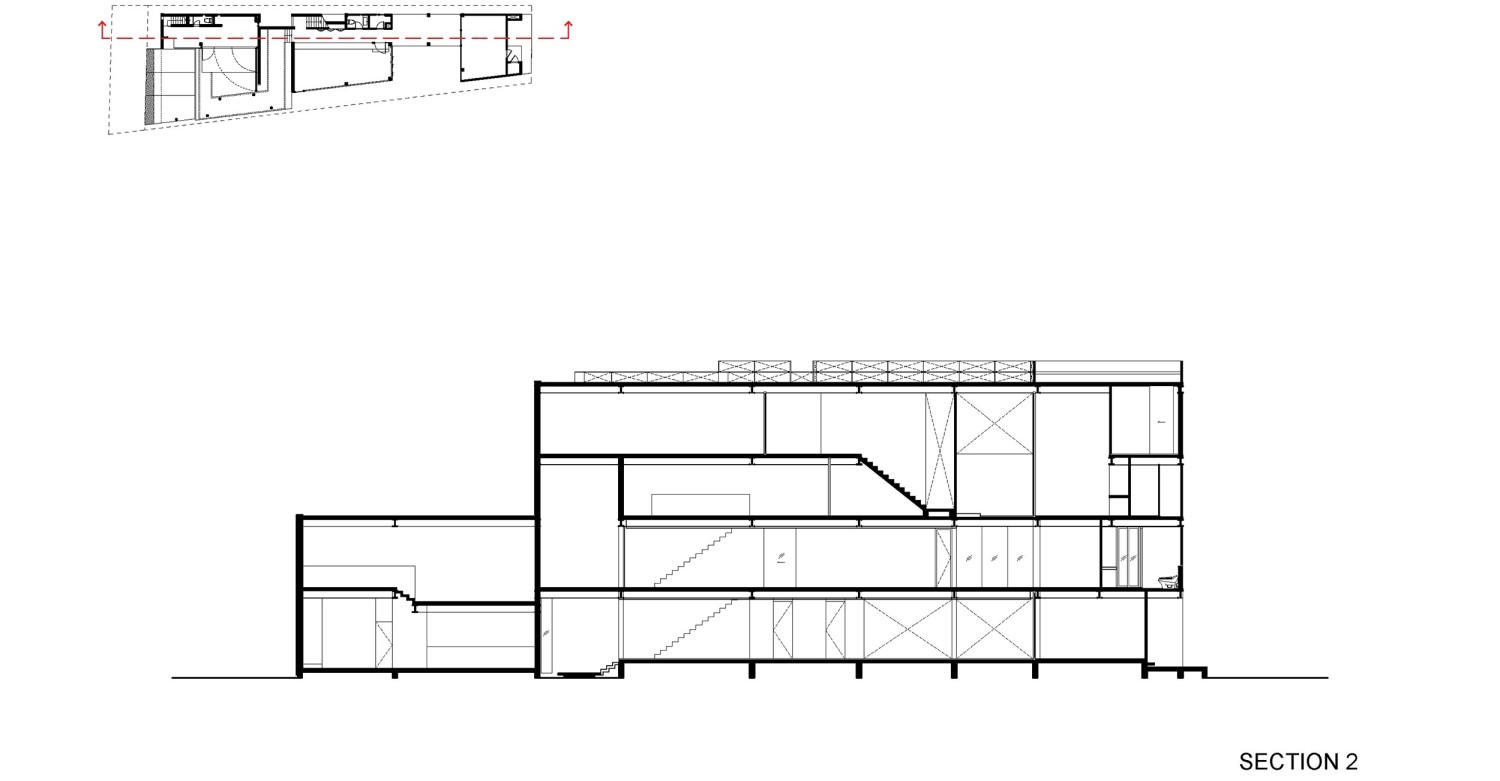

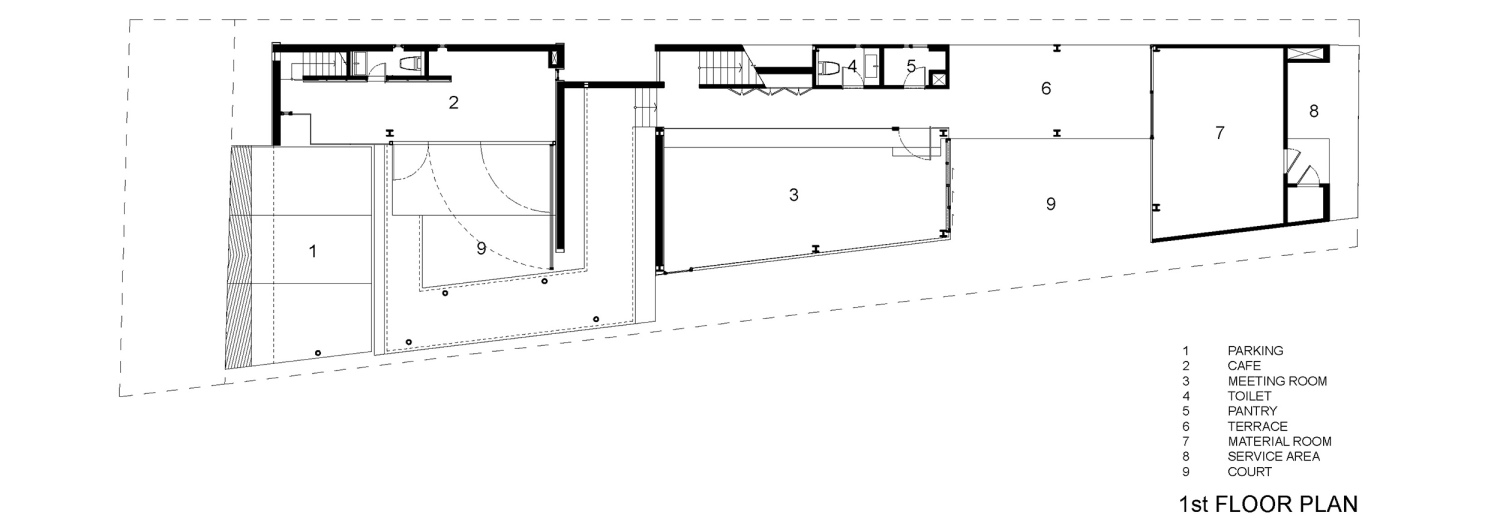

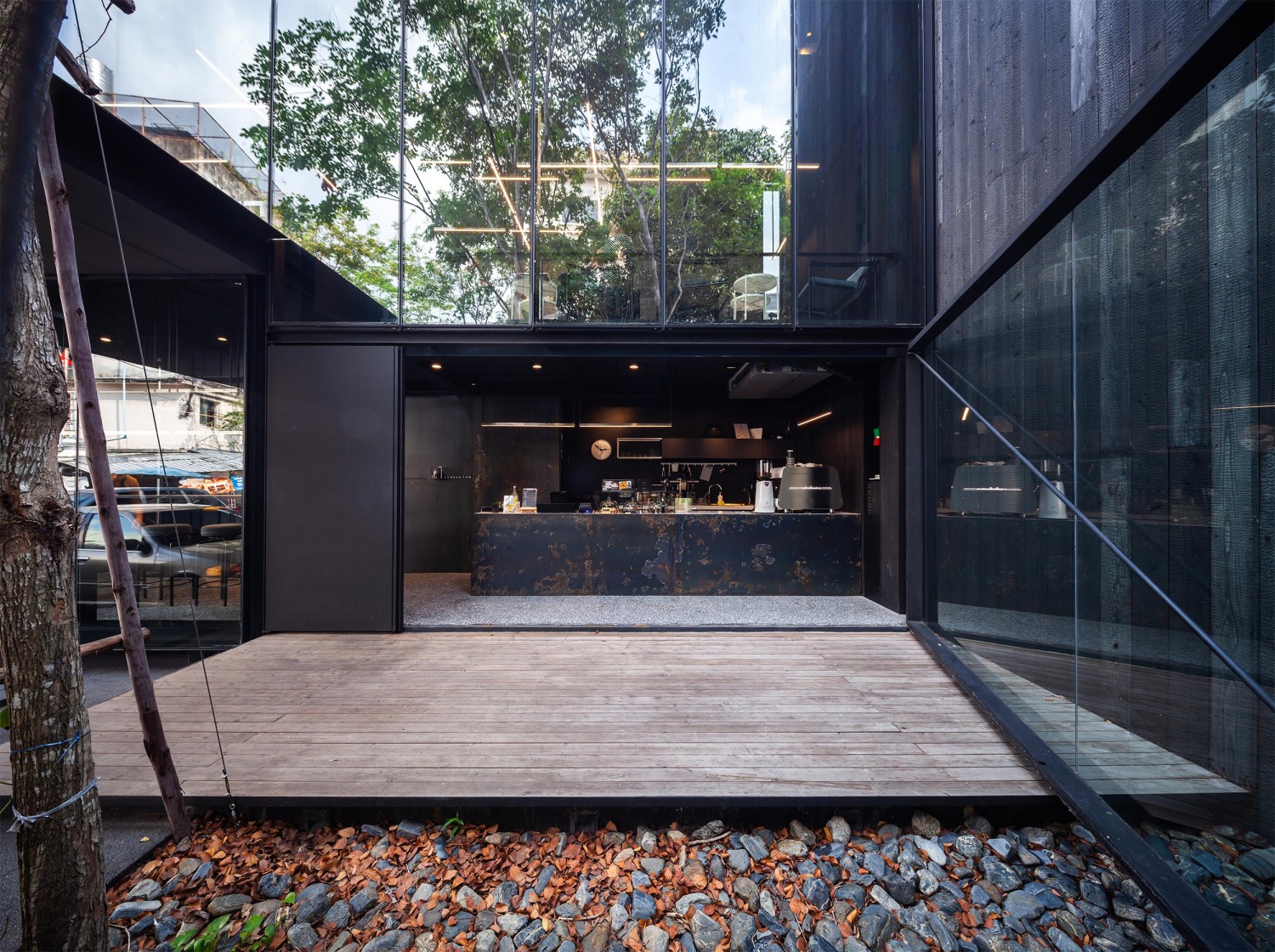

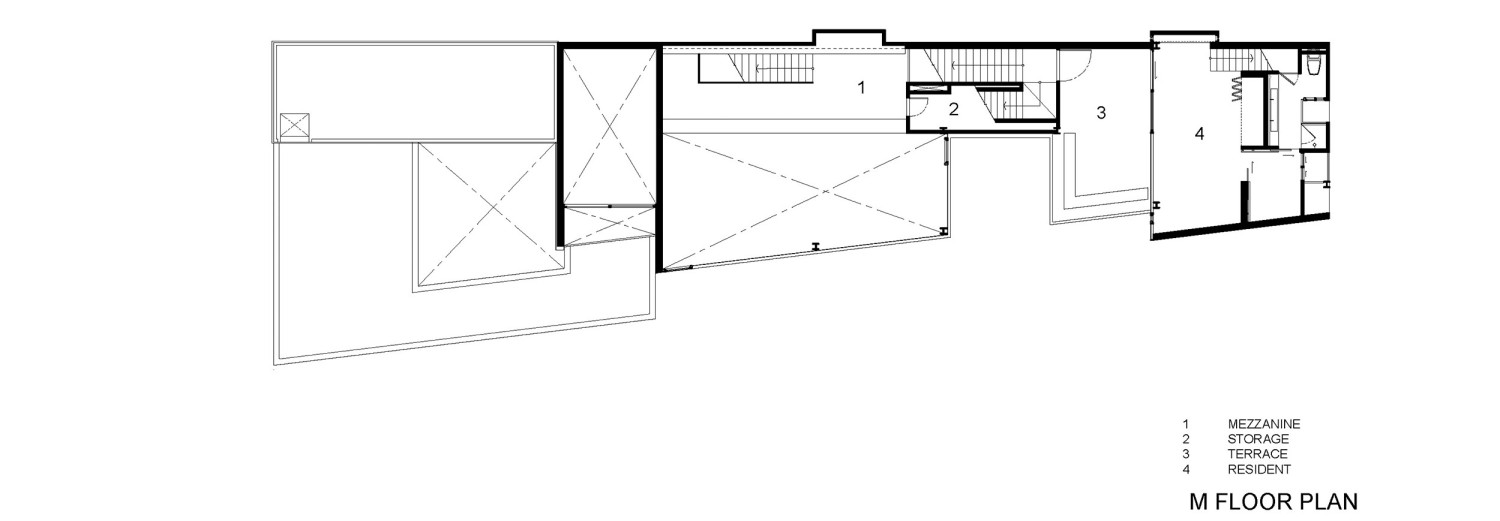

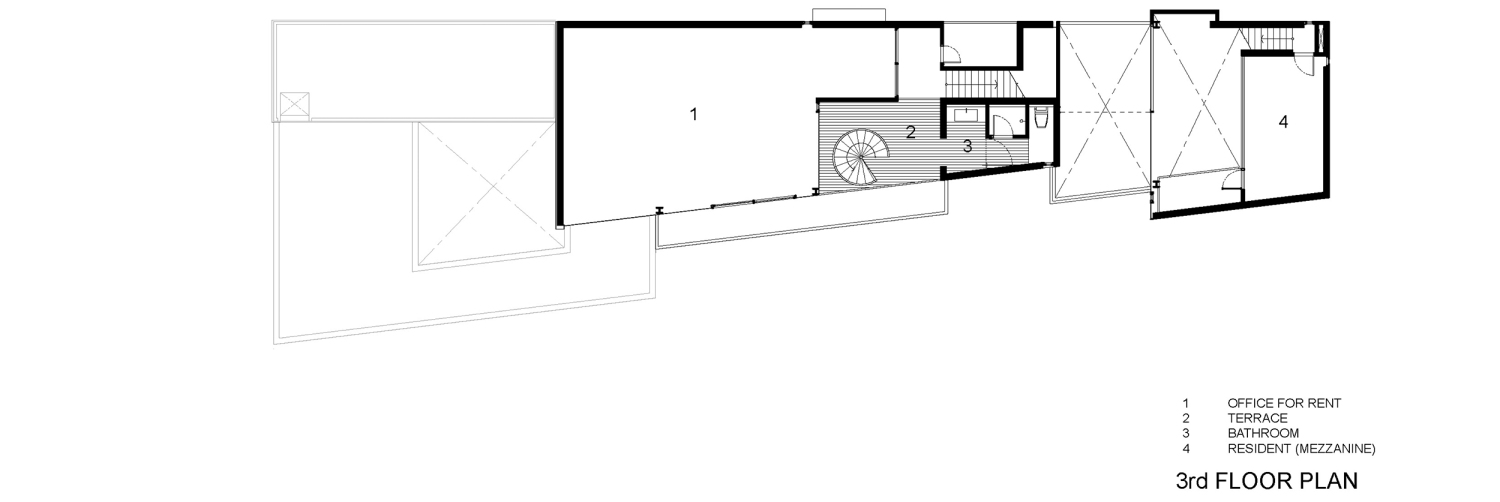

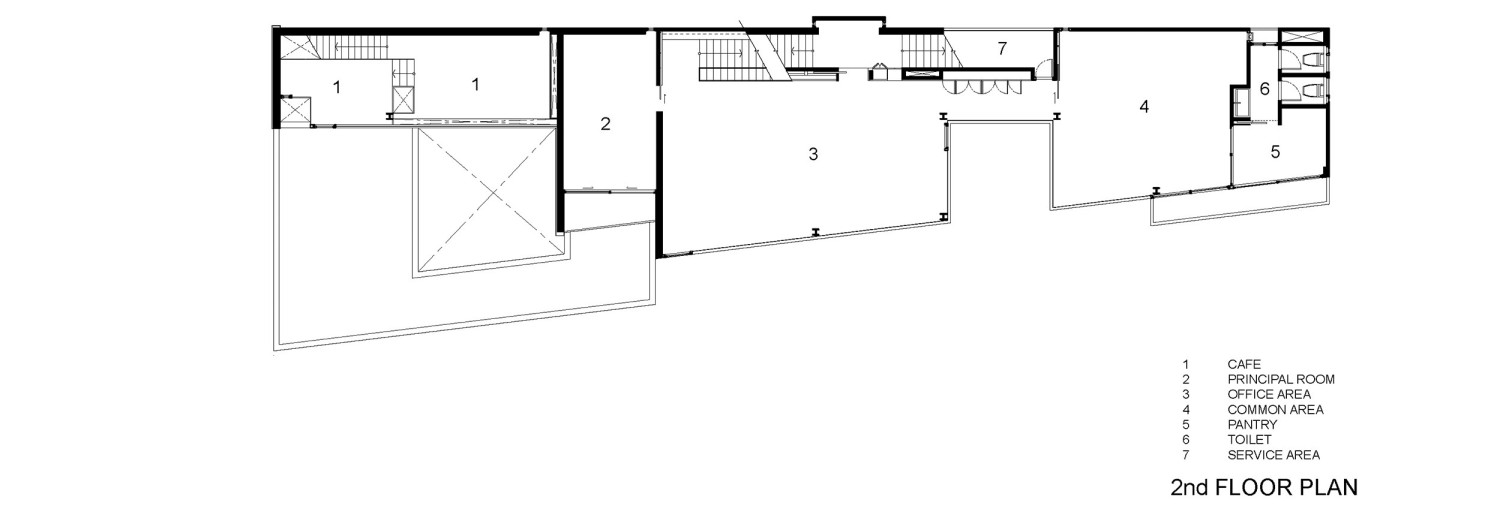

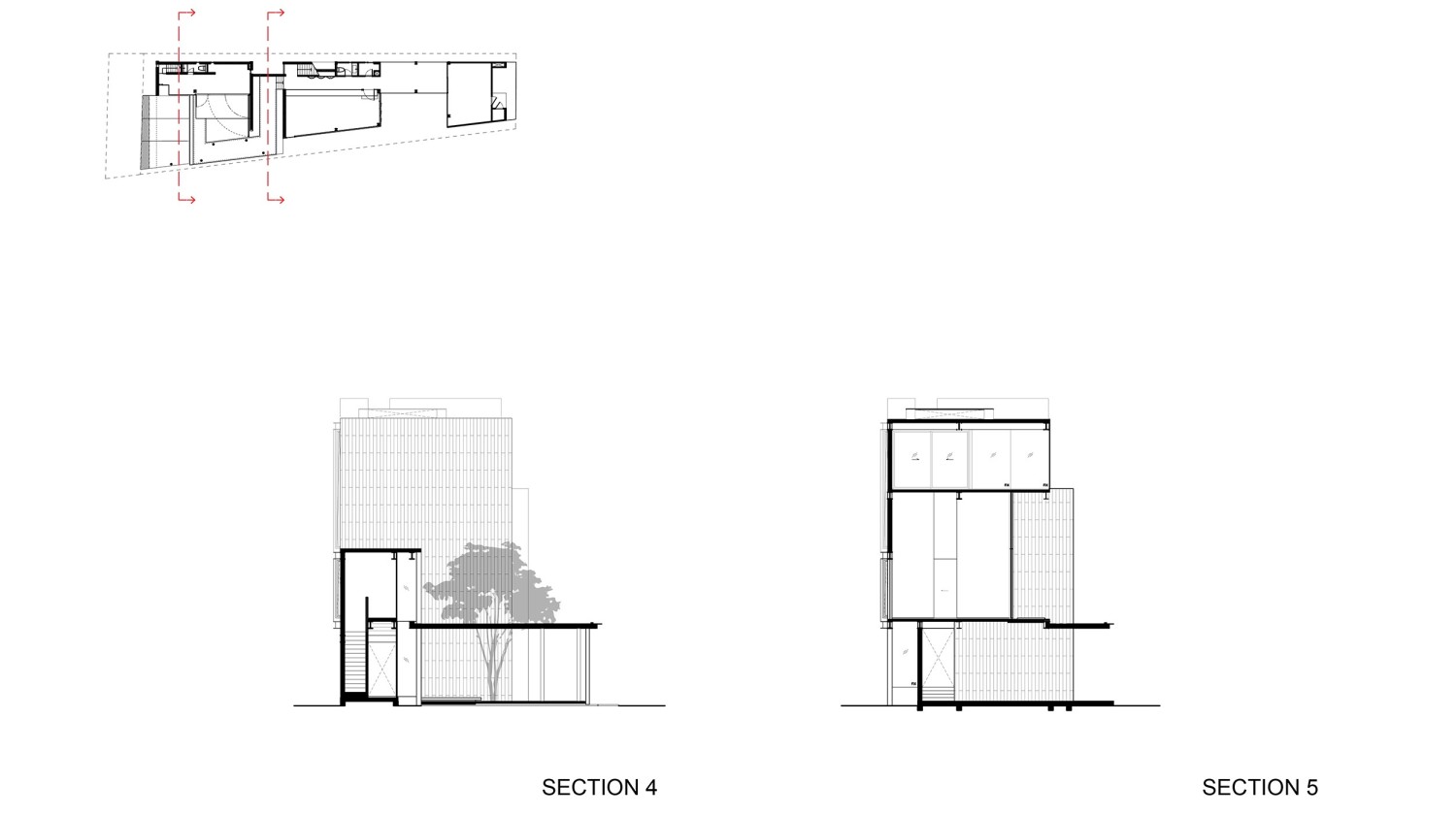

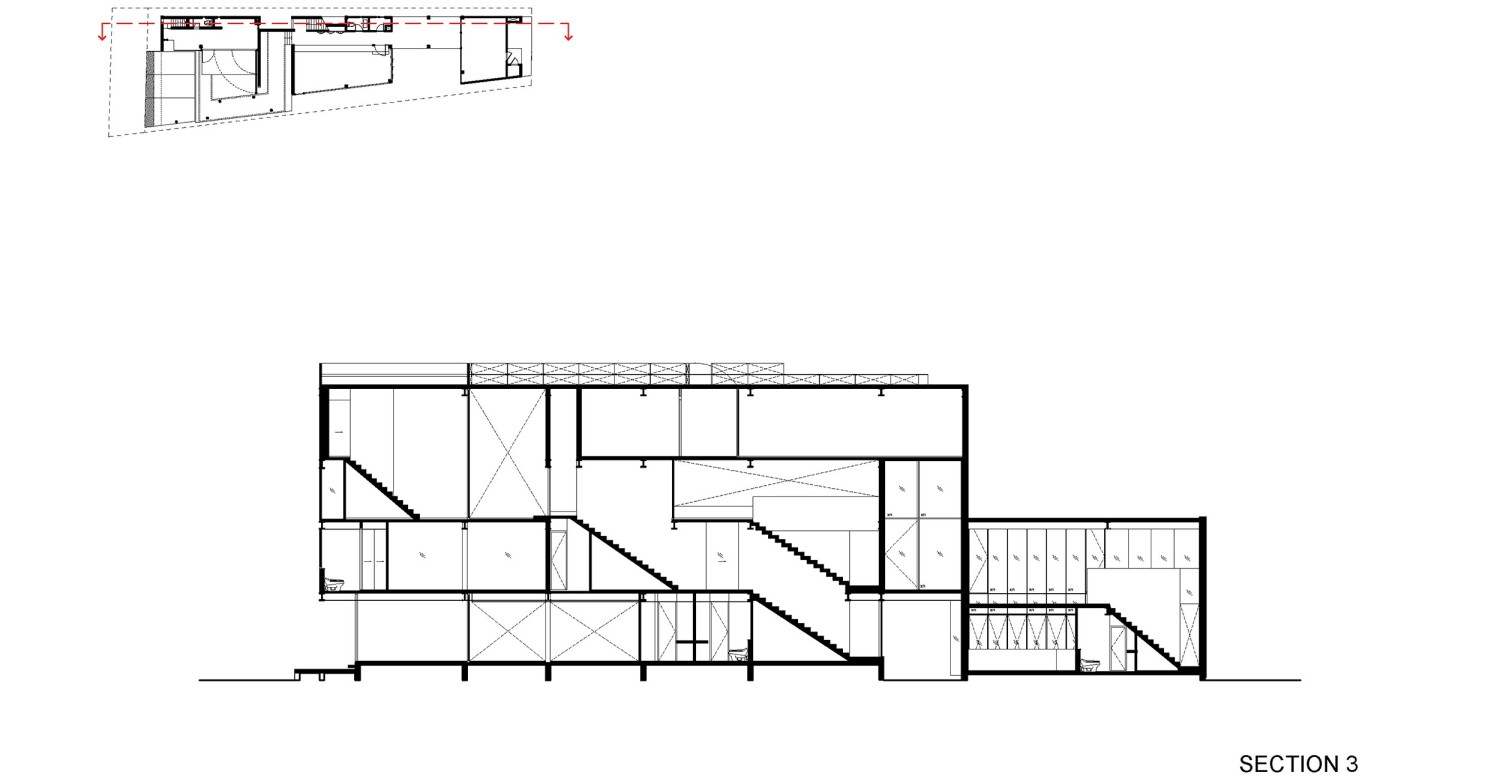

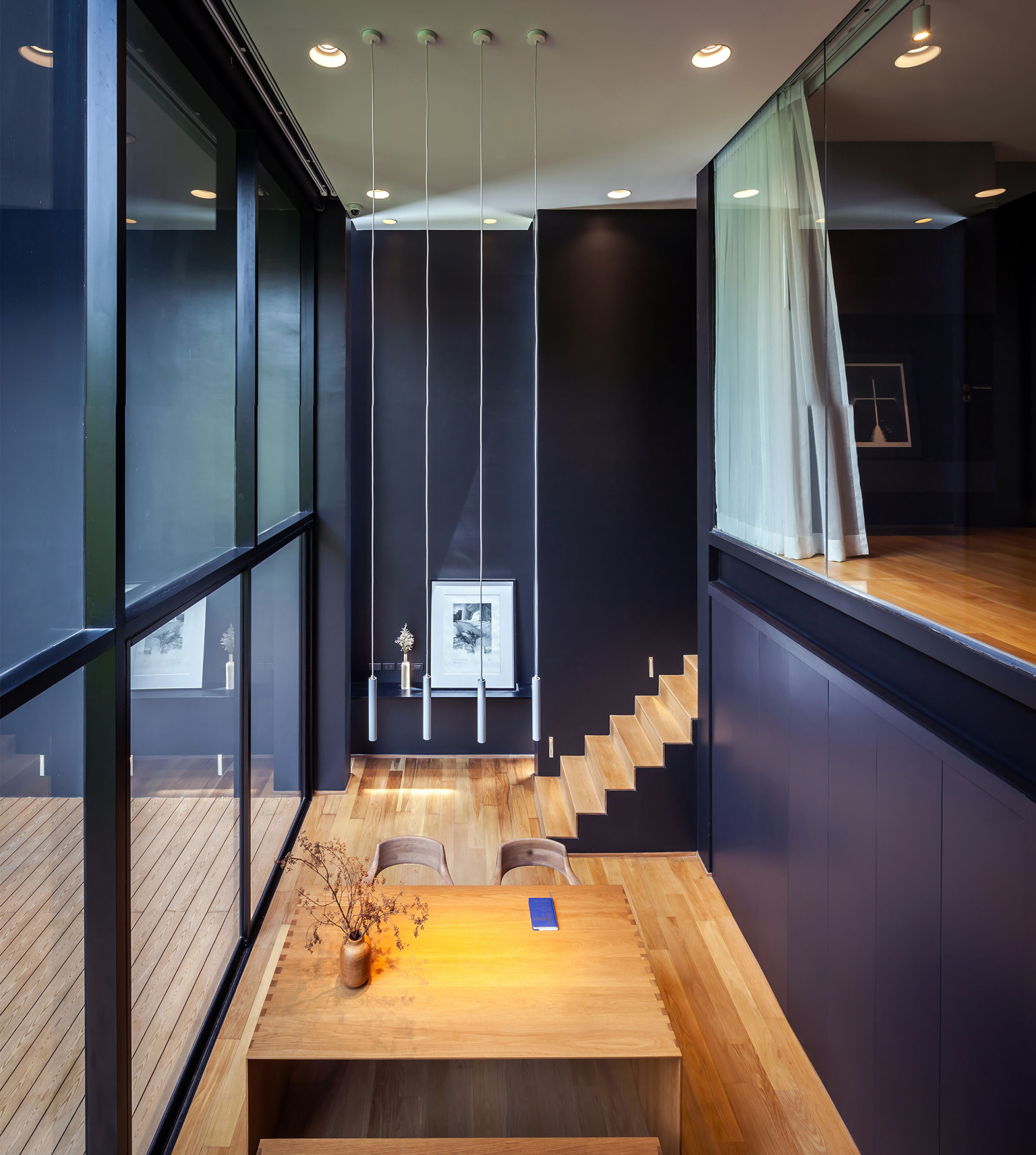

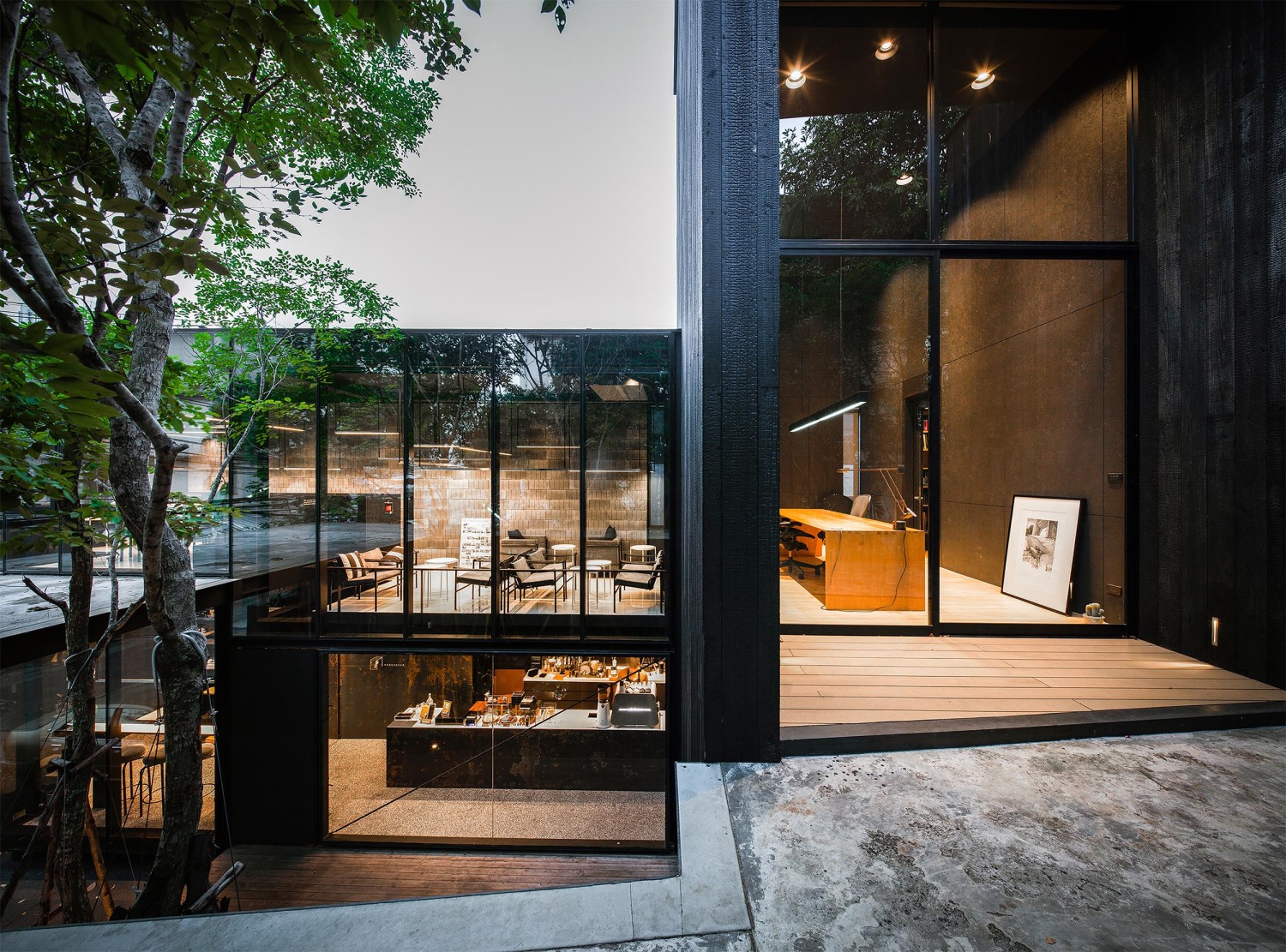

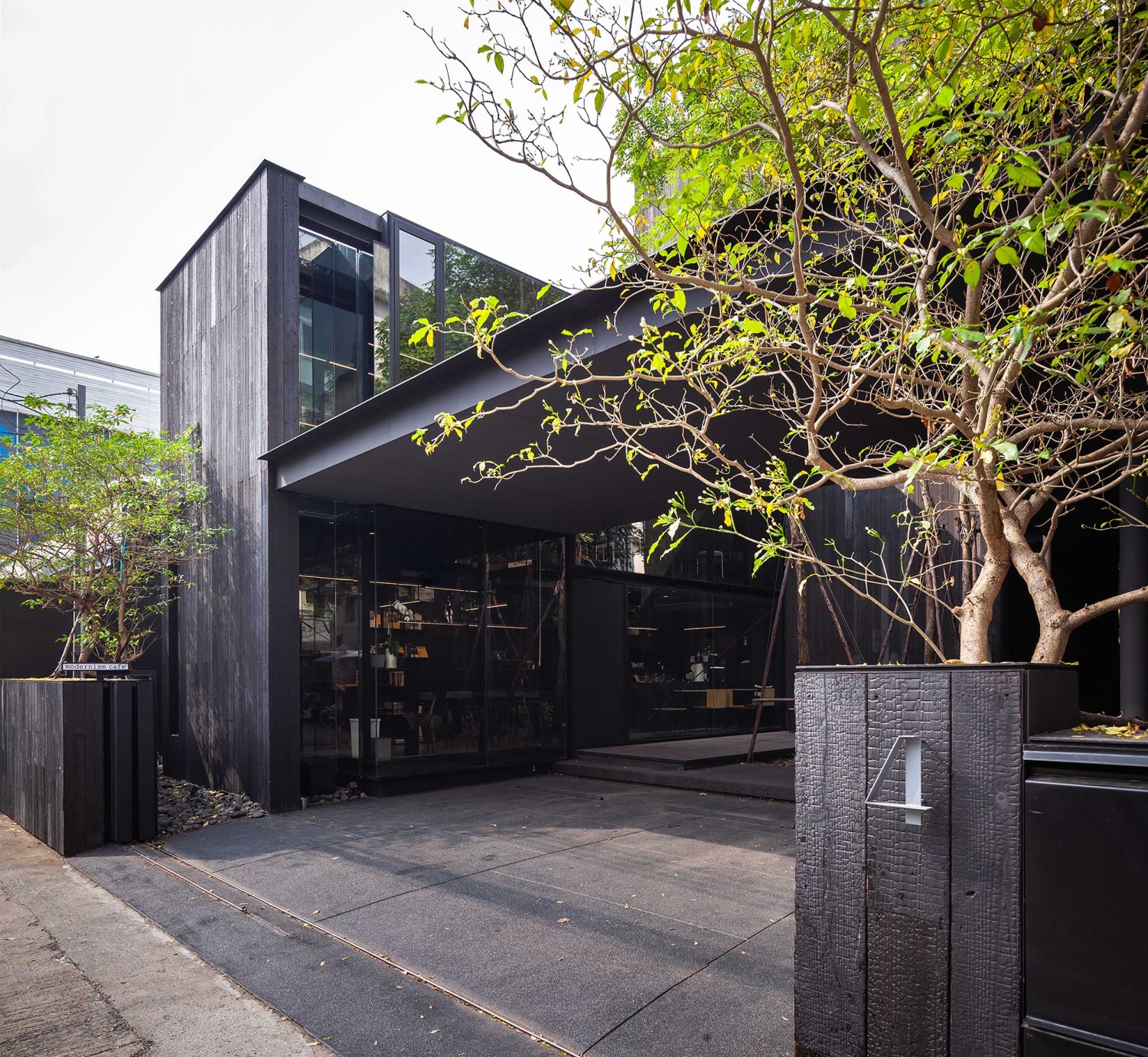

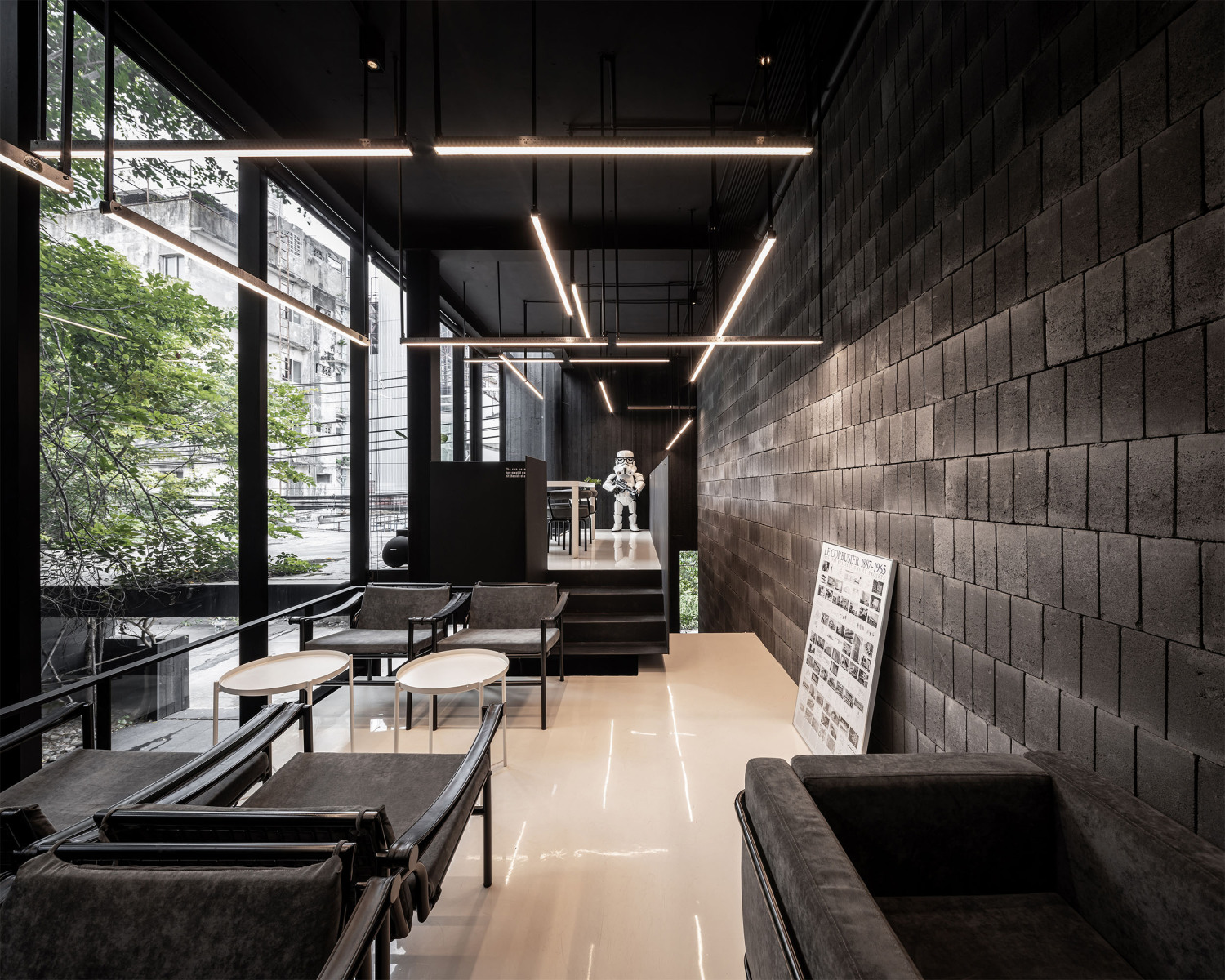

有3个层次的空间：公共，半公共和私密空间，并且在垂直和水平方向上组合空间时，会创建新的复杂空间。这样一来，访客就不会越过私人的区域。公共的空间是供公司客户使用的咖啡馆和会议室，位于一楼的前部；半公共空间是建筑师的工作空间和辅助空间，位于第二层的中间。私人空间是所有者的私人套房，位于三楼的后部区域。咖啡馆是唯一可以从正门看到的空间，其余部分将在游客穿过建筑物时分别展现出来。

There are 3 hierarchy of spaces: public, semi-public and private spaces and when combining the spaces in both vertical and horizontal direction, it creates new complex space. This allows visitors not to go over the zone. The public space, a cafe and meeting room for company clients, is on the front at the ground floor. The semi-public space, a working space and supporting space for architects, is in the middle on the second floor. The private space, a private suite for the owner, is in the rear zone on the third floor. The cafe is the only function can be seen from the main entrance, the rest will reveal itself respectively as visitors walking through the building.

©SPACESHIFT STUDIO

©KETSIREE WONGWAN

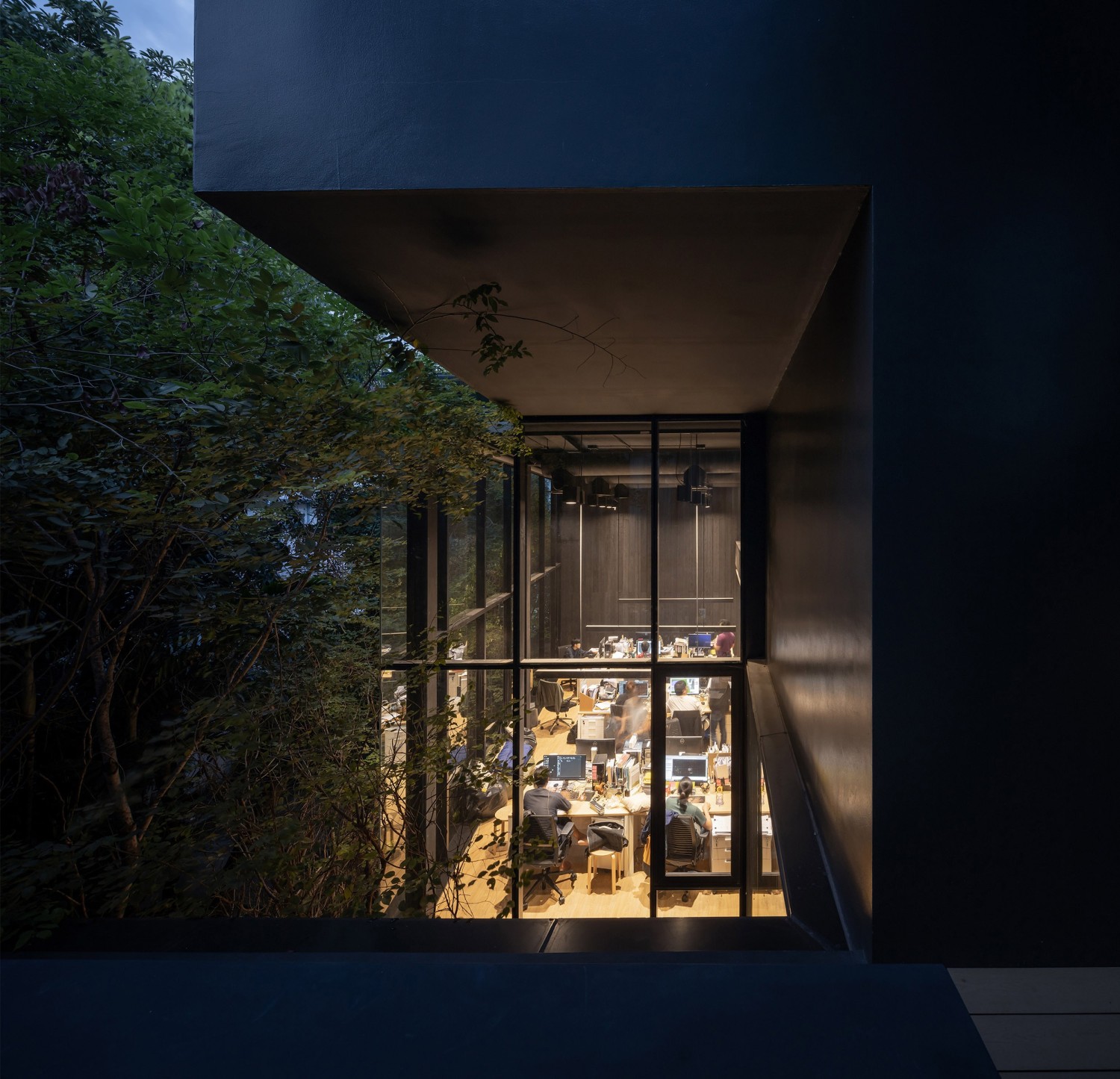

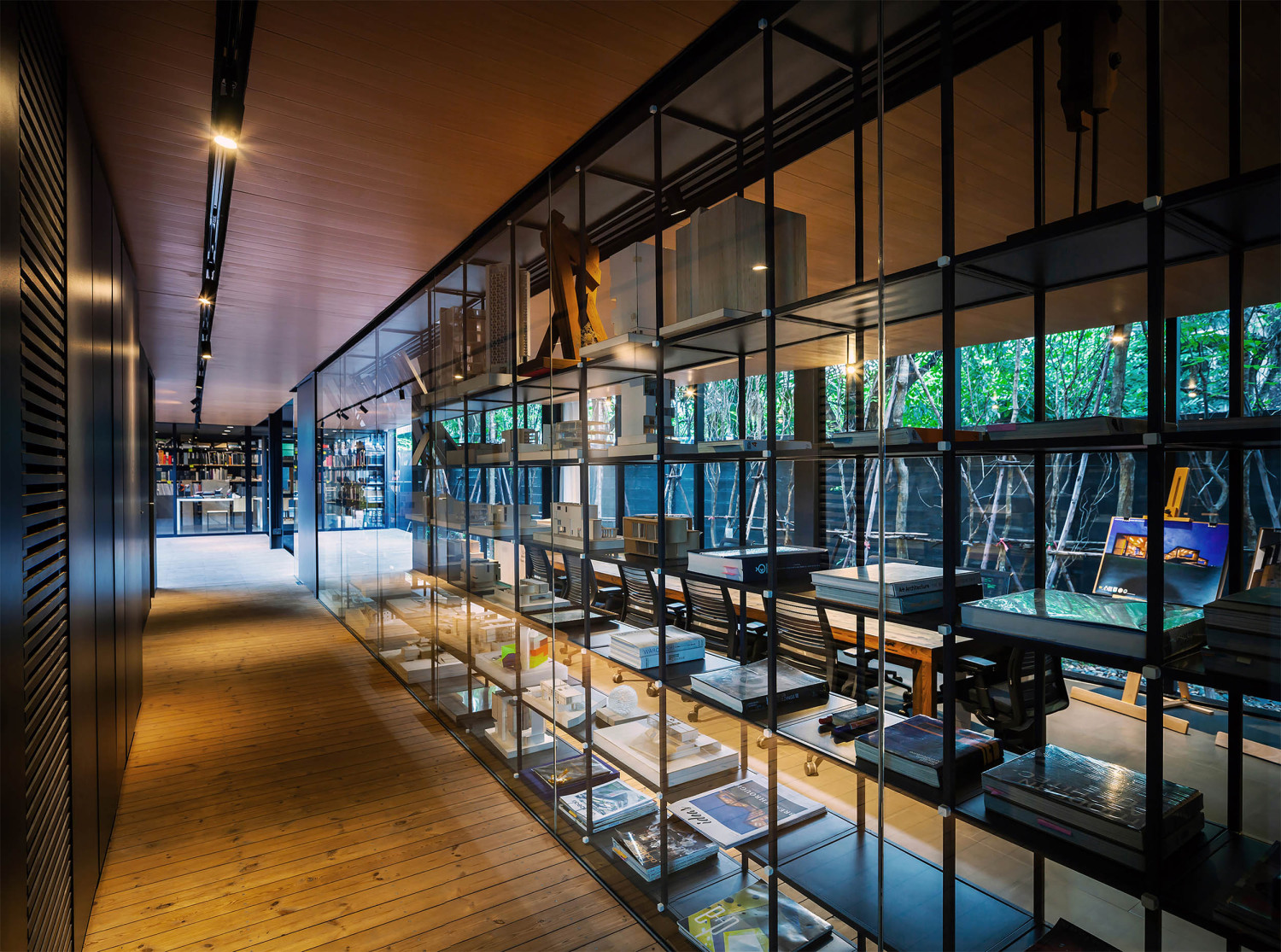

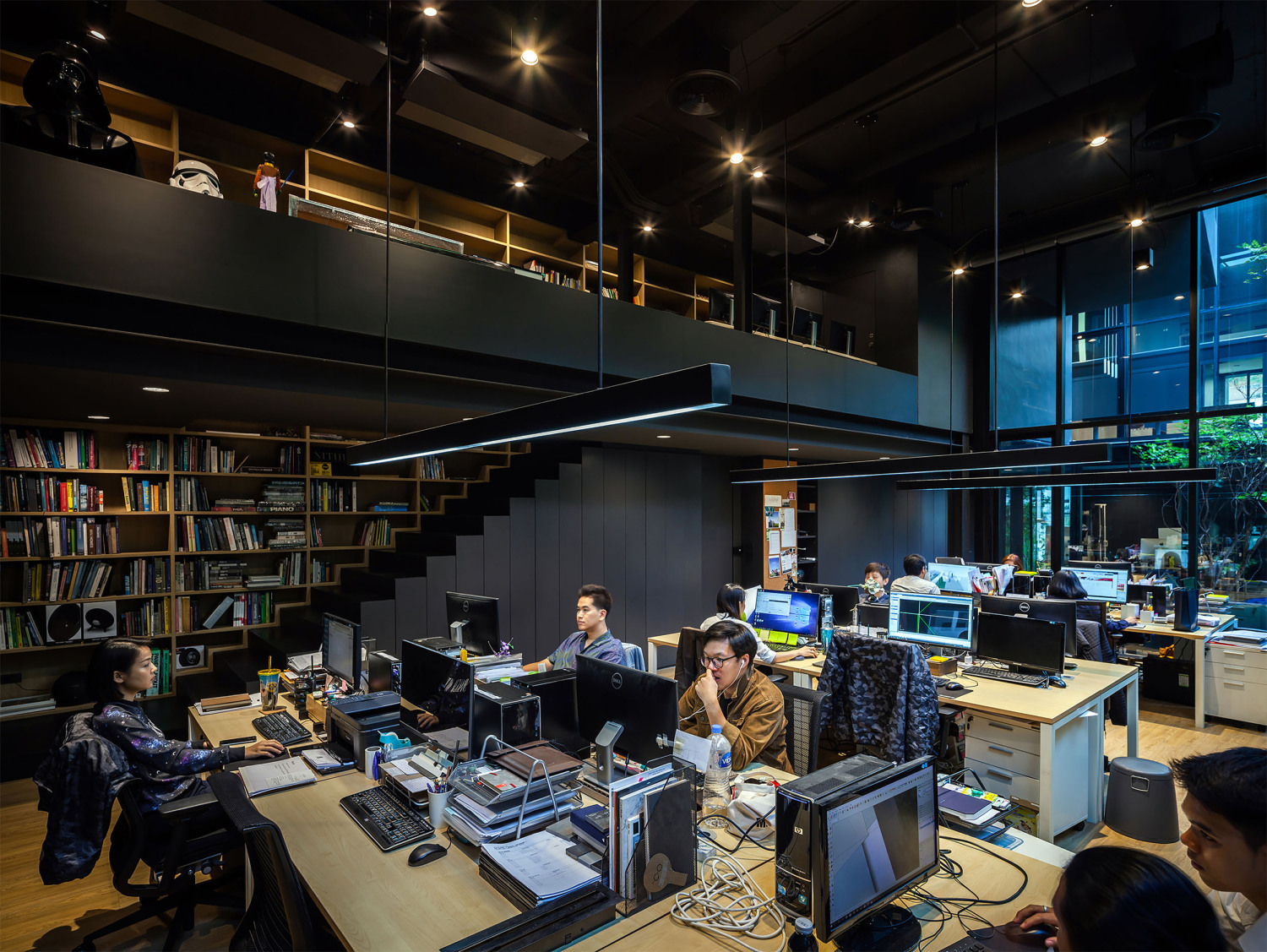

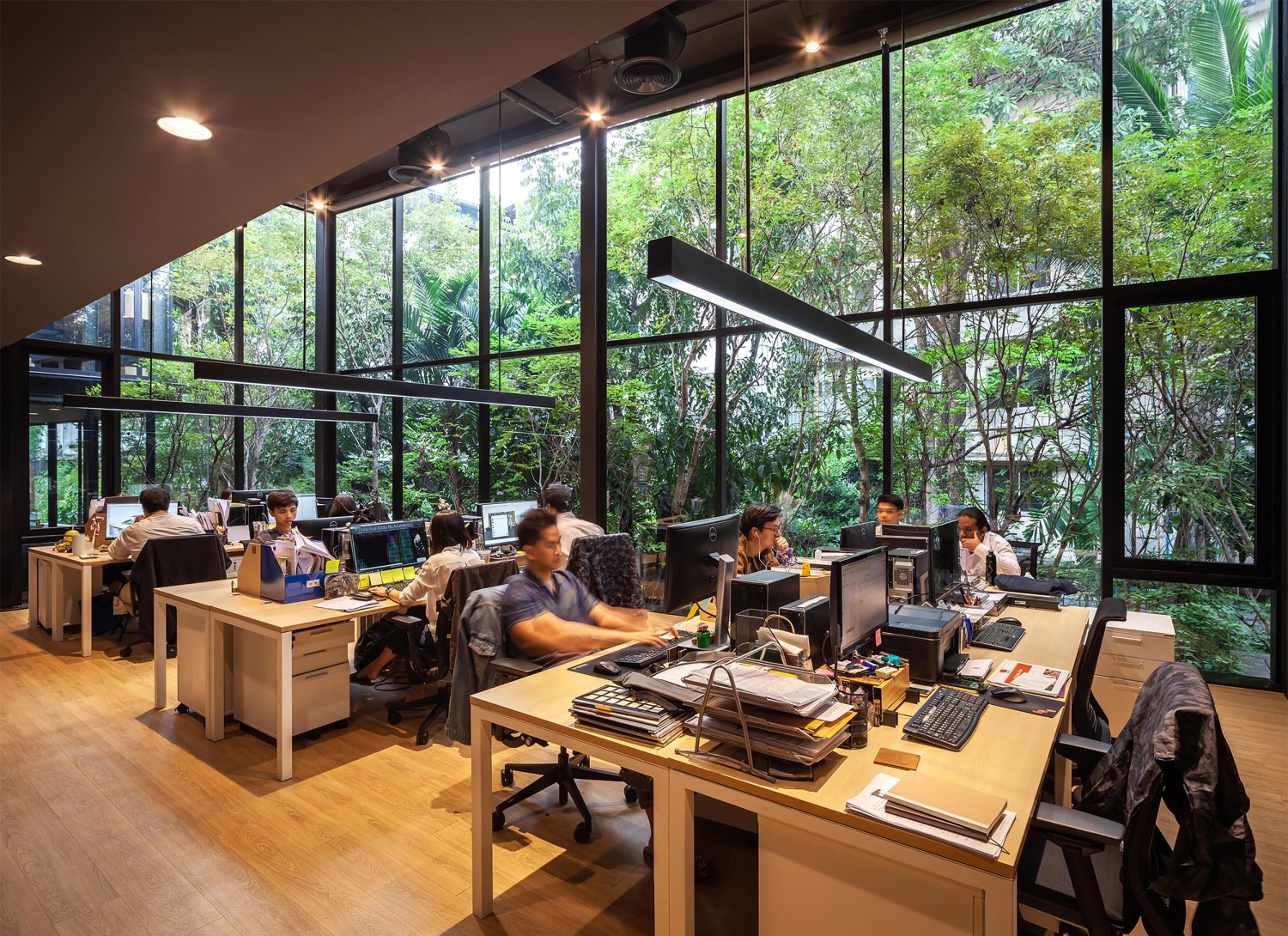

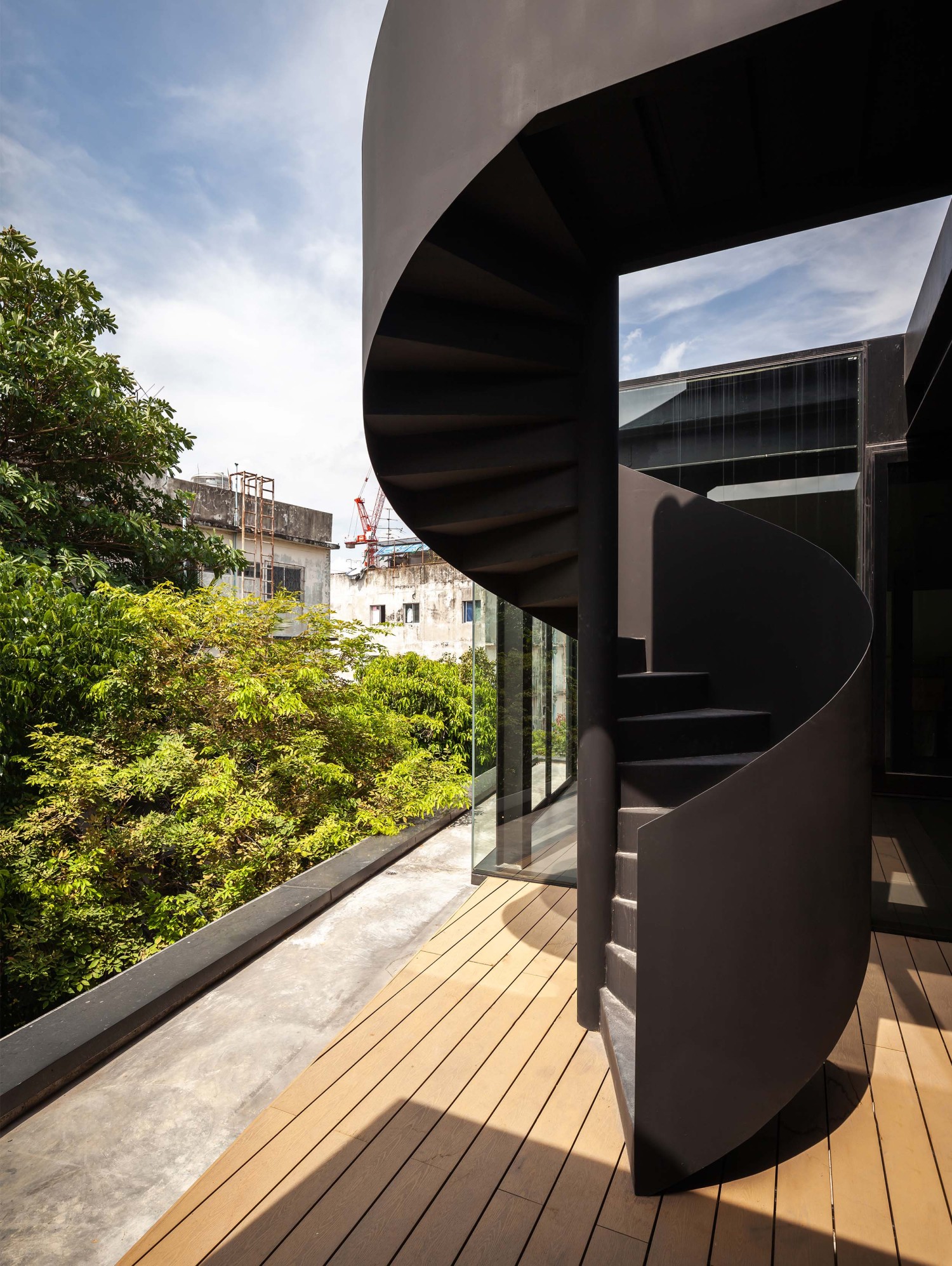

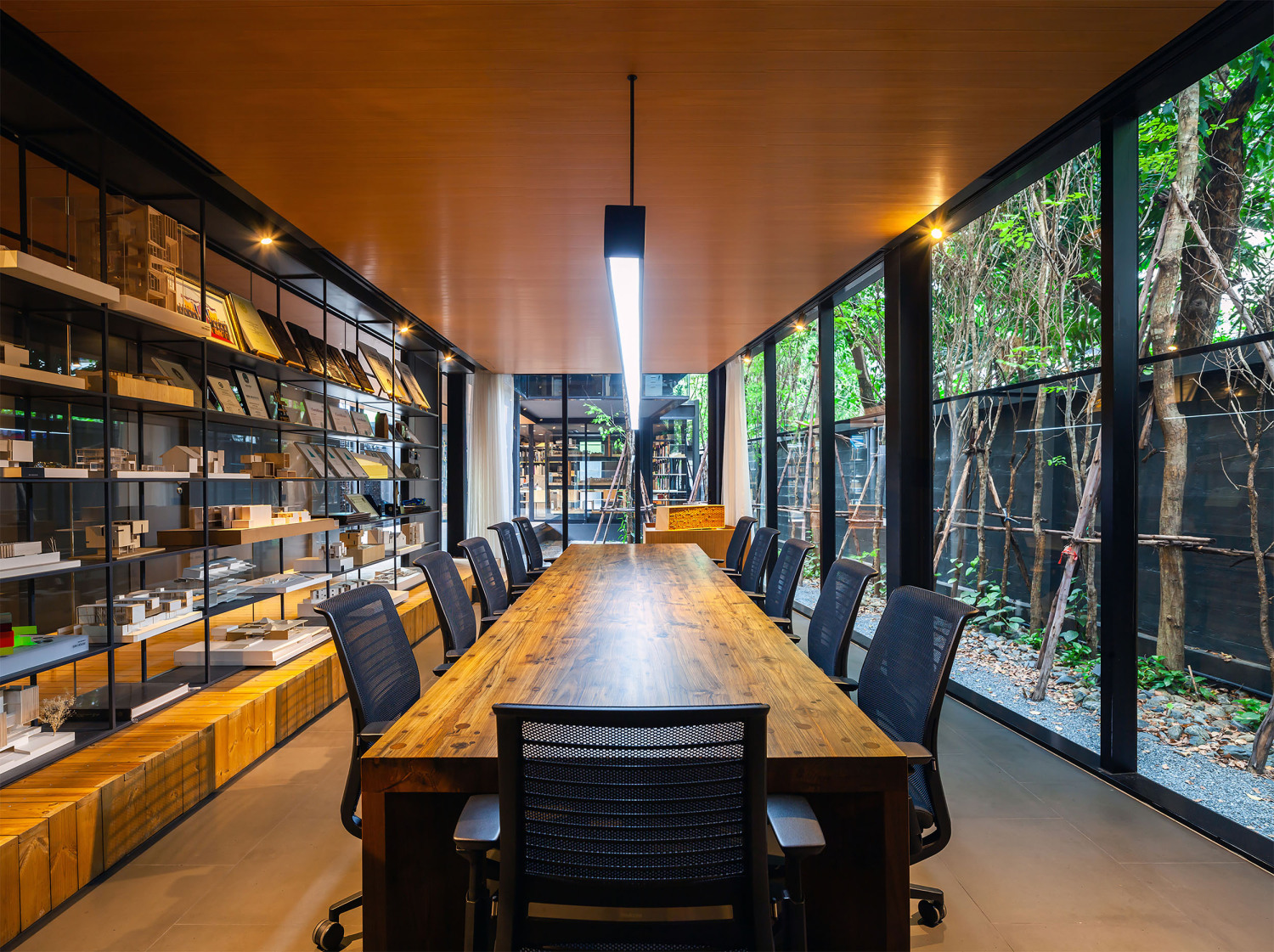

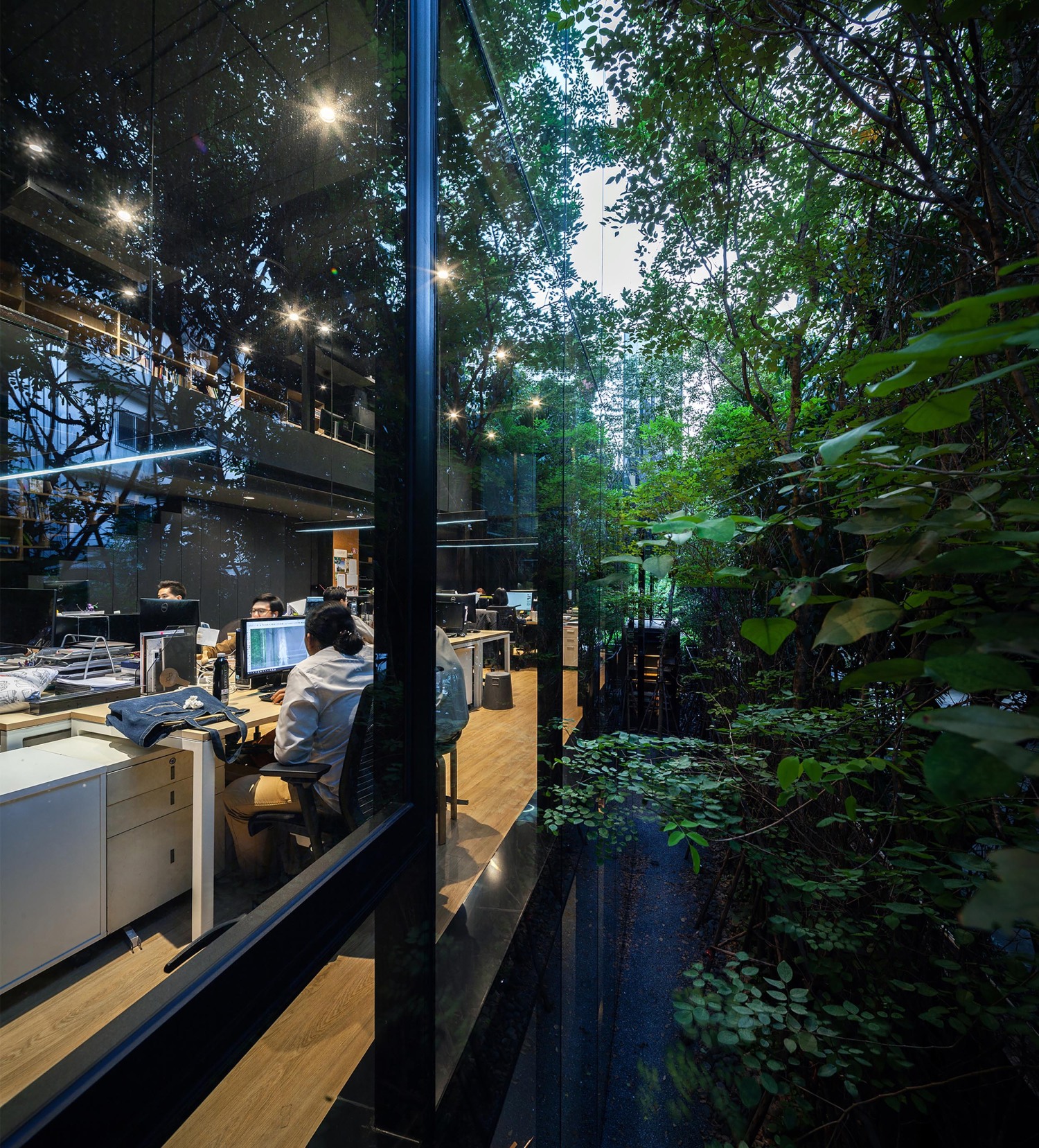

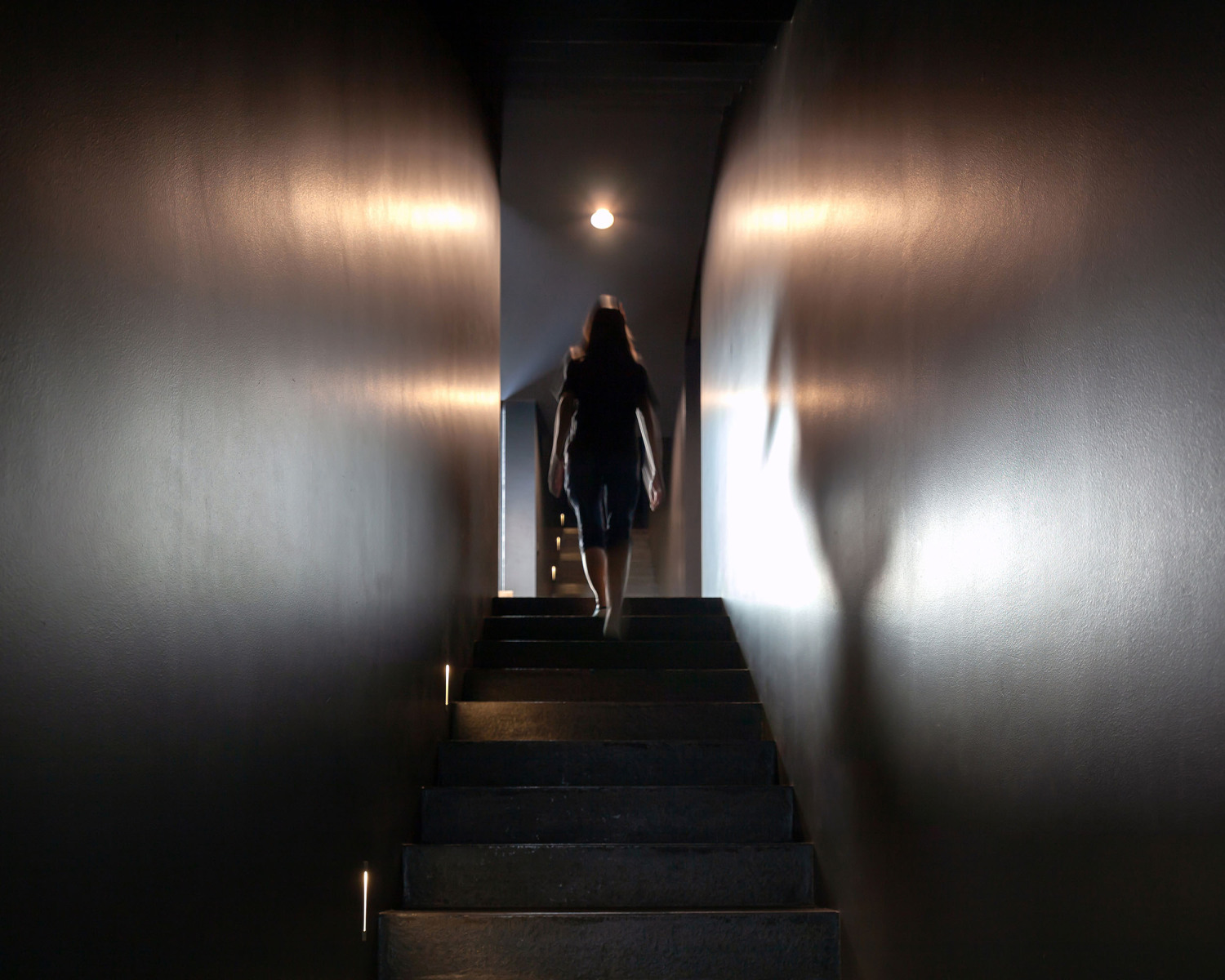

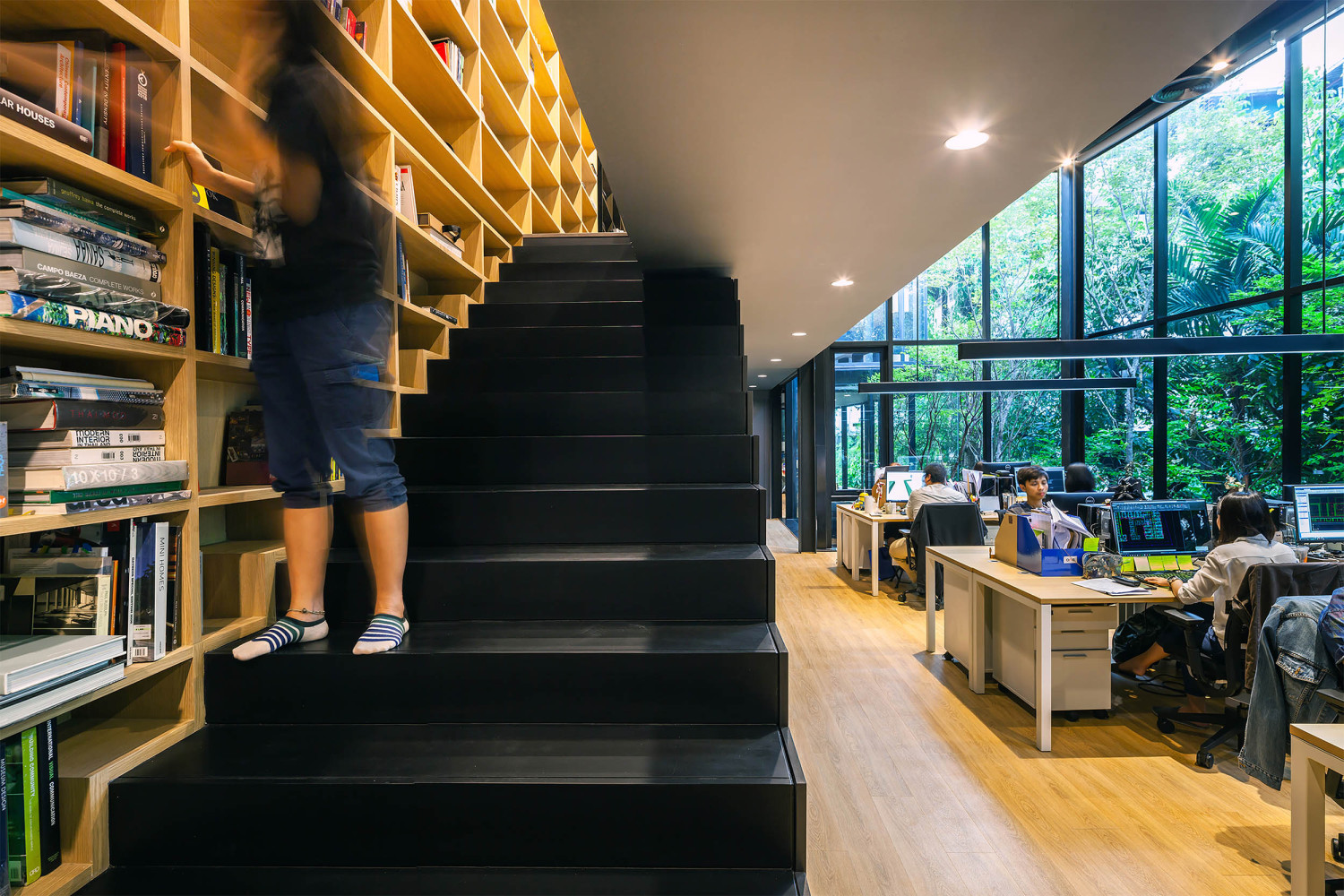

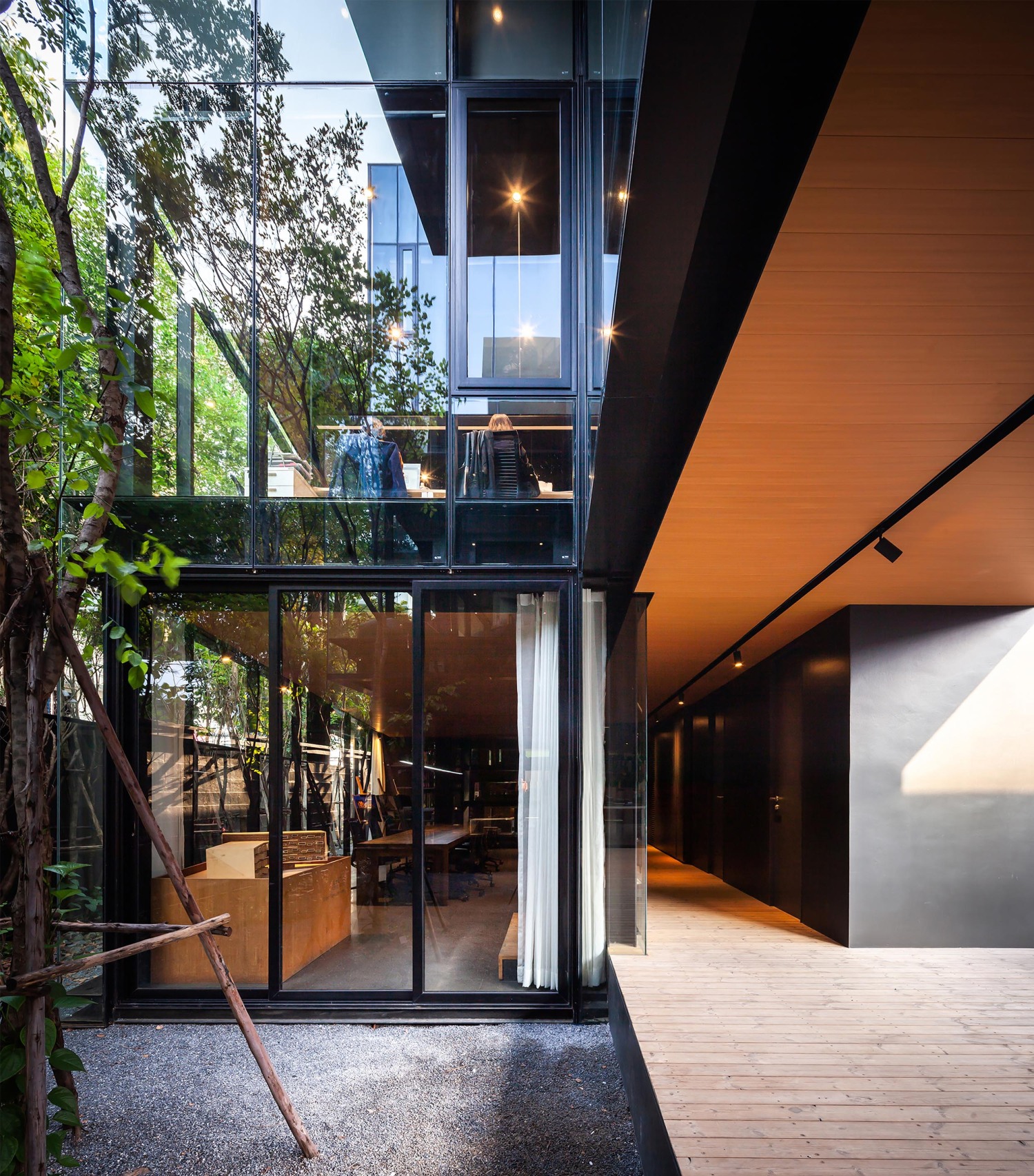

项目的核心空间，既建筑师的工作空间应该是一个舒适的空间。具有轻松的氛围，良好的光线质量和舒适的温度，适合进行创造性的工作。为此，该区域被面向北的玻璃墙所包围，可以看到整个绿化景观和优质的北向光源。相反，为了阻止白天来自西方和南方光线的强烈热量，建筑物的几乎所有西侧都是坚固的墙壁和楼梯。楼梯是将各个功能联系在一起的主要环流，沿南边排列。楼梯中的每个节点都位于重要平台上，例如楼梯平台，位于走廊的拐角处或工作区入口大厅中，以使自然光进入内部空间。这种功能的组织可以防止工作空间直接受热，但仍可以观赏绿色景观并获得优质的光线。

The architects working space, the heart of the building, is supposed to be a suitable space; have a relaxed atmosphere, good quality of light and comfort temperature, for creative work. To achieve that, this area is enclosed with the Low-E glass wall facing the north for entire greenery view and the quality north light. Conversely, in order to block the harsh heat from the western and southern light during the day, almost all the west side of the building is a solid wall and a staircase. The staircase which is the main circulation that link every function together is aligned along the south. Each void in the staircase is located on the significant platforms, such as a stair landing, in the corner of the corridor or the working area entrance hall, to let the natural light into the interior space. This organisation of functions prevent the working space from getting the heat directly but still allow viewing a greenery view and getting the quality light.

©SPACESHIFT STUDIO

©KETSIREE WONGWAN

©SPACESHIFT STUDIO

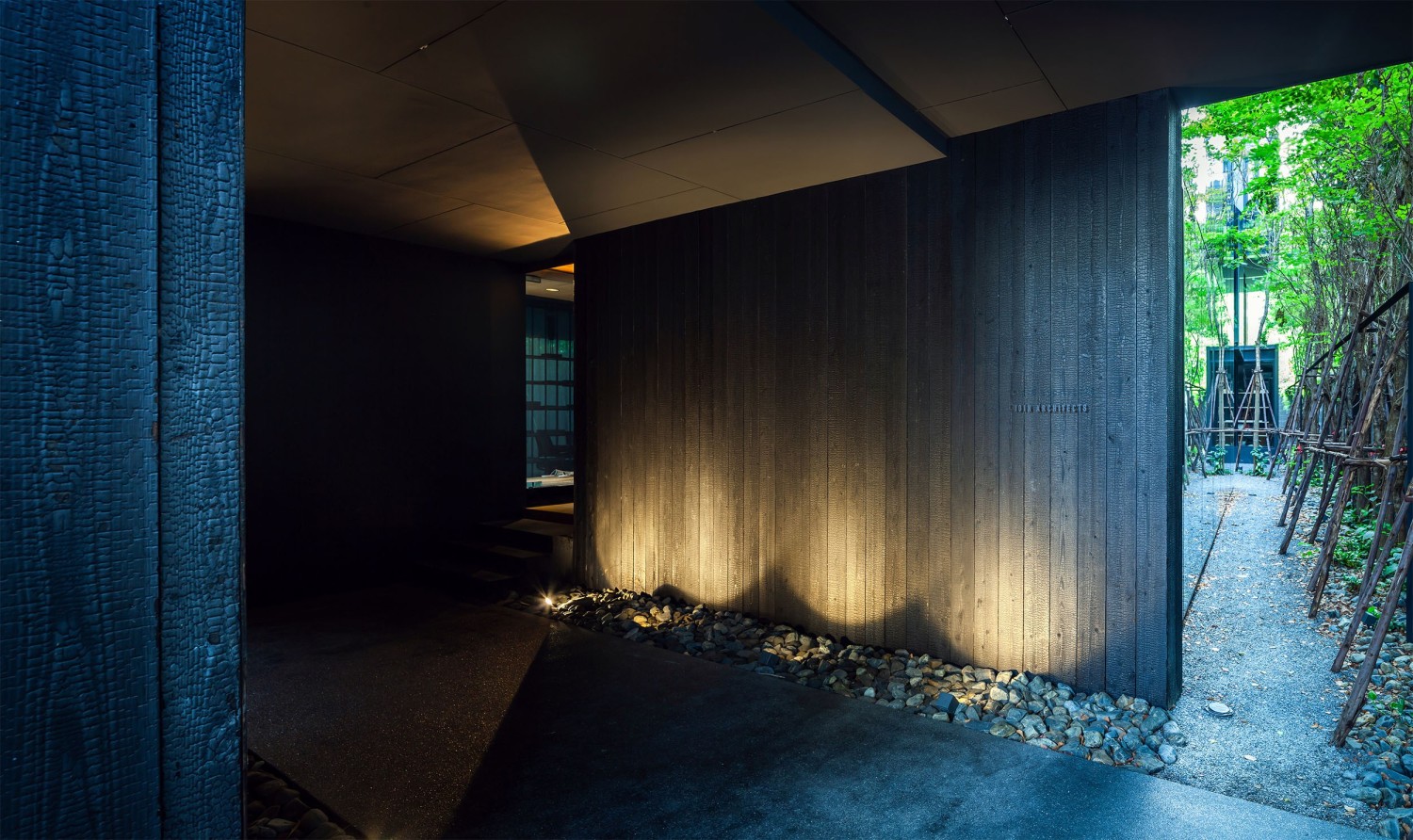

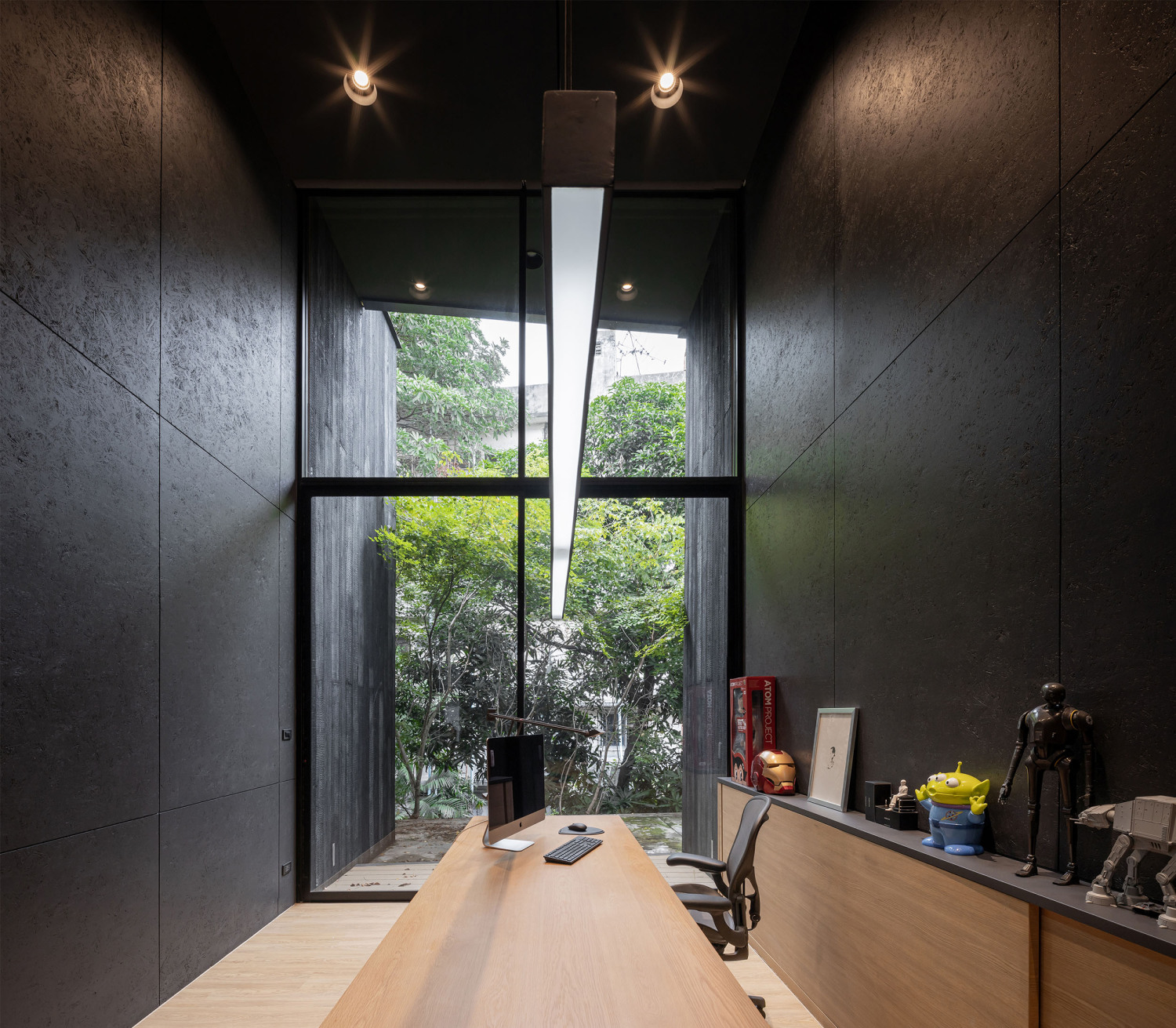

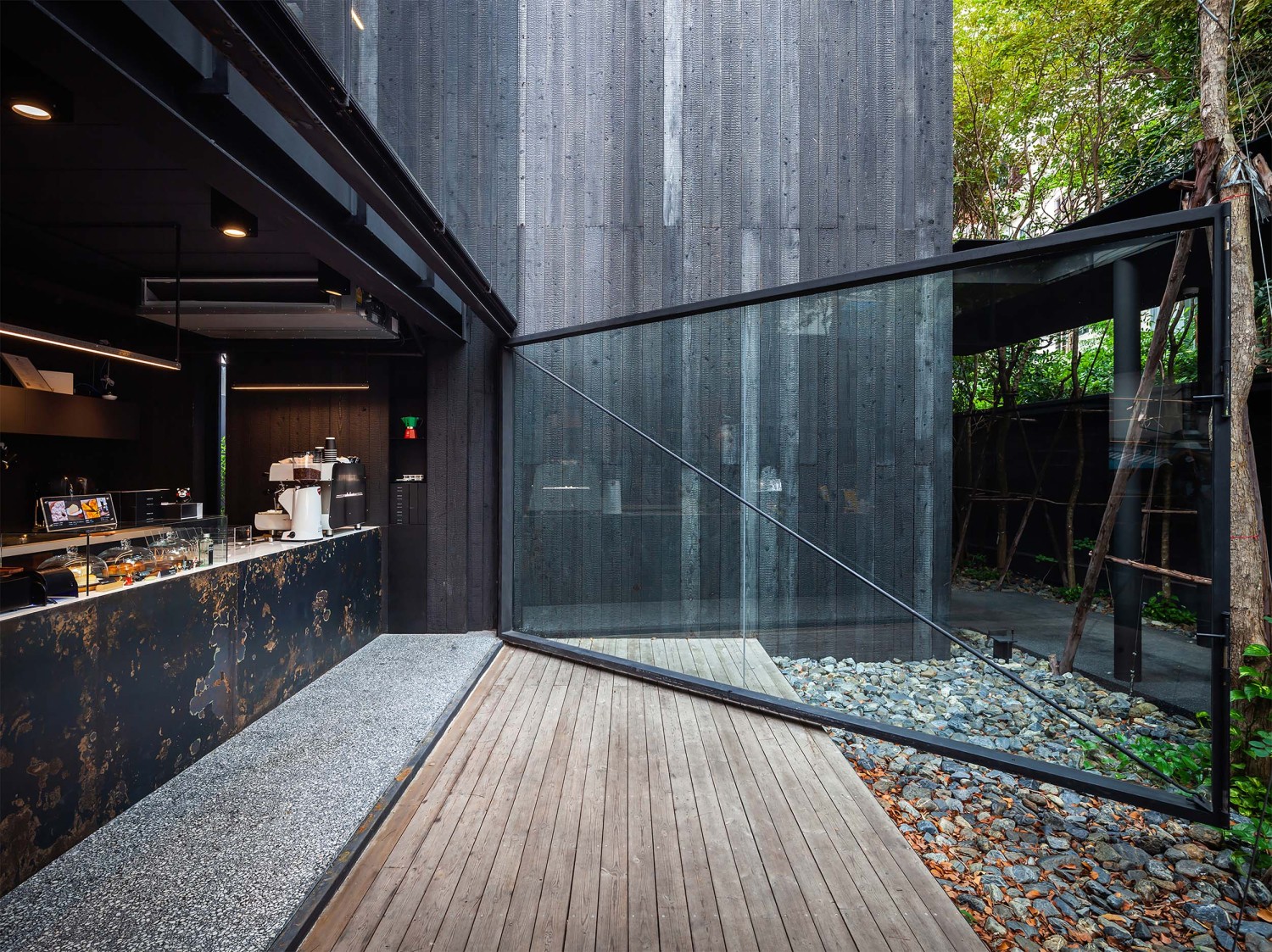

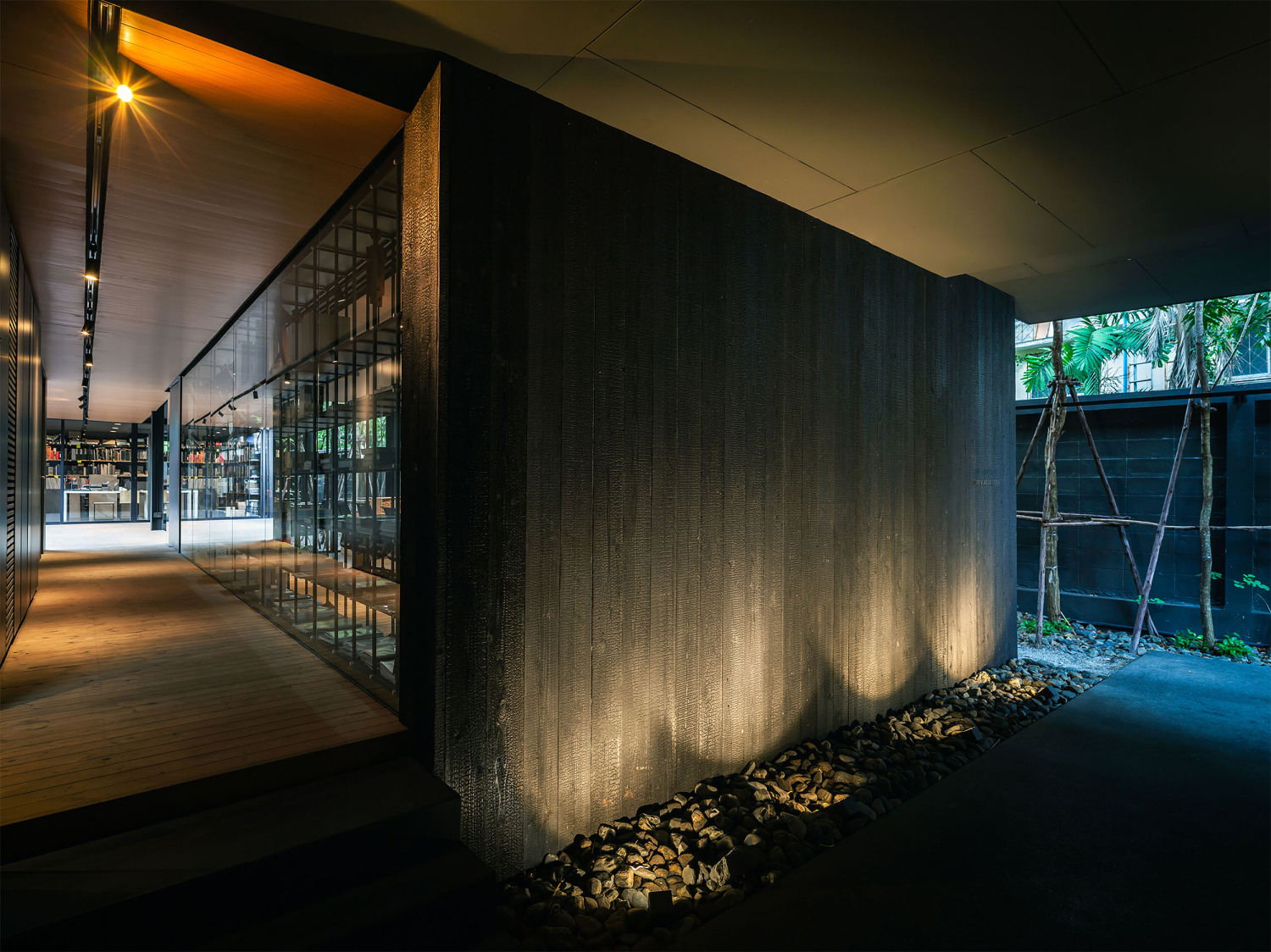

另一个重要的设计过程是选择从实体外墙到室内空间连续饰面的主体功能墙材料。这种材料要求是深色，以隐藏周围遵循的主要思想。选择燃烧的雪松林是因为它们代表了建筑师独特的设计思维方式。更进一步的解释是，它独特的黑色和纹理不是来自绘画或着色，而是来自于保护木板不受火和白蚁侵害的燃烧过程的结果。同样，IDIN建筑师认为，建筑应该是基于功能、现场环境和程序简单而诚实地解决问题的结果。

Another significant design process is selecting material of the main feature wall which finishes continuously from solid exterior wall to interior space. This material is required to be dark colour to hide from the surrounding follow the main idea. The burnt cedar woods are chosen because they represent the IDIN architects' ways of design thinking distinctively. To explain more, its unique black colour and texture do not come from painting or colouring, but from the result of the burning process which protect plank from fire and termite. In the same way, IDIN architects believe that the architecture should be the result of the problem solving based on function, site context and the program simply and honestly.
