拱形住宅：Bewboc House

公司：	Fabian Tan Architect	类型：	建筑
地区：	马来西亚	标签：	别墅私宅

这是一栋位于马来西亚吉隆坡的郊区平台房，业主是一个年轻的家庭，他们要求尽量减少干预。我们的设计方法是重新想象一个适合转角屋的形式，并重新利用地面的生活空间。

A suburban terrace house in Kuala Lumpur, Malaysia owned by a young family who requested for minimal intervention. The approach was to reimagine a form befitting a corner house and to re-purpose the living spaces on ground level.

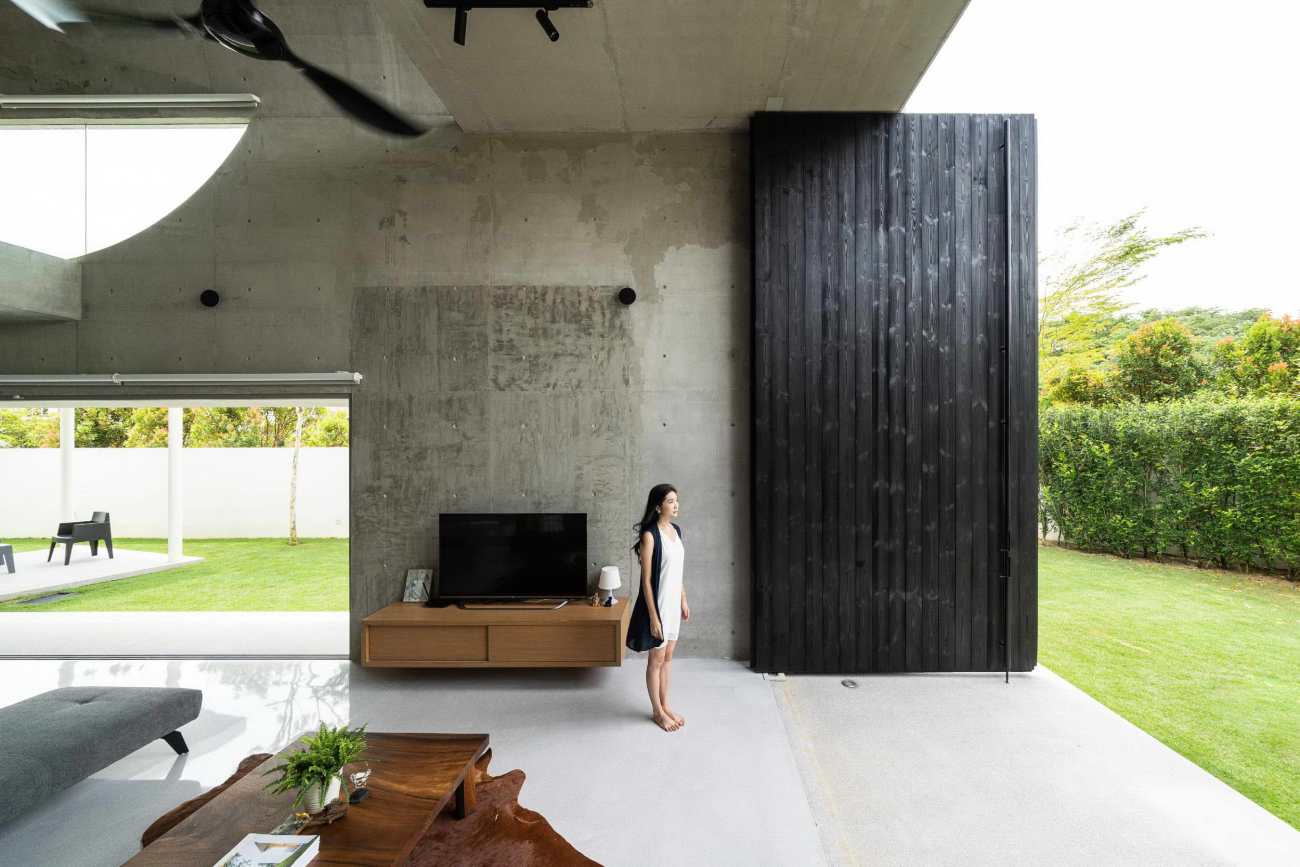

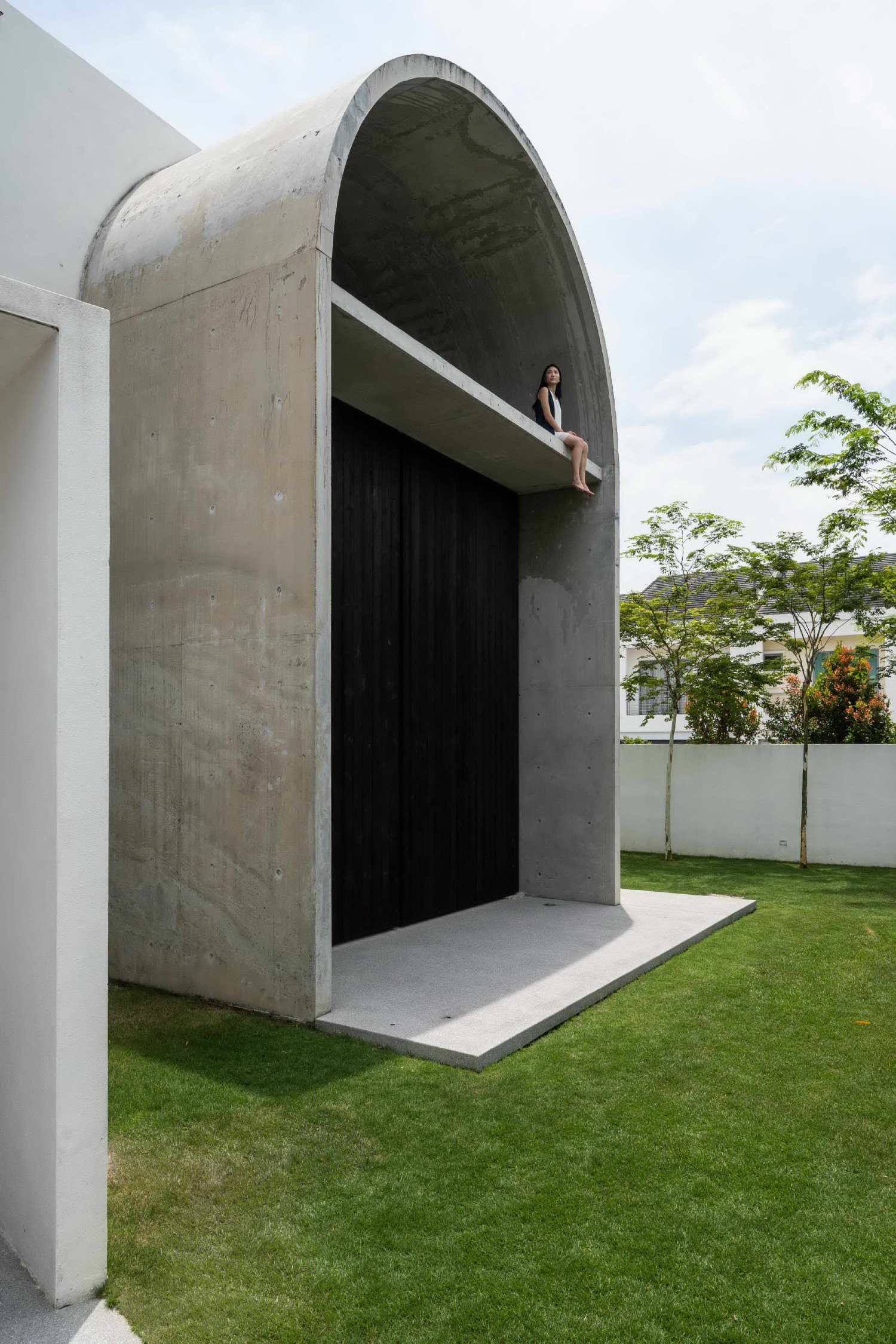

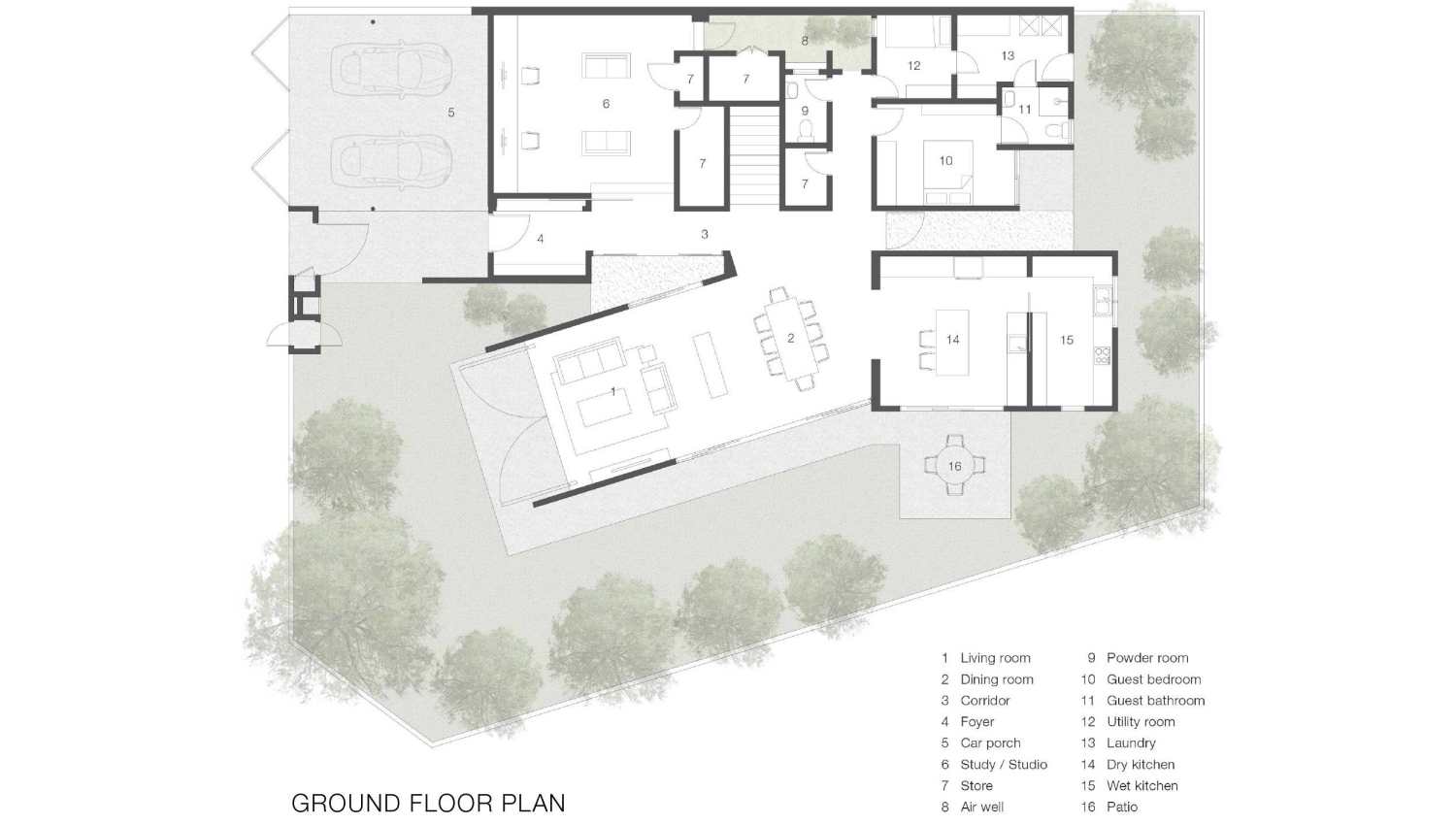

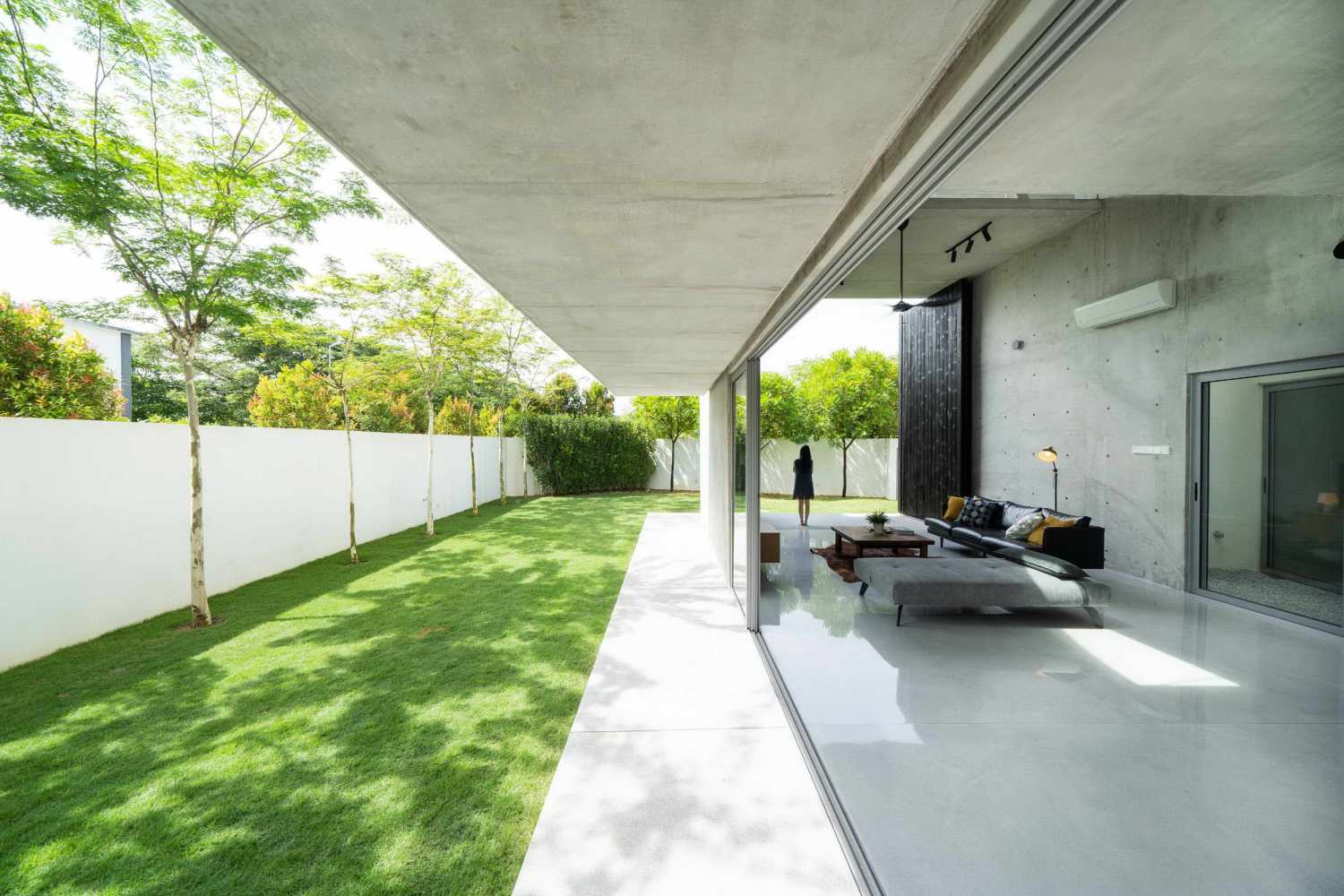

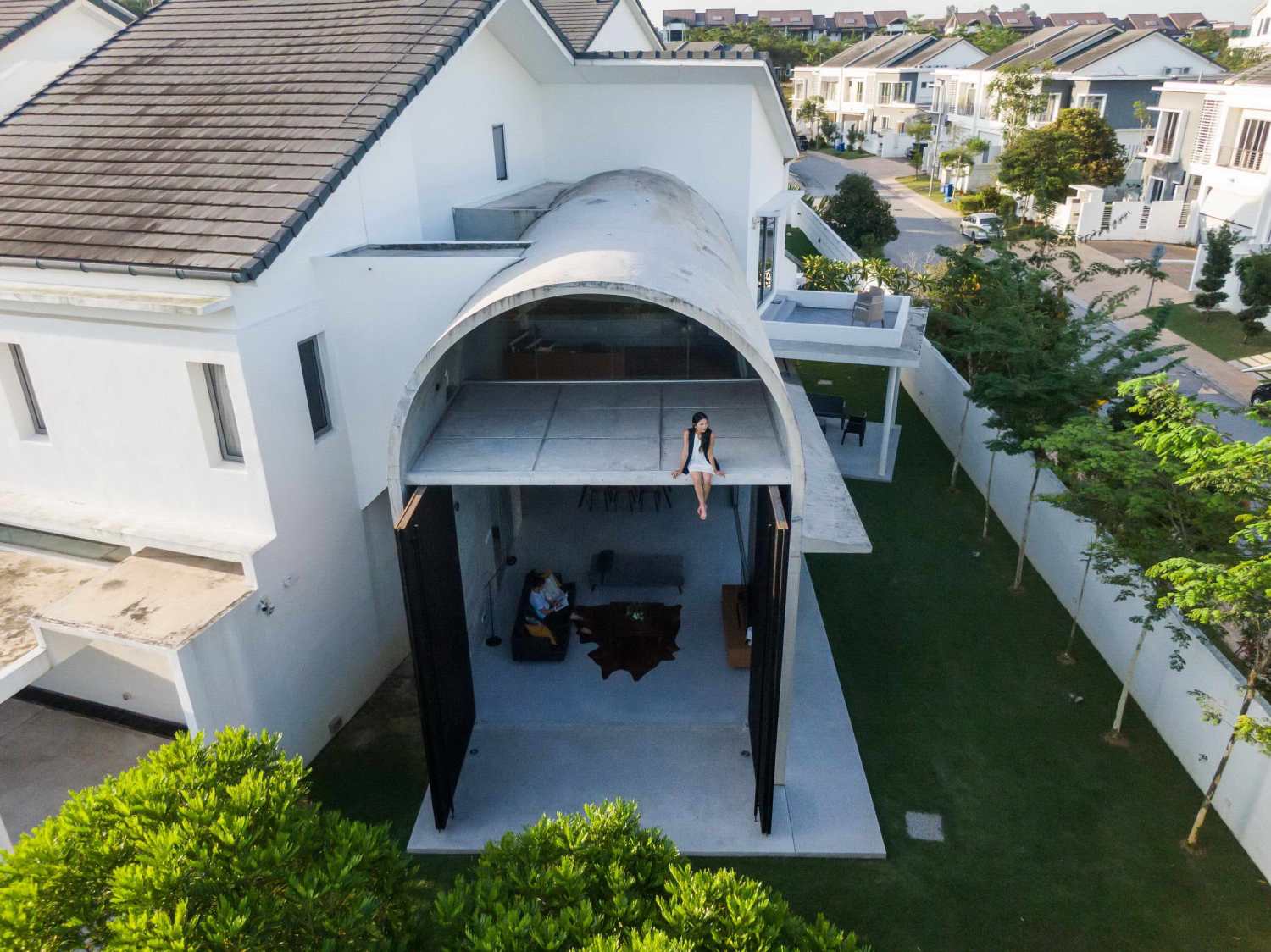

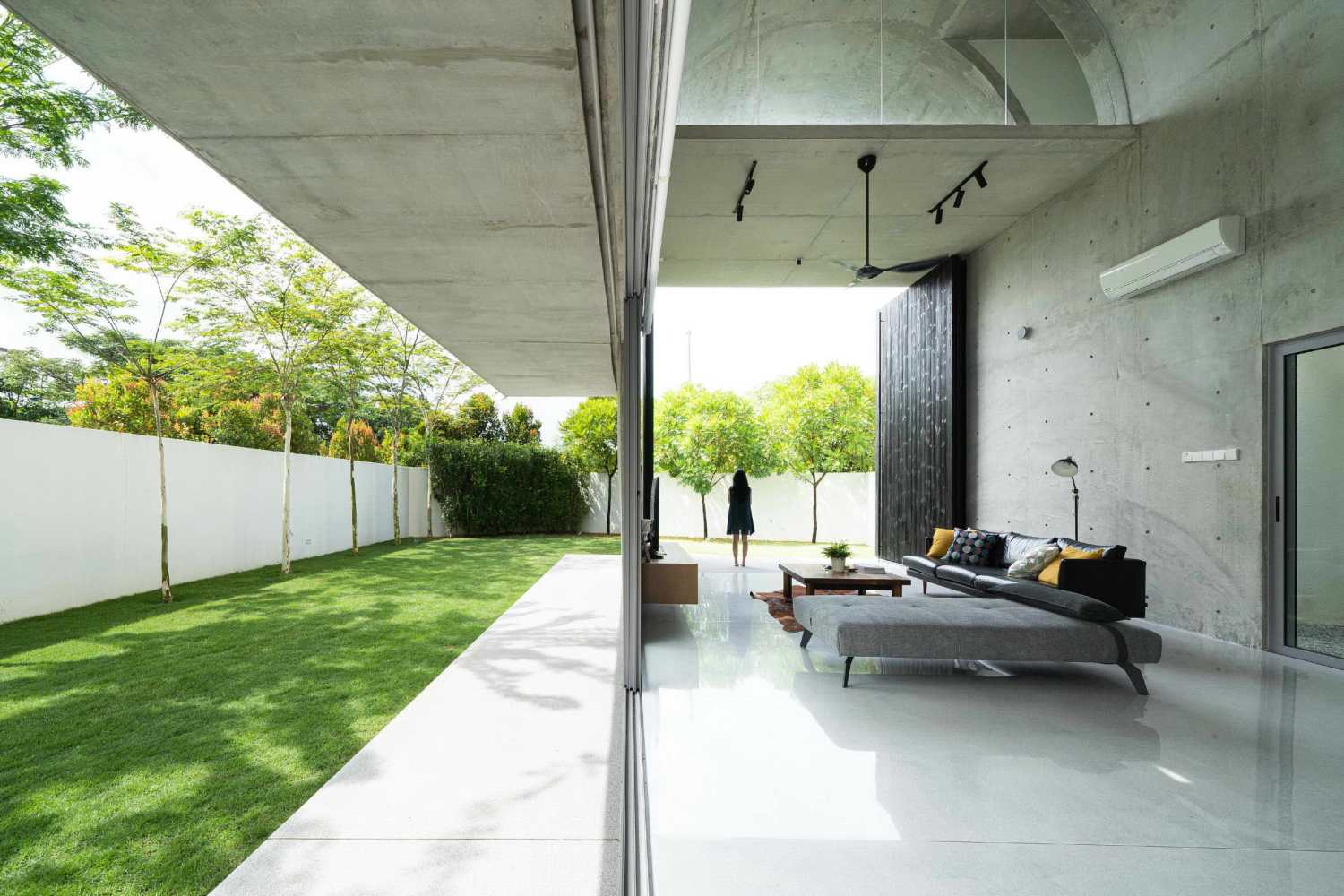

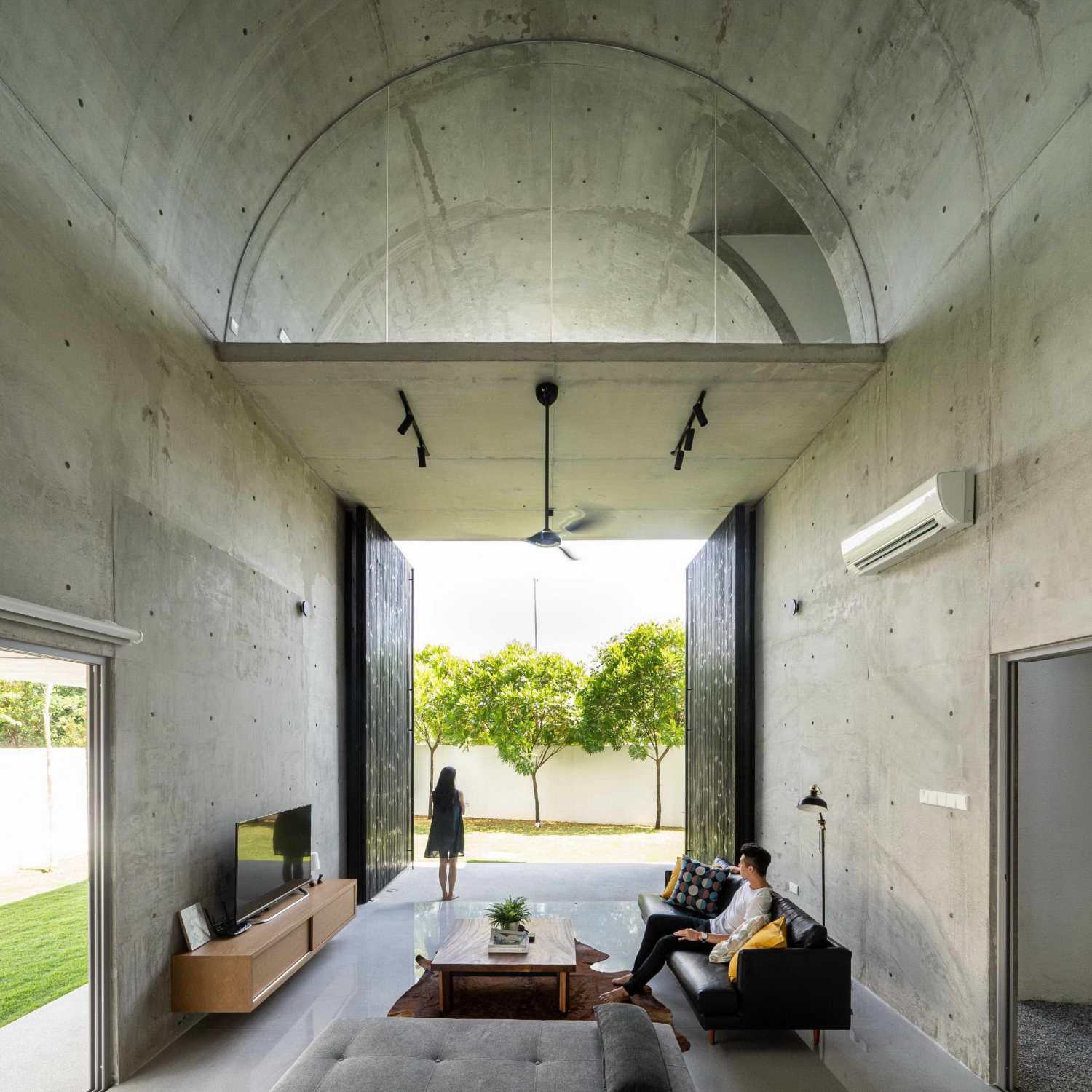

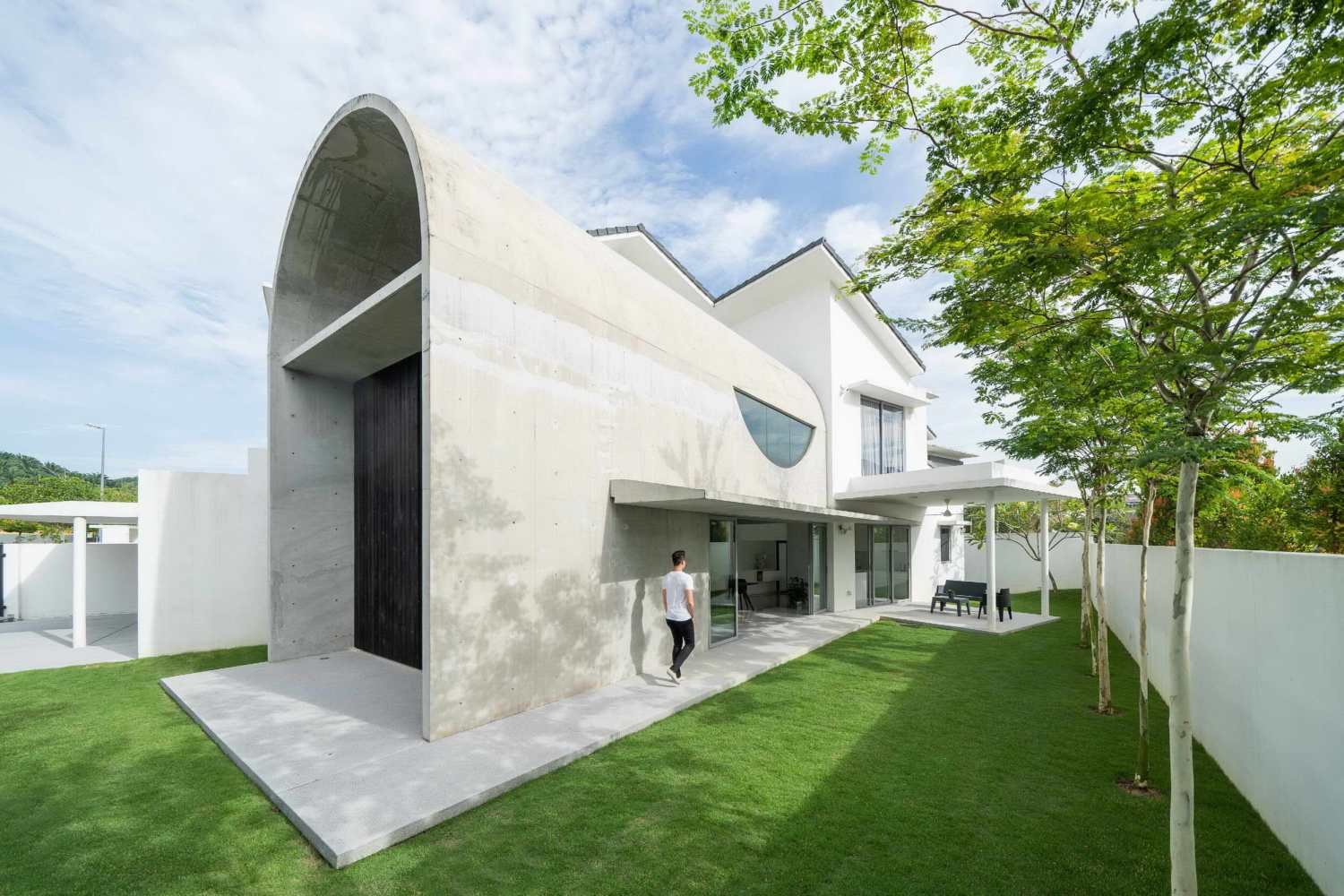

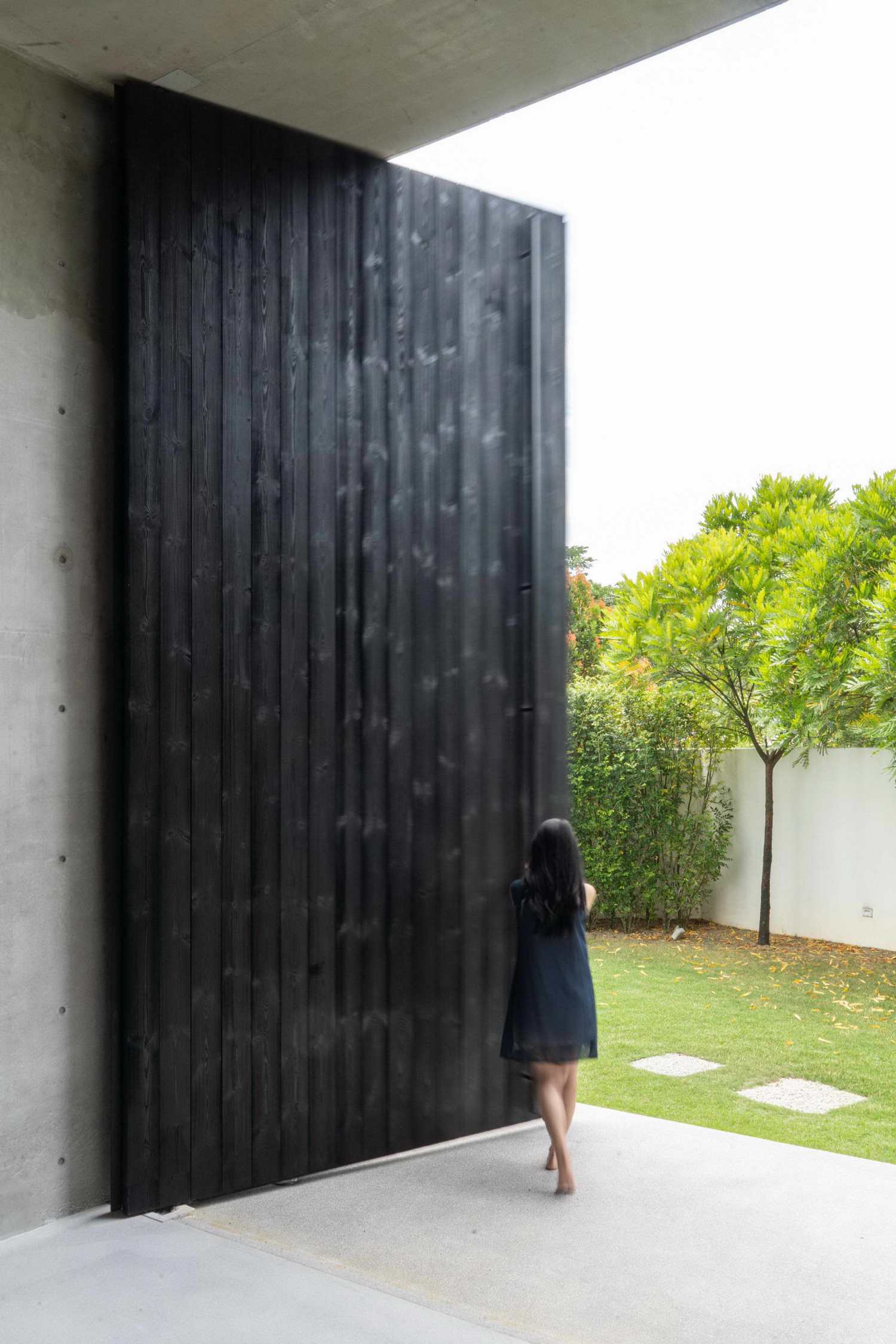

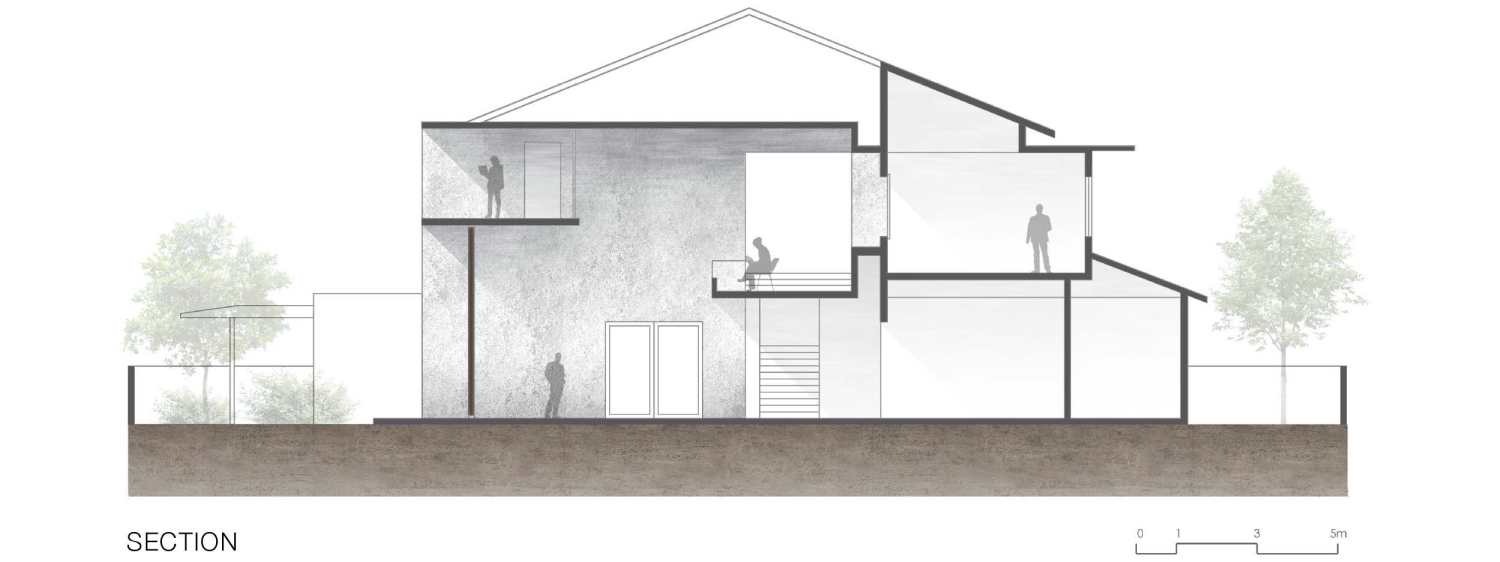

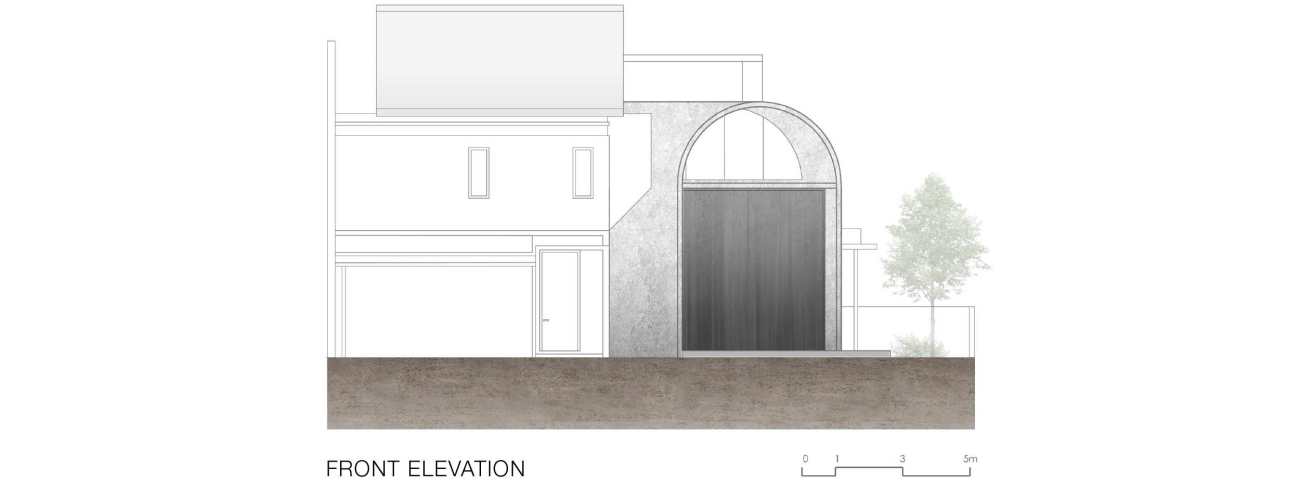

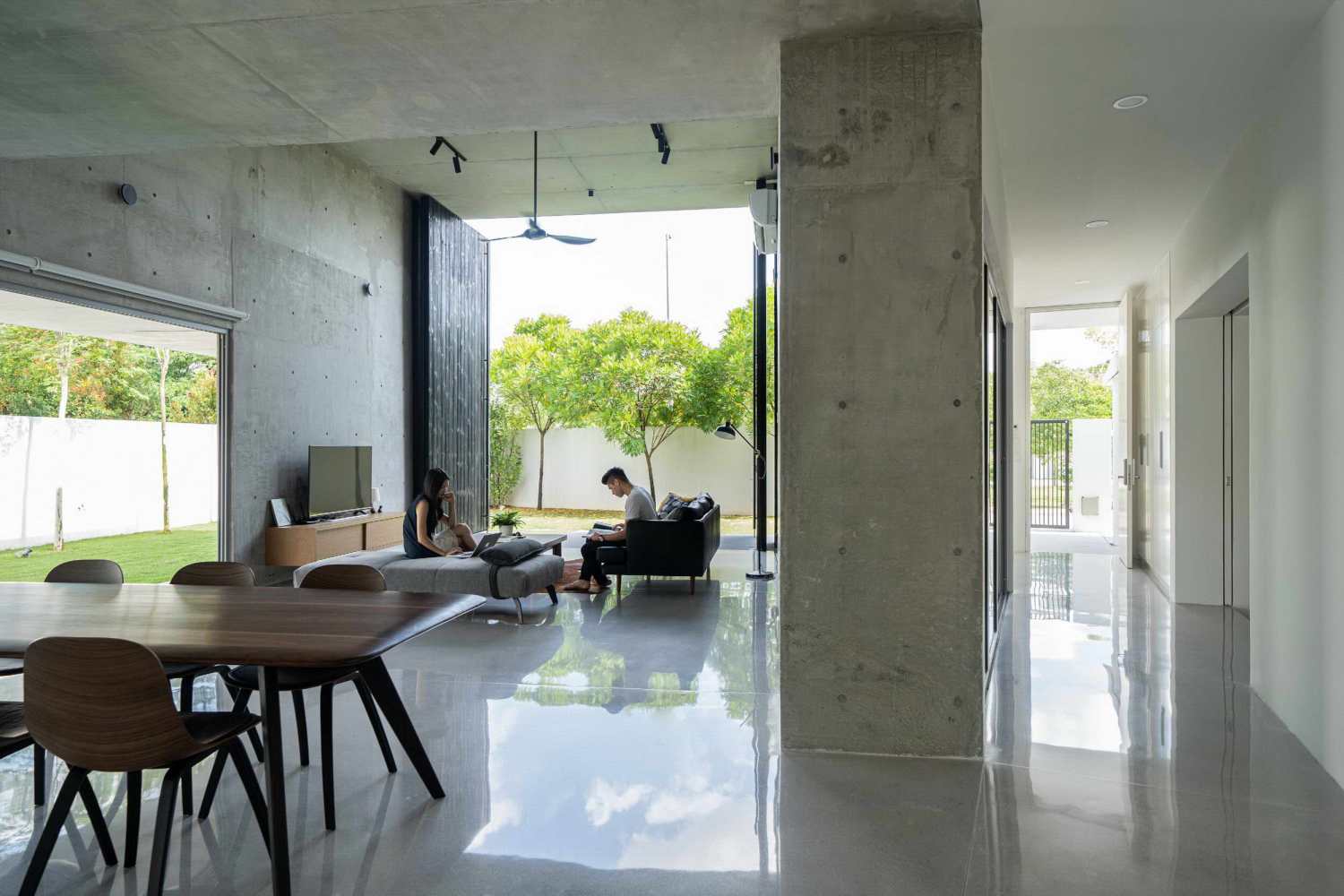

新的形式旨在简单而大胆，与现有的热带郊区住宅结构形成鲜明对比。从平面图上看，生活空间的方向与场地边界平行，从而在原有空间和新空间之间形成了一个 "断裂"。三角形的 "断裂 "作为一个安全的通风采光井，使两边自然冷却。拱形屋顶向外延伸，形成一个拱形附属建筑，形成生活空间。通过拱门的延伸，空间显得连续，并通过从地板到天花板的混凝土饰面材料连接起来。两扇大门向花园开放，进一步加强了空间的延伸，从内到外的不间断的视角立即将室内与自然联系起来。

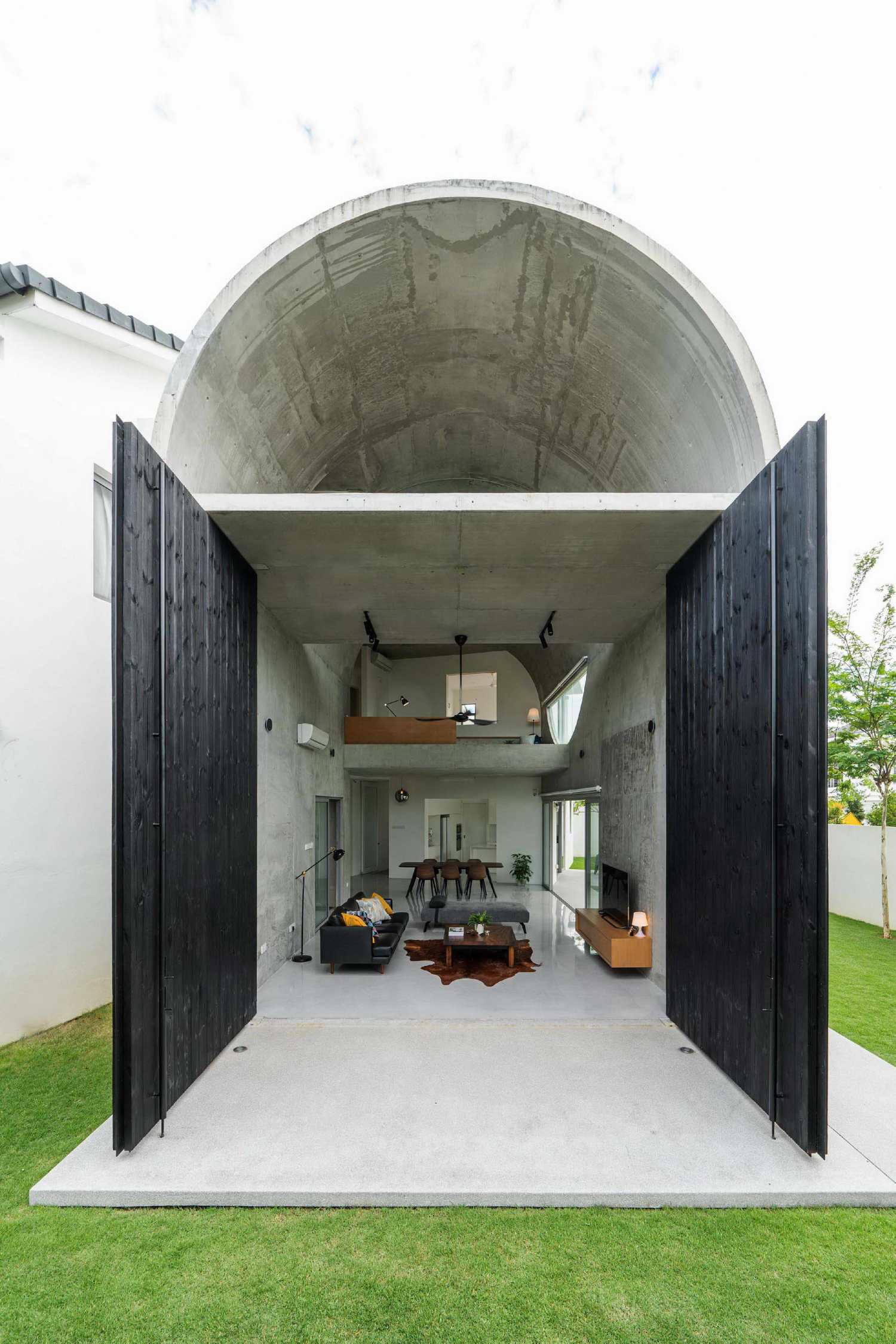

The new form is intended to be simple but bold; contrasting it with the existing fabric of tropical suburban homes. From plan view, the living spaces were orientated parallel to the site boundary, resulting in a “break” between the original and new spaces. The triangulated “break” acts as a secured ventilated light well, cooling both sides naturally. An arch roof extends outwards, creating a vaulted annex that forms the living spaces. The space appears continuous through the extension of the arch and exaggerated further through the materiality of the concrete finish from floor to ceiling. The extension is further enhanced by two large doors that open up to the garden. The uninterrupted perspective from inside out immediately connects the interior with nature.

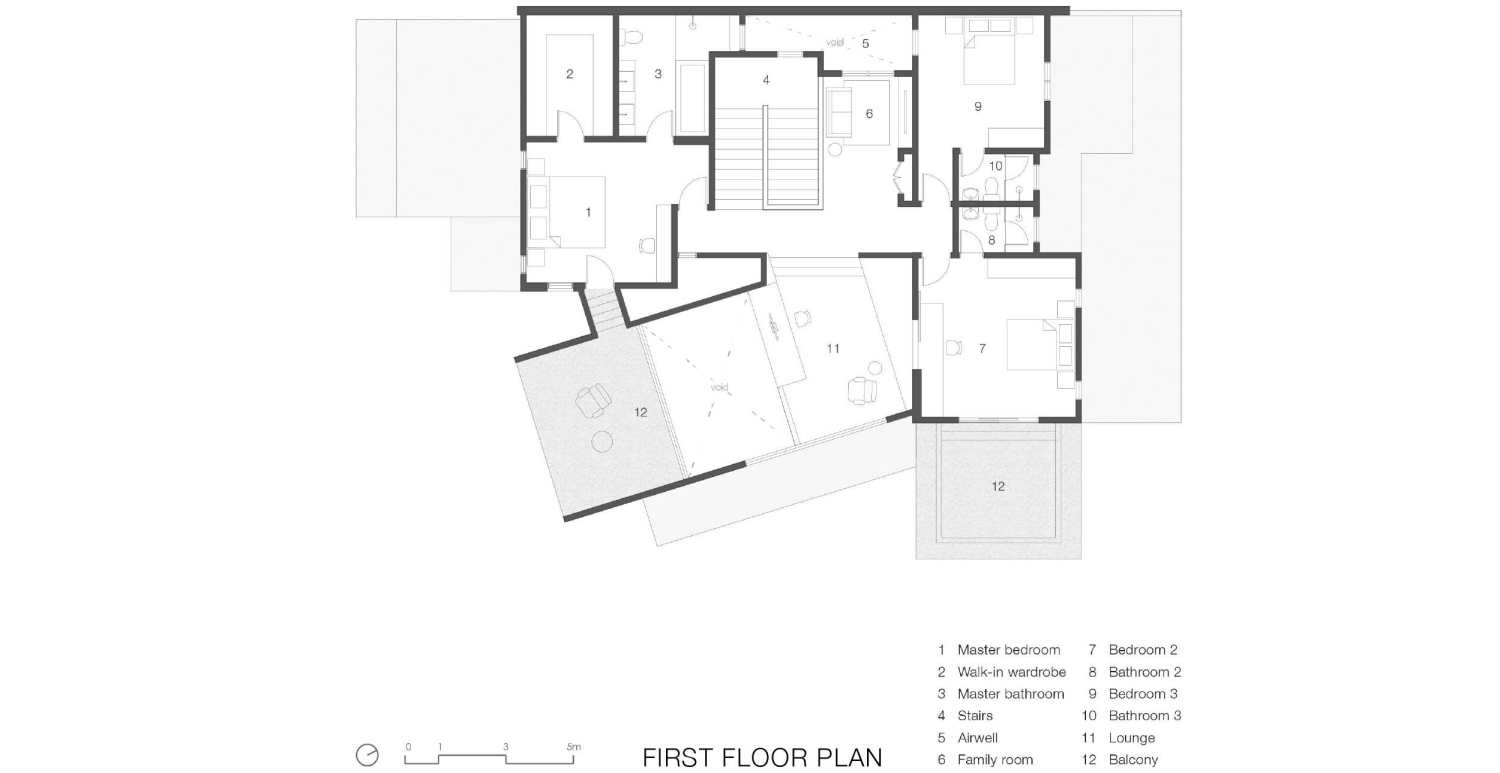

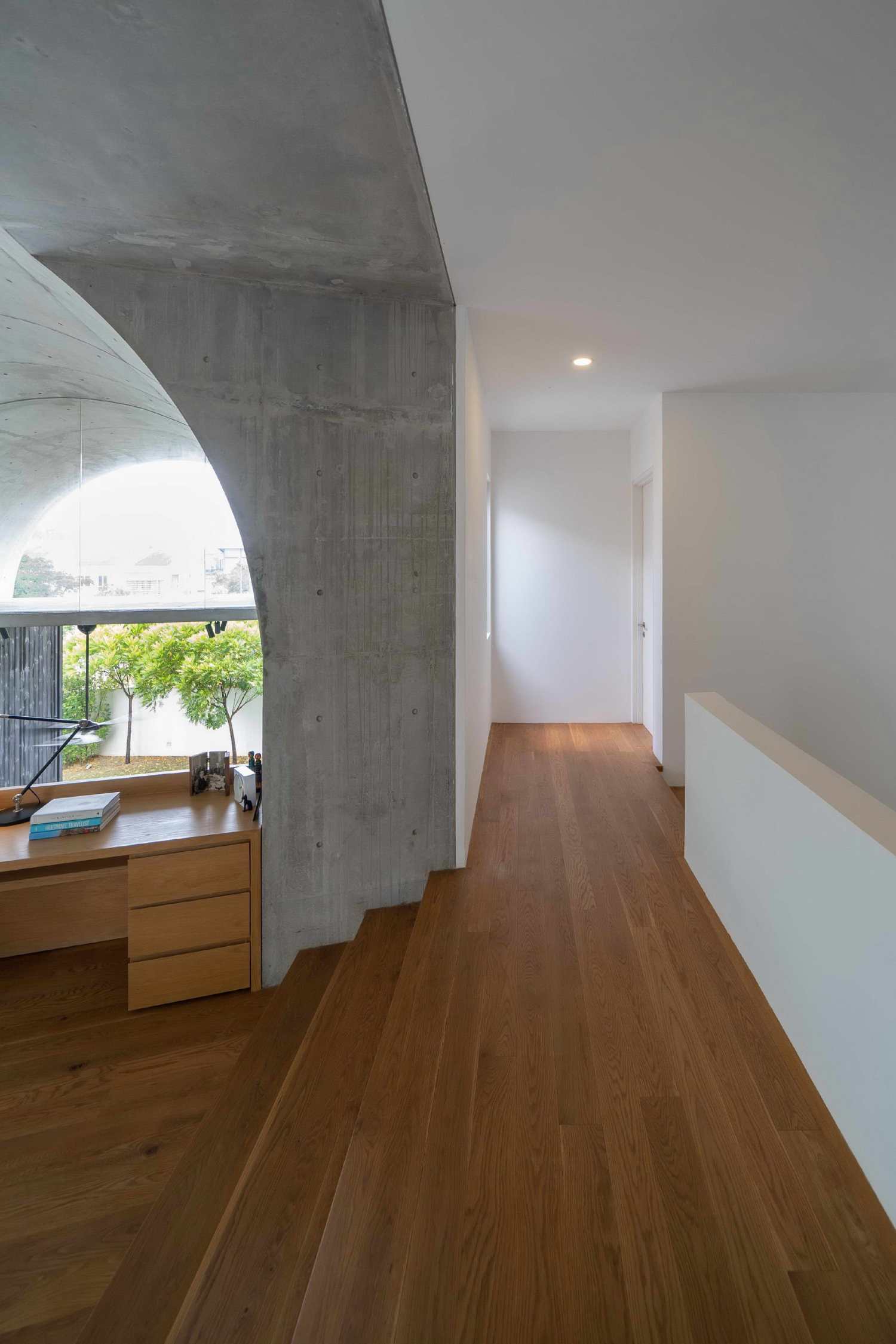

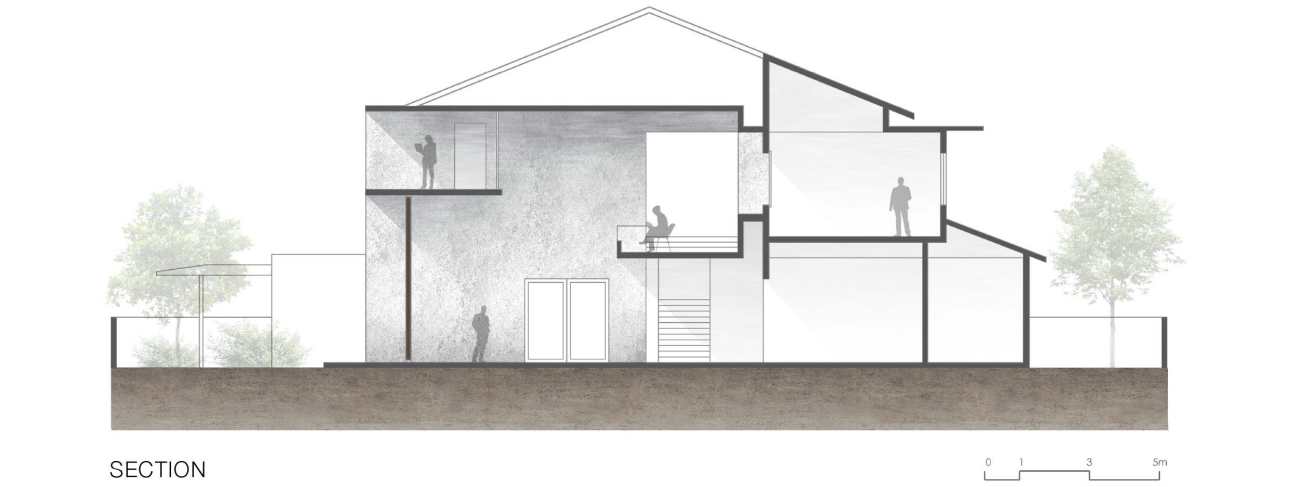

上层通过曲线和层次的游戏设置了一个戏剧性的背景空间。空间层次分明，形成空间的秩序感，书房可以俯瞰生活空间，相邻的是一个阶梯式的平台角，供人休息。在这后面是一间卧室，可以俯瞰这些空间。主卧通过一座桥连接到附楼最外侧的楼层部分，在这有一个开放式的阳台。

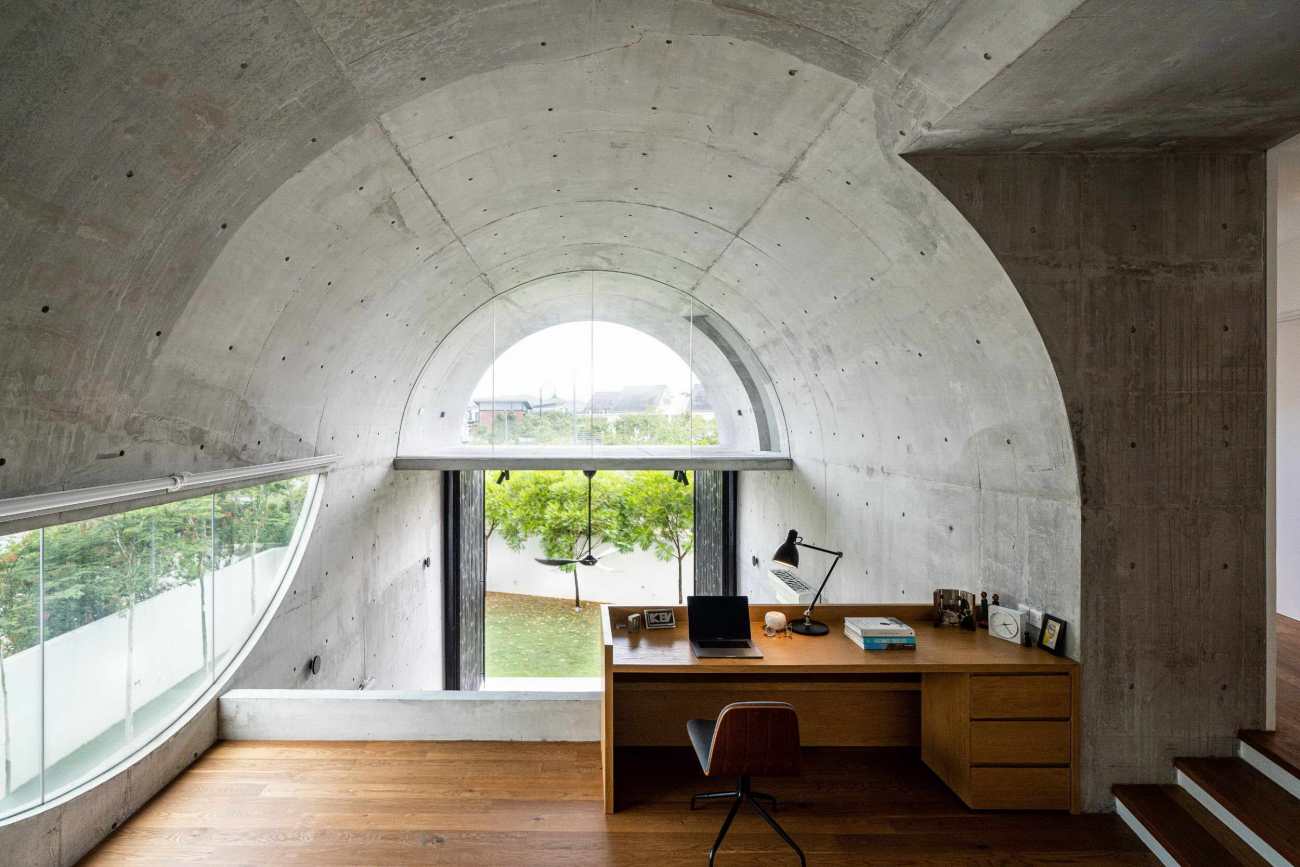

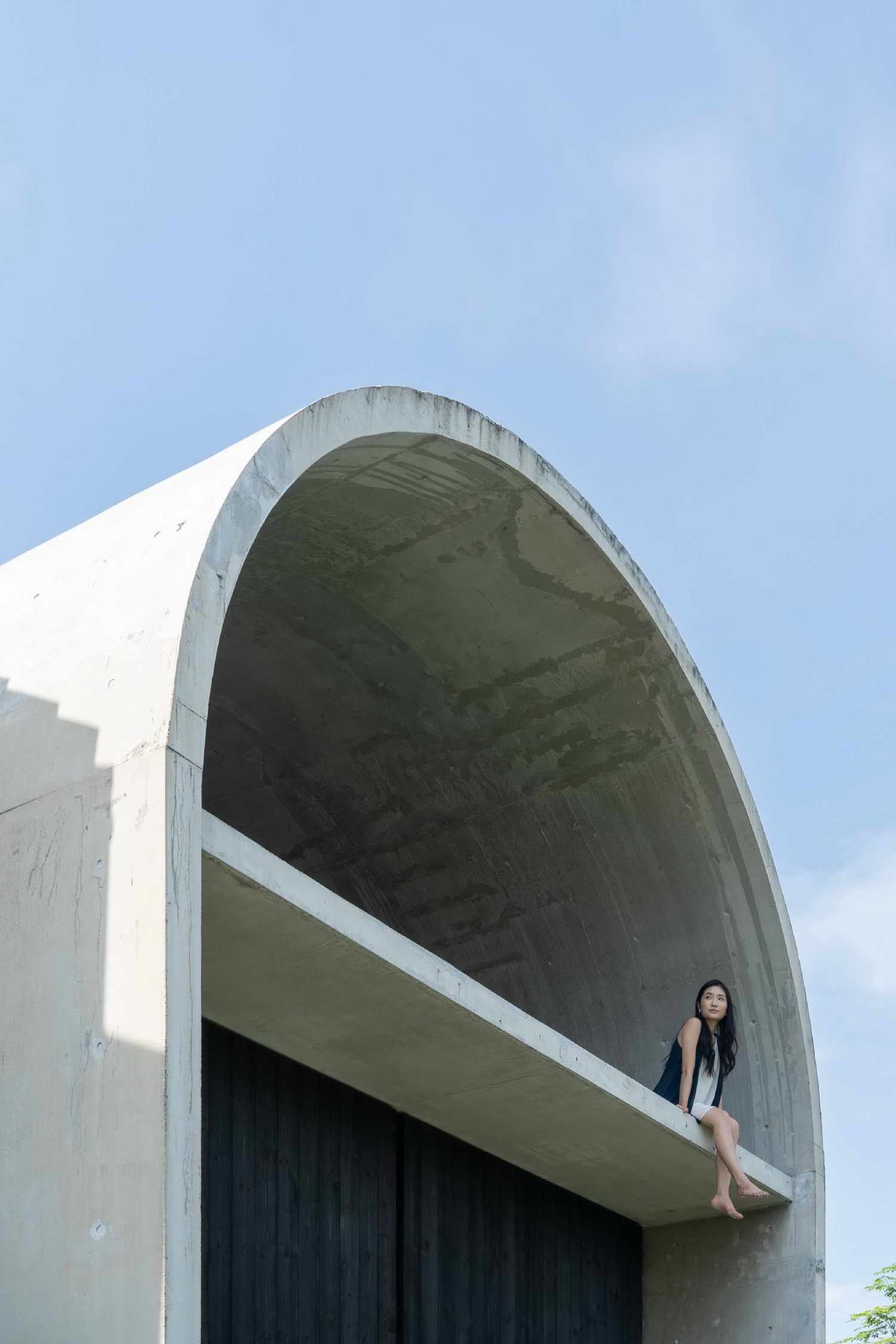

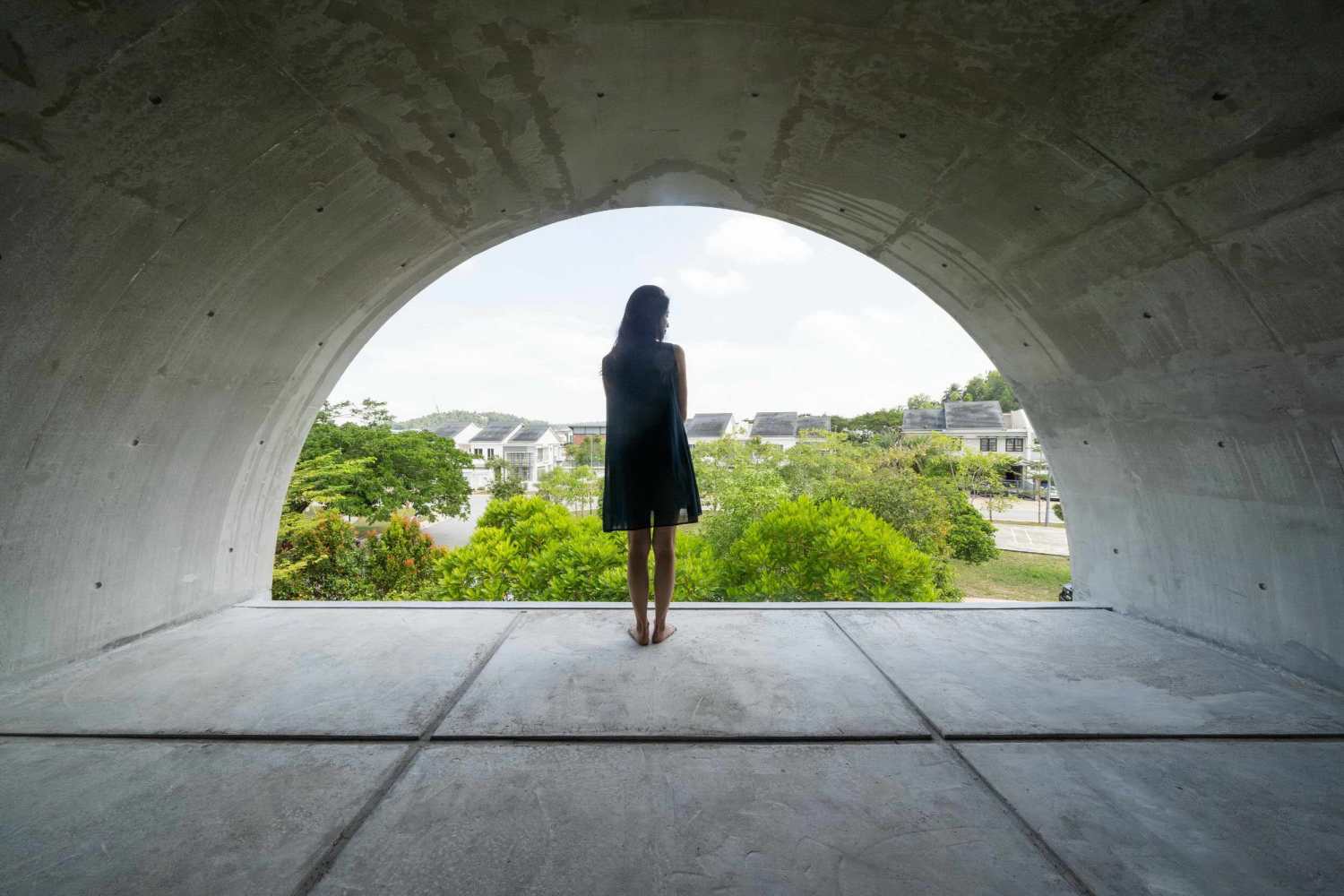

The upper floor sets up a dramatic background with a play of curves and levels. The spaces are layered, creating a hierarchy of space. The study overlooks the living spaces and adjacent, a step-up platform corner for lounging. Behind this is a bedroom overlooking these spaces. The master bedroom connects through a bridge to the outermost floor section of the annex, and much to one’s surprise, an open balcony.

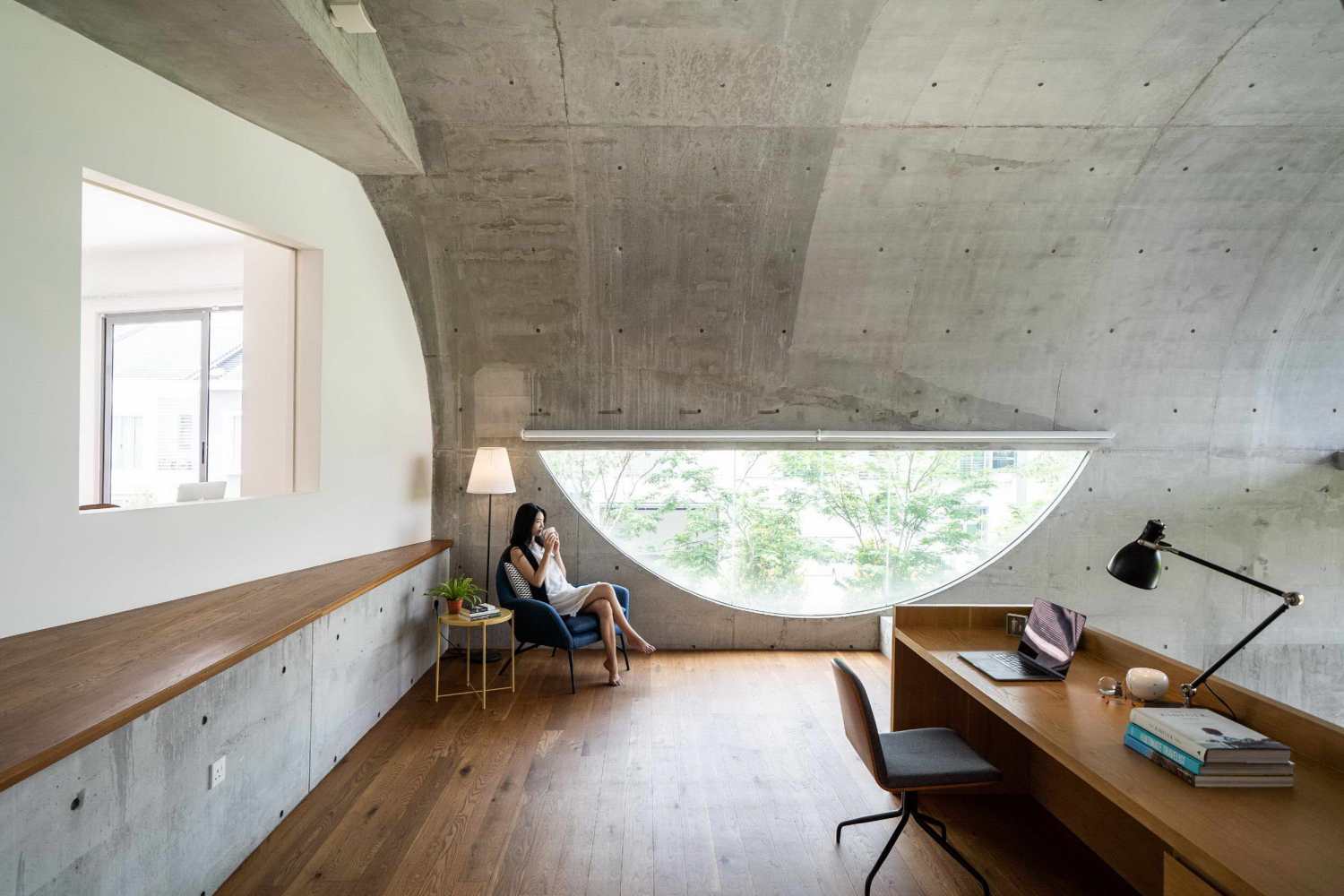

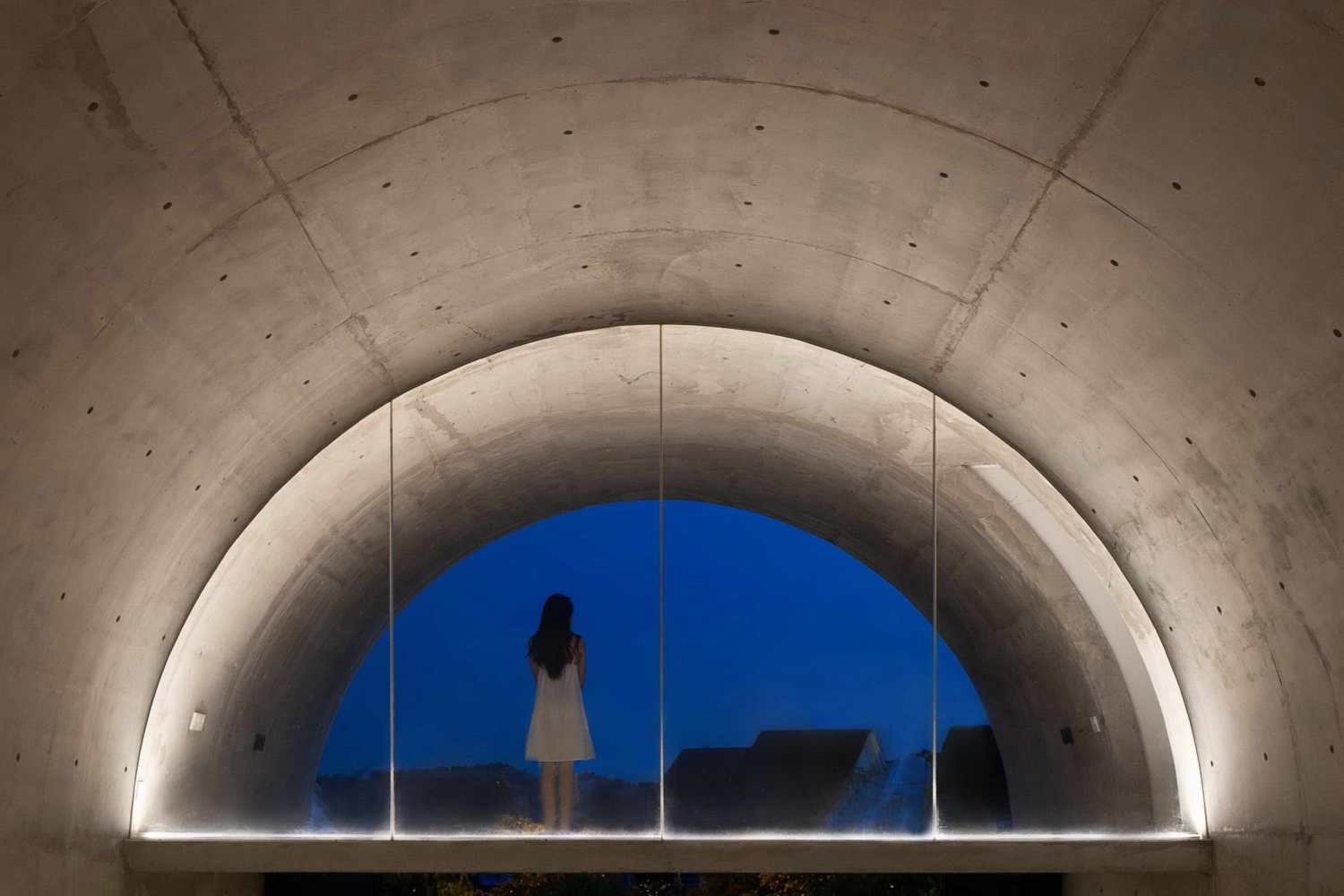

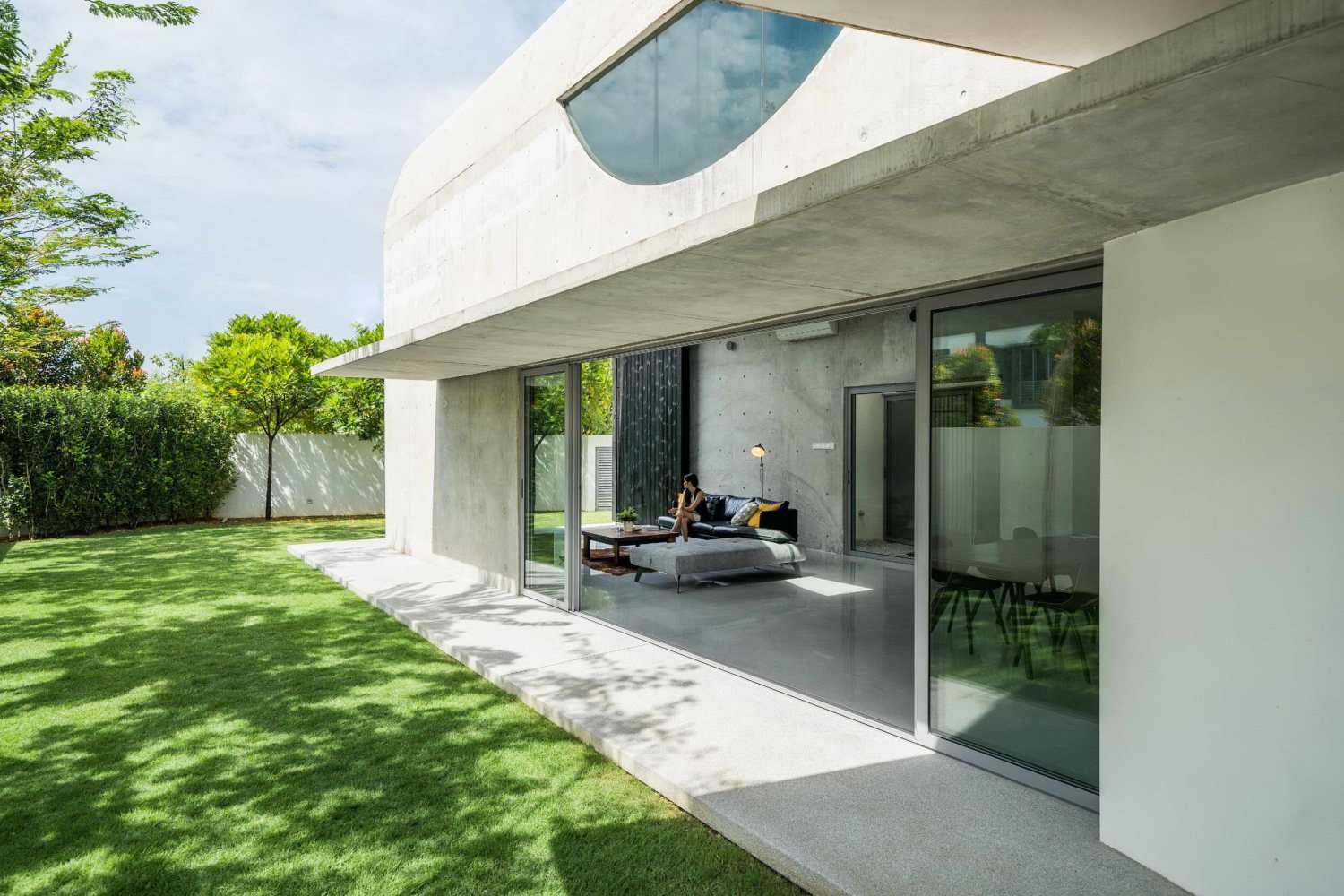

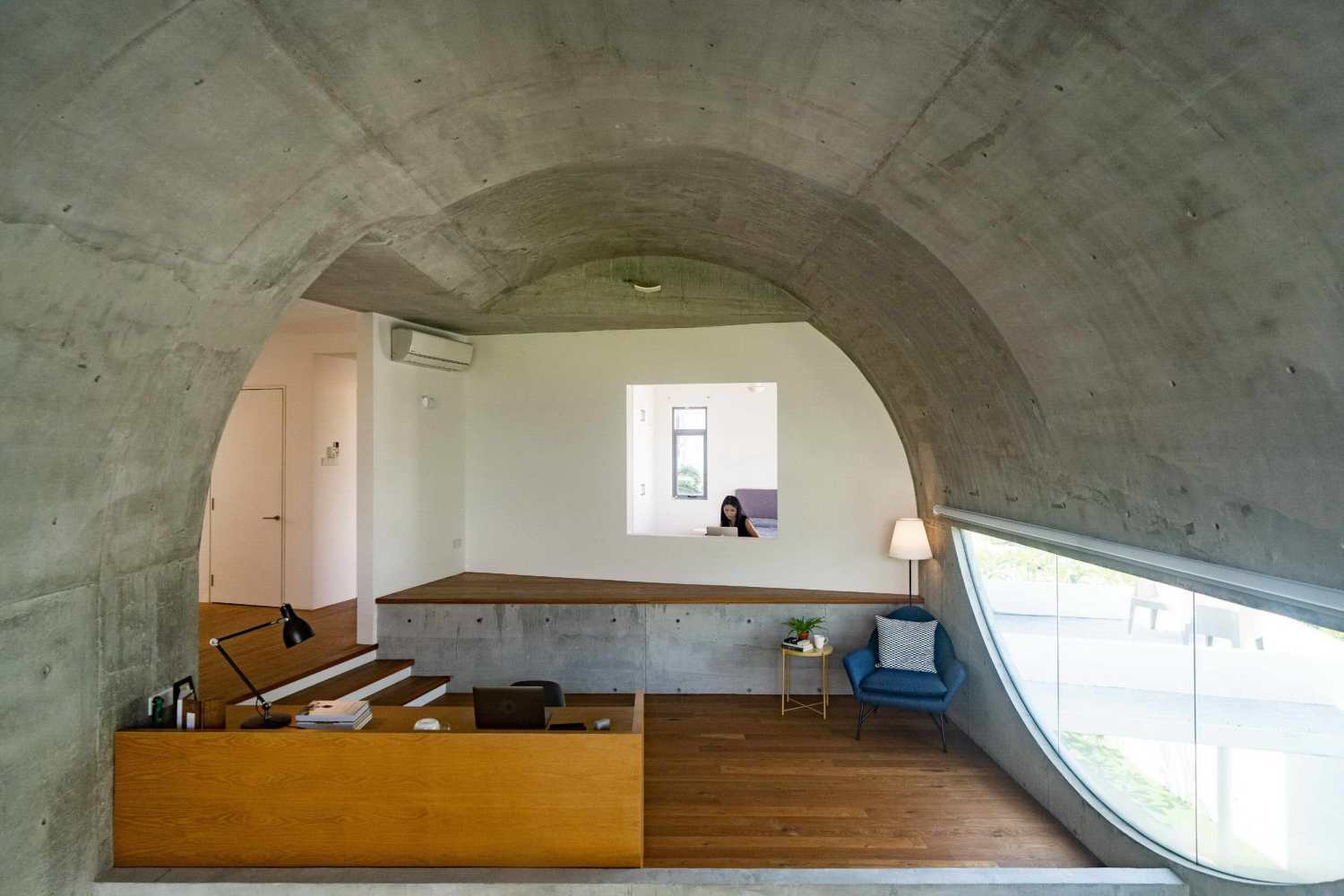

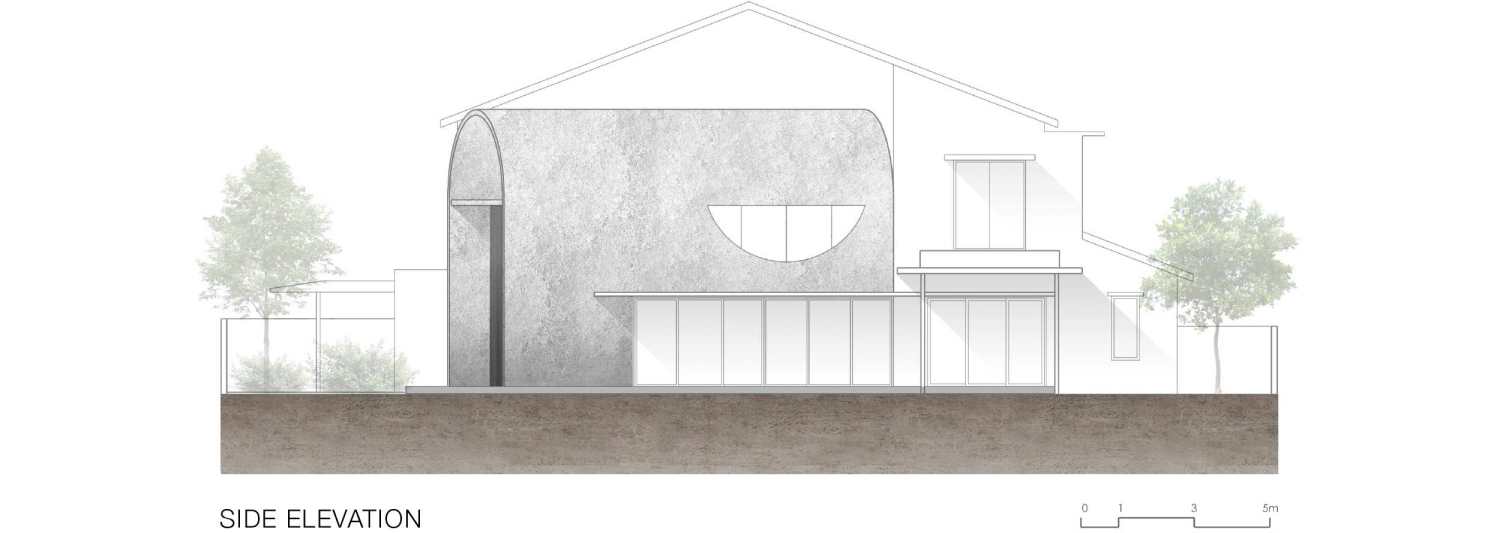

为克服混凝土拱顶的沉重感，在上部精心打磨了一些开口。例如，圆顶侧面的倒拱窗，当它与前拱开口相接时，就形成连续的“S”形。穿过上层，这条连贯性贯穿了整个空间，因为开口和拱门的线条是相连的。所以这种以重音结构为线条节奏性的游戏，以微妙的方式借助于光线。这使人想起穿越洞穴的旅程，达到一种豁然开朗的感觉。

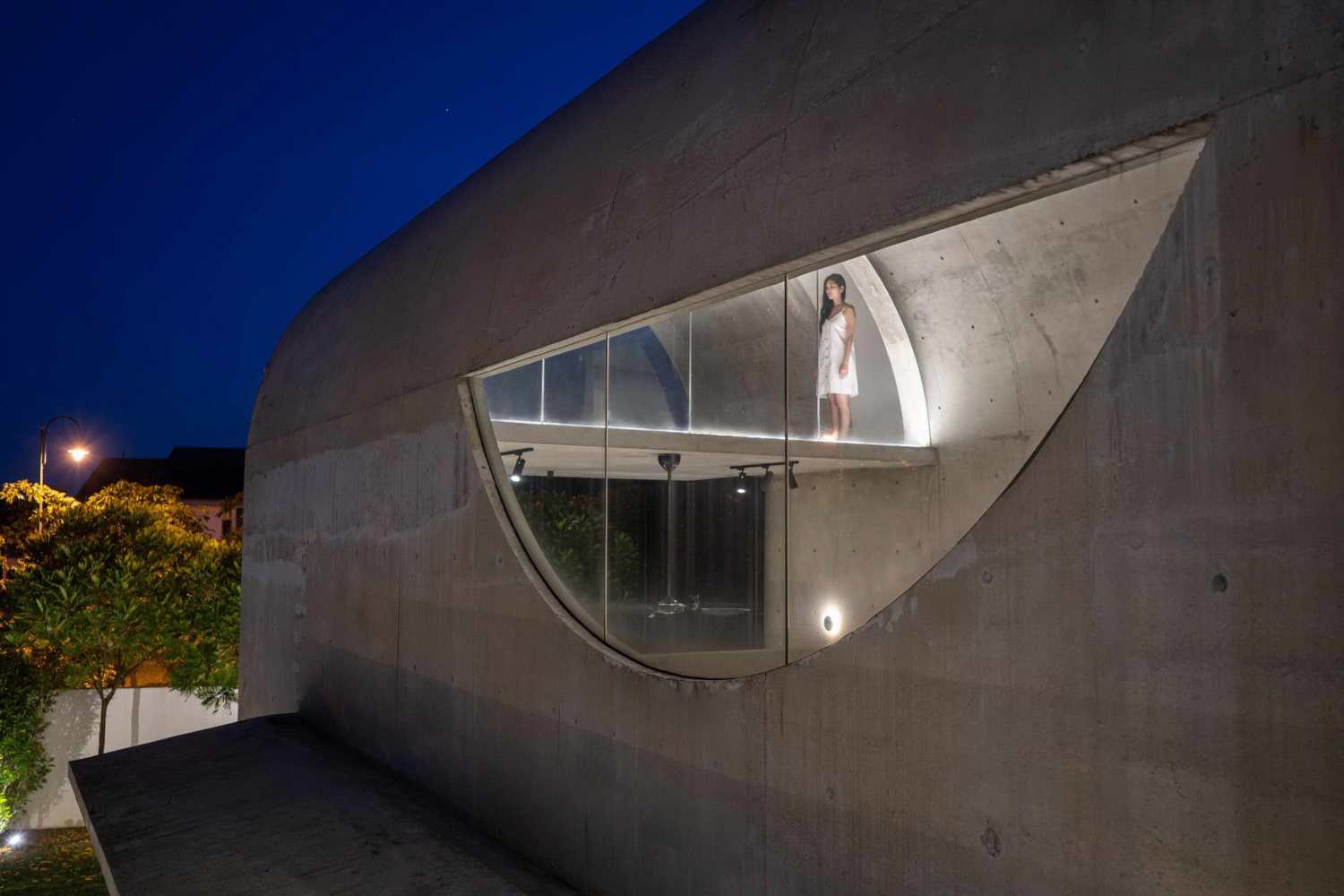

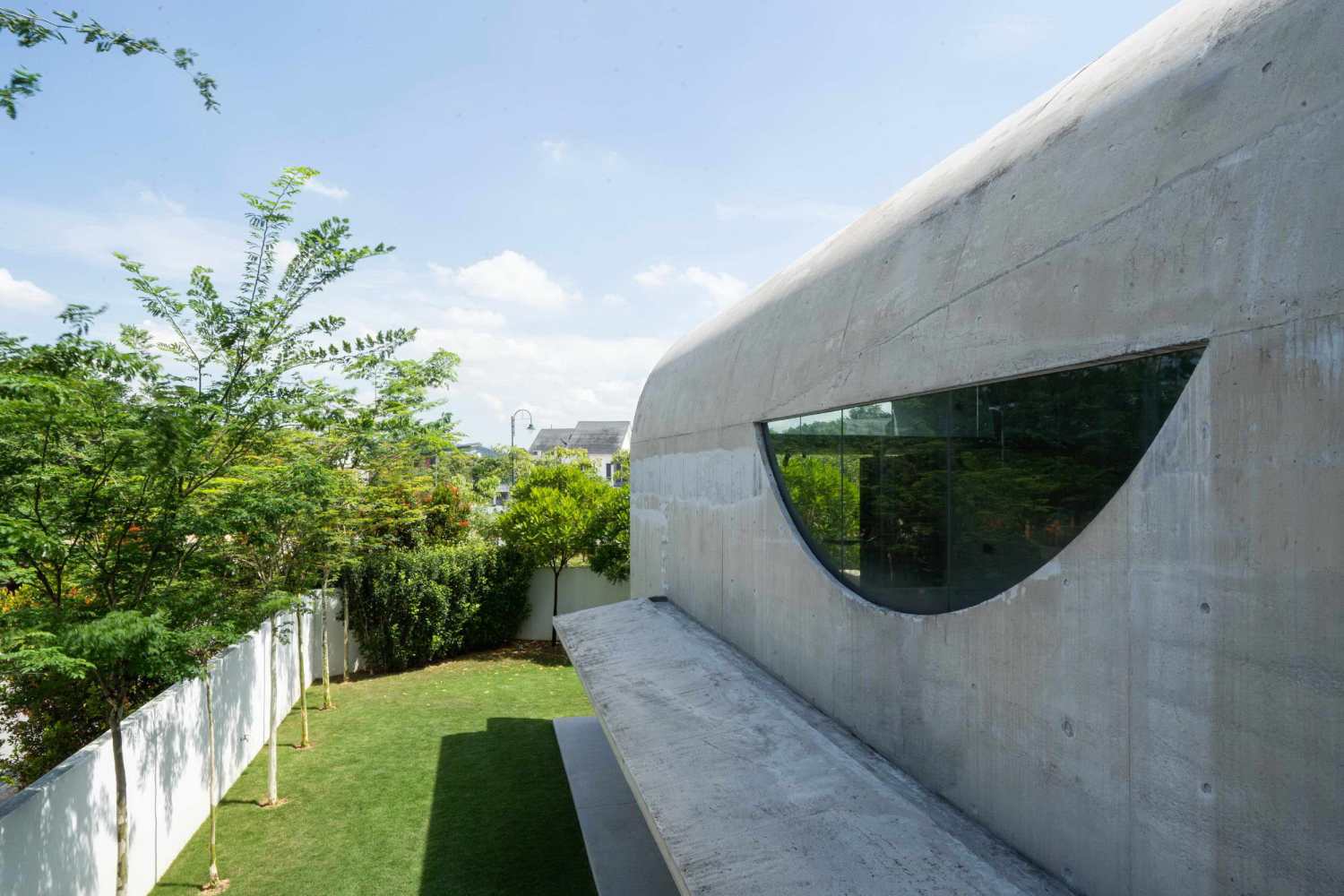

To counter the heaviness of the concrete vault, openings were carefully carved out on the upper level. For example, the inverted arch window at the side of the vault is drawn as a continuous “S” shape when it meets the front arched opening. Walking through the upper levels, this continuity echoes throughout the spaces as lines of openings and arches meet. Consequently, this rhythmic play of lines within a heavy structure lends to a play of light in subtle ways. Reminiscent of a journey through a cave, perhaps to see the light at the end of the tunnel.
