意大利 Agordo 会展中心

该项目位于市中心外的一个绿色区域，在一个风景优美的自然高山景观中。

The project is situated in a green area outside the city center, in an alpine landscape featured by well recognizable natural and an thropic signs.

▽项目概览 Overview

虽然位于城市聚居区之外，但它具有很好的区位，并与公共网络(学校、休闲中心、基础设施)紧密相连。建筑拥有多种不同的功能，比如当地社区的聚会活动、表演和娱乐。它将用于音乐会、艺术表演、会议、会议、艺术展览和展览会。该项目着眼于Agordo的典型景观和城市形态，以创造一种新的语言。该结构的特点是一个重复的坡屋顶，从南向北的景观中形成一个可识别的标志。

Although position edoutside the urban settlement, it has a strong strategic nature and it’s well connected to the public network (schools, leisure centers, infrastructures). The building hosts several different functions, likeget-together activities for the local community, shows and entertainment. It will be used for concerts, the atrical performances, conventions, conferences, art exhibitions and expos. The project looks at Agordo’stypical landscape and urban morphology to create a new language. The structure is characterized by a repeated pitched roof which draws a recognizable sign through the landscape from South to North.

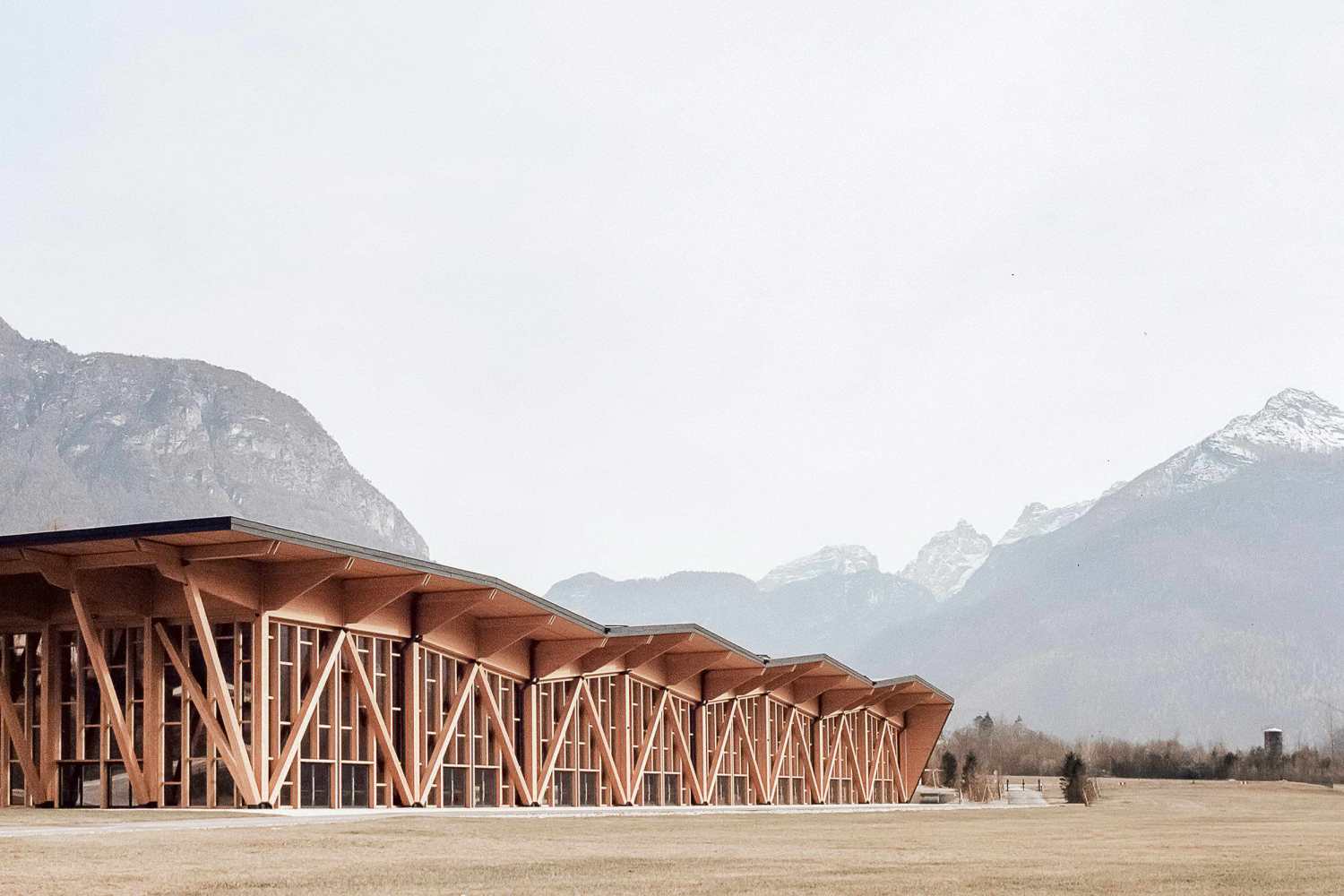

▽项目外观 Exterior

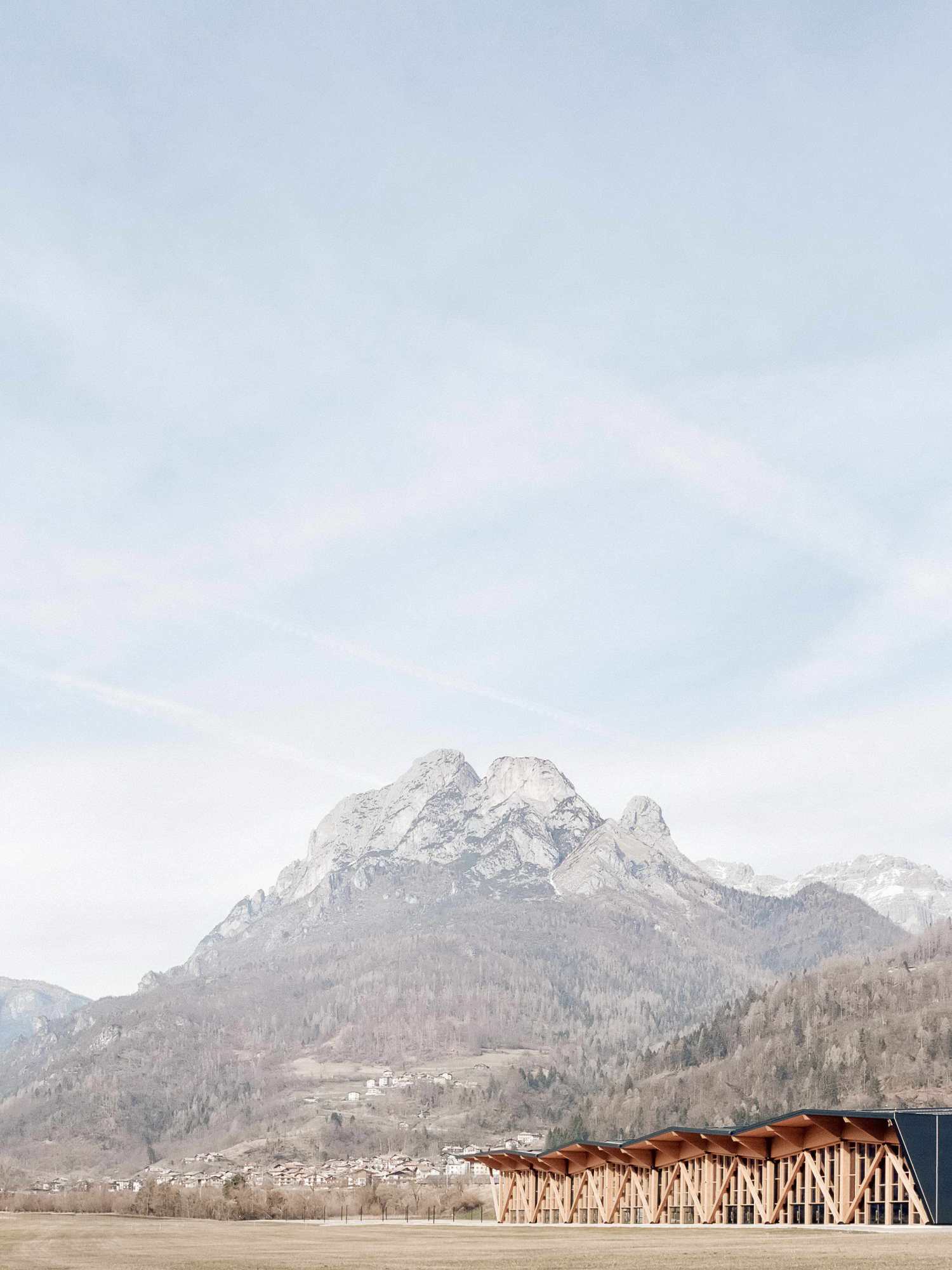

▽项目外观 Exterior

▽连续重复的坡屋顶成为建筑的重要标志 The repeated pitched roof draws a recognizable sign

该建筑群的设计灵感来源于塔比亚的典型建筑，采用木质框架和交叉支撑元素。支撑结构采用木材，既符合环境要求，又与阿尔卑斯山的建筑传统保持一致，从中获得灵感。北面和西面的立面设计为面向景观的大而清晰的玻璃幕墙，以便从主厅眺望山脉。东立面和南立面则是封闭的，分别面向倾斜的绿色区域和提货区。

The complex has been designed taking inspiration from the typical constructions of the agordinian Valleys (tabià), with wooden frame and cross bracing elements. The supporting structure has been conceived in timber, both for environmental compatibility and consistency with the Alpine building tradition, from which it draws inspiration. The North and West facades are designed to be large clear glass curtain walls facing to the landscape, in order to allow the contemplation of the mountains from the main hall. The East and South elevations are instead blind and oriented respectively towards a sloping green area and the lading bay.

▽木结构细节 Details of the wooden structure

▽木质框架与玻璃幕墙为西面和北面提供了开阔的视野 The wood frame and glass curtain wall provide expansive views to the west and north

玻璃幕墙上的大型悬臂屋顶保护了游客入口和木质结构免受大气的影响。同时，它还能在夏季为主厅遮挡直射光，并在冬季让太阳能进入，以降低制冷和供暖通风的成本。

Large cantilevered roof over the glass curtain walls protects visitors entrances and wooden structure from atmospheric agents. It also shield the main hall from directs unduring summer period and let solar in take during winter months, in order to reduce costs of cooling and heating ventilation.

▽室内空间 Interior spaces

▽室内空间 Interior spaces

▽室内空间 Interior spaces

结构构成了项目的主导因素，并定义了内部结构:轻盈的建筑，很容易通过屋顶的形状辨认出来，这是建筑非常独特的特点。

The structural gridis the project`sleading factor and defines the interiors: a light-weight construction, easily recognizable by the shape of the roof, the very distinctive feature of the building.

▽木结构为建筑带来了轻盈的感觉 The wooden structure makes the building light-weight construction

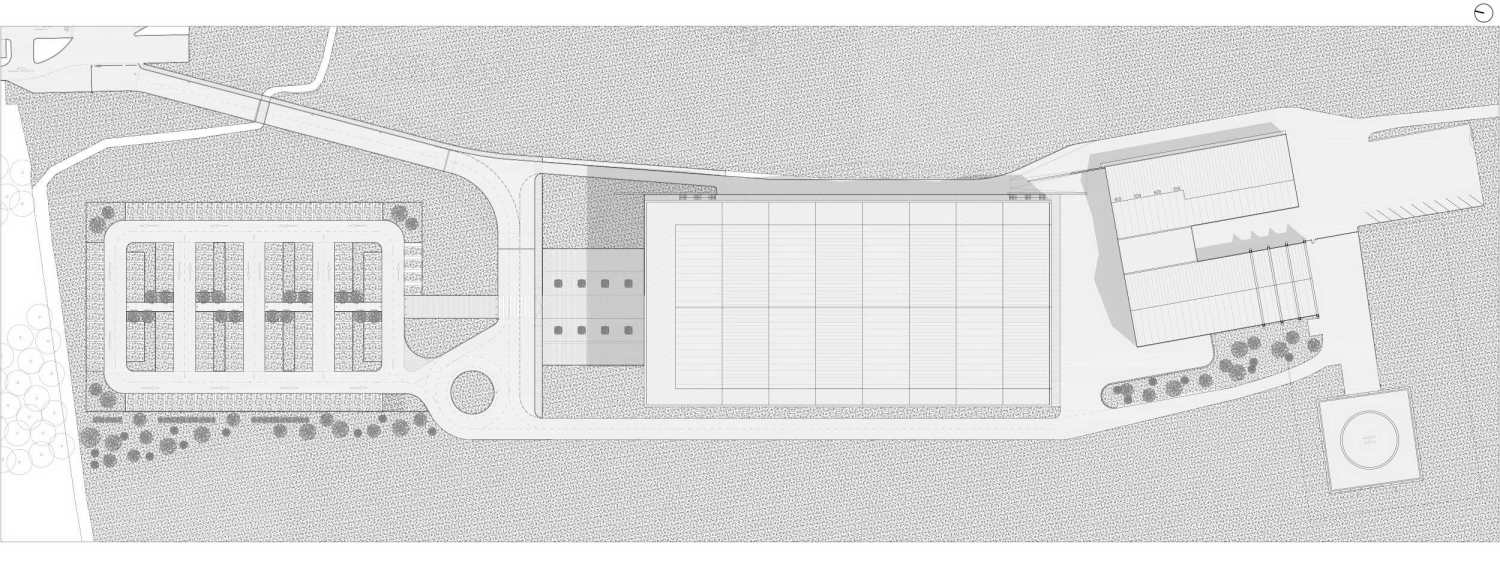

▽项目屋顶平面图 Roof Plan

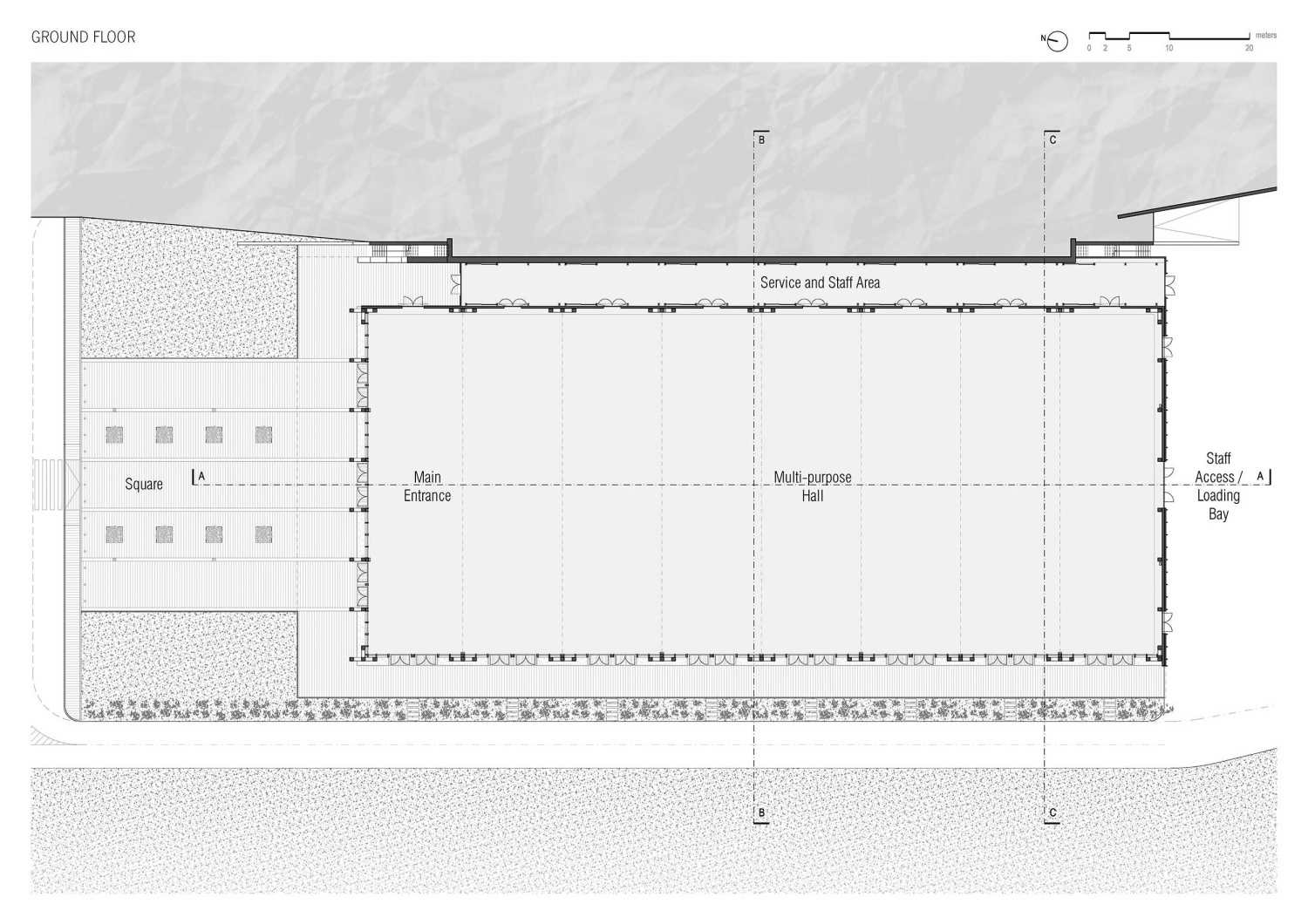

▽项目平面图 Plan

▽项目立面/剖面图 Elevation & Section

Project Name: Congress and Exhibition Center

Architect’sFirm: Studio Botter, Studio Bressan

Website:www.studiobotter.it,www.studiobressan.net

Contact e-mail:info@studiobressan.net   +393487417461

Lead Architects: Andrea Botter (1985), Emanuele Bressan (1985), Sandro Botter (1951)

Location:  Agordo, Belluno - Italy

End of Works: 22/10/2018

Category: Multi-purpose building

Surface: 6.300 m2

Volume: 79.000 m3

Dimensions: 112 m x 57 m x 14 m

Photographs: Simone Bossi (www.simonebossi.it),  Emanuele Bressan
