光影与自然：巴西 Joy 住宅

项目Joy住宅是由来自巴西的年轻天才建筑师Rodrigo Ferreira开发的项目，他深深地将光影的美与自然和设计的融合紧紧联系在一起。这座现代东方混凝土、玻璃和木材的豪华别墅是为一位不拘一格、有教养的70多岁的活跃女士和她的家人建造的，作为他们所有人的休闲和聚会场所。项目位于戈亚尼亚郊区的一个独特的封闭式社区，在这里充满了山谷景观和丰富的本地植被。

“Casa Joy” is a project developed by Rodrigo Ferreira, a talented young architect from central Brazil, deeply connected to the integration of nature and design and to a particular stylish use of light. This modern oriental concrete, glass and wood luxurious villa was built to an unconventional, cultured active lady on her mid 70s and her family, to serve as a retreat and a gathering point for all of them. It is located in an exclusive gated community on the outskirts of Goiânia, full of valleys and rich native vegetation.

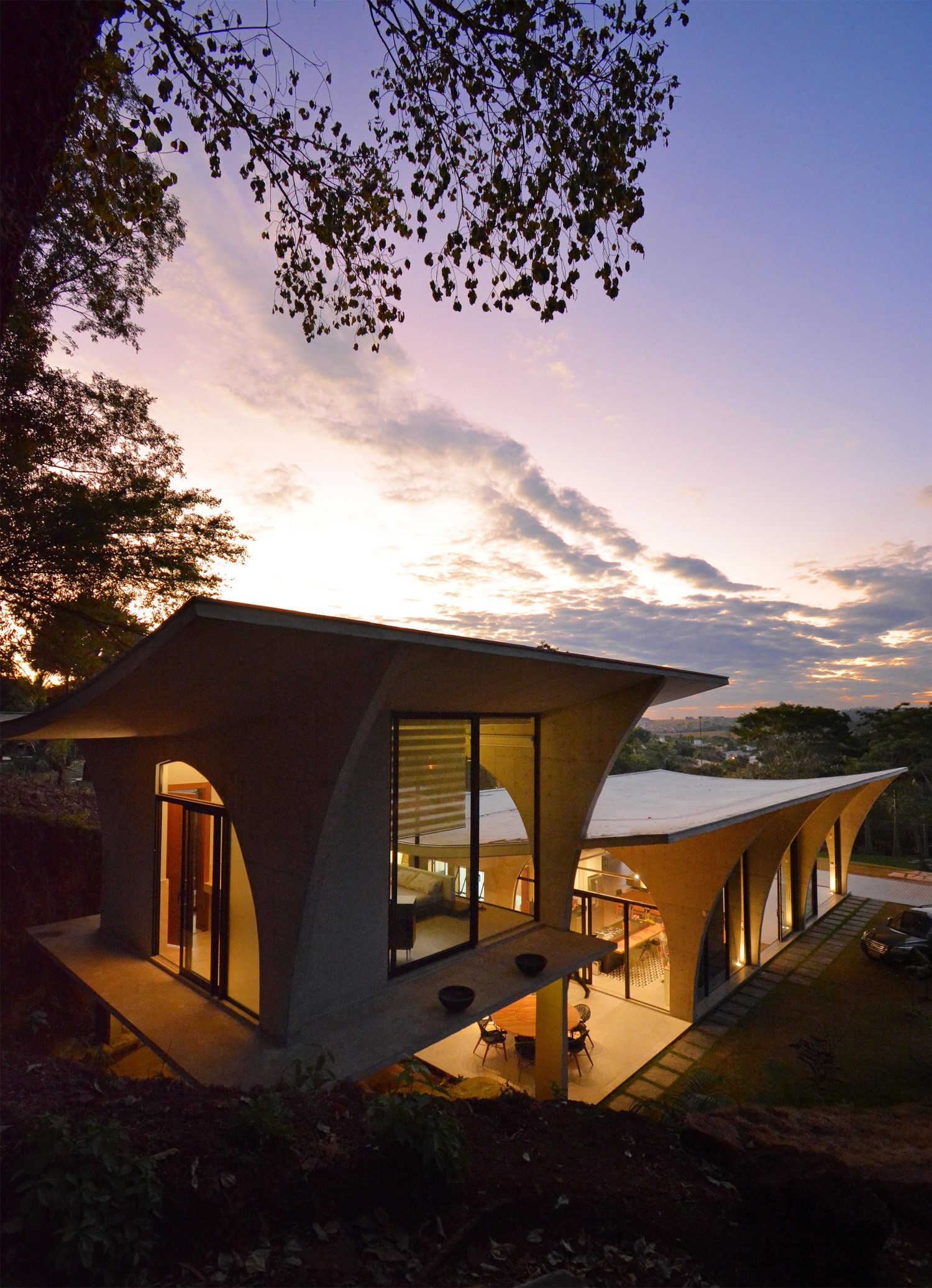

▼项目夜览 Night View

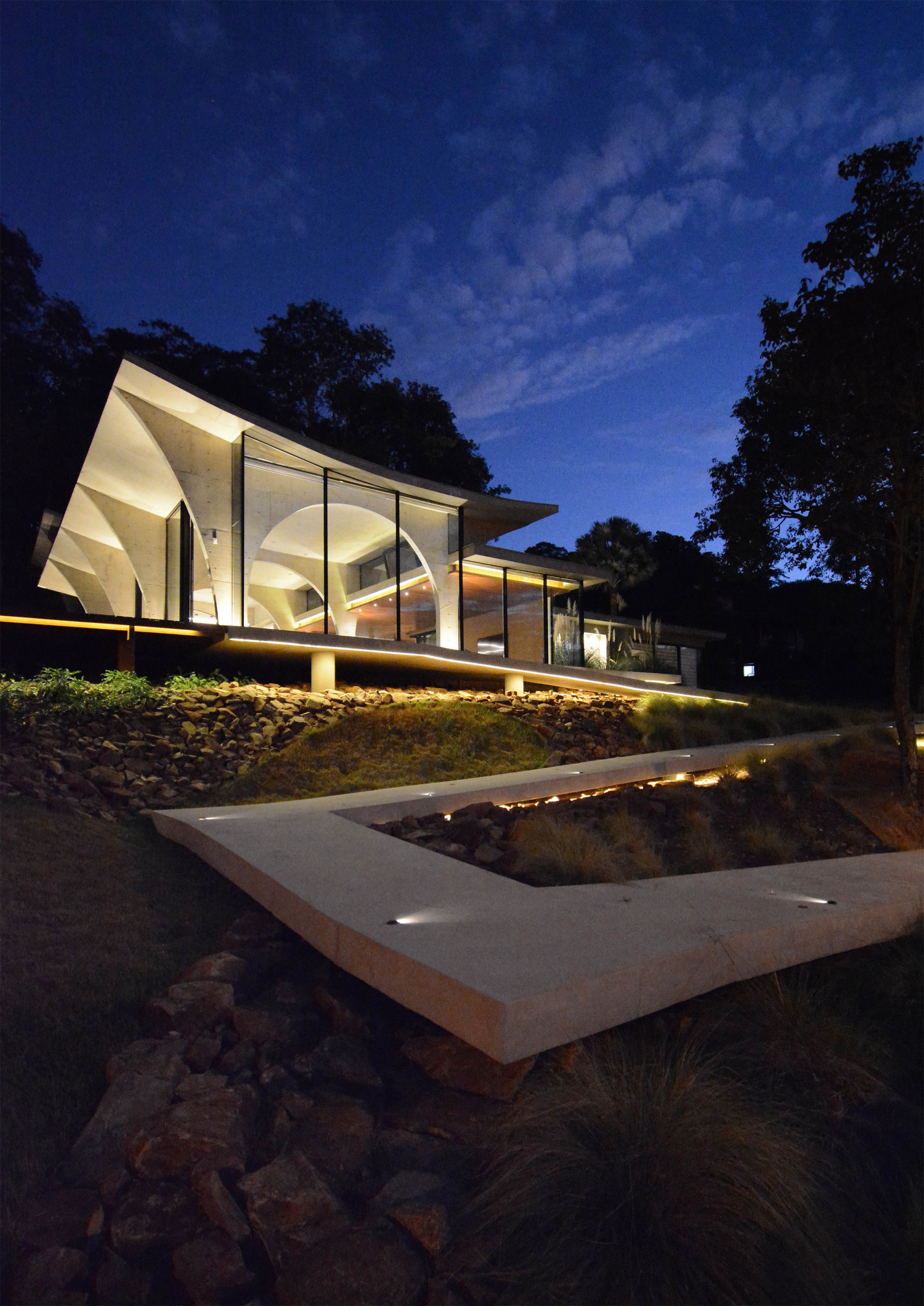

▼项目夜览 Night View

除了交通的可达性之外，设计师主要关注的是创造一个大空间的概念，以促进空间自由的移动，融入外部的自然植被，并允许所有的环境在项目内也是流动的。由于场地的坡度较陡，因此将地形划分为三份。中间的地形被用于放置住宅，位于距离街道零点4米的高度，以欣赏山谷的景色。前三分之一被分配为主要通道，并由一个“之字形”的大型混凝土坡道填充，而后面的三分之一是留给植被的。

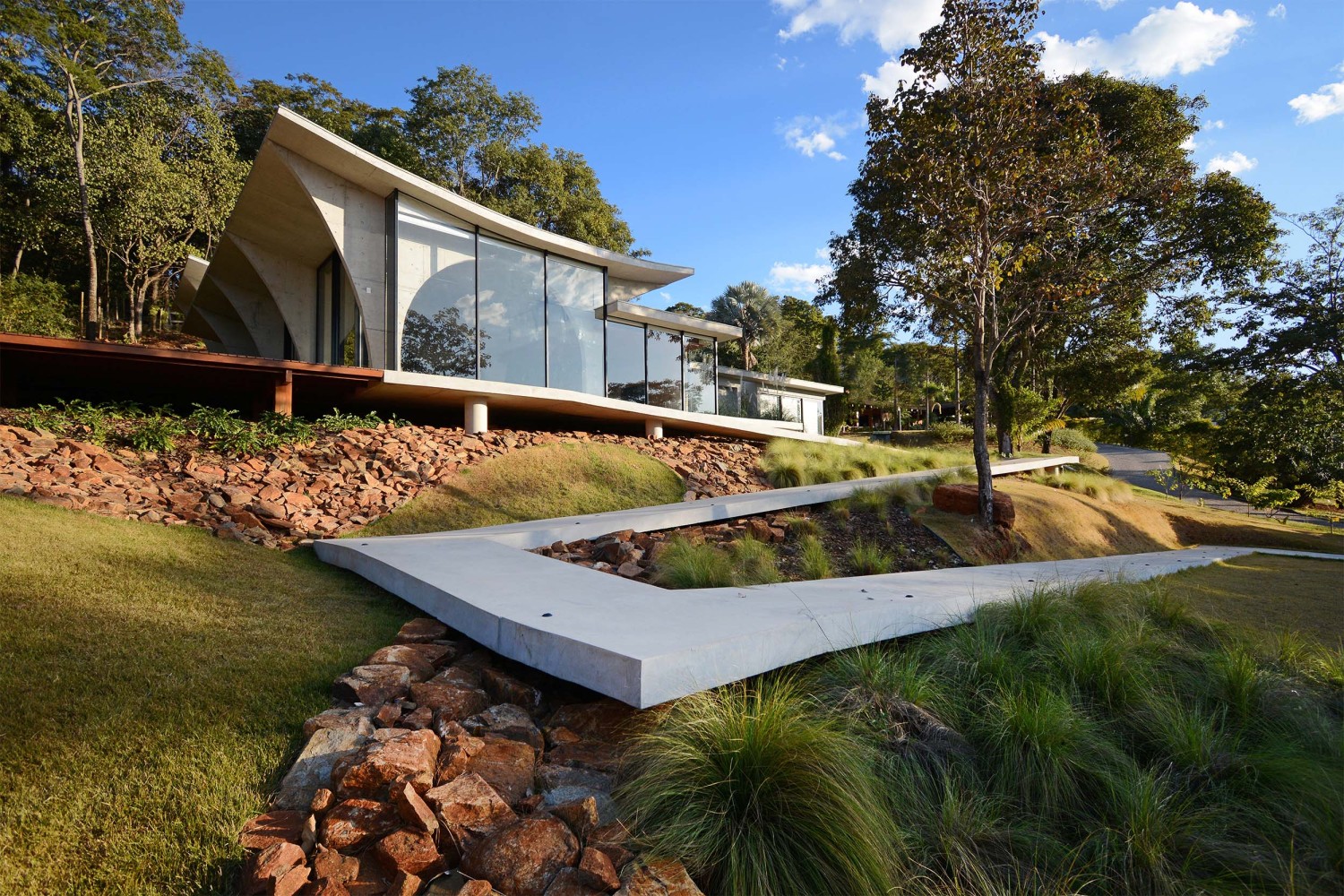

The main concerns of the architect were, in addition to accessibility, the creation of a concept of large voids to facilitate freedom of movement and allow all environments to be fluid, integrated into the natural external vegetation. With a steep slope, the terrain was divided into three thirds. The third on the middle was used to the house, located at a height of 4m from the zero point of the street, to privilege the view of the valley. The front third was allocated for the main access, and filled by a large concrete ramp in a “zigzag” format. The back third was reserved to the vegetation.

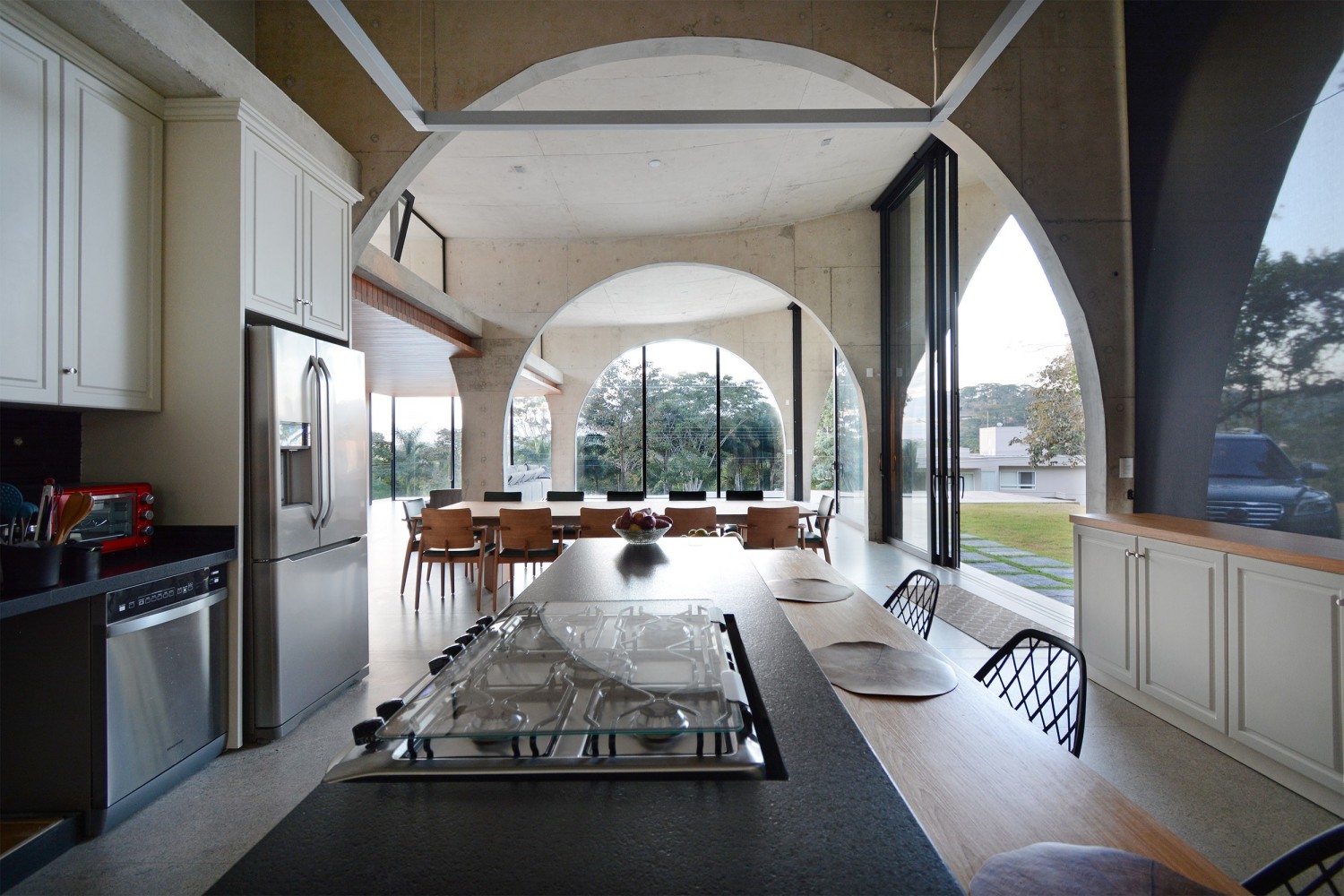

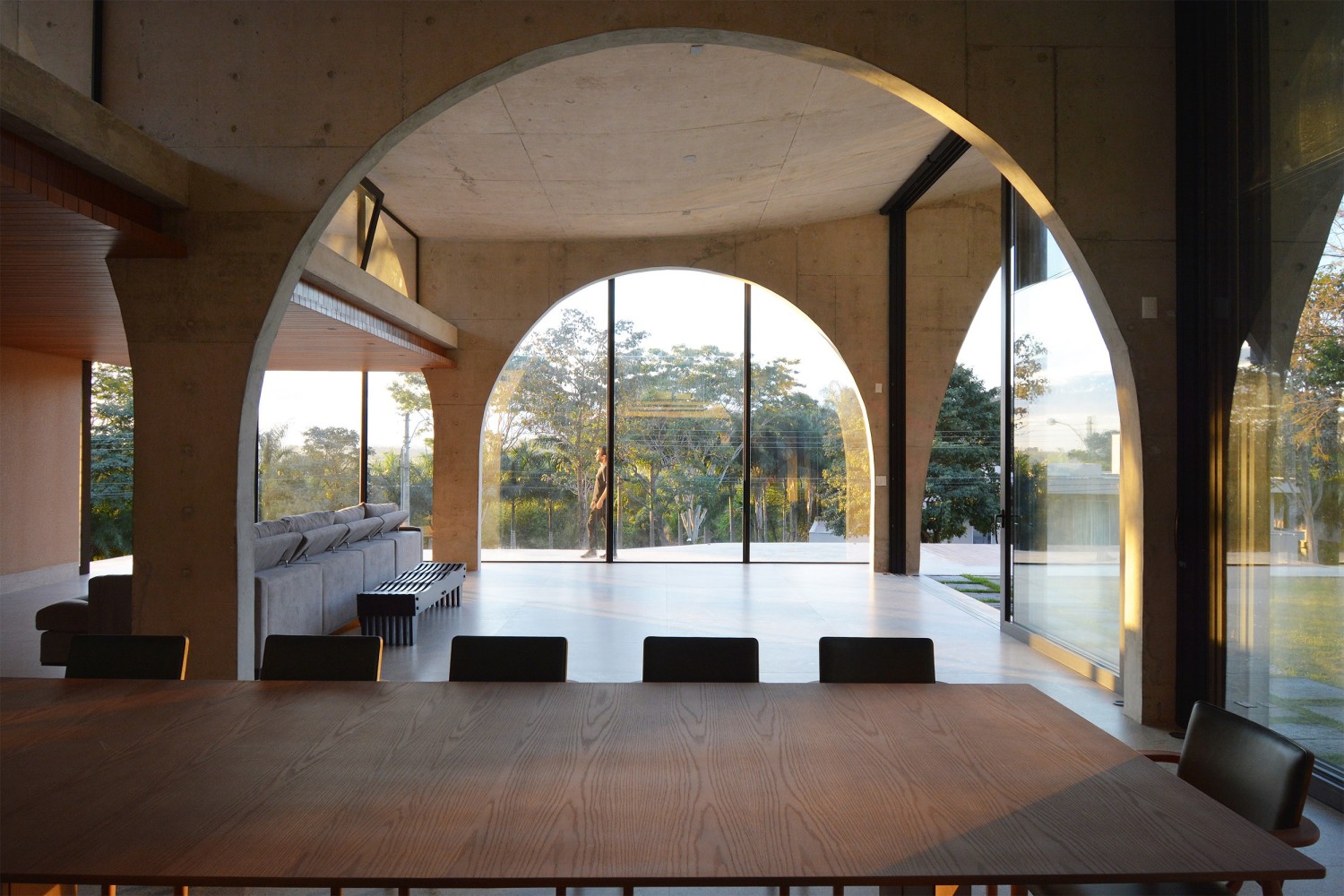

房屋的线条有机而流畅，最显著的特点是凹形屋顶，它位于六个拱顶上，由一个巨大的不同厚度的混凝土板相互连接。屋顶的曲线是以鸟儿的飞行为思路设计建造的。在拱门画廊，客厅、厨房和阳台的位置，天花板高度是其他空间的两倍，地板上的照明通过在墙壁上创造了有趣的光影效果，吸引了人们的注意力，这个场景十分生动有趣。

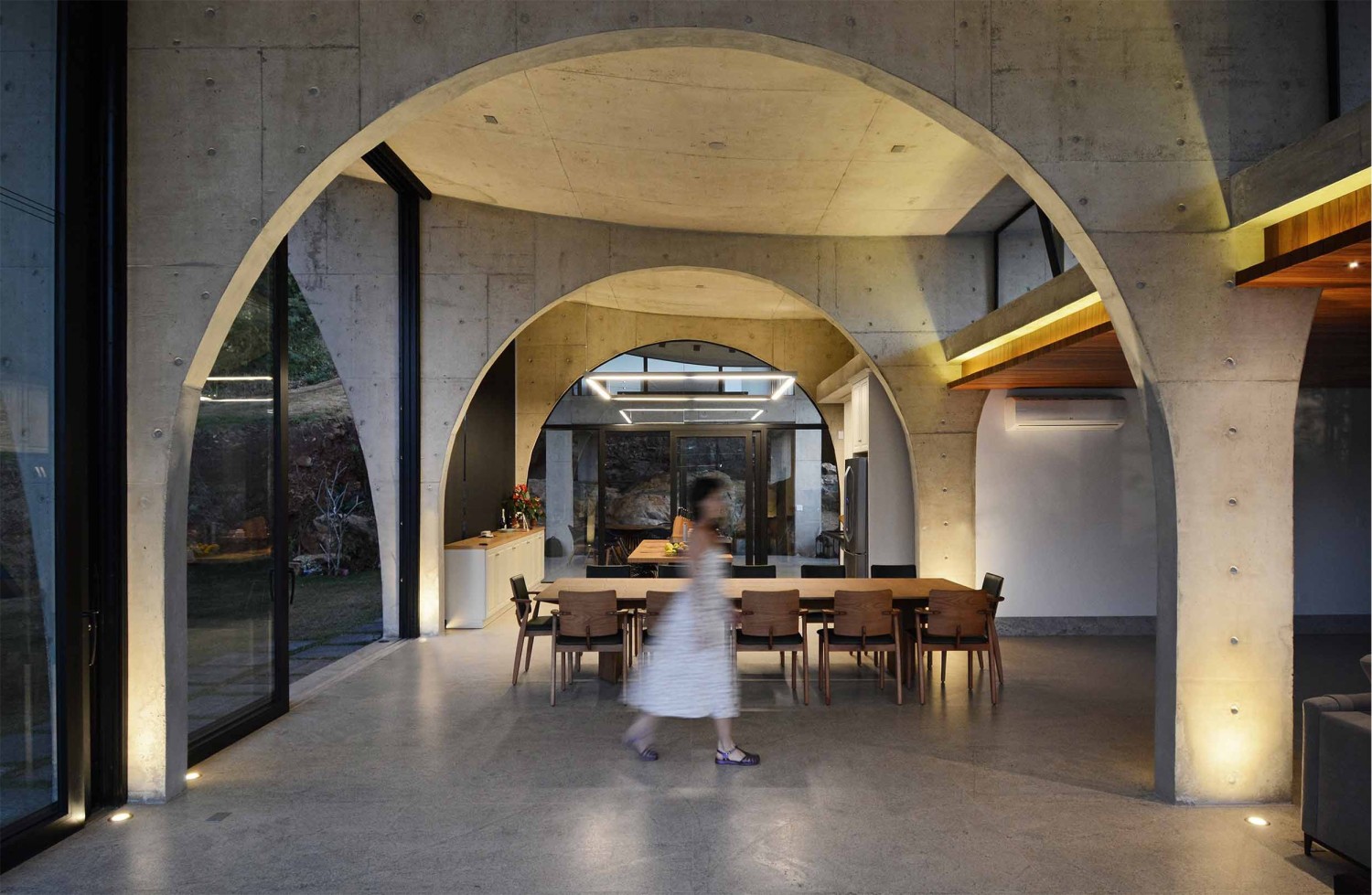

The house has organic and smooth lines, with a striking feature as a concave roof that rests on six vaults interconnected by a massive concrete slab of variable thickness. The roof’s curves were built thinking of a bird's flight. In the arches gallery, where the living room, kitchen and balcony are located, the ceiling height is double and the lighting lit from the floor draws attention by creating a bath of light on the slab, with shadows and playful scenes resulting.

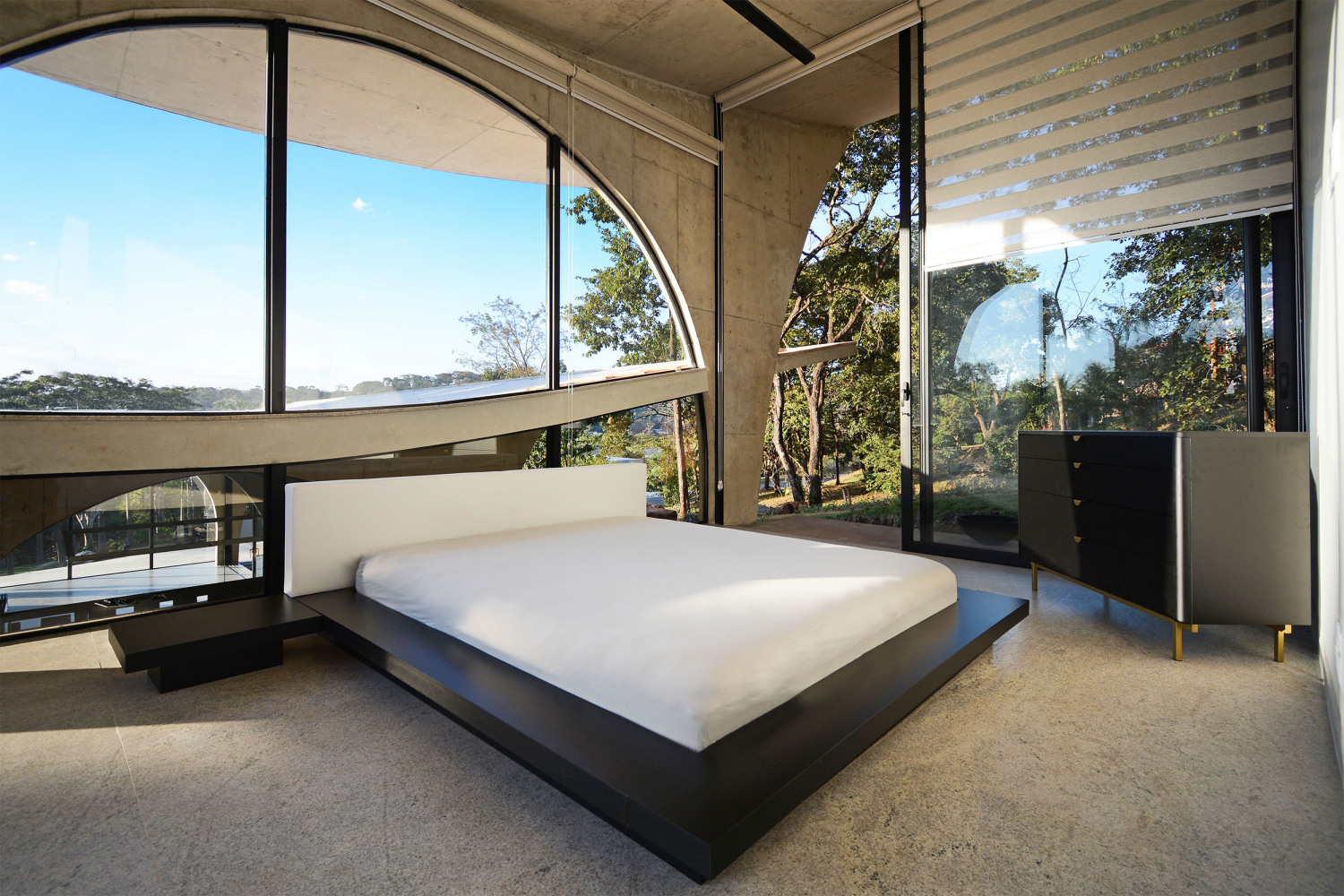

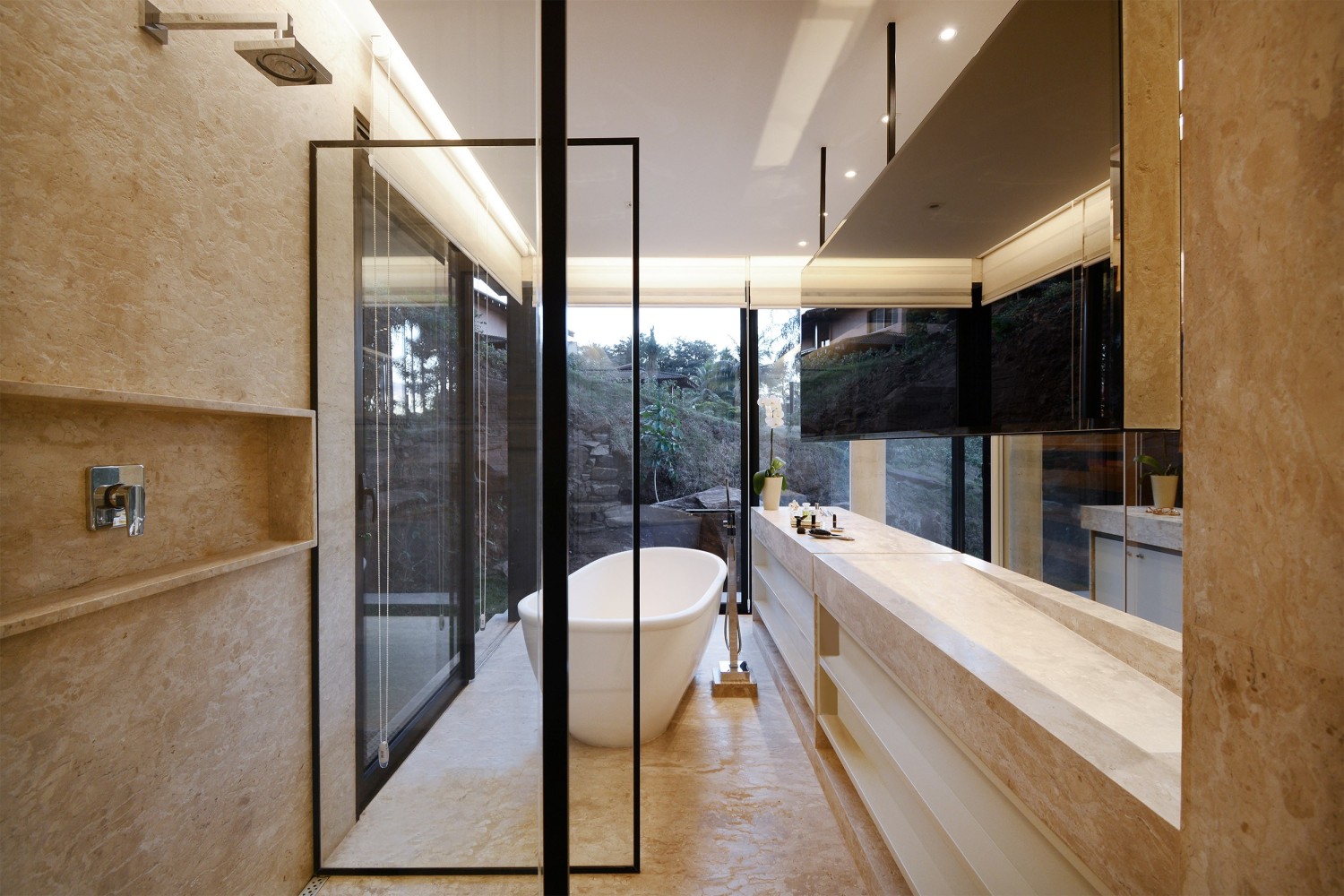

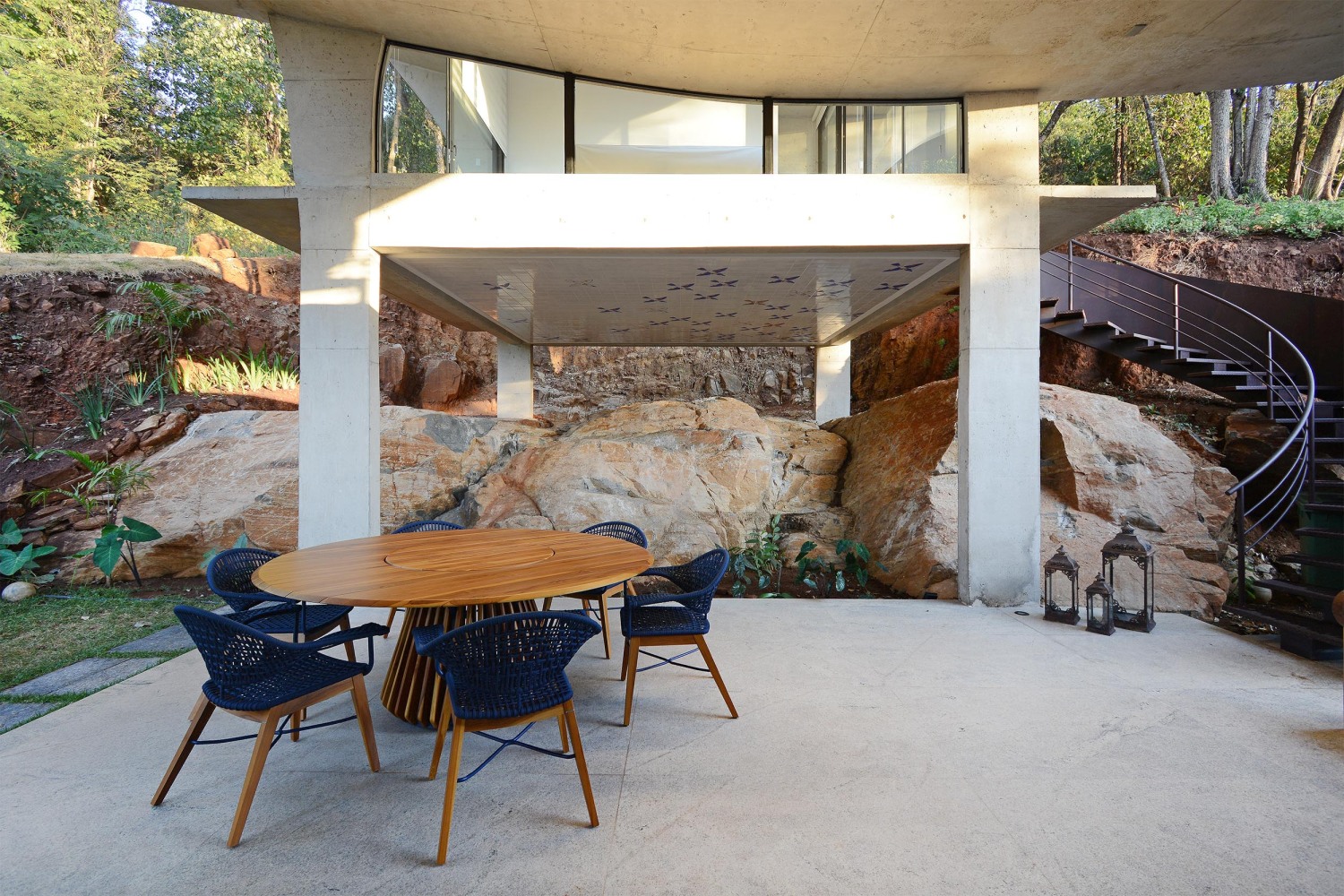

私密空间位于较低的区域，每个房间都有自己的私人浴室和花园。服务和休闲区域连接在房子的后面，那里有2.5米高、25米长的天然石墙，这是一个惊喜。这个石墙被视为雕塑元素，石墙中挖出的水创造了一种清新、独特和令人惊讶的氛围。此外，艺术家IêdaJardim设计了一个白色的瓷砖面板，类似令人惊叹的蓝色和金色鸟群，进一步加强了休闲区的氛围。

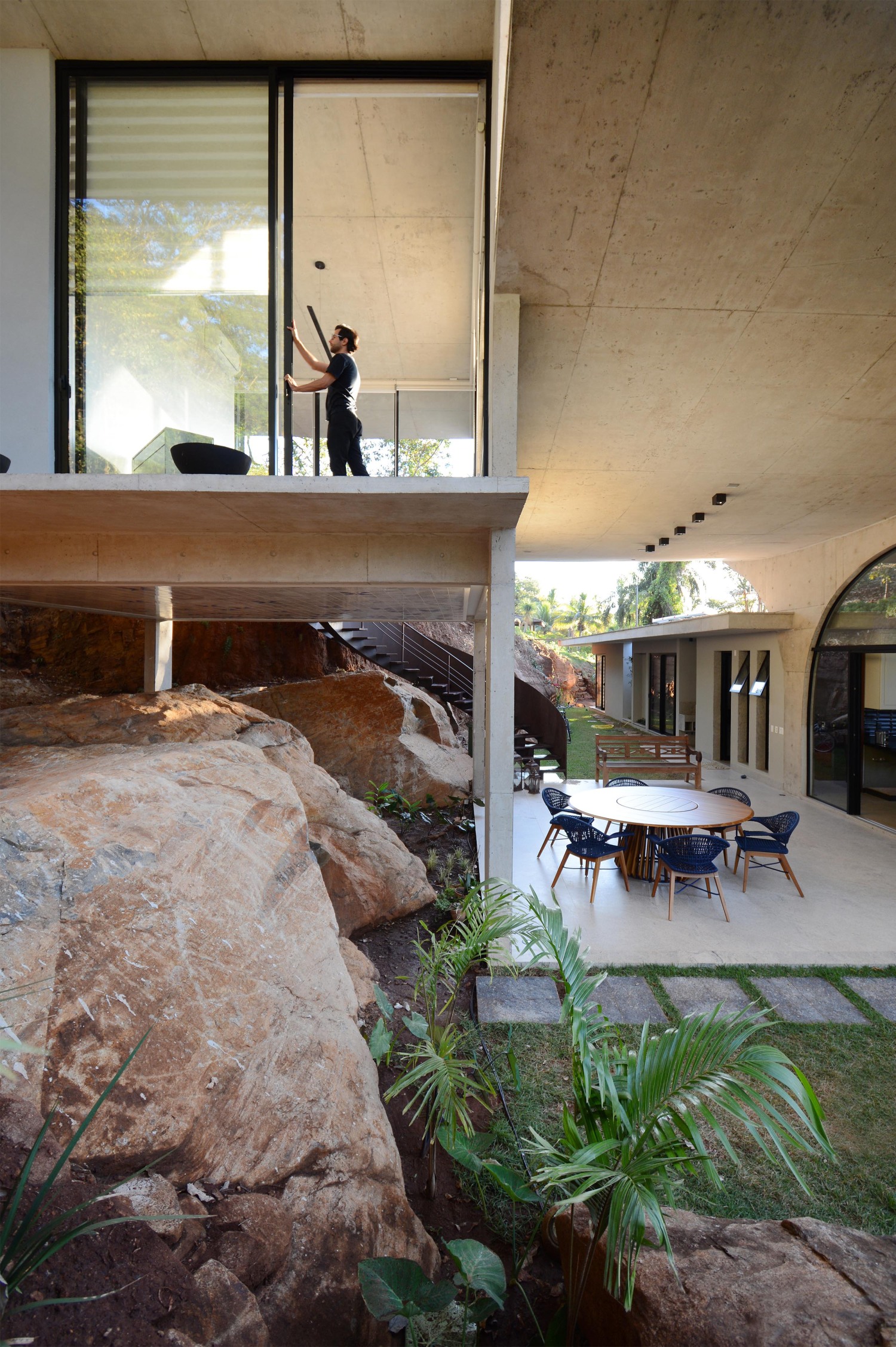

The intimate sector is in the lower block, and each room has its own private bathroom and winter garden. The service and leisure sectors are connected at the back of the house, where a 2.5m high and 25m long natural stone wall is located, a surprise not shown in the foundation project. This stone wall was treated as a sculptural element, not to mention the water that mines from it, creating a fresh, unique and surprising atmosphere! Moreover, a white tile panel resembling a stunning blue and golden flock of birds was designed by the artist IêdaJardim, and further enhanced the design of the leisure sector.

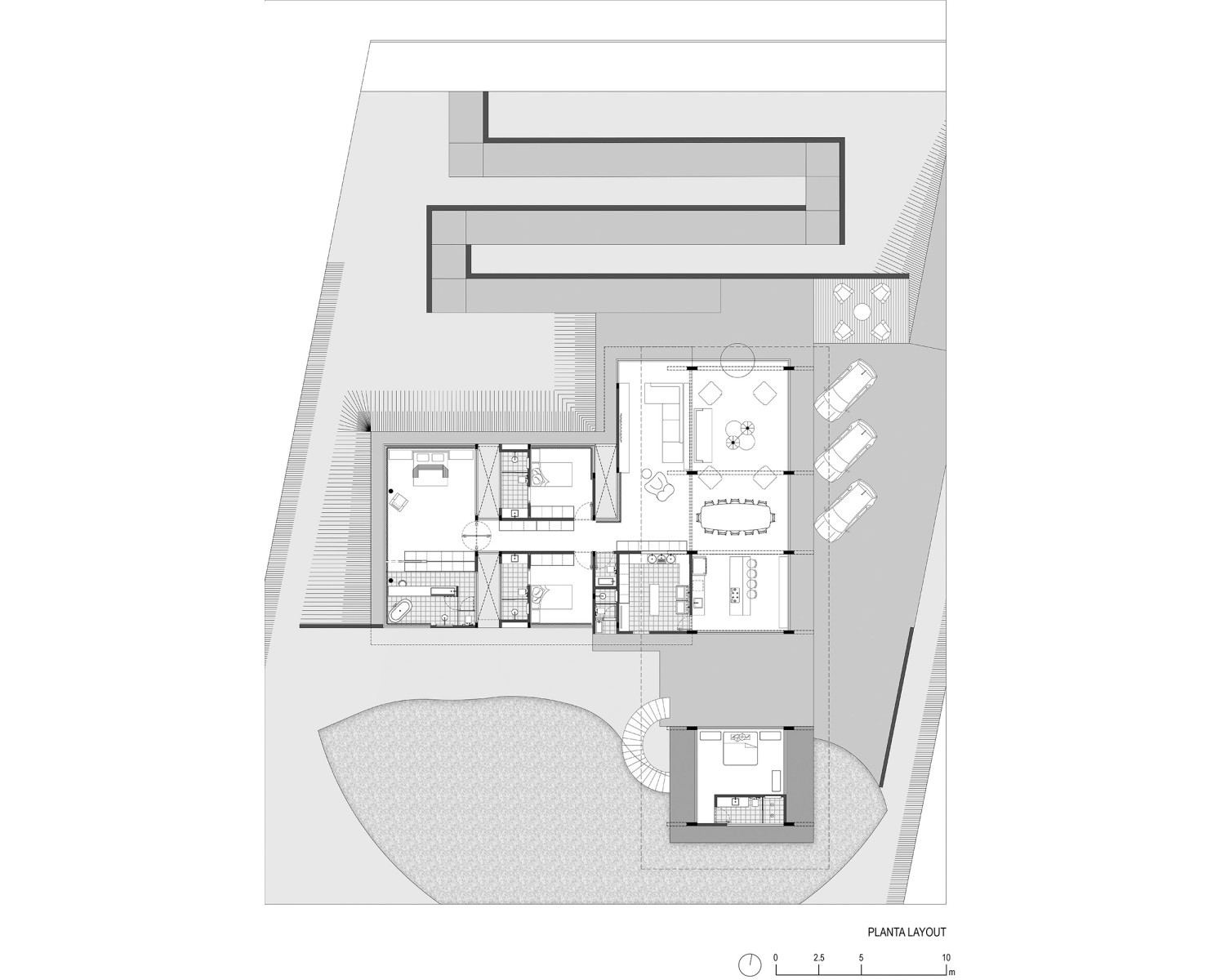

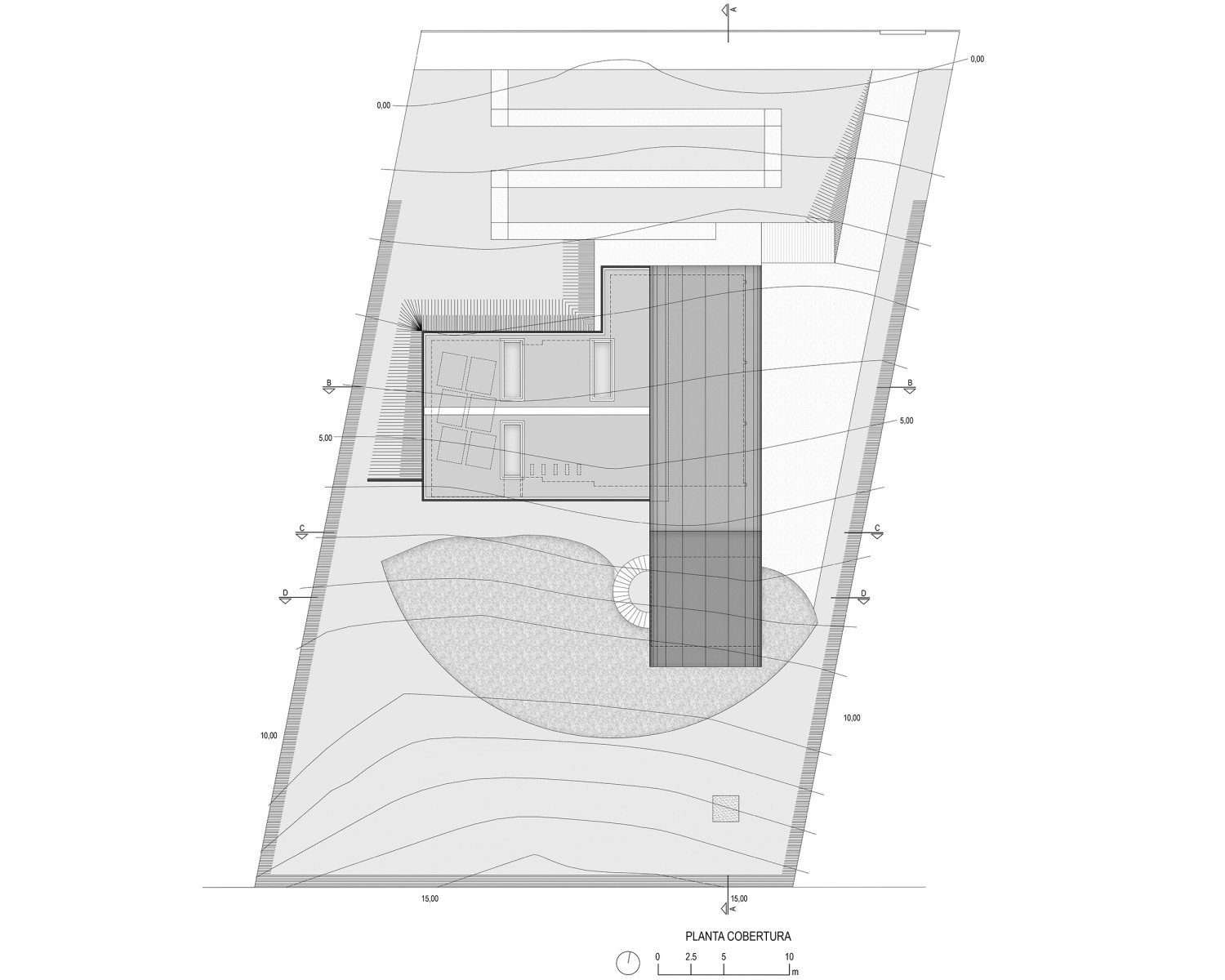

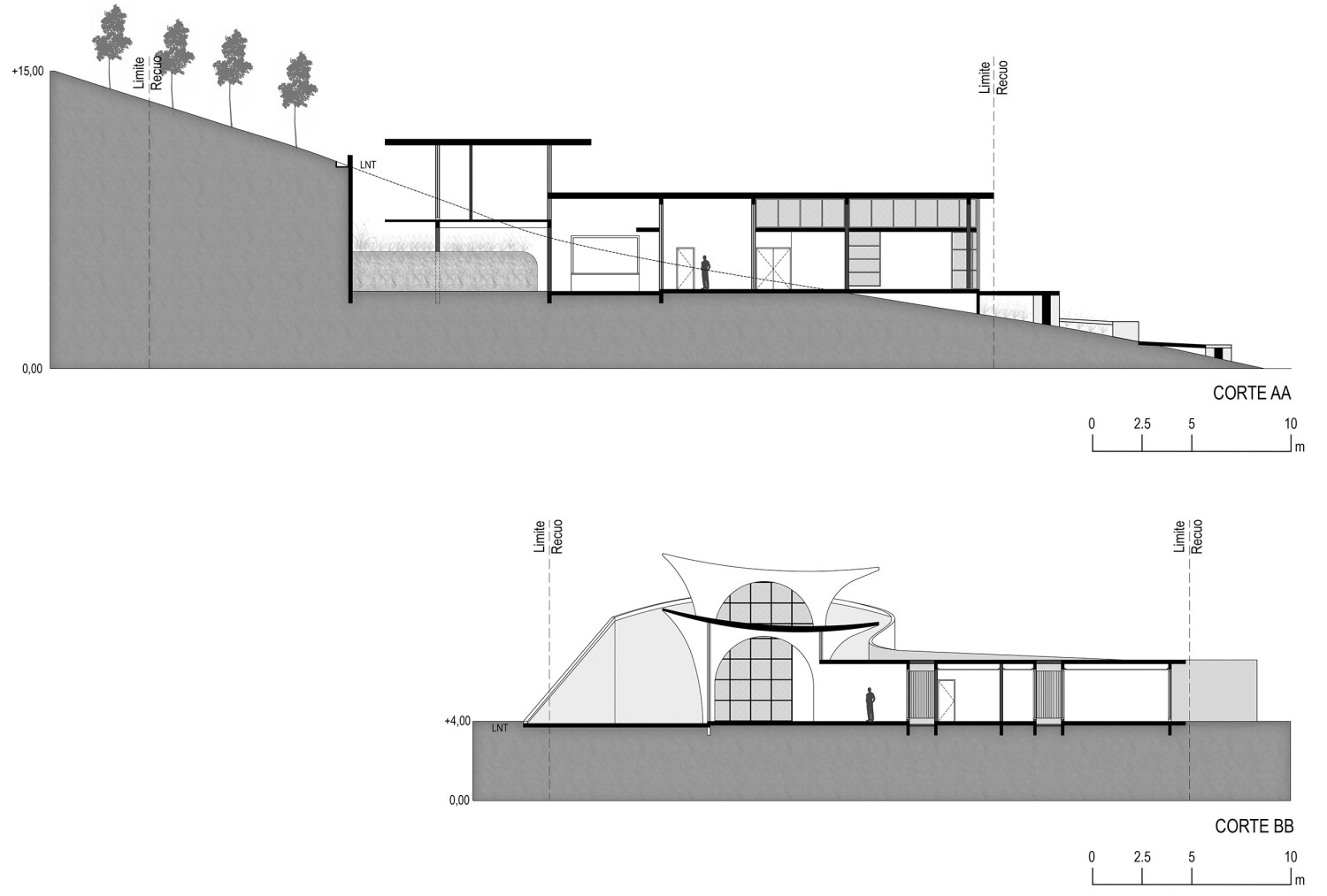

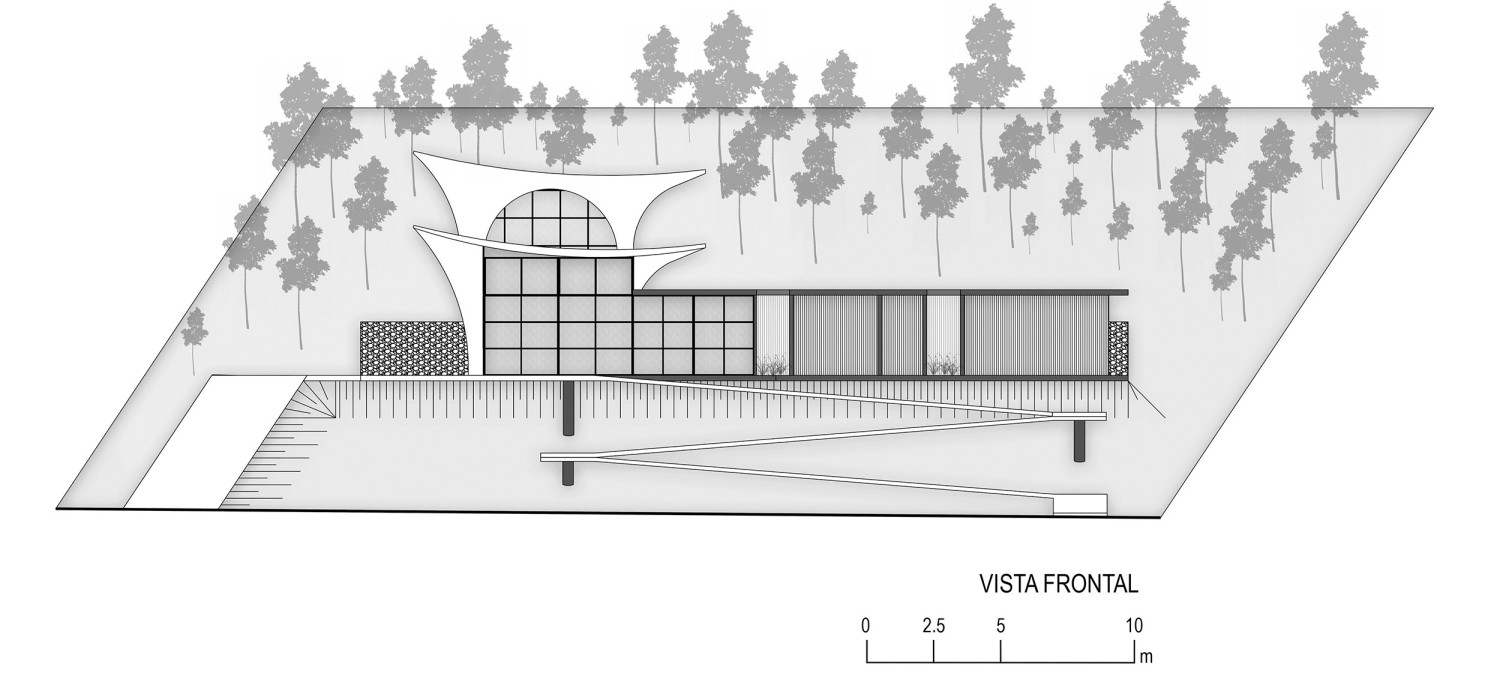

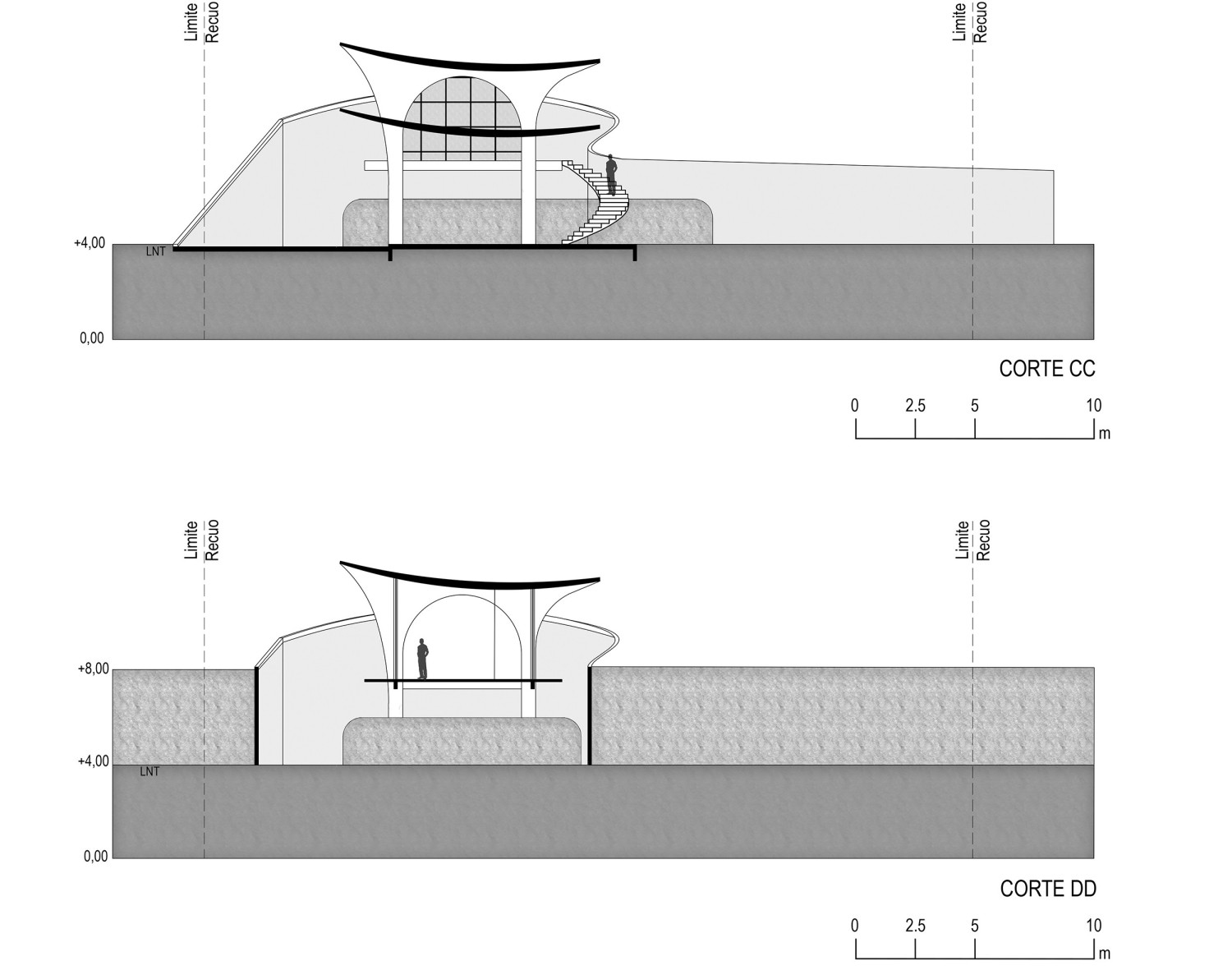

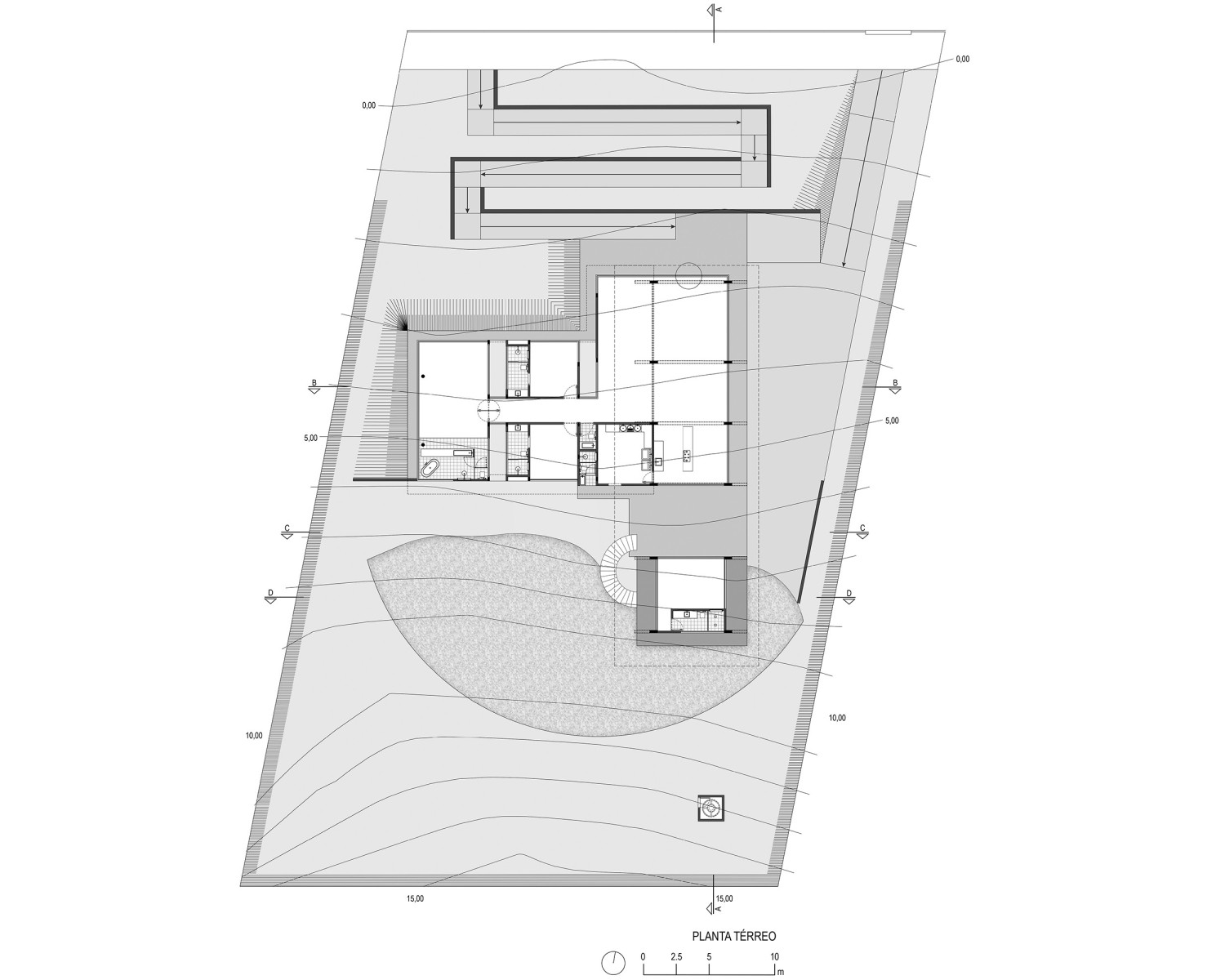

▼项目图纸 Drawings

Project name: CASA JOY

Office: STUDIO RODRIGO FERREIRA

Website: https://www.rodrigoferreira.arq.br/

E-mail:contato@rodrigoferreira.arq.br

Office Location: GOIÂNIA – GOIÁS

Project completion year: 2020

Gross built area: 370m²

Project location: CONDOMÍNIO ALDEIA DO VALE

Lead Architect: RODRIGO FERREIRA

Lead architect contact email: rodrigo@rodrigoferreira.arq.br

Project Team: THYAGO CHESMAM / LARISSA KRAVCHENKO / ISABELLA TONELLI / CAIO WEBER / JOHNATHAN OLIVEIRA / BÁRBARA FERREIRA

Customers: LILIAN JOY

Engineering: BUENO PROJETOS ESTRUTURAIS

Landscaping: FREDERICO RODRIGUES

Consultants: DIRETRIZ CONSTRUTORA

Photo credits: MARCUS CAMARGO
